Description

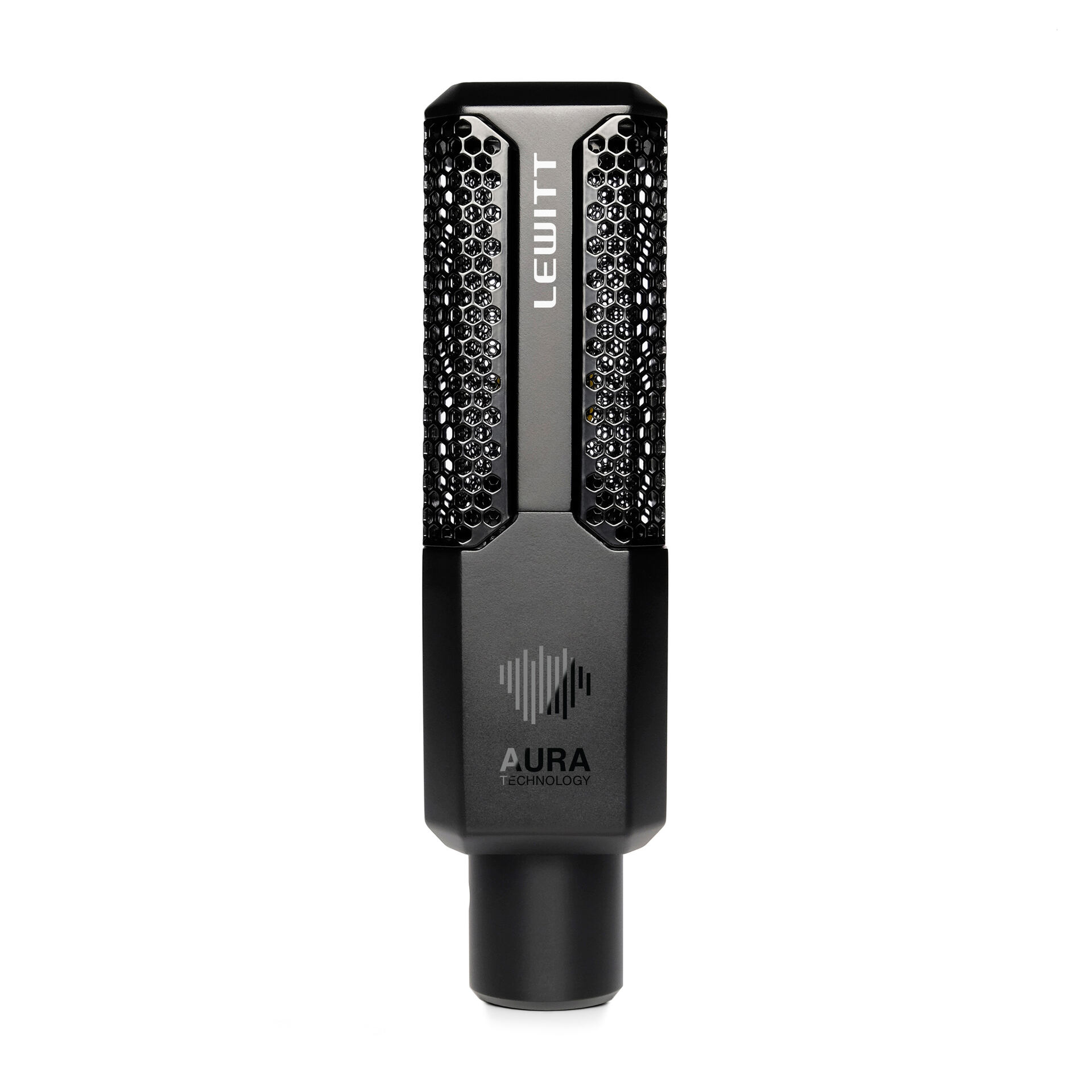

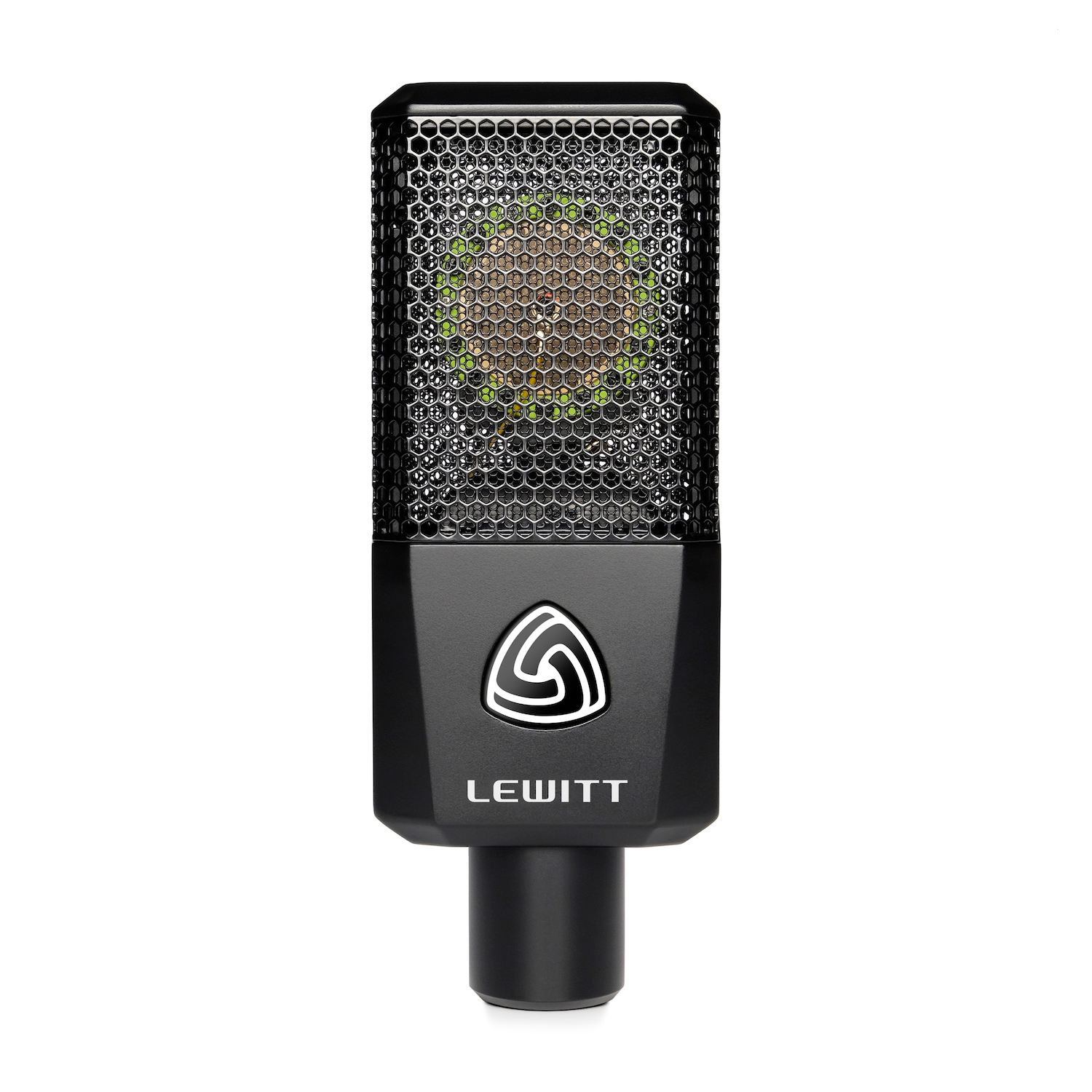

The RAY is a large-diaphragm studio microphone from Lewitt
You've long been familiar with the autofocus that makes all your photos a success. Now we've introduced RAY, the microphone with similar AURA technology for sound recording.
The studio microphone constantly adapts to the distance between the source and the microphone, adjusting gain and sound for a consistently successful recording!

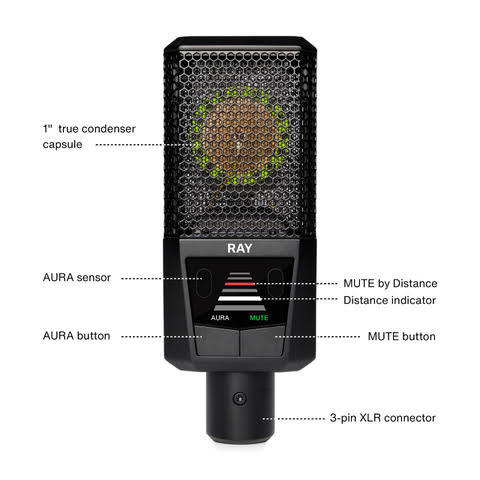

RAY microphone highlights
- AURA technology: This studio mic features AURA technology, an innovation similar to autofocus in photography. It automatically adjusts gain and sound according to the distance between the sound source and the mic.
- Easy to use: With AURA technology, the RAY adjusts quickly to different recording environments for quality sound recording.
- The RAY's constant ability to adapt ensures accurate recording. This guarantees optimum audio quality every time.
- Thanks to its compact, ergonomic design, the RAY is easy to handle and position, offering a pleasant, intuitive user experience in all circumstances.
- The RAY is designed for intensive use, with high-quality materials and a robust design. It offers outstanding audio performance over the long term.
RAY microphone features

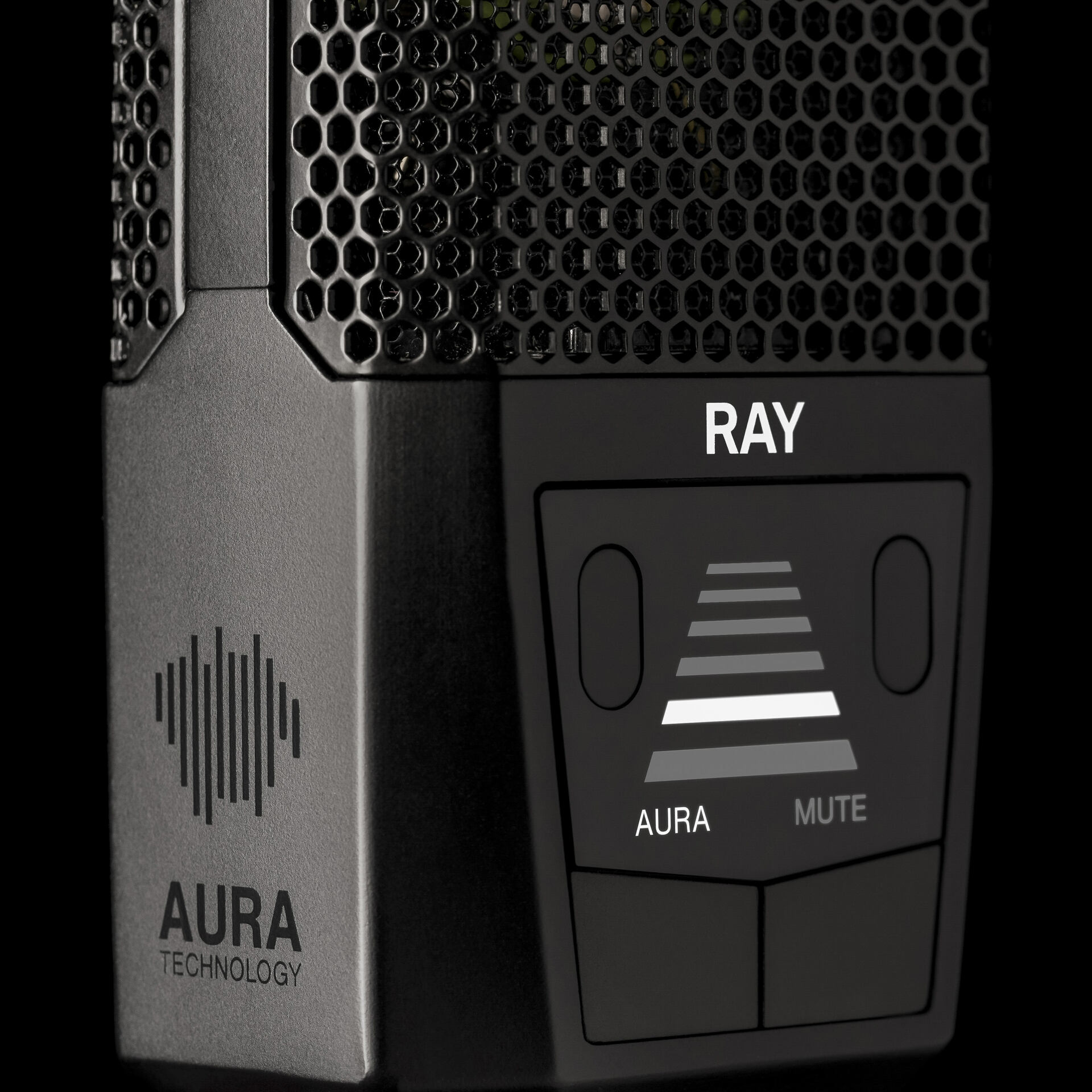

Advanced AURA technology
The RAY microphone revolutionizes audio recording with its AURA technology, guaranteeing professional-quality recordings every time.

Audio precision
The studio microphone records sounds with precision thanks to its advanced system. It captures every detail with exceptional fidelity.

Ergonomic design
With its ergonomic, intuitive design, it's easy to handle and position, offering a comfortable, efficient user experience.
Explore new horizons with the RAY microphone
Purchasing the RAY microphone from our website is a wise investment for audio professionals and discerning amateurs alike. Its advanced technology, ease of use and exceptional audio quality make it an essential choice for any recording application.
Our experts' opinion
- The RAY microphone is a revolution in audio recording.
- Thanks to its advanced AURA technology, the microphone offers exceptional adaptability and audio precision, guaranteeing professional-quality sound recording in all circumstances.
- The microphone stands out for its ergonomics and ease of use.
- This high-performance, versatile microphone is ideal for audio professionals and demanding amateurs alike.
Lire la suite
Technical sheet
- AURA technology
- Works like an autofocus for voice, thanks to sensors on the microphone
- MUTE by Distance function
- Mute the sound according to the distance between the source and the microphone
- Dedicated MUTE button
- Button for quick mute
- Sound quality
- Record-Ready sound
- Capsule
- 1" condenser capsule
- Signal
- 100% analog
- Design
- Compact, suitable for video capture
- Directivity
- Cardioid for rejection of ambient noise
- Connector
- Gold-plated 3-pin XLR
- Compatibility
- Compatible with any audio interface featuring 48v phantom powering

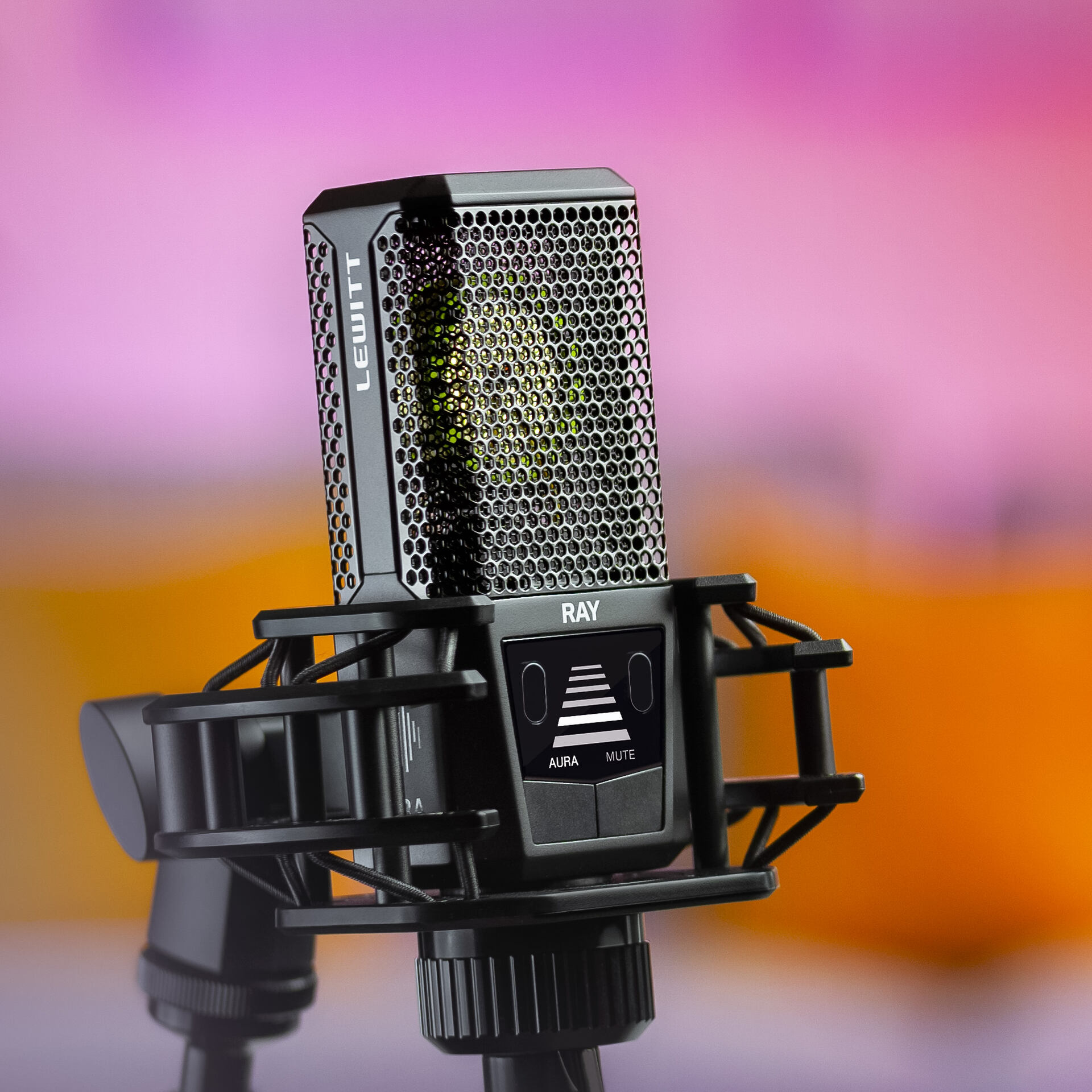

- Accessories included
- Includes suspension, magnetic pop filter, windscreen and carrying case
- Type
- Capacitor, externally polarized
- Acoustic operating principle
- Pressure gradient transducer
- Diaphragm
- 3-micron gold-metallized Mylar
- Transducer diameter
- 25.4 mm, 1 inch
- Frequency range
- 20 ... 20,000 Hz
- Sensitivity
- 22.6 mV/Pa, -32.9 dBV/Pa
- Self-noise
- 8 dB (A)
- Maximum SPL
- 131 dBSPL
- Signal-to-noise ratio
- 86 dB (A)
- Dynamic range
- 123 dB (A)
- Features
- AURA, remote MUTE, MUTE button, lock mode
- AURA processing range
- 5 to 100 cm / 2 to 40 inches without interruption
- MUTE range by distance
- 15 / 30 / 45 / 60 / 80 cm - 6 / 12 / 18 / 24 / 32 inches
- MUTE attenuation value
- -70 dB
- Supply voltage
- 48 V ± 4 V
- Power consumption
- 7.2 mA
- Internal impedance
- 120 Ω
- Microphone housing
- Zinc die-cast
- Microphone dimensions
- 138 x 52 x 36 mm, 5.43 x 2.04 x 1.42 inches
- Net weight of microphone
- 330 g, 11.6 oz
