Analog mixing desk

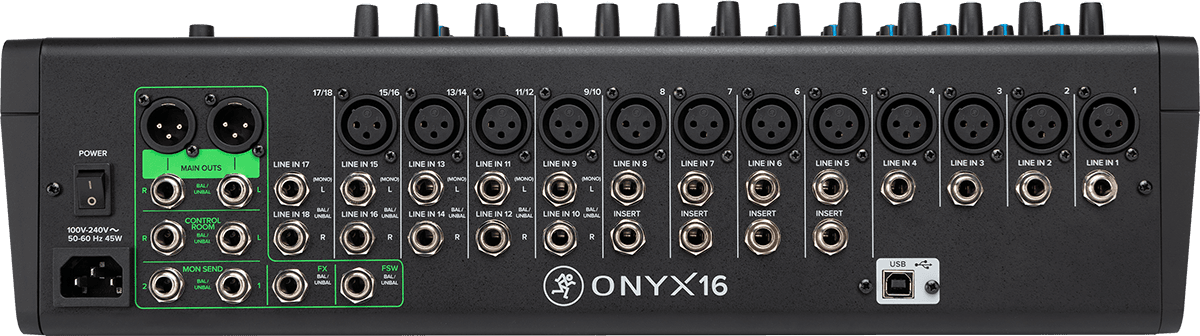

The Mackie Onyx 16 is a 16-channel mixer with USB interface.
Ultra-clean and quiet performance
Onyx microphone preamps with up to 60dB gain at high listening heights
Full multitrack recording via USB with up to 24-bit/96 kHz quality
Record a stereo mix directly to an SD card and play back music files
Professional and customizable built-in effects
Onyx Studio Command - Color display makes it easy to control effects and manage SD cards
Perkins "British Style" EQ delivers classic 60s and 70s sounds with modern performance and precision
Play music directly on a channel via Bluetooth®.
Ultra-clean and quiet performance
Onyx microphone preamps with up to 60dB gain at high listening heights
Full multitrack recording via USB with up to 24-bit/96 kHz quality
Record a stereo mix directly to an SD card and play back music files
Professional and customizable built-in effects
Onyx Studio Command - Color display makes it easy to control effects and manage SD cards
Perkins "British Style" EQ delivers classic 60s and 70s sounds with modern performance and precision
Play music directly on a channel via Bluetooth®.
Lire la suite
Technical sheet
- Mixer connectivity USB
- Number of channel mixing desk 10 to 22 channels
- Number of channels 18 channels
- EQ: 3-band with semi-param mid and 3-band according to slice
- Display: OLED
- Category : USB console
- Software provided: Tracktion Waveform, ProTools First
- Bus / groups: 4 sub-groups
- Microphone inputs: 12 x XLR
- Line inputs: 18 x balanced jack
- Main Outputs: 2 x XLR, 2 x balanced jacks
- Appetizers (others): minijack
- Outputs (others): footswitch, jack effect, 2 x balanced auxiliary jacks, 2 x balanced auxiliary jacks
- Recording: USB, SD card
- PFL/AFL mode: No
- Rackable : Yes
- Insert: Yes
- Bluetooth: Yes
- Motorized faders: No
- Phantom Power: Yes
- Built-in effects: Yes
- Software Controller: No
- Scene memory recall: No
- Fader stroke: 60 mm
- No. of auxiliary departures: 3
- No. of faders: 17
- No. of channels: 16
- Number of microphone preamps: 12
- Additional Specs: - 8 mono XLR and balanced jack inputs with insert (slices 5-8), adjustable gain (60db), (Hi-Z switch - slices 1-2), 3-band EQ with semi-parametric midrange and low-cut filter at 100 Hz
- 4 mono/stereo inputs (XLR and 2 x jack and 2 x balanced 6.35 mm jack) with adjustable gain (60db), 3-band EQ and low-cut filter at 100 Hz
- Volume control, Pan, 2 Aux sends, 1 FX send, Mute, Solo and signal indicator per channel
- Line In inputs 2x balanced 6.35 mm jack and stereo / Bluetooth minijack with volume control, panning 2 Aux, Mute, Solo outputs and signal indicator
- USB port (16x4 multitrack playback and recording, USB return on slices 13/14 and 15/16)
- Stereo recording and playback on SD card (11/12 return)
- 48 V phantom powering
- L & R XLR and balanced 6.35 mm jack main outputs (12-segment LED Vu-meter)
- Control Room jack 6.35 mm balanced outputs (12-segment LED meter)
- 6.35 mm headphone output with volume control
- Multi-effect programmable via oLed display
- Weight and dimensions: 6.9 kg; 476 x 356 x 136 mm- Delivered with : Pro Tools First, 23 Pro Tools plug-ins, Waveform OEM and the DAW Essentials collection including 16 plug-in effects for use with any S.T.A.N.
