Analog mixing desk

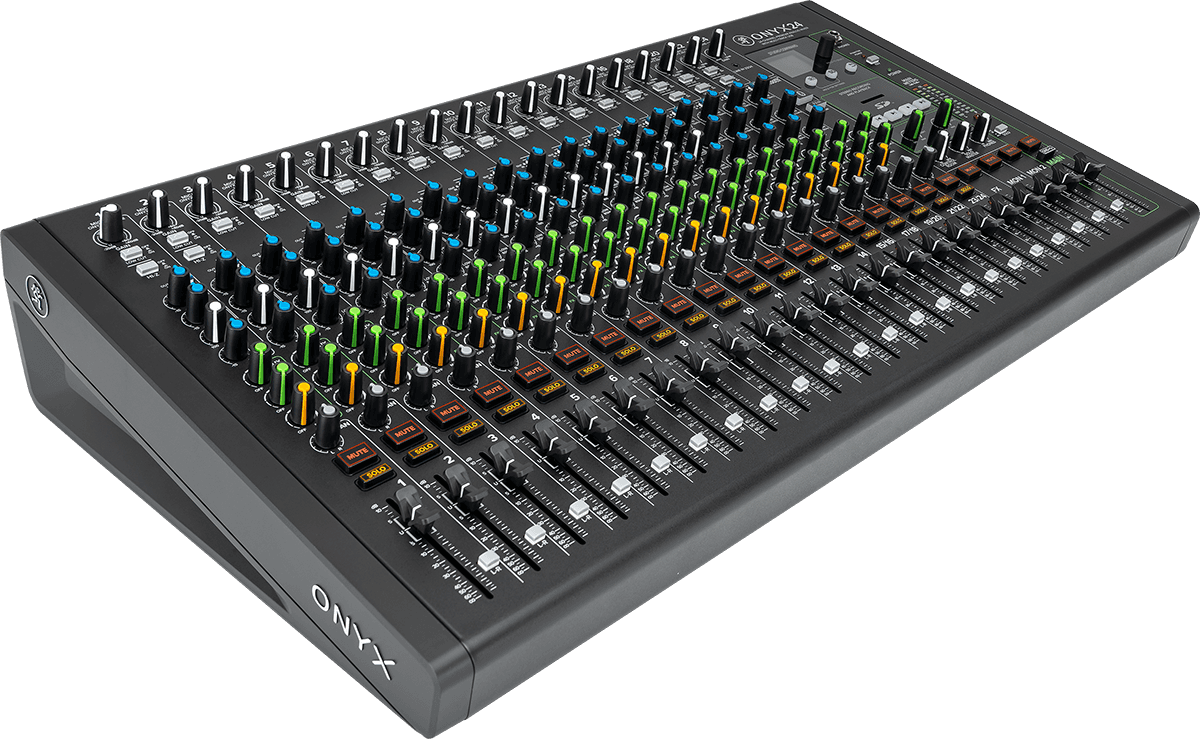

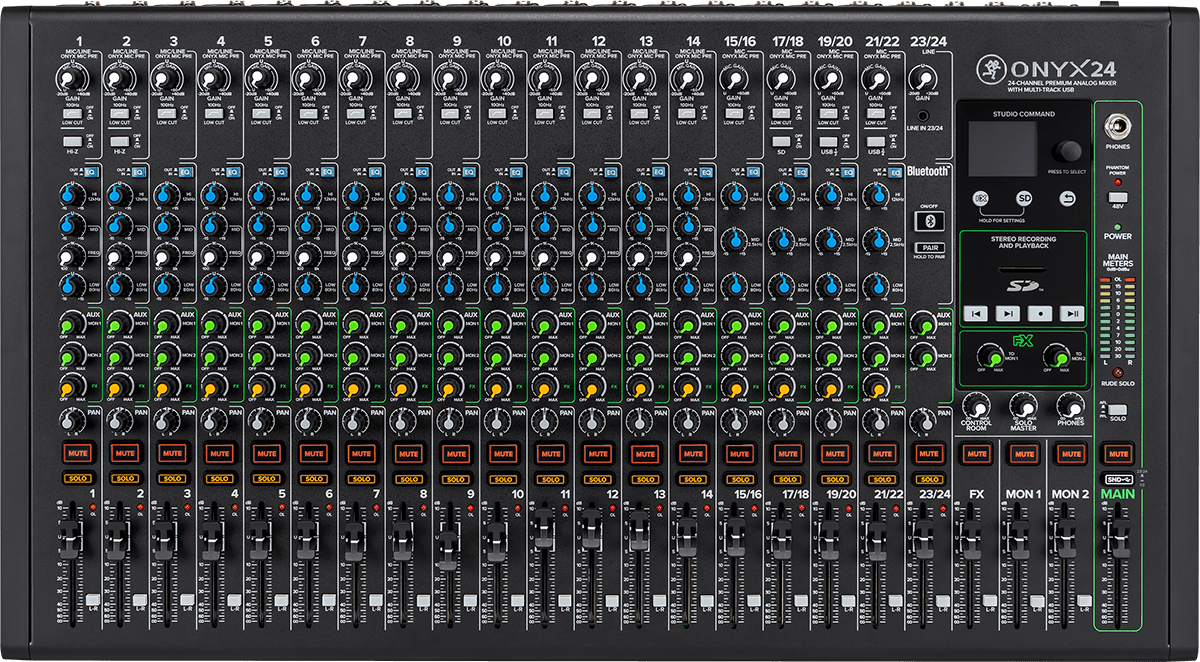

The Mackie Onyx 24 is a 24 channel mixer with USB interface.

Ultra-clean and quiet performance
Onyx microphone preamps with up to 60dB gain at high listening heights
Full multitrack recording via USB with up to 24-bit/96 kHz quality
Record a stereo mix directly to an SD card and play back music files
Professional and customizable built-in effects
Onyx Studio Command - Color display makes it easy to control effects and manage SD cards
Perkins "British Style" EQ delivers classic 60s and 70s sounds with modern performance and precision
Play music directly on a channel via Bluetooth®.

Technical sheet

Mixer connectivity USB
Number of channel mixing desk 24 channels and more

EQ: 3-band with semi-param mid and 3-band according to slice
Display: OLED
Category : USB console
Software provided: Tracktion Waveform, ProTools First
Bus / groups: 2 sub-groups
Recording: USB, SD card
PFL/AFL mode: No
Rackable : No
Insert: Yes
Bluetooth: Yes
Motorized faders: No
Phantom Power: Yes
Built-in effects: Yes
Software Controller: No
Scene memory recall: No
Fader stroke: 30 mm
No. of auxiliary departures: 3
No. of faders: 23
Number of channels: 24
Number of microphone preamps: 18

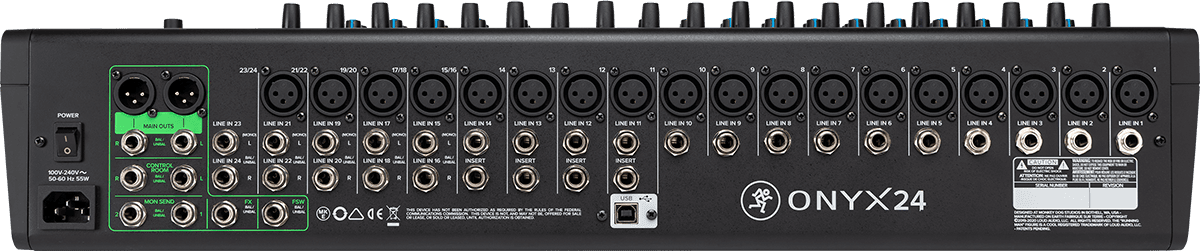

Additional Specs: - 14 mono XLR and balanced jack inputs with insert (slices 11-14), adjustable gain (60db), (Hi-Z switch - slices 1-2), 3-band EQ with semi-parametric midrange and low-cut filter at 100 Hz
4 mono/stereo inputs (XLR and 2 x jack and 2 x balanced 6.35 mm jack) with adjustable gain (60db), 3-band EQ and low-cut filter at 100 Hz
Volume control, Pan, 2 Aux sends, 1 FX send, Mute, Solo and signal indicator per channel
Line In inputs 2x balanced 6.35 mm jack and stereo / Bluetooth minijack with volume control, panning 2 Aux, Mute, Solo outputs and signal indicator
USB port (20x4 multitrack playback and recording, USB return on 19/20 and 21/22 slices)
Stereo recording and playback on SD card (18/19 slice back)
48 V phantom powering
L & R XLR and balanced 6.35 mm jack main outputs (12-segment LED Vu-meter)
6.35 mm balanced Control Room jack outputs (12-segment LED meter)
6.35 mm headphone output with volume control
Multi-effect programmable via oLed display
Weight and dimensions: 9.7 kg; 639 x 356 x 136 mm
Delivered with : Pro Tools First, 23 Pro Tools plug-ins, Waveform OEM and the DAW Essentials collection of 16 plug-in effects for use with any S.T.A.N.
