Martin by harman RUSH MH 1 Profile Plus

Read reviews (0)
Related accessories
Similar products

This article is no longer available for sale.

Unavailable

Stock in store

Not available in store

The brand Martin by harman

Learn more about the Martin by harman brand and discover the entire catalog.

Discover

How to choose your DJ Lights Buying guide

Lighting as a whole includes many devices such as projectors, effects machines, moving heads,LED scanners ... Each of them has a very precise use, and we will try, through this guide, to enlighten you

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Lyre

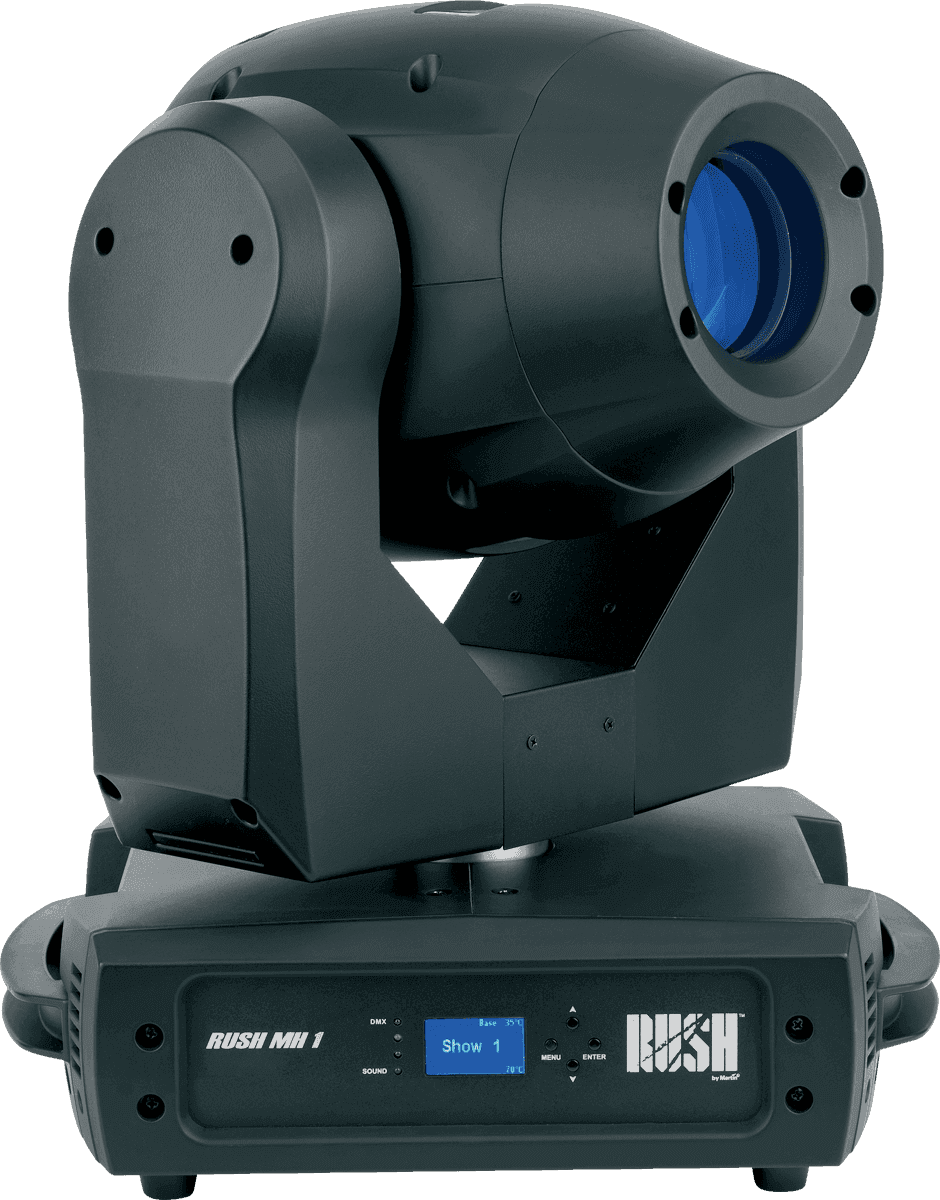

This super bright LED profile moving head is even brighter than its predecessor RUSH MH 1 Profile with 50% more output. Efficient optics with an increased beam angle from 13 degrees to 16 degrees punches out a variety of effects and colors from two gobo wheels and two color wheels. For added versatility and effect, it also houses an electronic dimmer and strobe, iris and 3-facet prism and an improved cooling system for quieter operation.

50 % increase in lumen output

16 degree beam angle

Regulated fan control for quiet operation

Technical sheet

DMX compatible Yes

Specifications
Physical
Dimensions: 418 x 588 x 328 mm
Weight: 18 kg
Dynamic effects
Color wheel 1: 7 colors + white, rotation at programmable speed and direction
Color wheel 2: 7 colors + white, incl. 1 x UV, 2 x CTC, rotation at programmable speed and direction
Rotating gobo wheel: 7 gobos + empty slot, wheel rotation, indexing, rotation and oscillation of each gobo
Fixed gobo wheel 8 gobos + empty slot, rotation and oscillation of the wheel
Electronic shutter: Strobe, pulsations, dry black and dry full fire
Prism: Indexing and rotation at programmable speed and direction
Iris: motorized
Focus: motorized
Electronic dimming: 0 - 100%, 4 curves available
Pan: 540°, fast + fine adjustment, programmable speed
Tilt: 270°, fast + fine adjustment, programmable speed
Control and Programming
Control options: DMX, standalone mode
DMX channels: 17
Synchronization of the autonomous mode: Music or automatic
Autonomous mode sequences: 4 pre-programmed animations
Standalone mode capacity: 20 scenes
Music mode sensitivity: Adjustable
Addressing and configuration: Backlit LCD display
DMX standard: USITT DMX512/1990
Optics and Photometry
Light source: LED, 1 matrix of 180 W
Minimum service life: 20,000 h (flow >70% initial flow)*
*Figures obtained after testing under manufacturer conditions
Construction
Color: Black
Construction: Impact-resistant flame-resistant thermoplastic
Protection class: IP 20
Gobos
Gobo diameter: 26.8 mm +/- 0.2 mm
Maximum image diameter: 22.0 mm
Thickness: 0.3 - 3.5 mm
Materials: Steel, aluminium or borosilicate glass
Installation
Fixing points: 2 subbases ¼ of tower for hooks
Placement: Dry areas only, must be firmly attached (surface or structure)
Orientation: All
Connections
Power supply, mains: Neutrik PowerCon
Copy, sector: Neutrik PowerCon
DMX signal, input / output: XLR 3 and 5 pin lockable
Electricity
Mains: 100-240 V nominal, 50/60 Hz
Power consumption: 300 W
Fuse: T 6.3 A
Power supply module: Electronic, switching, self-adaptive
Power and Typical Currents
100 V, 60 Hz : 26.3 A, 274 W, PF 0.942
230 V, 50 Hz : 13.4 A, 268 W, PF 0.870
Measurements made at nominal voltage, all LEDs at full current. Consider a variation of +/-10%.
Thermal Data
Cooling : Forced air, temperature-controlled
Maximum ambient temperature (Ta max): 40° C
Minimum ambient temperature (Ta min): 0°C
Total dissipation*: 1010 BTU/h
*Calculated, +/- 10%, at full intensity, white
Approvals
EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
CEM EU: IN 55015, IN 55103-1, IN 55103-1, IN 55103-2, IN 61000-3-2, IN 61000-3-3-3, IN 61547
Supplied accessories
Power cable, 0.75 mm² / 18 AWG, 15 m, 6 A, UL approved - H05VV-F, without plug
2 Omega bases with studs ¼ of tower for fixing collars
Accessories Accessories
16A power supply cables for cascade power supply
Power cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 3 m with PowerCon P/N connector 11541508
Mains copy cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 1.4 m with PowerCon P/N connector 11541509
Mains copy cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 2.25 m with PowerCon P/N connector 11541510
Power supply cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 3.25 ma with PowerCon P/N connector 11541511
Power supply connectors
Neutrik PowerCon NAC3FCA Neutrik PowerCon connector for cable mounting, power supply, blue P/N 05342804
Neutrik PowerCon NAC3FCB Neutrik PowerCon connector cable mount, power output, grey P/N 05342805
