Expander

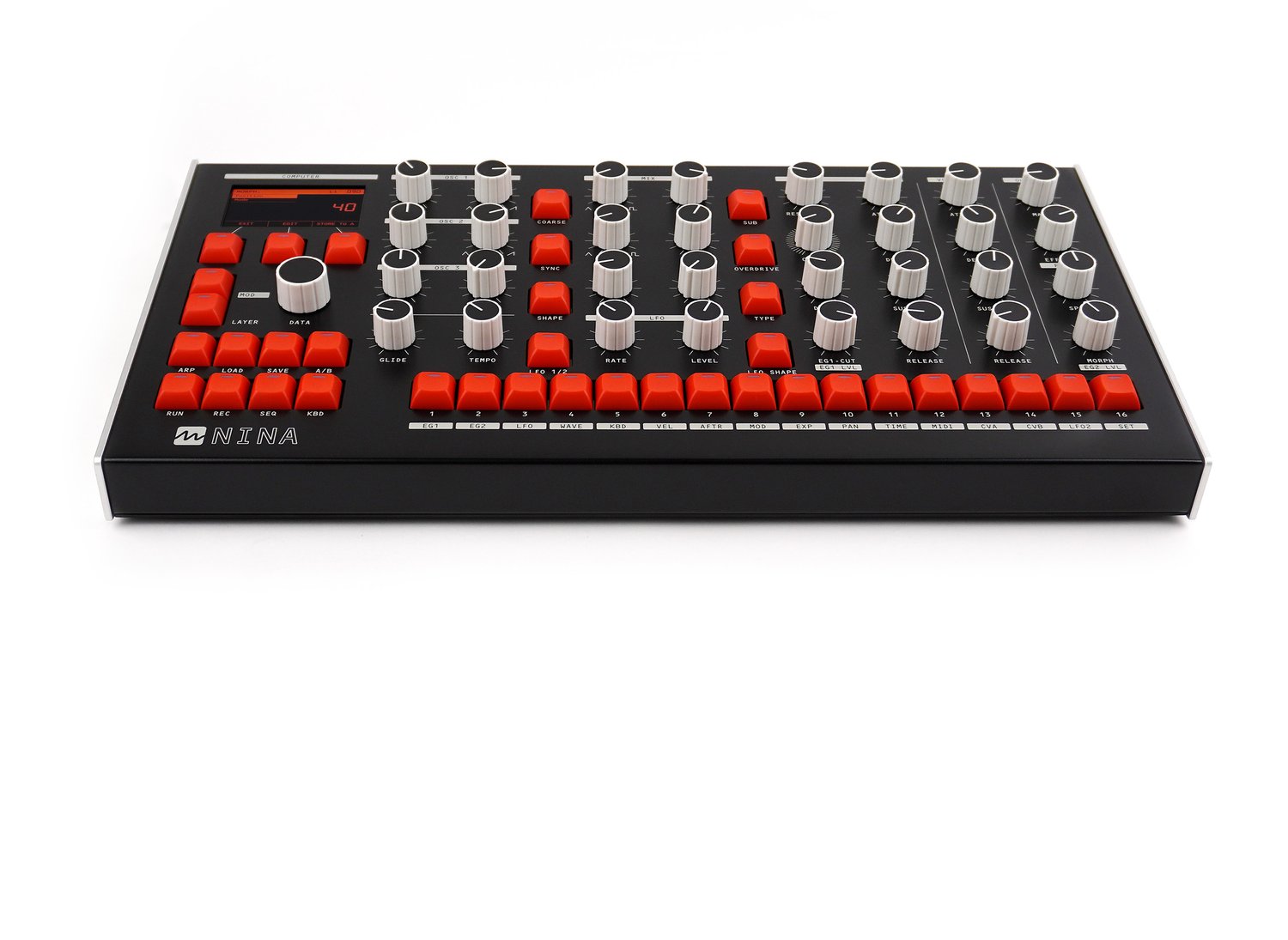

NINA is the world’s first fully motorized analog synthesizer. Synth players have dreamt of this feature for decades, and now it is finally available. Instantly recall your presets and layers, see exactly how the sound was created, or pick up from where you were last working.

NINA combines the advanced functionality, versatility and USB compatibility of modern digital equipment with the hands-on tactility and lush sound of classic analog synths. The result is a massive sounding analog polysynth, with an intuitive interface and workflow that gives you more control during composition and live performance. Musicians, Producers & Sound Designers can finally enjoy the flexibility of Soft Synth control from a real, physical instrument.

Technical sheet

Type of expander Analog

4 part Multi-timbral

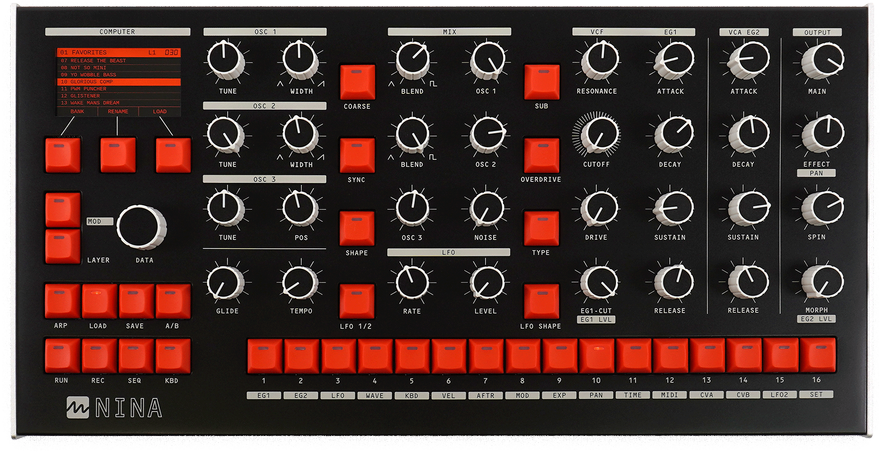

Motorized, recallable, automatable, assignable, and robust high resolution control panel
Unlimited & quick to edit Modulation Matrix
3 Oscillators per voice. 2 Analog VCOs, 1 Digital Wavetable.
Patch morphing
Onboard effects
3 Oscillators per voice. 2 Analog VCOs, 1 Digital Wavetable.
Oscillator 1 & 2 with waveforms morphable between triangle to sawtooth and PWM square-wave.
Sub octave mode for VCO 1 square wave.
Hard Sync Oscillator 2 from VCO 1.
Fine & Course tune control with up to 8 octave range.
96kHz 24bit Wavetable Oscillator Resolution.
User loadable Wavetables.
Selectable Fuzz & Noise sources - Pink, White, Oscillator 1 & 2 XOR (Fuzz).
LFO with selectable shapes, through-zero modulatable rate & level controls.
Modulatable resonance, available as a matrix destination.
Extremely over-drivable, or perfectly smooth low noise modes.
Dedicated control for Envelope to Cutoff modulation amount.
Traditional ADSR envelope with ultra-fast slopes possible.
Melbourne Instruments designed four-quadrant (through zero) VCA.
Stereo: 2 VCAs per voice.
Infinite panning.
Play up to 12 voices in unison or polyphonically.
Mono Triggered and Legato modes.
Selectable polyphonic panning schemes
Extensive modulation matrix. 16 sources to 27 destinations. No bus count limitation.
Morphable modulation settings.
Quick to edit MOD mode. Select a source and dial in amounts instantly on control panel.
All MOD amounts are through zero (bipolar)
Morph between patches to create new timbres.
Morph entire patch including Modulation Matrix.
2 x ADSR envelopes available as mod sources
Modulate Attack, Decay, Sustain, Release, and Level using velocity or any other mod source
Up to 4 layers for 4 Timbres controllable via MIDI channel and note ranges
User selectable number of assigned voices per layer
Optional linked note ranges across layers for quick keyboard splits & layering
Upgradable VST3 effects algorithms built on an Open Source architecture.
96kHz 24bit resolution
Parallel or Series mix modes. Parallel mode retains analog sound.
Up to 16 Step Polyphonic
Adjustable note value
Hold mode
Send Sequencer to Arpeggiator
Tempo sync from external source

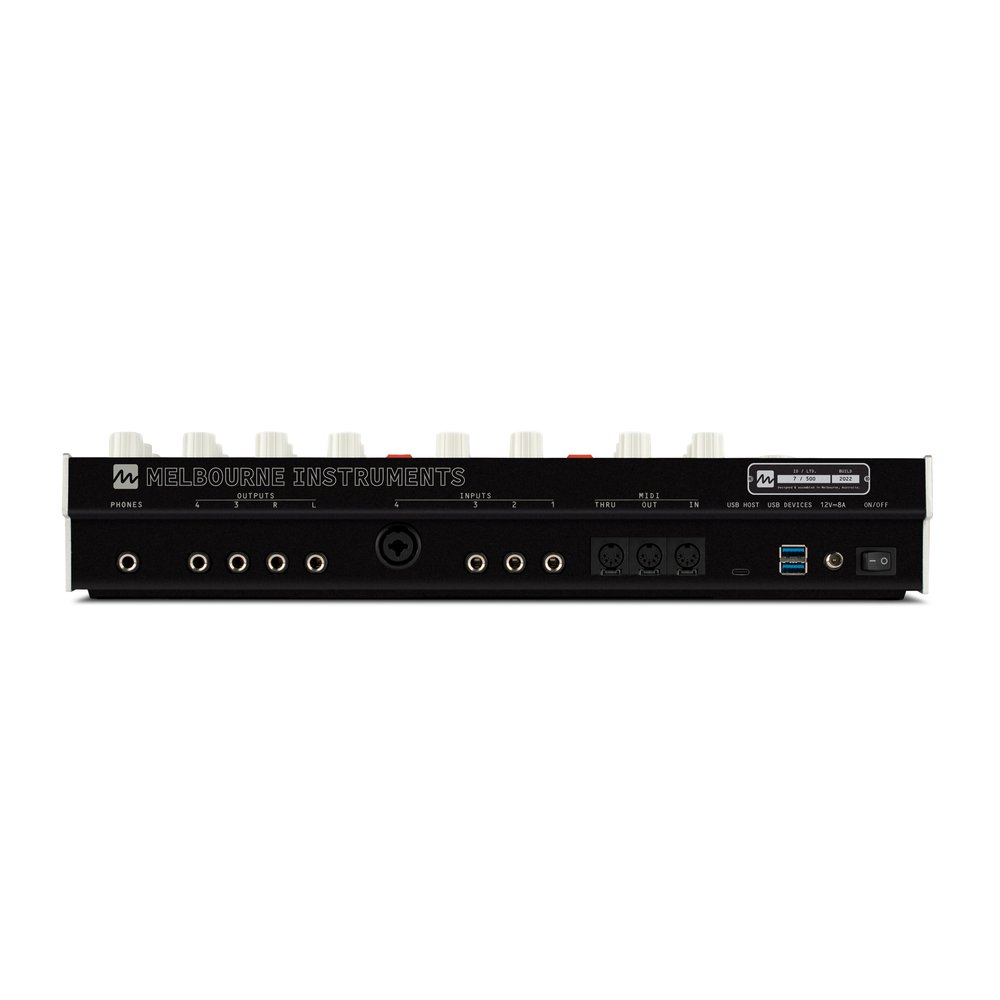

Audio Out
4 assignable line level outputs.
Stereo main outputs with effects.
Aux outputs (3 & 4).
Headphone output.
Audio In
3 TRS Balanced Line or CV Inputs.
1 TRS/XLR Combo. Mic for line/CV input.
CV +/-10V max. Analog gain and offset trim.
Weight: 5.5kg (12.1lb)
Dimensions (length x width x depth): 446mm x 230mm x 71mm.
Solid metal construction.
19” rack mount ears available.
