Usb audio interface

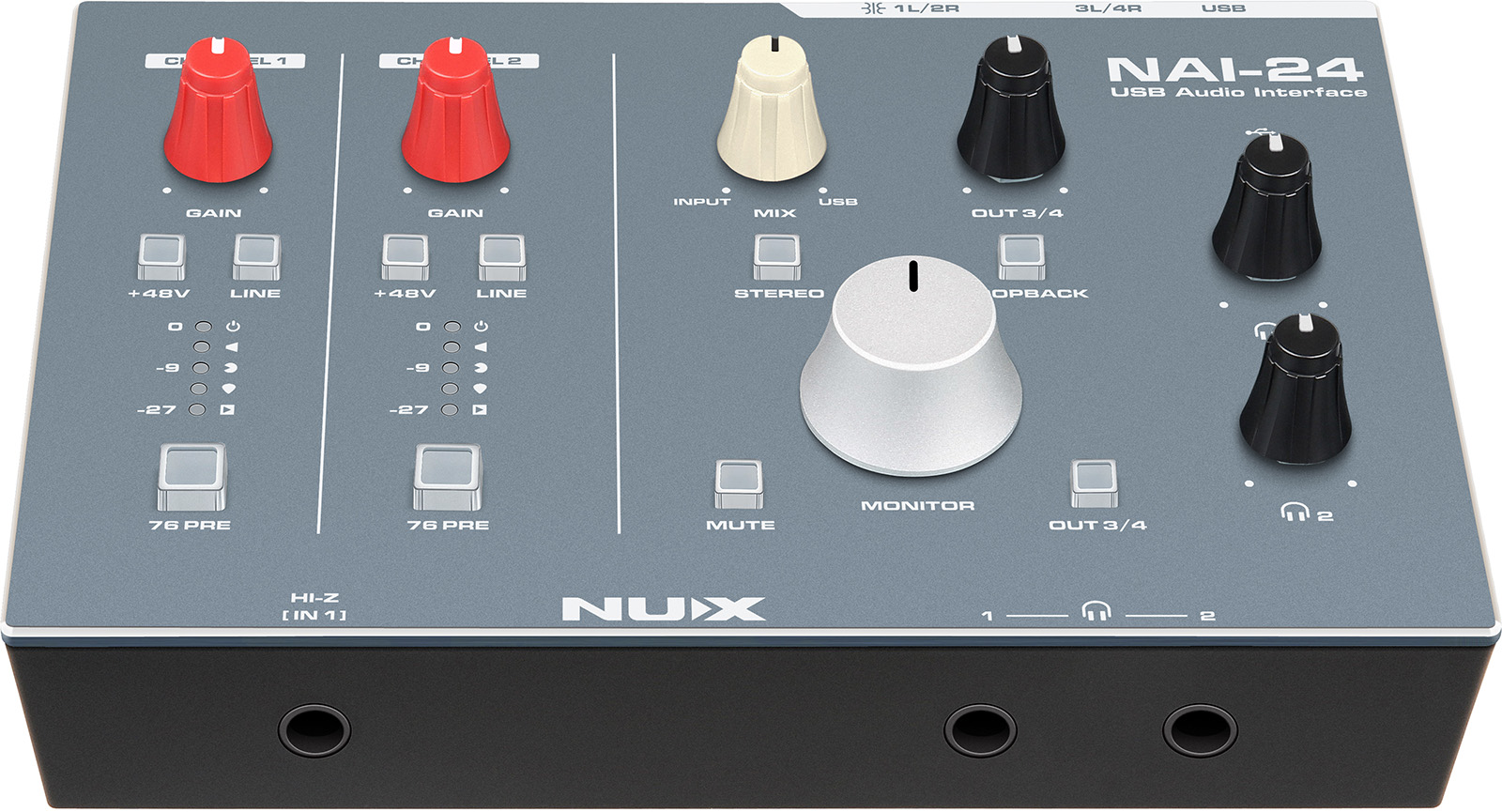

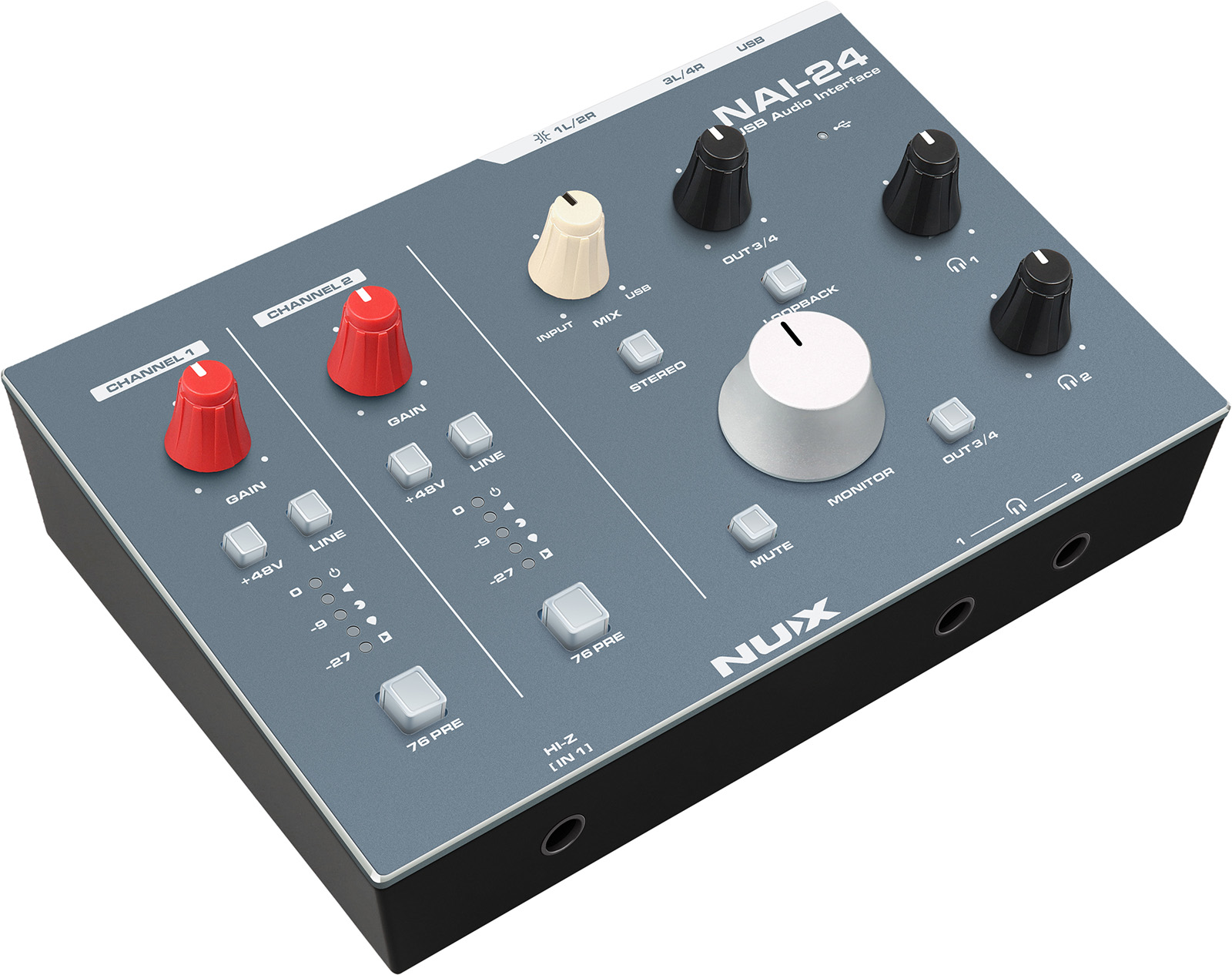

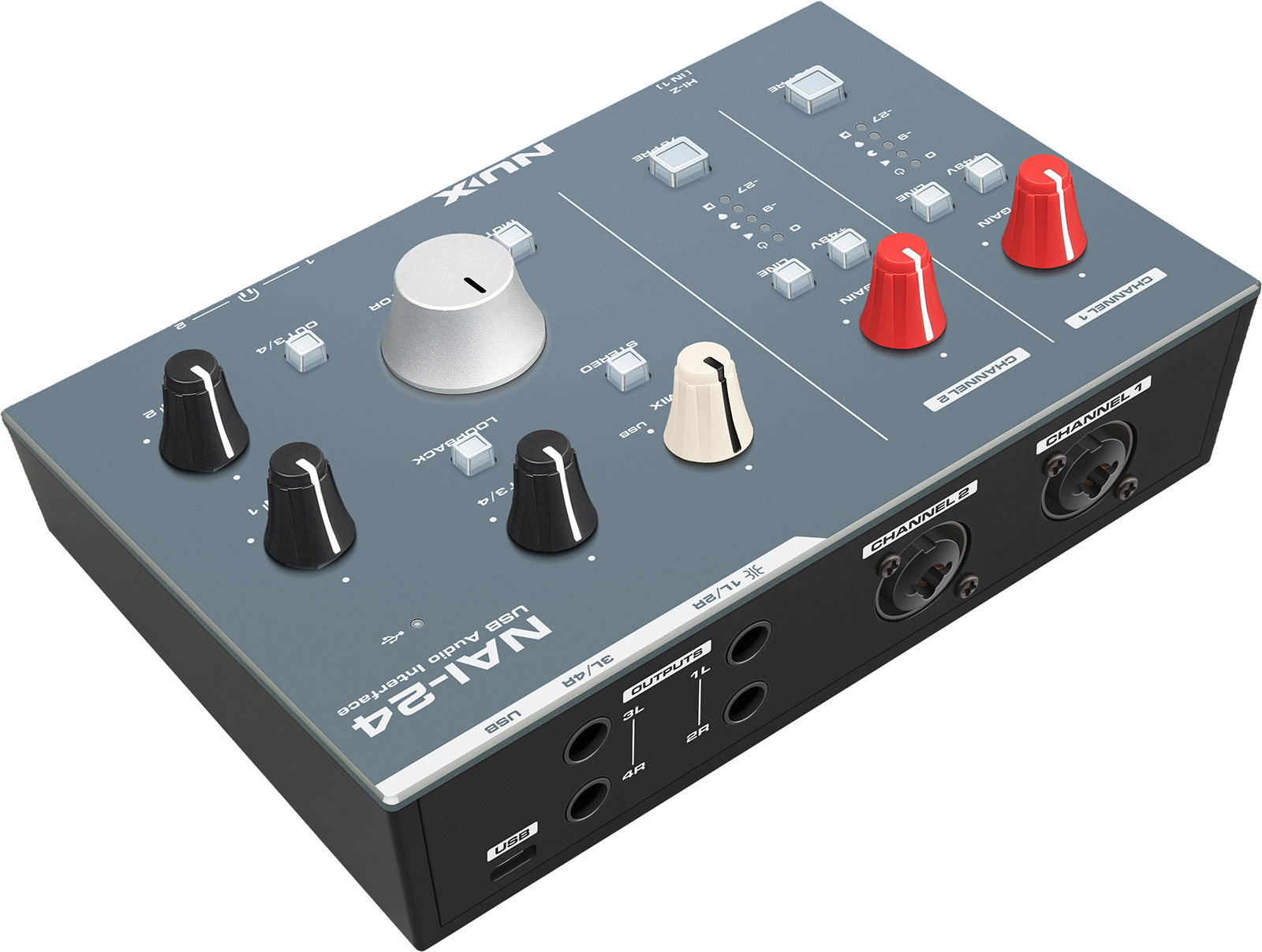

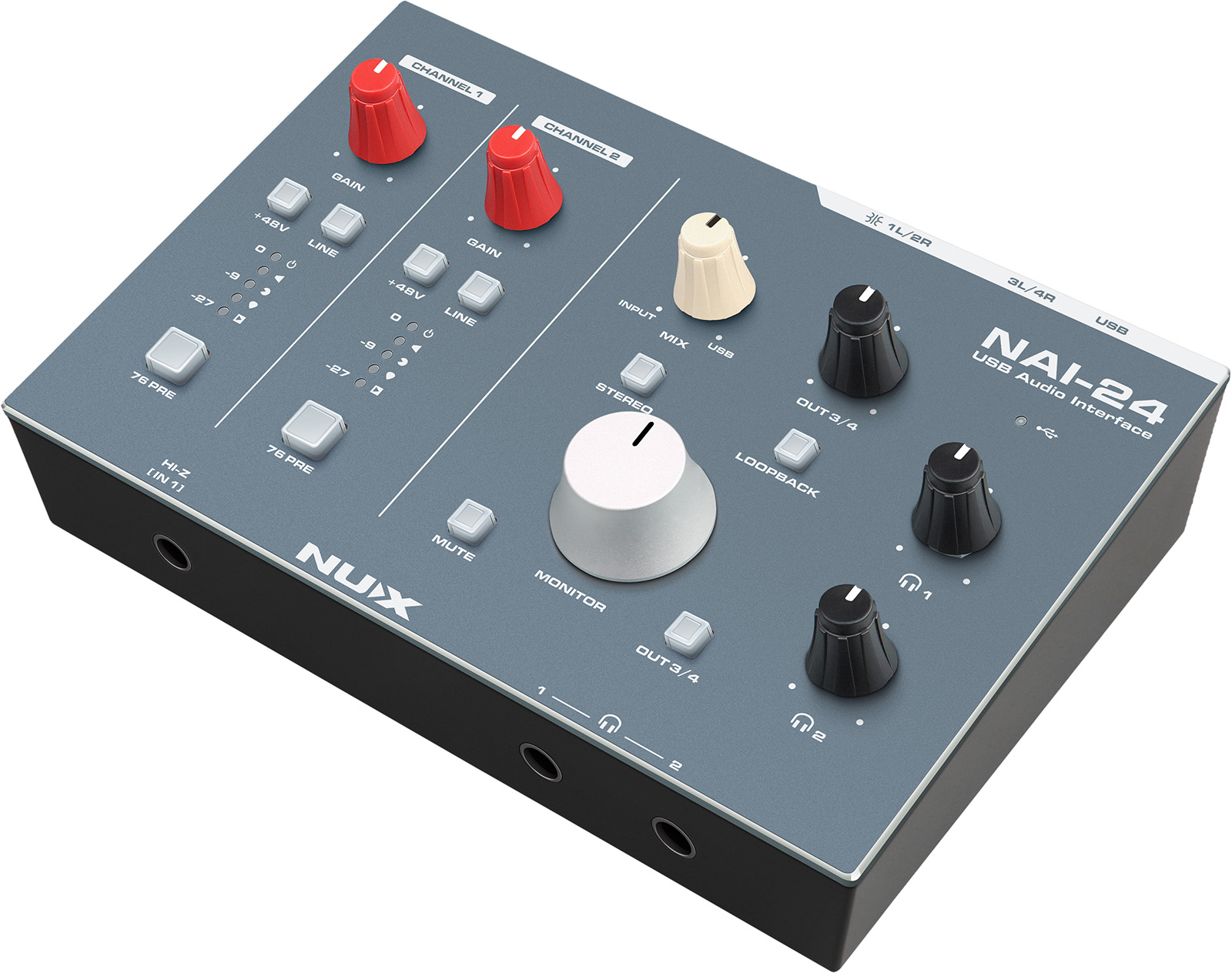

The NAI-24 is Nux's professional USB audio interface for demanding musicians, sound engineers and designers.

NAI-24 highlights

76PRE type FET compressor circuit with preset modes to suit all applications: voice, guitar, live streaming.
Class A transistor input channels with maximum gain of 71 dB and built-in boost mode.
High-precision AKM AD/DA converters for exceptional audio quality.
Audio transformers on the main output for warm sound and optimal electrical isolation.

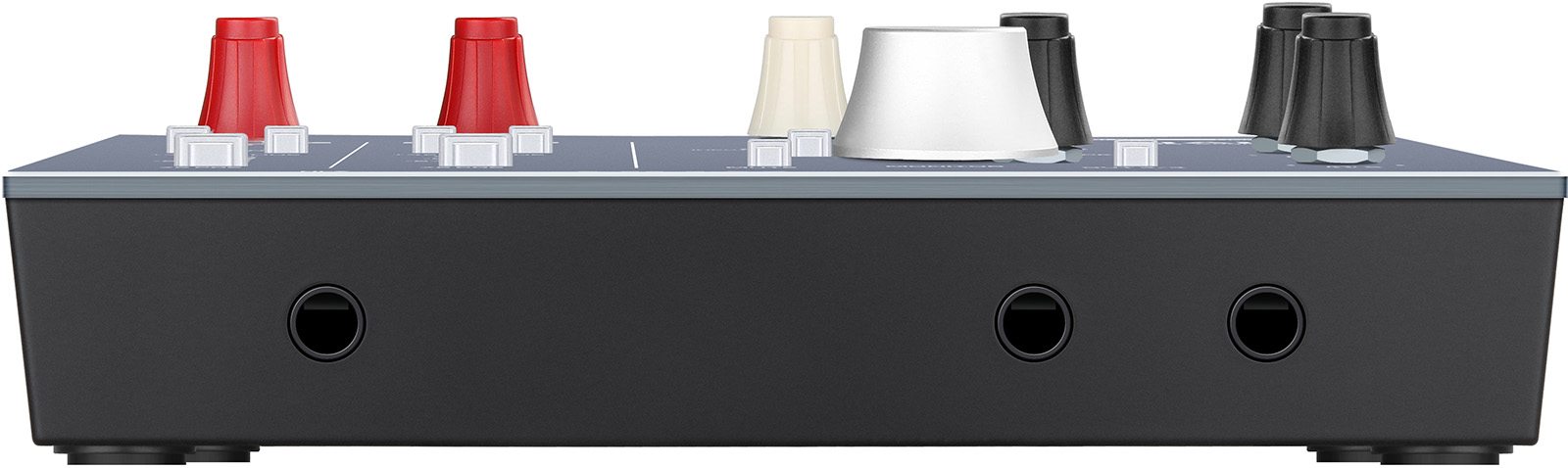

Intuitive interface: 48V phantom power, HI-Z inputs, adjustable monitoring, two independent headphone outputs, ultra-low latency.

NAI-24 Key Features

Versatile built-in compression

Benefit from 3 distinct compression modes: Voice, Guitar and Live Streaming. Easily select the mode that suits your needs, and enjoy controlled dynamics on every take. Boost mode adds up to 8 dB more for high-gain sources.

Professional AD/DA conversion

The NAI-24 incorporates high-quality AKM converters, guaranteeing faithful and accurate reproduction of your audio signal, both during recording and playback.

Studio output transformers

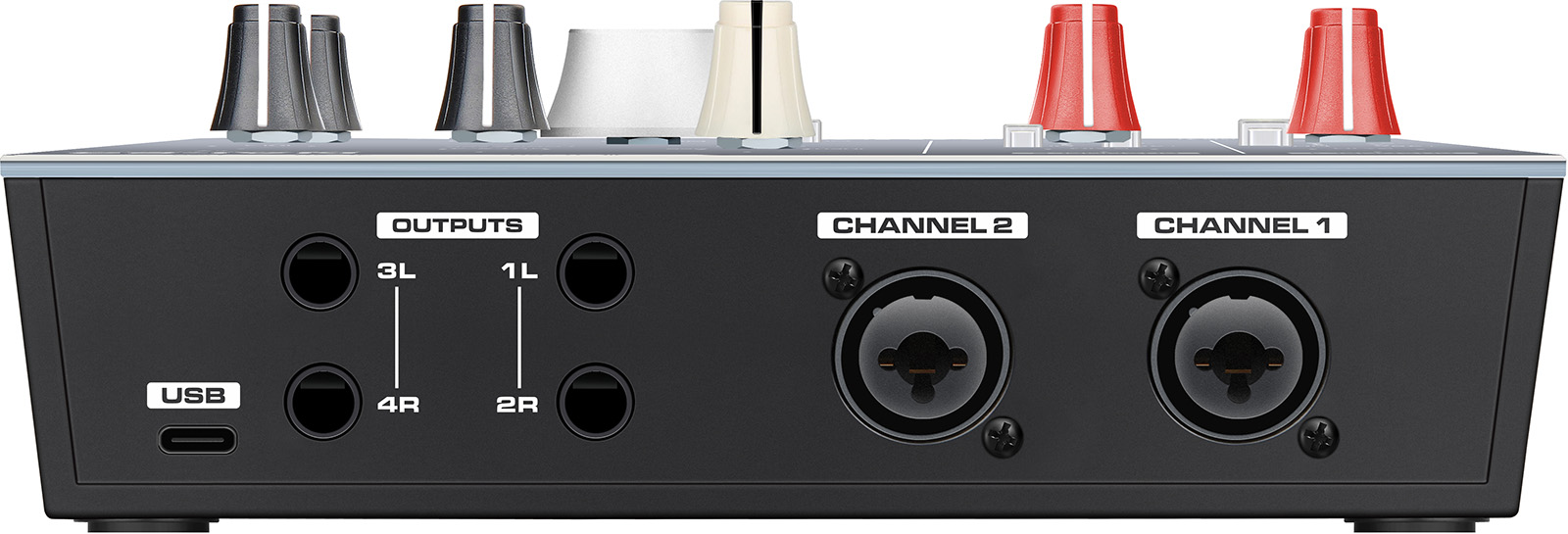

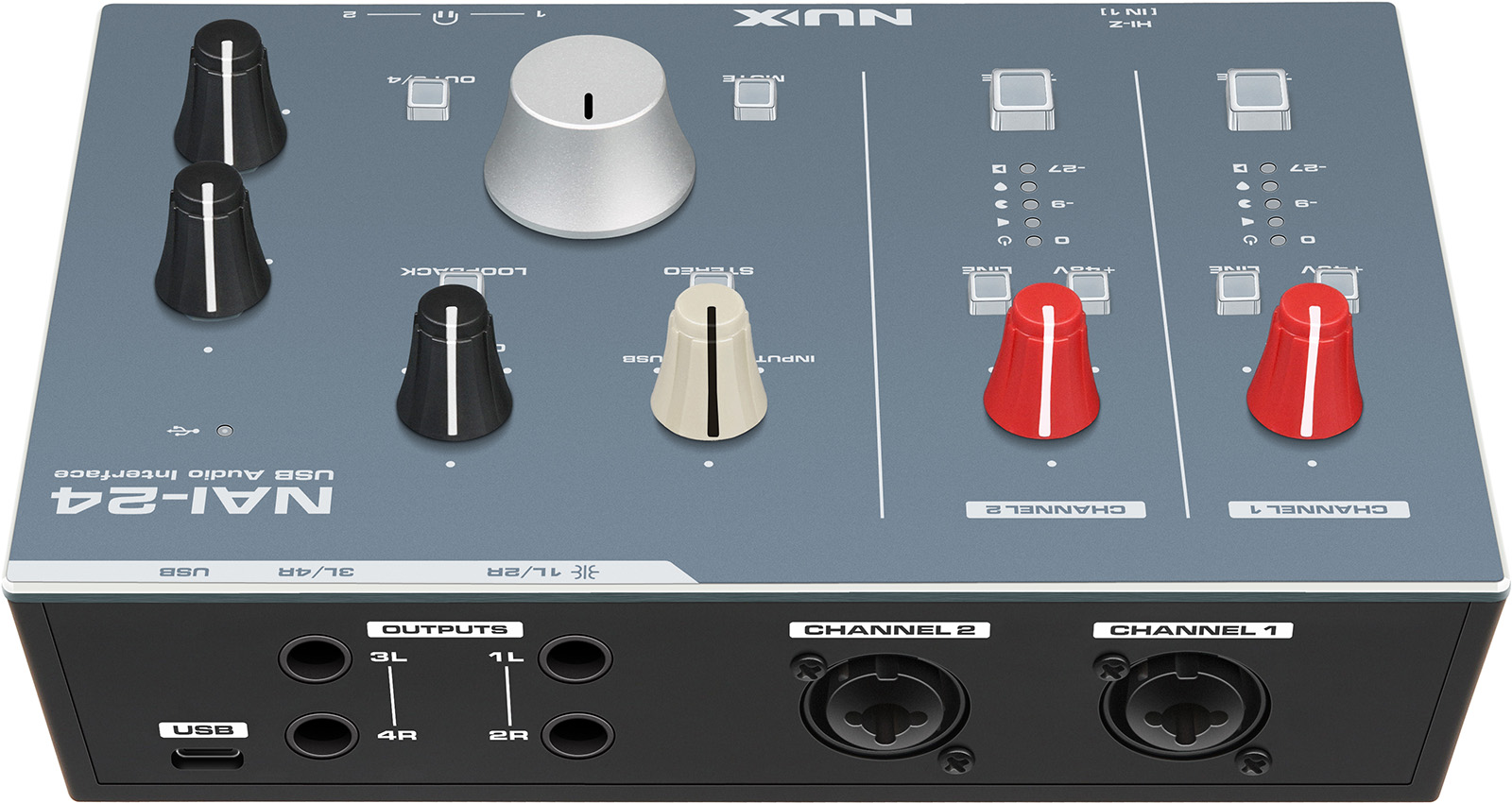

The main outputs (1L/2R) are equipped with professional audio transformers for warm, precise, interference-free sound. Benefit from electrical isolation even with unbalanced connections.

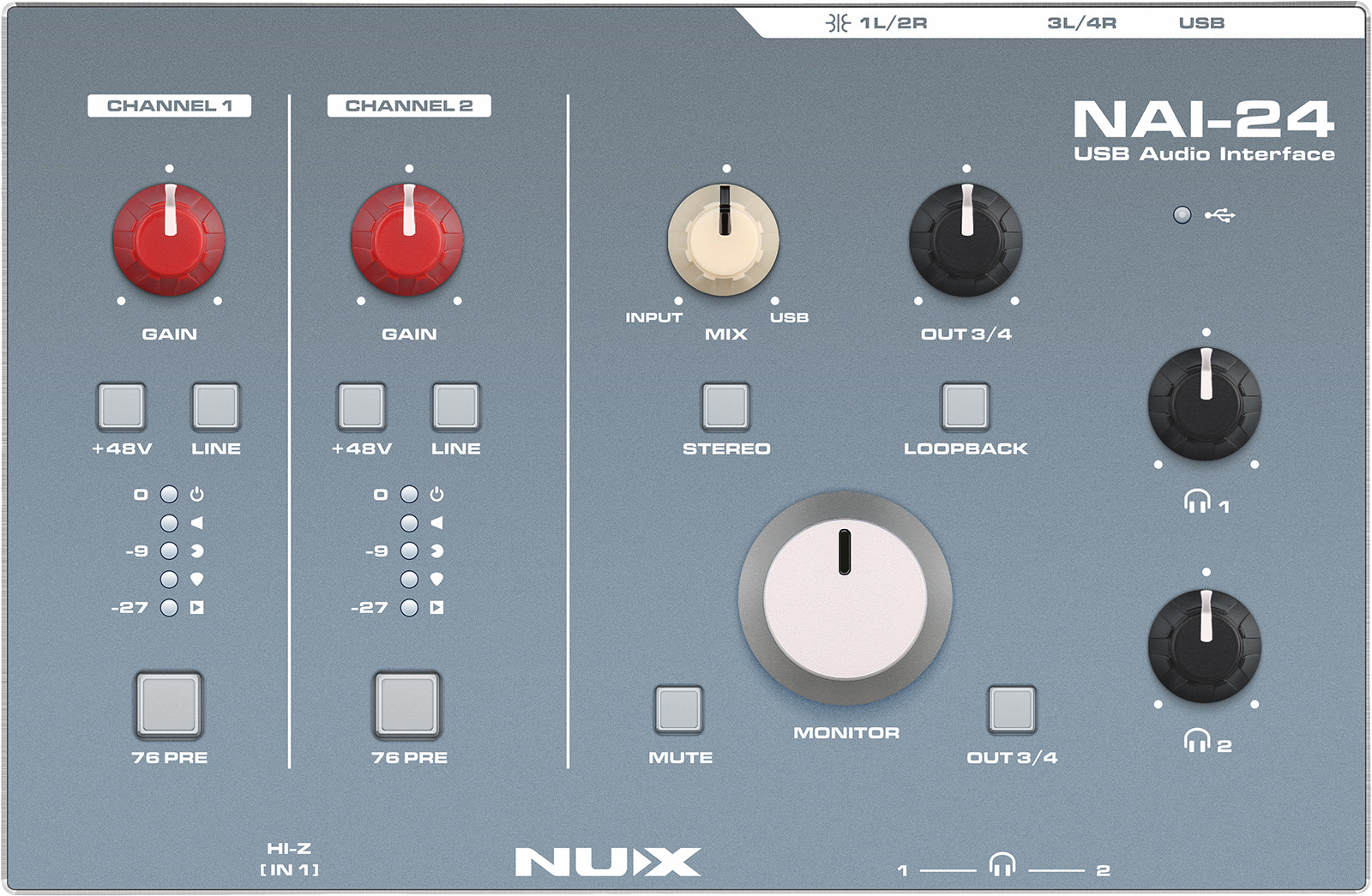

Simple, high-performance interface

Enjoy ease of use with 2 inputs/4 outputs, 48V phantom power, two independent headphone jacks, adjustable soft/hard monitoring, stereo mode and integrated loopback function. Ultra-low latency (3.17 ms at 192 kHz) thanks to 32-sample buffer.

Advanced monitoring function

A/B mode lets you connect two pairs of monitoring speakers and switch instantly between them. Easily manage your headphone outputs and adapt monitoring for every situation, from live to studio.

External recording and effects

Easily connect external effects modules when recording, or adjust track routing to suit the specific needs of each musician.

Software included

The NAI-24 comes with a license of CUBASE 13 LE professional recording software for immediate familiarity and uncompromising music production.

Experts' opinions

High-quality conversion and preamplification, worthy of professional studio interfaces.
Total routing flexibility, perfect for home-studio or live recording.

Technical sheet

DSP No

Power supply
- USB-C
Phantom power
- 48V, Yes (switchable per channel)
Category
- Audio interface
Color
- Blue
Dimensions (mm)
- 194 x 128 x 67 mm
Format
- Desktop
MIDI interface
- No
Software supplied
- Cubase LE
Number of inputs
- 2
Number of analog inputs
- 2
Number of outputs
- 4
Number of instrument inputs
- 1
Number of microphone inputs
- 2
Weight
- 0.72 kg
Max. resolution
- 32 bits / 192 kHz
Additional specs
- 2-in/4-out USB audio interface
- Class-A transistor preamplifier offering wide dynamic range and ultra-high resolution
- 76PRE FET compression circuit with multiple preset modes
- studio-quality audio transformer on main outputs 1L/2R for detailed sound reproduction
- Additional 3L/4R outputs for auxiliary output
- Two high-performance headphone amplifiers with routable channels
- USB-powered, no external power supply required
- Ultra-low latency direct monitoring
- High-quality XLR and 6.35 mm connectors
MIC IN
- Dynamic range: 114dB (A-weighted)
- Frequency response: 20-20000Hz ± 0.1dB
- THD+N: 0.002%@-1dBFS (at minimum gain)
- EIN: -126dB (A-weighted)
- Maximum input level: 6dBu (at minimum gain)
- Gain range: 5.4-63dB
- Input impedance: 2.4kΩ
LINE IN
- Dynamic range: 114dB (A-weighted)
- Frequency response: 20-20000Hz ± 0.12dB
- THD+N: 0.003%@-1dBFS (at minimum gain)
- Maximum input level: 26dBu (at minimum gain)
- Gain range: -12.6-45dB
- Input impedance: 21kΩ
HI-Z
- Nominal input level: -10dBu
- Input impedance: 1MΩ
Outputs 1L/2R
- Dynamic range: 112dB (balanced, 600Ω, A-weighted)
- Frequency response: 20-20000Hz ± 0.5dB
- Maximum output level: +12.4dBu (balanced, 0dBFS)
- THD+N: 0.0015%@-1dBFS
- Output impedance: 580Ω
Outputs 3L/4R
- Dynamic range: 112dB (balanced, 200kΩ, A-weighted)
- Frequency response: 20-20000Hz ± 0.1dB
- THD+N: 0.001%@-1dBFS
- Maximum output level: +18.4dBu (balanced, 0dBFS)
- Output impedance: 240Ω
PHONES OUTPUT
- Dynamic range: 104dB (A-weighted)
- Frequency response: 20-20000Hz ± 0.25dB
- THD+N: 0.005%@-5dBFS
- Output power: 30mW@32Ω
