Stylus

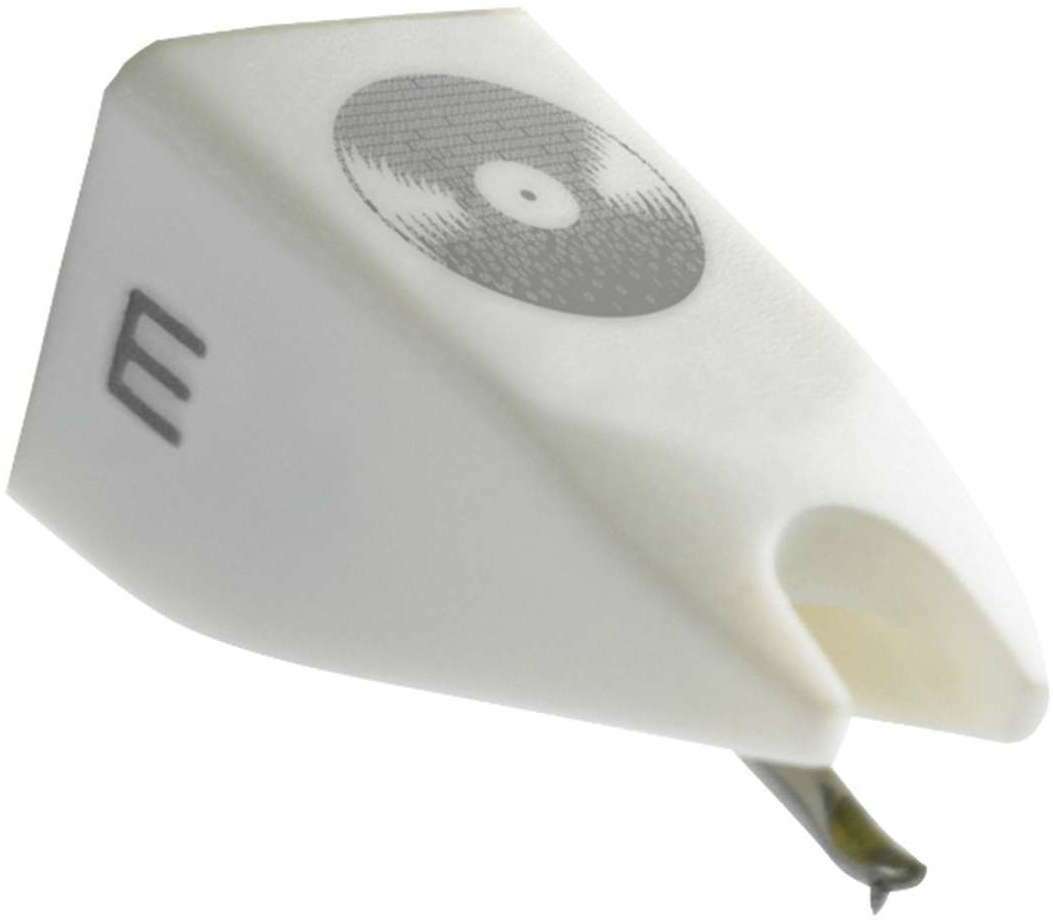

The Stylus Arkiv is a diamond from Ortofon.
Lire la suite
Technical sheet
- White colour
- Output voltage: 1000 Hz, 5 cm / sec. 6 mV
- Channel balance: 1 kHz - 2 dB
- Channel separation: 1 kHz - 23 dB
- Channel separation: 15 kHz - 15 dB
- Frequency range: -3 dB - 20-22 000 Hz
- Frequency response: 20-20,000 Hz ± 2 dB
- Tracking capacity: 315 Hz to recommended tracking force - 80? M
- Conformity, dynamic lateral: 9? M / mN
- Diamond type: Special elliptical
- Diamond tip radius: r / R 13/25? M
- Supporting force possible: 2.0-4.0 g (20-40 mN)
- Recommended support force: 3.0 g (30 mN)
- Reading angle: 20 °
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacity: 200-600 pF
