Stylus

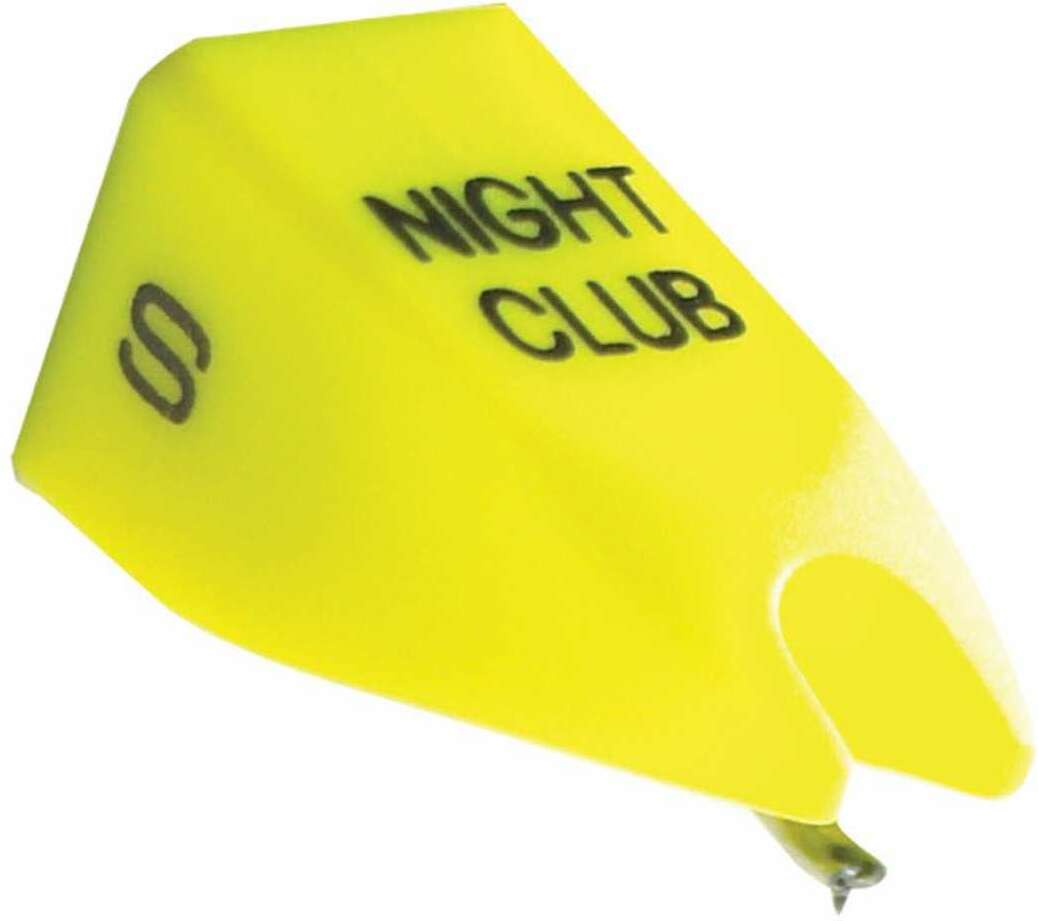

the Stylus Night Club S is a diamond from Ortofon.
Spare diamond specific for the NIGHTCLUB MKII series.
Spare diamond specific for the NIGHTCLUB MKII series.
Lire la suite
Technical sheet
- Yellow color
- Output voltage: 6 mV - Balancing channels 1 KHz: 1.5 dB
- Separation channels 1 KHz: 23 dB
- 15 kHz channel separation: 15 dB
- Frequency response: 20 - 18,000 Hz +3 / - 2 dB
- Game of frequencies at -3 dB: 20 ??- 22 000 Hz
- Readability: 80 ?m
- Dynamic compliance: 7 ?m / mN
- Diamond type: Special spherical
- Point radius: r / R 13/25 ?m
- Support force range: 2.0 - 5.0 g (20-50 mN)
- Recommended Support Force: 3.0 g (30 mN)
- Reading angle: 20 °
- Resistance: 1000 Ohm
- Inductance: 580 mH
- Impedance: 47 kOhm
- Capacity: 200-600 pF
