Ortofon STYLUS VNL TRIX
- Read reviews (0)
- Related accessories
- Similar products
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
Pre-order
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
Variation(s) of this product.
The brand Ortofon
Learn more about the Ortofon brand and discover the entire catalog.
The largest network of stores in France
Find all the information on our superstores and our specialized boutiques.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.

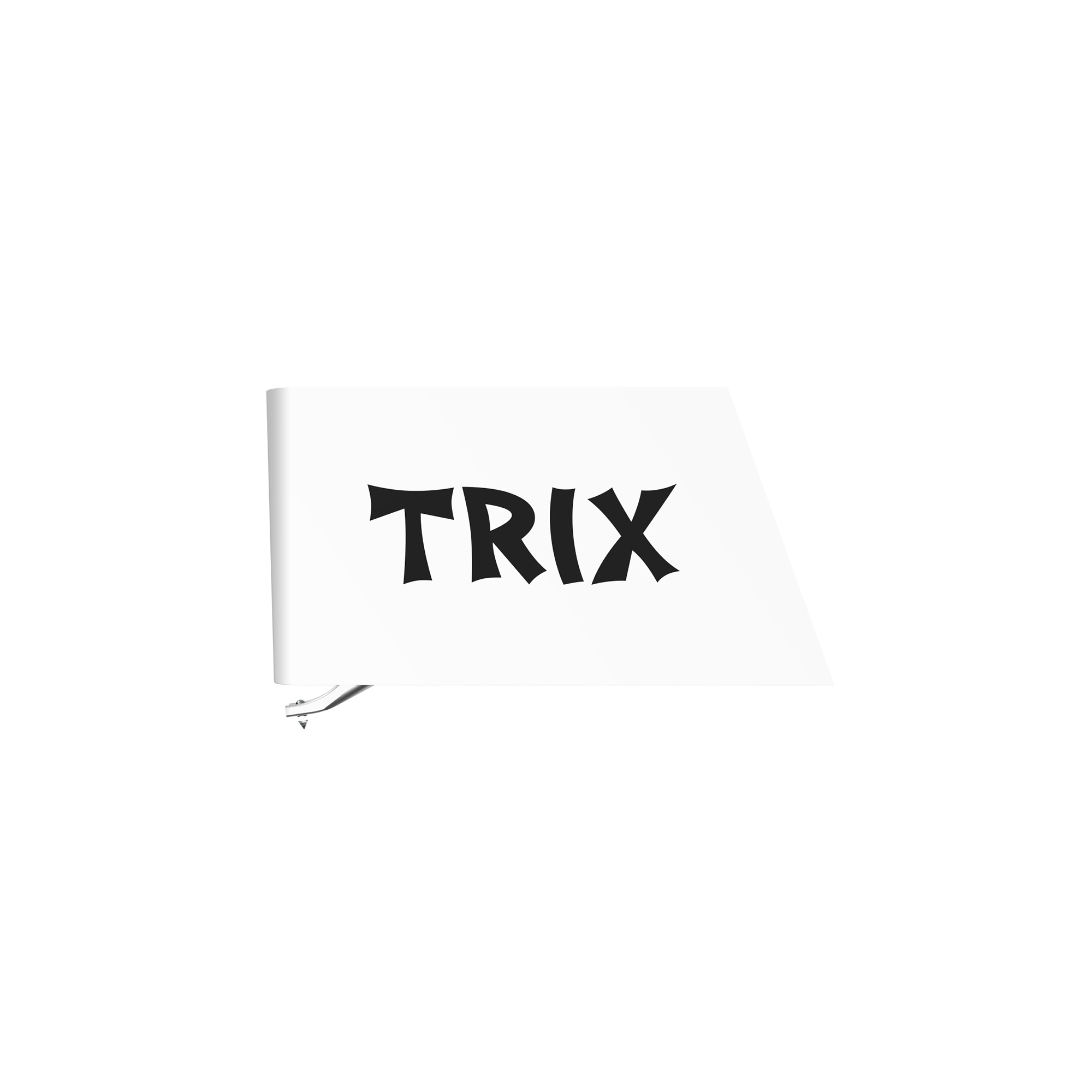

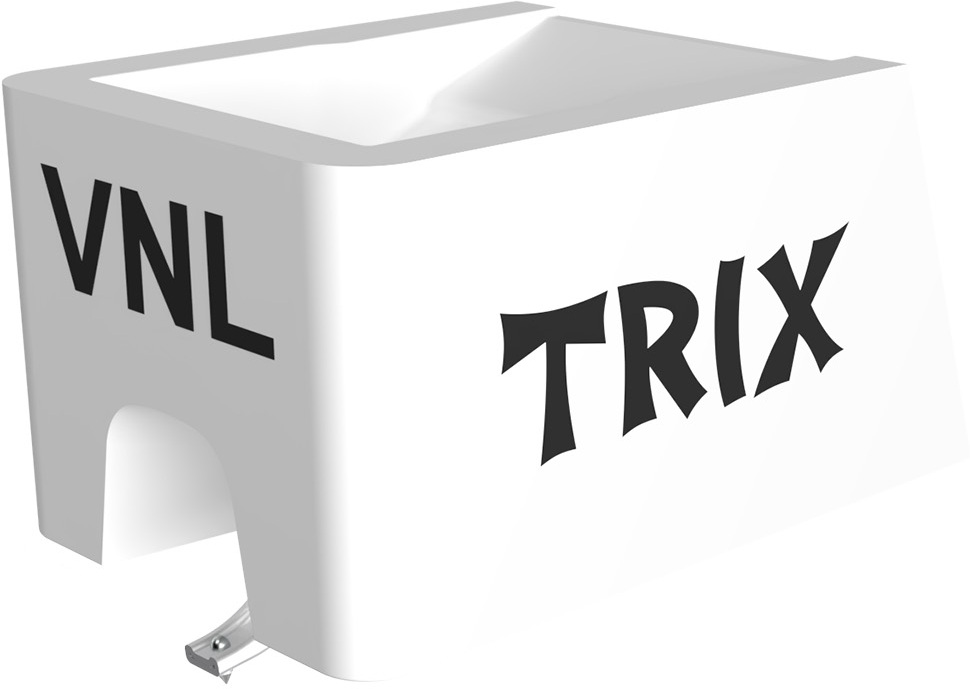

Stylus
The Stylus VNL TRIX is designed for DJs who demand robustness and reliability.
A spherical diamond mounted on an aluminum cantilever, it stands up perfectly to the stresses of scratching, back-cueing and intense sets. Its fluorescent white stylus makes it easy to spot, even in the dark.
Fully compatible with the VNL series: interchangeable diamonds as required.
A spherical diamond mounted on an aluminum cantilever, it stands up perfectly to the stresses of scratching, back-cueing and intense sets. Its fluorescent white stylus makes it easy to spot, even in the dark.
Fully compatible with the VNL series: interchangeable diamonds as required.
Lire la suite
Technical sheet
- Phono cell - Technical specifications
- High-precision moving-magnet (MM) cartridge for turntables
- Output voltage
- 10 mV
- Readability
- 100 ?m
- Cantilever
- Aluminum
- Diamond type
- Spherical
- Tip radius
- R 18 µm
- Coils
- 4 coils on split-pole supports (2+ and 2-)
- Channel separation at 1 kHz
- 22 dB
- Frequency response
- 20 Hz - 20 kHz (+3 dB)
- Lateral dynamic matching
- 12 ?m/mN
- Recommended support force
- 4,0 g
- Recommended load resistance
- 47 kΩ
- Weight
- 0,5 g
