Cartridge

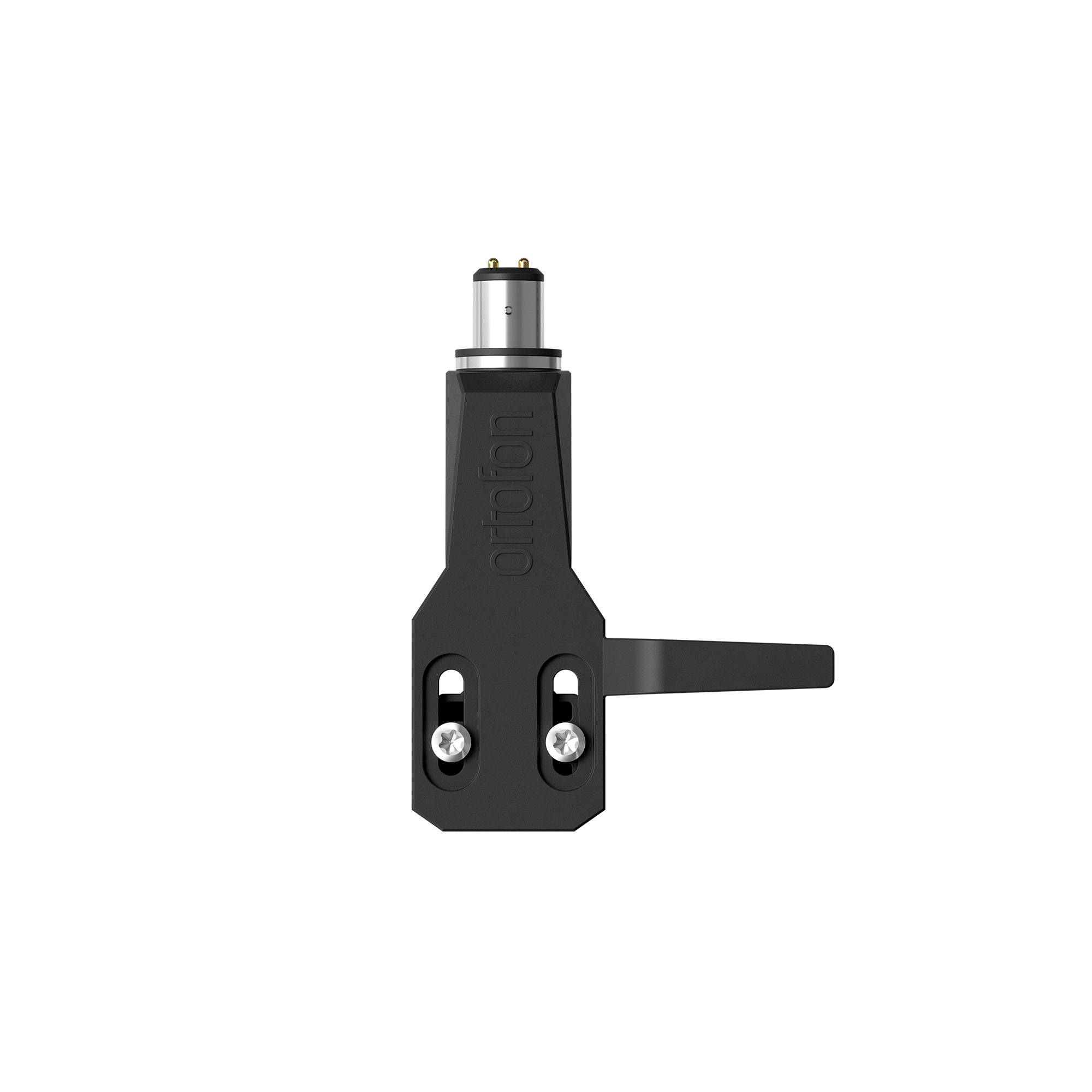

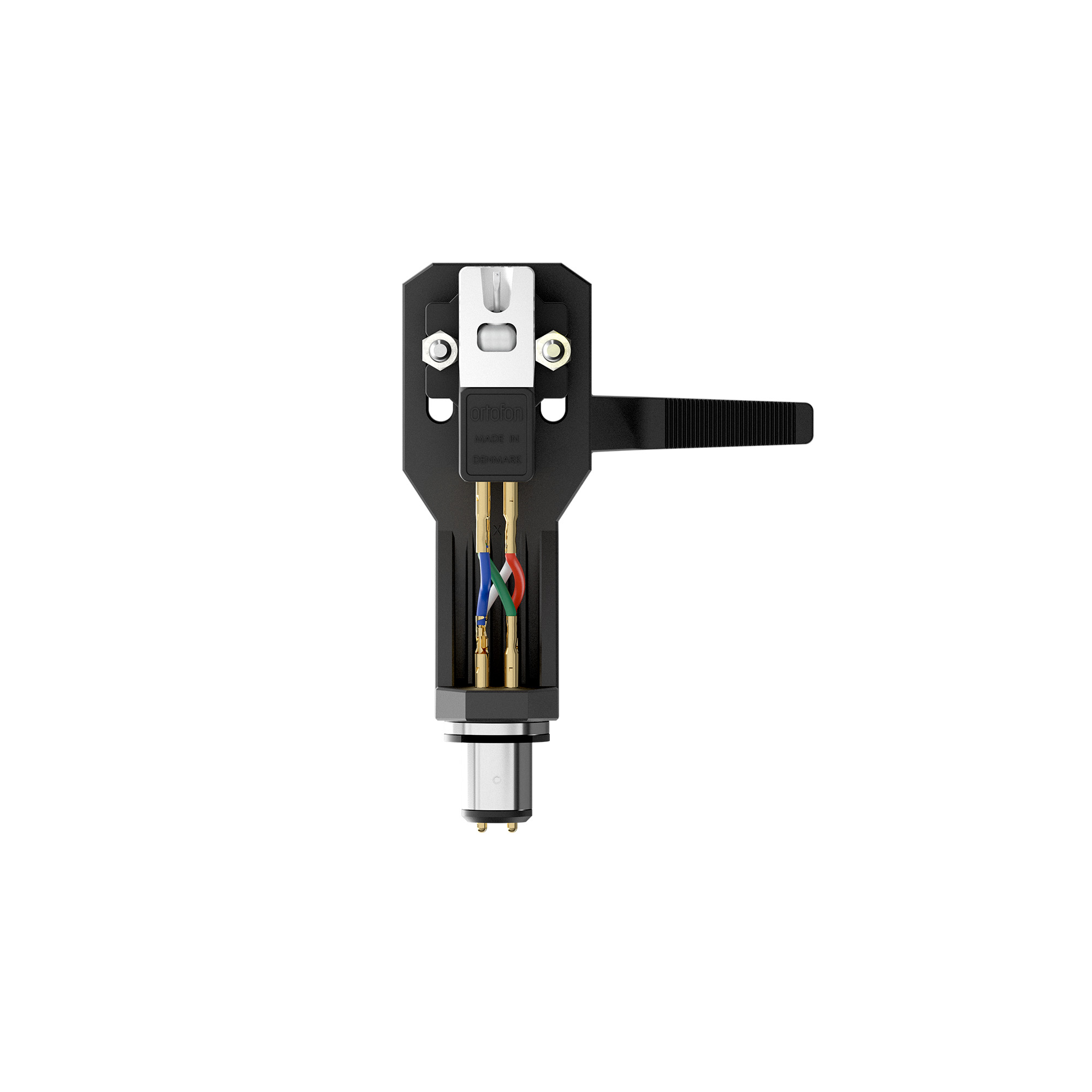

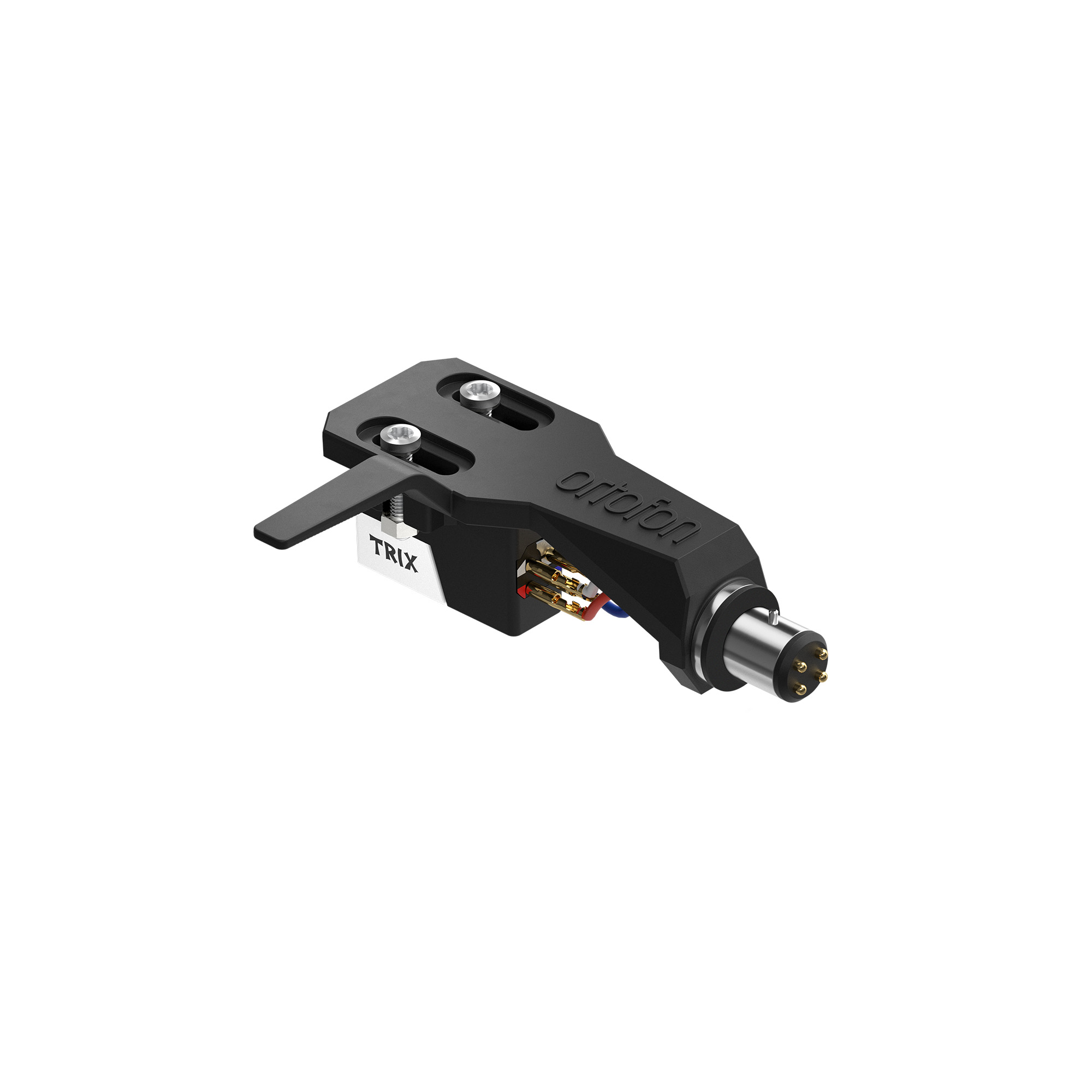

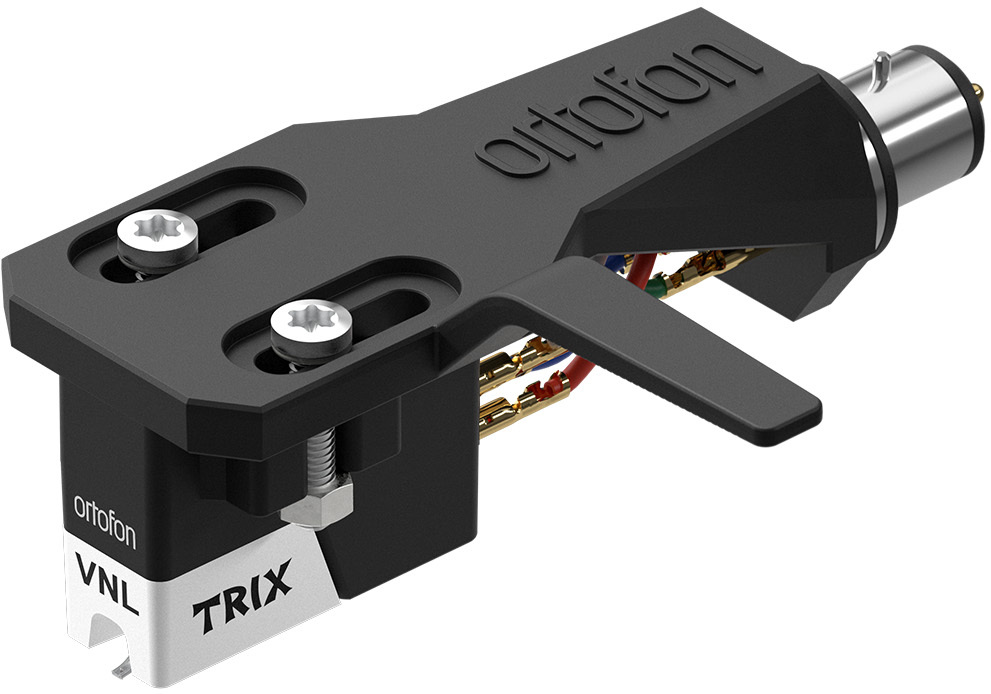

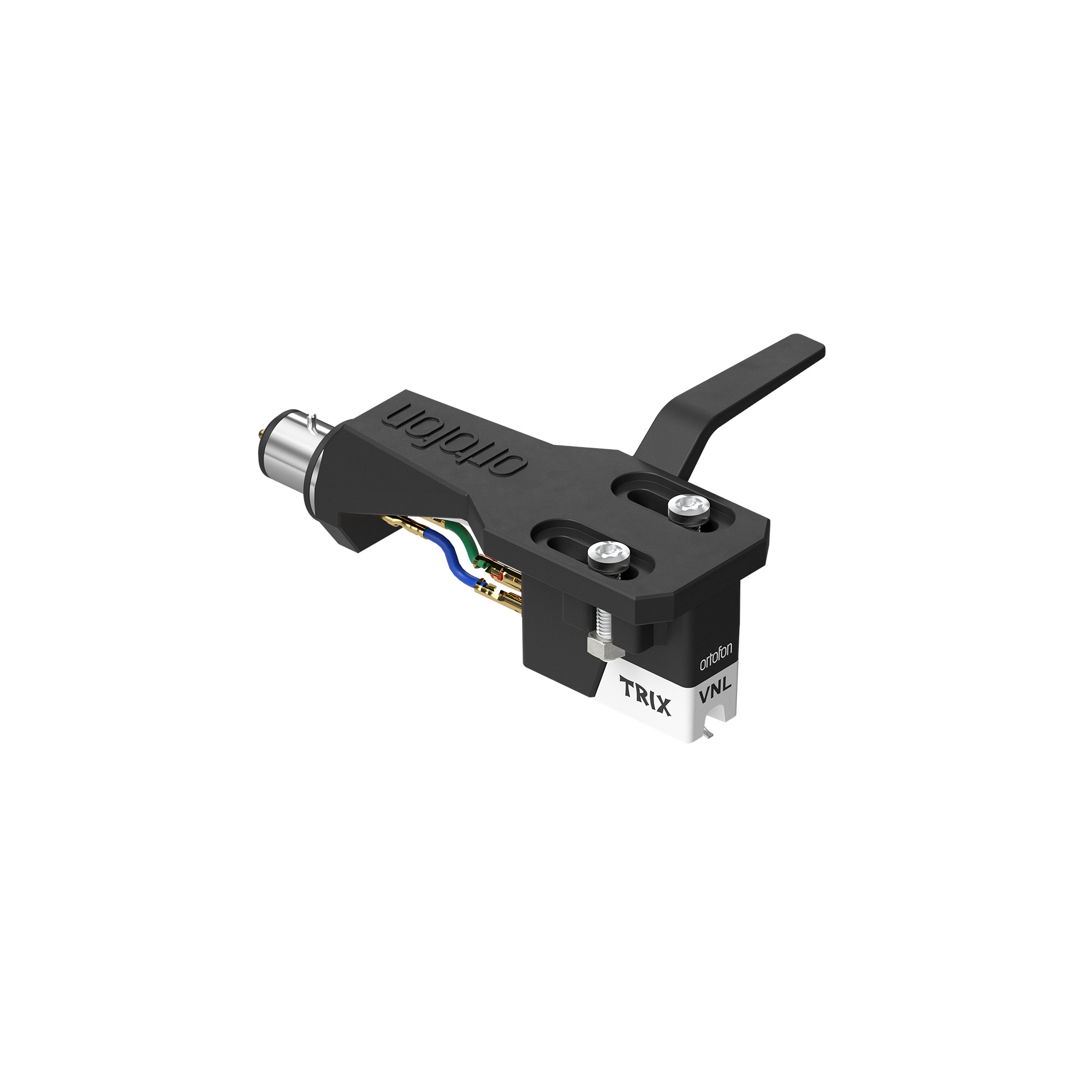

Designed for performance and scratch DJs, the VNL TRIX PREMOUNTED ON SH-2 arrives ready to use, with an impeccable mounting on the Ortofon SH-2 cell holder.

Thanks to its robust spherical diamond and white fluorescent stylus, it ensures exemplary stability and fast tracking, while delivering a powerful 10 mV output.

An ideal "plug & play" combo for DJs who want to get straight to the point.

Technical sheet

Phono cell - Technical specifications
- High-precision moving-magnet (MM) phono cell for turntables
Output voltage
- 10 mV
Readability
- 100 ?m
Cantilever
- Aluminum
Diamond type
- Spherical
Tip radius
- R 18 µm
Coils
- 4 coils on split-pole supports (2+ and 2-)
Channel separation at 1 kHz
- 22 dB
Frequency response
- 20 Hz - 20 kHz (+3 dB)
Lateral dynamic matching
- 12 ?m/mN
Recommended support force
- 4,0 g
Recommended load resistance
- 47 kΩ
Cell weight with stylus
- 0.17 kg
