Power acoustics

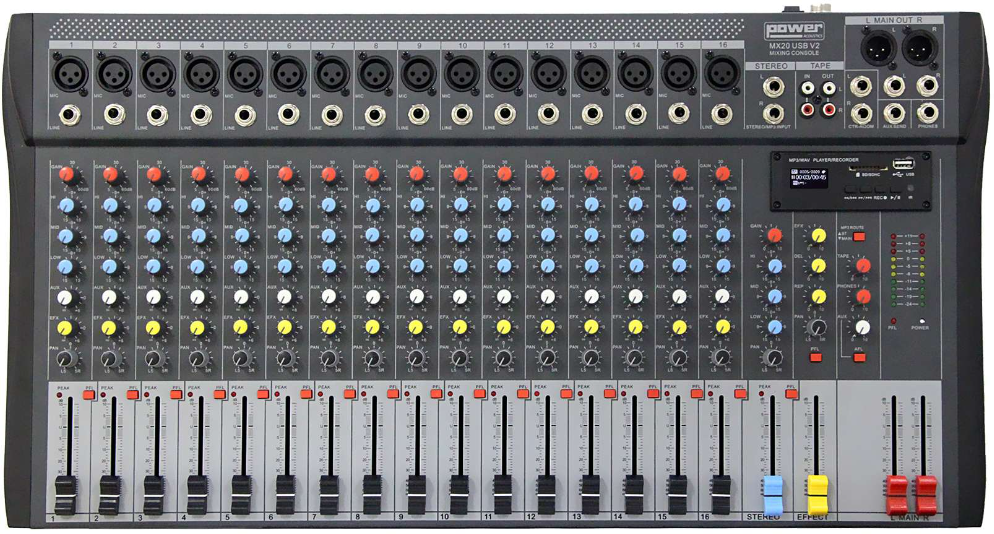

MX20 USB V2
Analog mixing desk
Description
The Power Acoustics Mx20 USB v2 is an analog mixer with 20 inputs.
This mixer allows you to record directly on a USB stick.
Ultra-lightweight, ultra-fine and easy to carry for mobile performance, the USB V2 MXs will satisfy even the most demanding users.
This mixer allows you to record directly on a USB stick.
Ultra-lightweight, ultra-fine and easy to carry for mobile performance, the USB V2 MXs will satisfy even the most demanding users.
Characteristics
Ref : 87391
- 16 XLR microphone inputs
- 16 unbalanced 6.35 mm line inputs
- 2 balanced 6.35 mm line jack inputs
- RCA TAPE inputs/outputs
- XLR x 2 and 6.35mm x 2 outputs
- AUX send
- Control Room
- Very low noise preamplifier
- Adjustable Echo Type Effect
- 3-way correction per channel
- Clipping LED
- Linear volume faders per channel
- LED meters
- Headphone jack
- TAPE input and output
- Frequency response: Mic/Line input to any output: +/- 0.5 dB, 20 Hz 20KHz
- T.H.D : Mic sensitivity -30 dBu, +14 dBu @ Mix Output 96 dB
- Aux Send Pots Offness: >86 dB
- Input and output impedances: Mic input: 2.4 k?, Line input: 11 k? and Stereo input: 100k?
- Input and output levels: Mic input: +17 dBu max, Line input: +30 dBu max, Stereo input: +30dBu max and Mix output: +20 dBu
- Headset (@ 200?) 300 mW
- EQ (mono/stereo input): HF : 12 KHz +/- 15 dB, MF : 140 Hz - 3 KHz, +/-15 dB, LF: 80 Hz +/-15 dB
- Dimensions (H x W x D): 524 x 376 x 74 mm
- Weight: 8,2 Kgs.
