Yamaha MG12XU

  • Read reviews (4)
  • Related accessories
  • Similar products

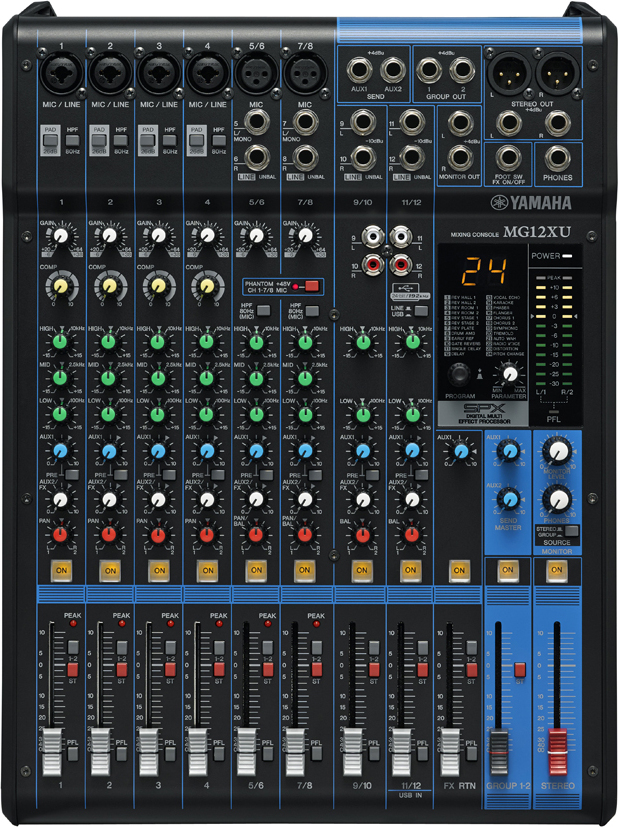

  • Yamaha Mg12xu - Analog mixing desk - Main picture

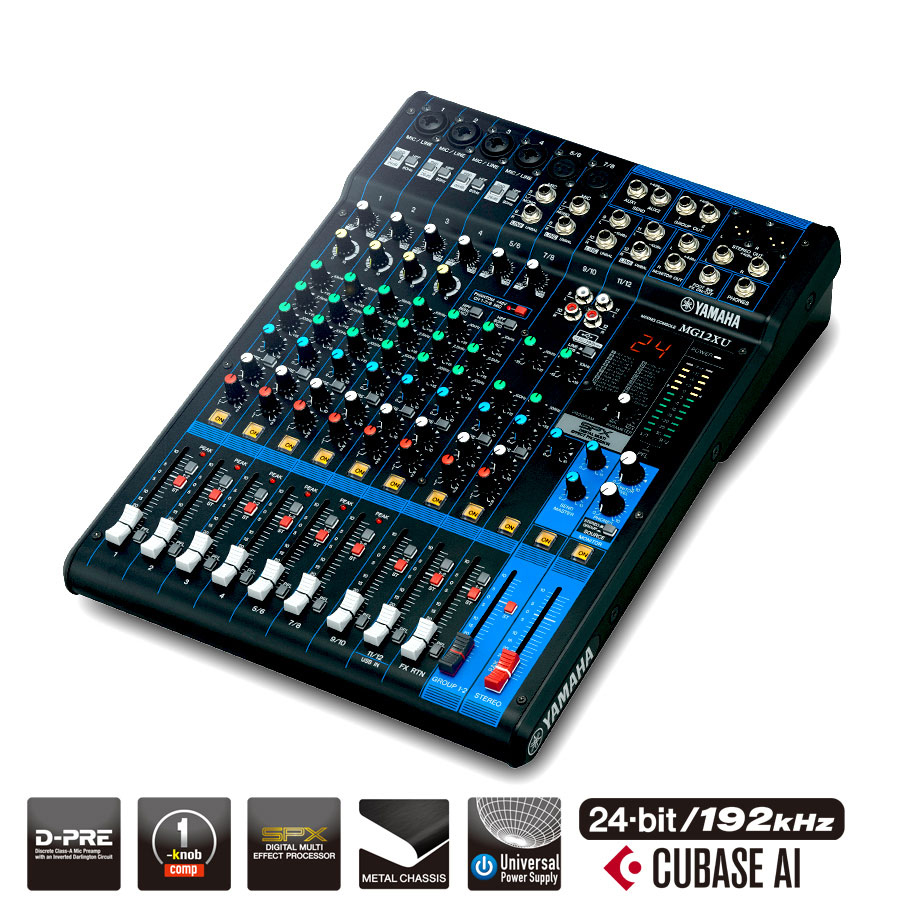

  • Yamaha Mg12xu - Analog mixing desk - Variation 1

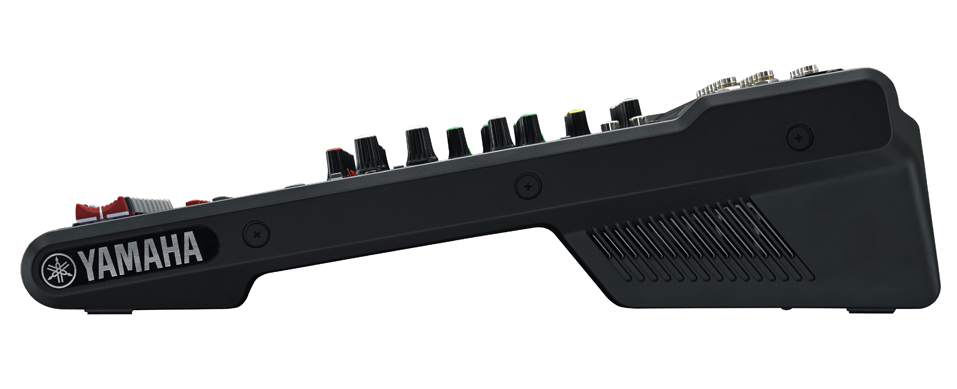

  • Yamaha Mg12xu - Analog mixing desk - Variation 2
  • Yamaha Mg12xu - Analog mixing desk - Variation 3
VIDEO
VIDEO
604.80 €
444,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 34660
In stock
deliverable in 24 hours
Stock in store
See availability. Store
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse
Other version(s) or associated product(s)

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

Unveiling the third generation of Yamaha MG series with the Yamaha MG12XU mixing console, a model that packs quite a punch for its small size!

Its USB 2.0 interface allows 24-Bit/192kHz sampling for high resolution stereo recording.

These consoles offer serious presets and natural , soft and airy highs , very low distortion and an impressive bandwidth.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 10 to 22 channels
  • Mixing capability
  • On-board processors
  • SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O
  • Phantom power: +48 V
  • Digital I/O
  • USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
  • Input Channels
  • Mono[MIC/LINE]: 4
  • Mono/Stereo[MIC/LINE]: 2
  • Stereo[LINE]: 2
  • Output Channels
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 2
  • GROUP OUT: 2
  • Bus
  • Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
  • Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID : Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
  • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • General specifications
  • Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk: -78 dB
  • Power requirements: AC 100 – 240 V, 50 / 60 Hz
  • Power consumption: 22 W
  • Dimensions
  • W: 308 mm (12.1")
  • H : 118 mm (4.6")
  • D : 422 mm (16.6")
  • Net weight: 4.2 kg (9.3 lbs.)
  • Accessories :
  • Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
  • Others:
  • Operating Temperature: 0 to +40?C
More specifications
Fewer specifications

User reviews : 4 notice

4,3 5
stdClass Object
(
    [noteCount] => 4
    [globalNote] => 4.3
    [detailNote1] => stdClass Object
        (
            [question1] => Use
            [note1] => 4.5
        )

    [detailNote2] => stdClass Object
        (
            [question2] => Sound Quality
            [note2] => 4.25
        )

    [detailNote3] => stdClass Object
        (
            [question3] => Quality of manufacture
            [note3] => 4.25
        )

    [detailNote4] => stdClass Object
        (
            [question4] => fx quality
            [note4] => 4.3333333333333
        )

    [detailNote5] => stdClass Object
        (
            [question5] =>
            [note5] => 0
        )

)
  • Use
  • Sound Quality
  • Quality of manufacture
  • fx quality
Read all reviews
