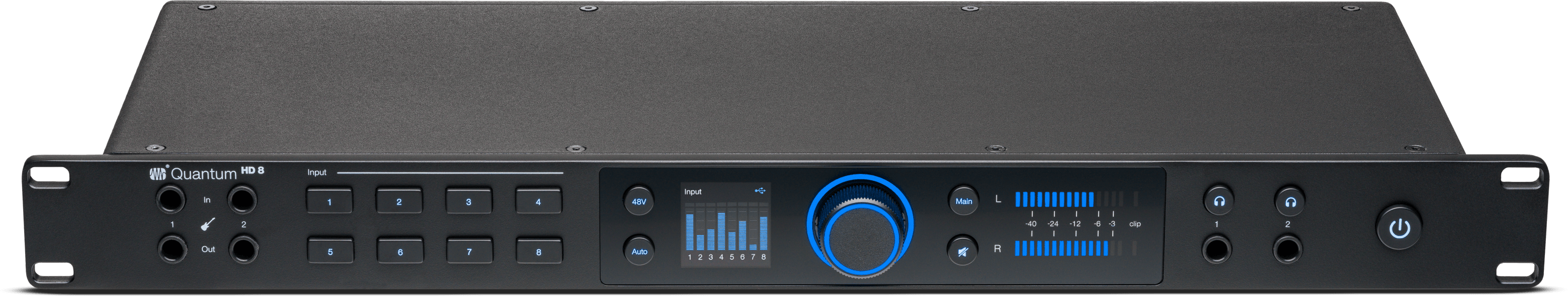

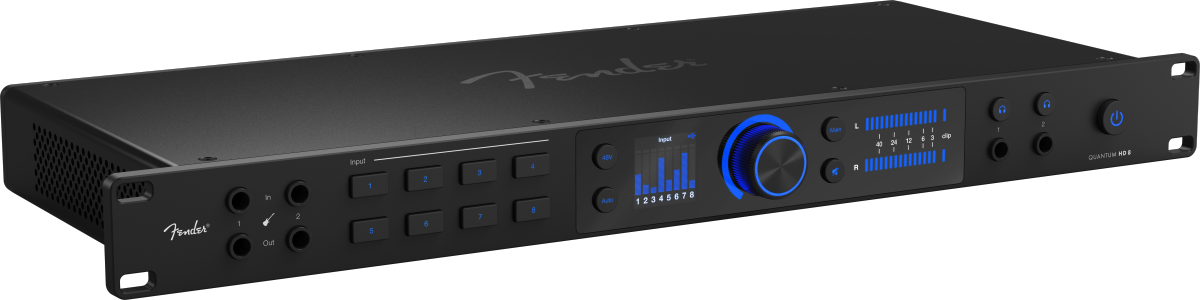

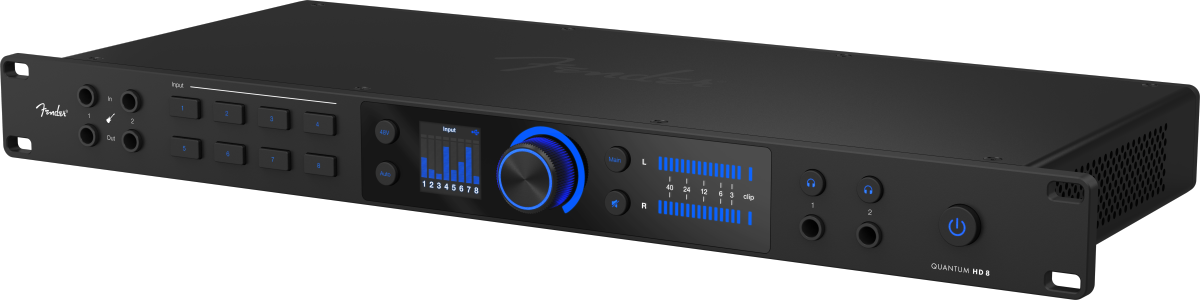

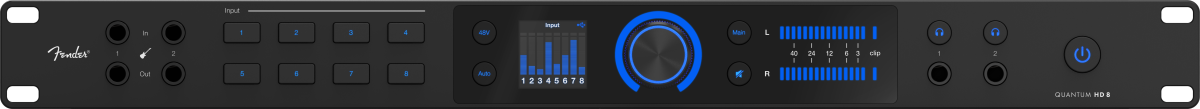

Presonus Quantum HD 8

Read reviews (0)
Related accessories
Similar products

1049.00 €
Ref : 110723

999,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

Last one!

shipped under 2/3 days

Stock in store

See availability. Store

Star's Music Lille

Star's Music Toulouse

The brand Presonus

Learn more about the Presonus brand and discover the entire catalog.

Discover

Sound card buying guide audio interface

Through this buying guide, you will find all the information you need to make your first audio interface purchase.

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Usb audio interface

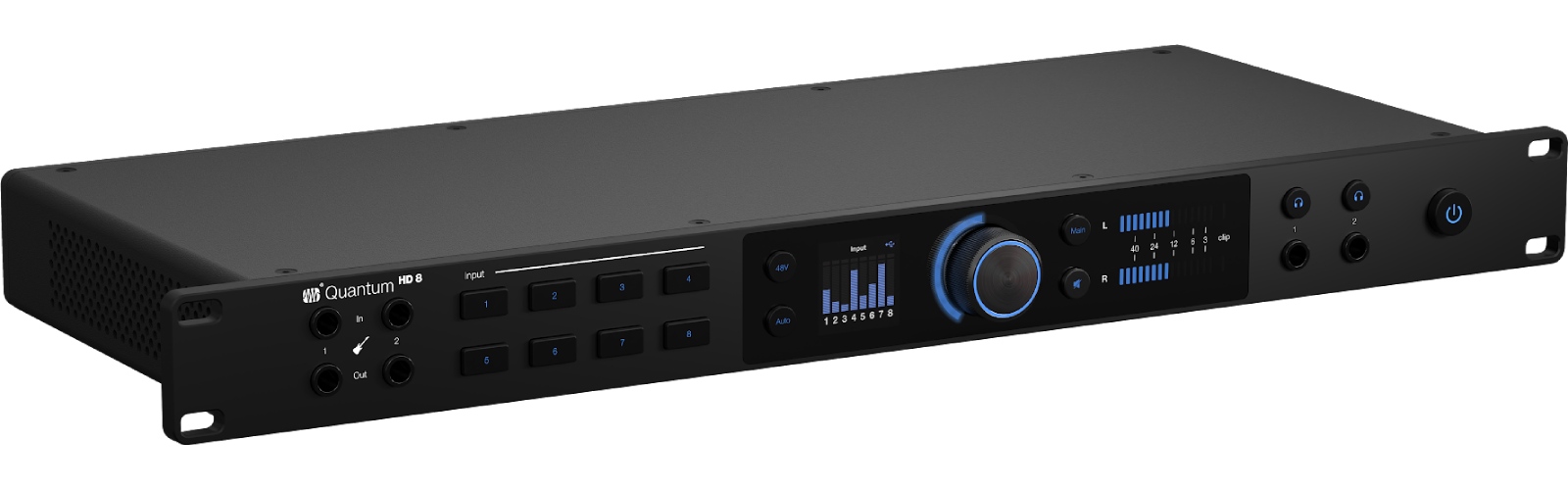

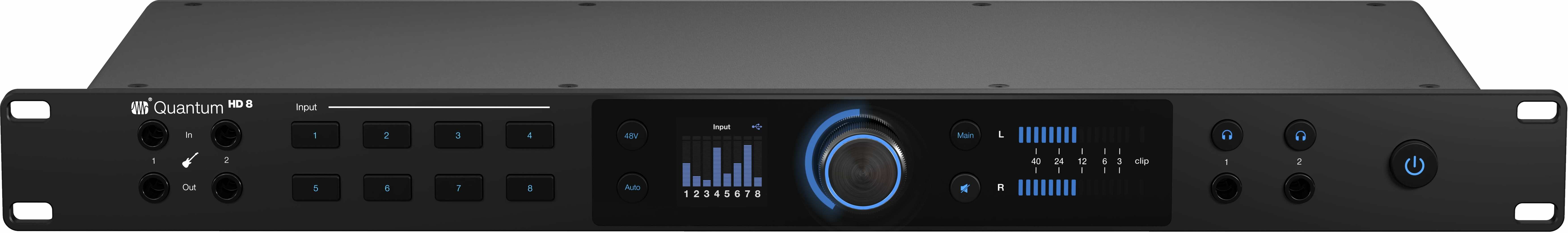

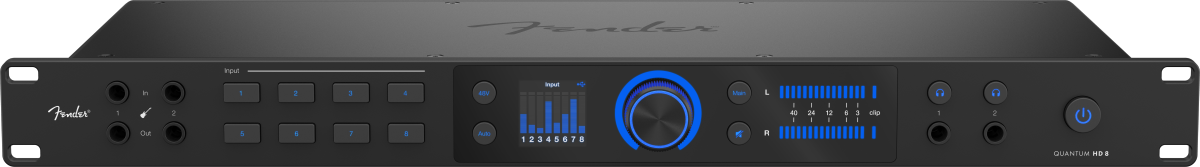

The Quantum HD8 is a sound card from the Quantum brand.

Quantum HD8 highlights

High-performance signal flow - Low-latency custom drivers and low-noise converters.
All-new MAX-HD microphone preamps - The culmination of 30 years of innovation, our uncompromisingly redesigned preamps feature analog-to-digital control and a gain range of over 75 dB.
Co-developed with - Front-panel instrument inputs designed for guitarists by the industry's leading experts.
Automatic gain - Easily achieve recording-ready levels.
Output reamping - Reamp audio directly from your DAW and sculpt your sound by experimenting with amps and effects.
Universal Control app - Full control and level indication from your mobile device, computer or tablet.

Quantum HD8 Key Features

MAX-HD preamps for exceptional sound quality

The Quantum HD 8 is equipped with eight MAX-HD microphone preamps, offering +75 dB gain. This improvement translates into sharper, more detailed recording of vocals and instruments. These preamps ensure minimal noise and exceptional clarity, crucial for capturing richly nuanced performances. Thanks to its advanced design, the Quantum HD 8 promotes sonic purity, making it an outstanding feature for serious studio artists.

Audio Interface for Guitars and Basses

This audio interface raises the bar for recording guitars and basses, thanks to its inputs, developed in partnership with renowned engineers at chez. This collaboration has resulted in inputs that preserve the natural tone and resonance of your instrument, greatly enhancing recordings and live performances. Whether you're capturing a bass groove or a guitar riff, the quality is incomparable.

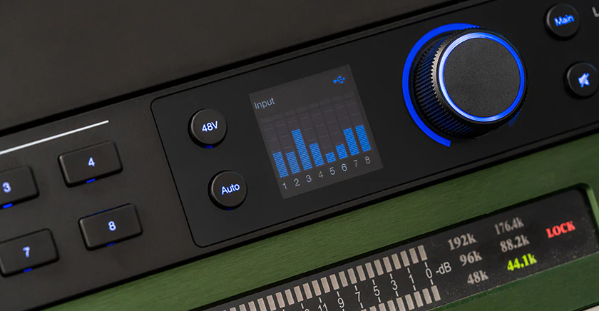

The Quantum HD 8's revolutionary Auto Gain function

Leave manual adjustments behind and focus on your performance with the Quantum HD 8's Auto Gain function. At the touch of a button, the interface automatically calculates and sets the optimum gain for your microphones and instruments. This revolutionary function simplifies the task for beginners and experienced users alike, ensuring consistent, high-quality recordings without the slightest hassle.

Make the most of your sound with the Quantum HD 8's reamp outputs

The Quantum HD 8's preamplifier outputs open up a vast realm of sonic exploration. Route audio from your recording software directly to your guitar or bass amp, then re-record to test various amp settings, pedal effects and microphone positions. This feature allows musicians to fine-tune their sound and discover unique tonal combinations, making the Quantum HD 8 an invaluable tool for sound creation.

What our experts say

High-end converters deliver incredibly accurate sound reproduction, making them the perfect choice for professional recording.
Despite its advanced features, the Quantum HD8 is surprisingly user-friendly. Installation and configuration are straightforward, allowing you to concentrate on creating music.

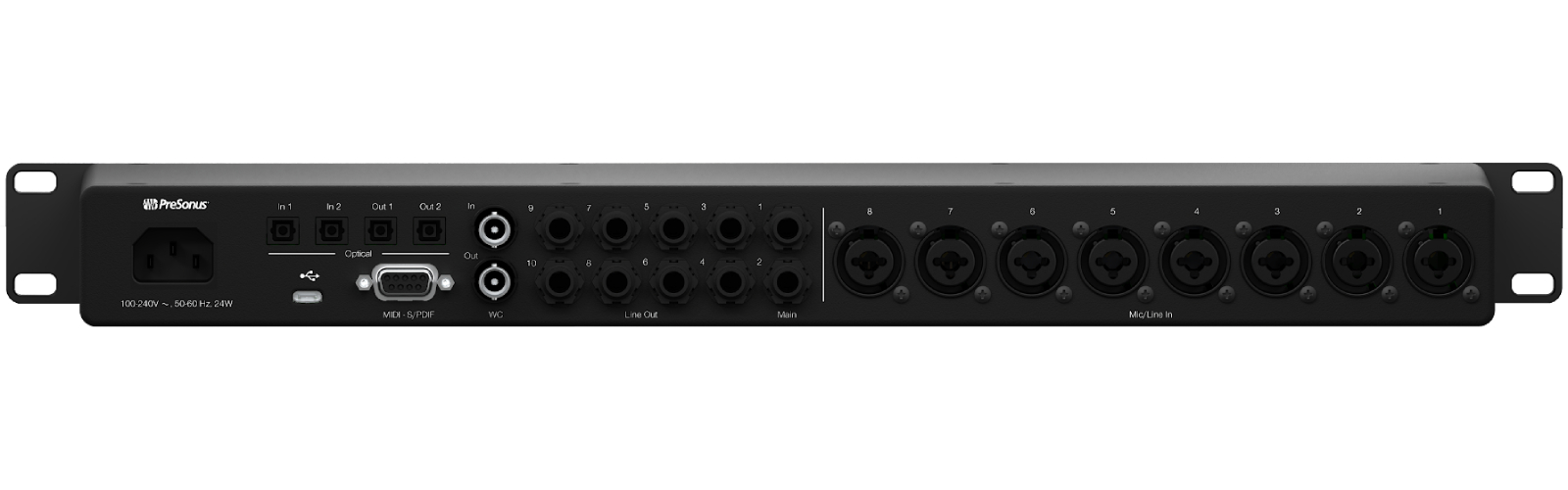

With eight analog inputs and outputs, plus ADAT and S/PDIF I/O options, the Quantum HD8 offers extensive connectivity to meet all your recording needs. It's a versatile tool for any professional studio.

Technical sheet

USB Audio Interface
- Total inputs: 26
- Total outputs: 30
- Headphone outputs: 2
- Connectivity: USB-C
- Voltage: 220-240V EU
- Phantom power: +48 VDC
- Digital audio bit depth: 32-bit
- Supported sampling rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Digital audio dynamic range: 124 dB
Inputs
- Instrument inputs: 111 dB (A-Weighted, Minimum Gain)
- Line inputs: 118 dB (A-Weighted, Minimum Gain)
- Microphone preamp: 116 dB (A-Weighted, Minimum Gain)
- Instrument inputs: 20 Hz 20 kHz, +/- 0.1 dB (Unity Gain, 1 kHz Reference)
- Line inputs: 20 Hz 20 kHz, +/- 0.1 dB (Unity Gain, 1 kHz Reference)
- Microphone preamp: 20 Hz 20 kHz, +/- 0.1 dB (Unity Gain, 1 kHz Reference)
- Instrument inputs: 75 dB
- Line inputs: +/- 10 dB
- Microphone preamp: 75 dB
- Instrument inputs: +21 dBu (Unbalanced, Minimum Gain)
- Line inputs: +18 dBu (Balanced, Minimum Gain)
- Microphone preamp: +18 dBu (Balanced, Minimum Gain)
- Line inputs: 0.001% (1 kHz, Minimum Gain)
- Microphone preamp: 0.002% (1 kHz, Minimum Gain)
Outputs
- Headphone outputs dynamic range: 118 dB (A-Weighted)
- Headphone outputs frequency response: 20 Hz 20 kHz, +/- 0.3 dB (Unity Gain, 1 kHz Reference)
- Headphone outputs impedance operating range: 33 Ohms
- Maximum output of headphone outputs: 11 dBu (50 Ohms)
- Line outputs connection type: Female TRS 1/4 inch
- Main and line outputs dynamic range: 123 dB (A-Weighted)
- Main and line outputs frequency response: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, 1 kHz Reference)
- Maximum level of main and line outputs: +18 dBu (Balanced)
- MIDI inputs/outputs: 5-pin DIN female
- Word Clock input/output: BNC Connector, 4.5 Vpp @ 75Ω Load
Dimensions
- 44 x 483 x 219 millimeters
Shipping Weight
- 2.93 kg

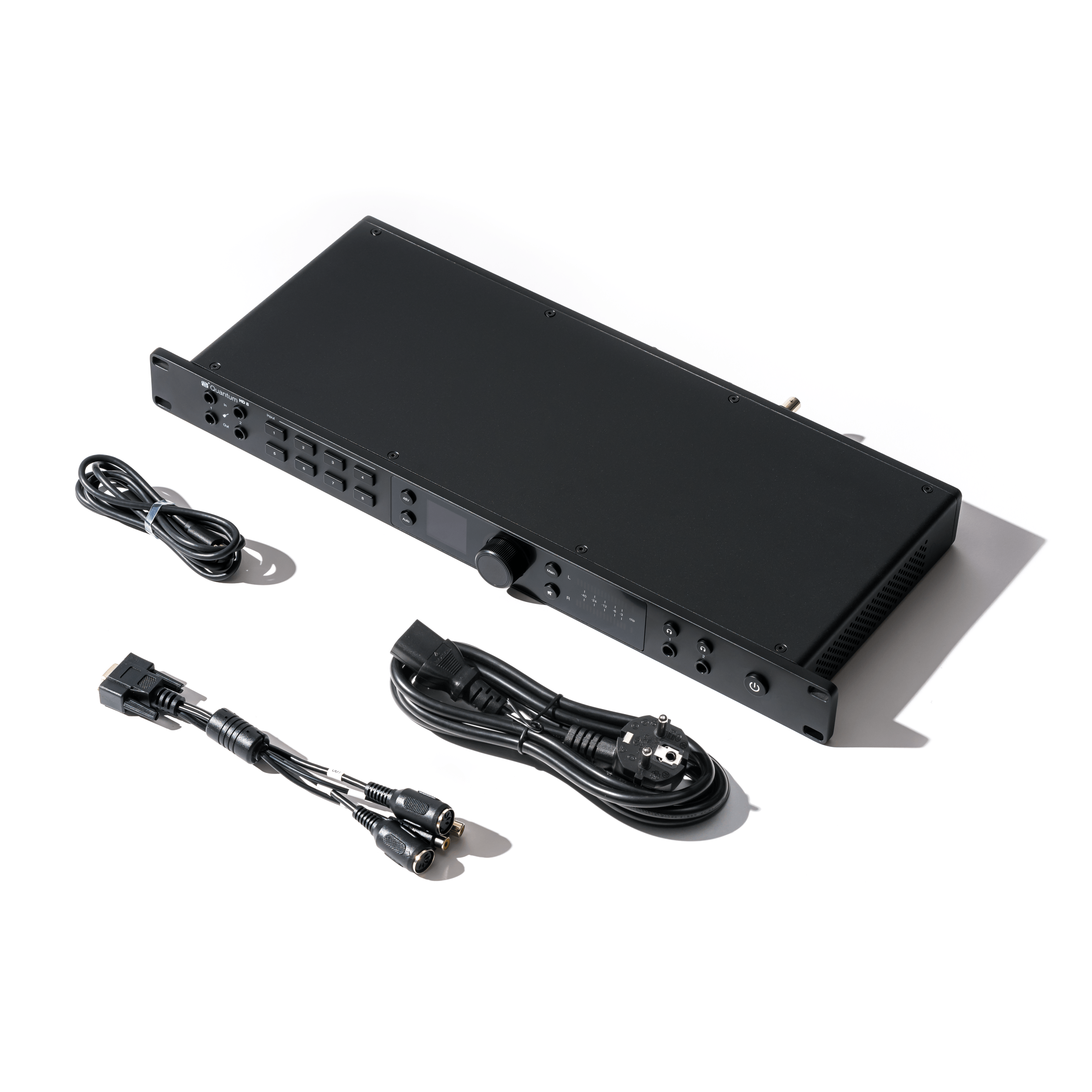

Comes With
- DB-9 breakout cable (for MIDI and S/PDIF inputs/outputs), 1.5-meter USB-C to USB-C cable, IEC power cord
