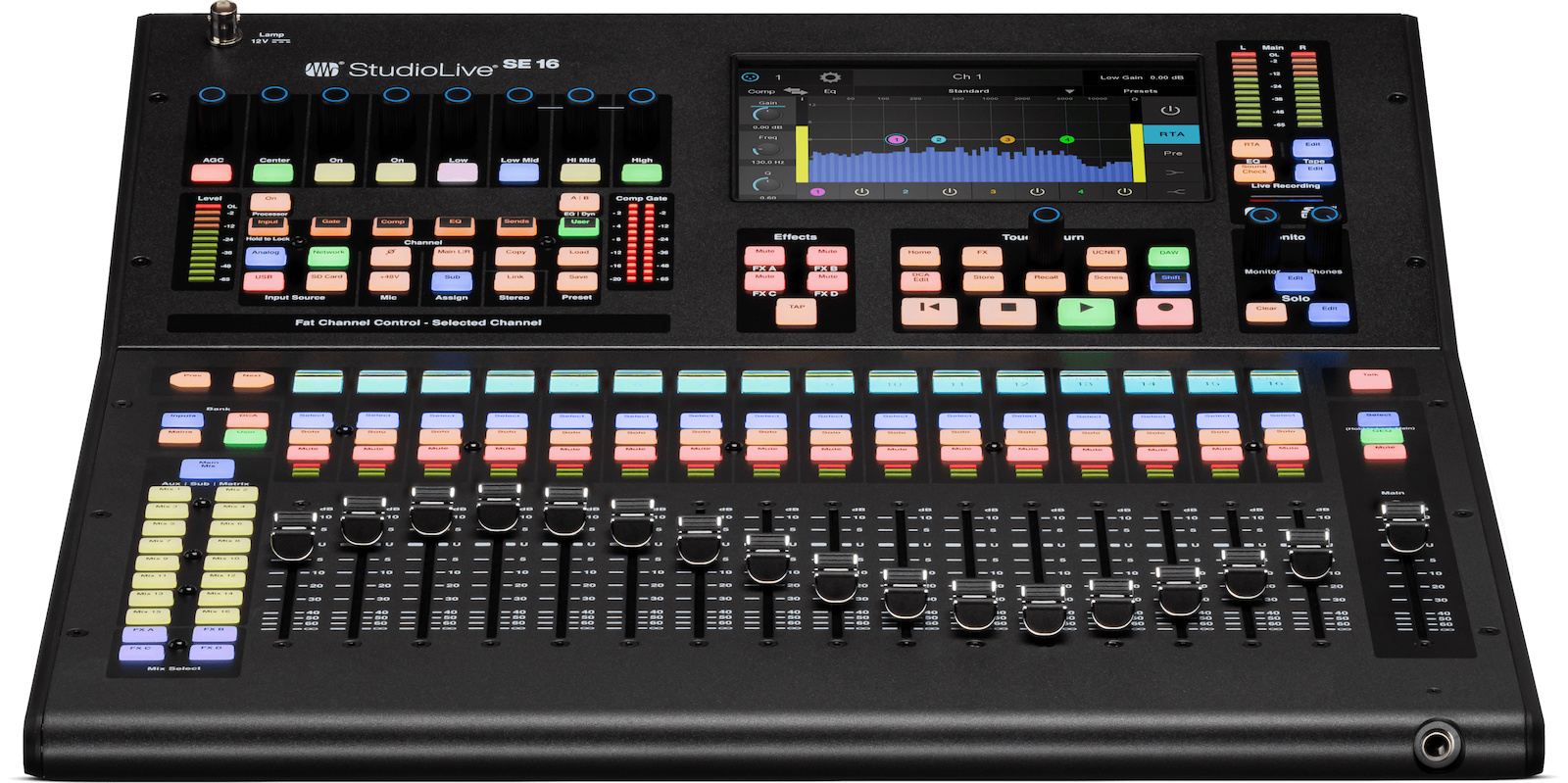

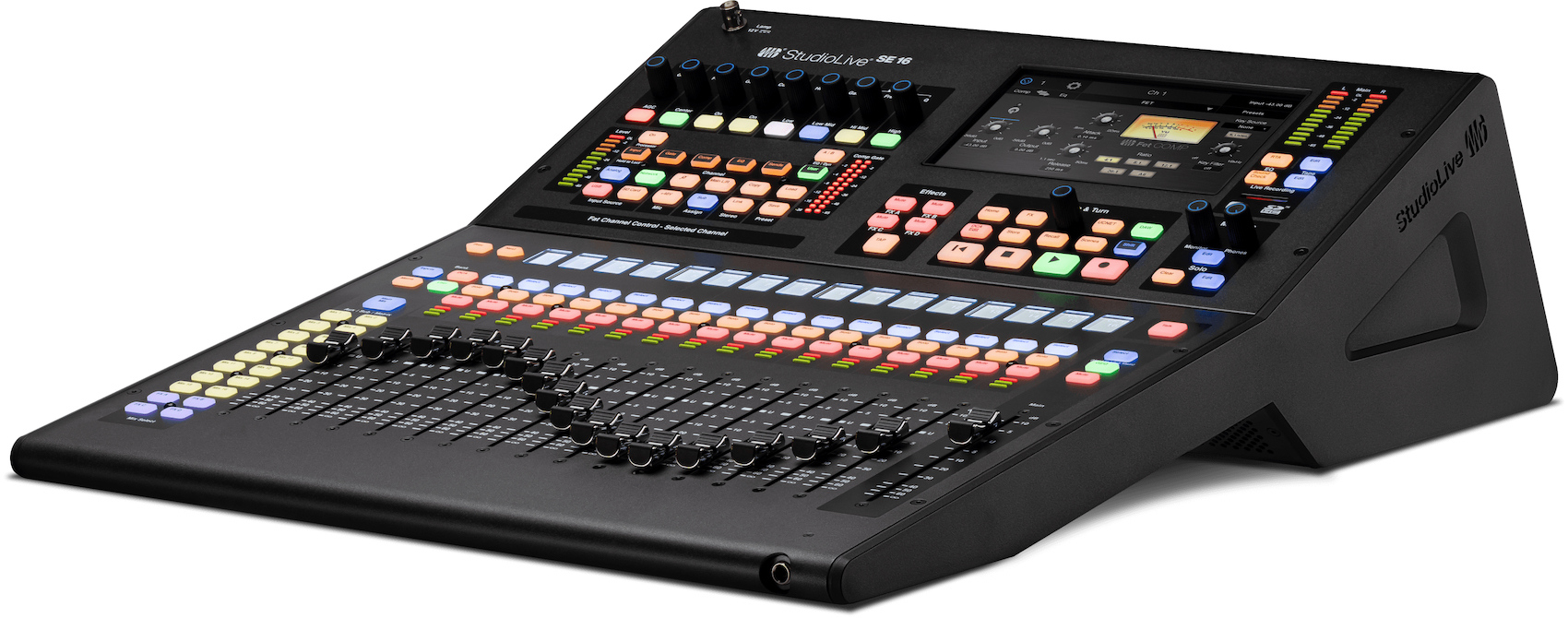

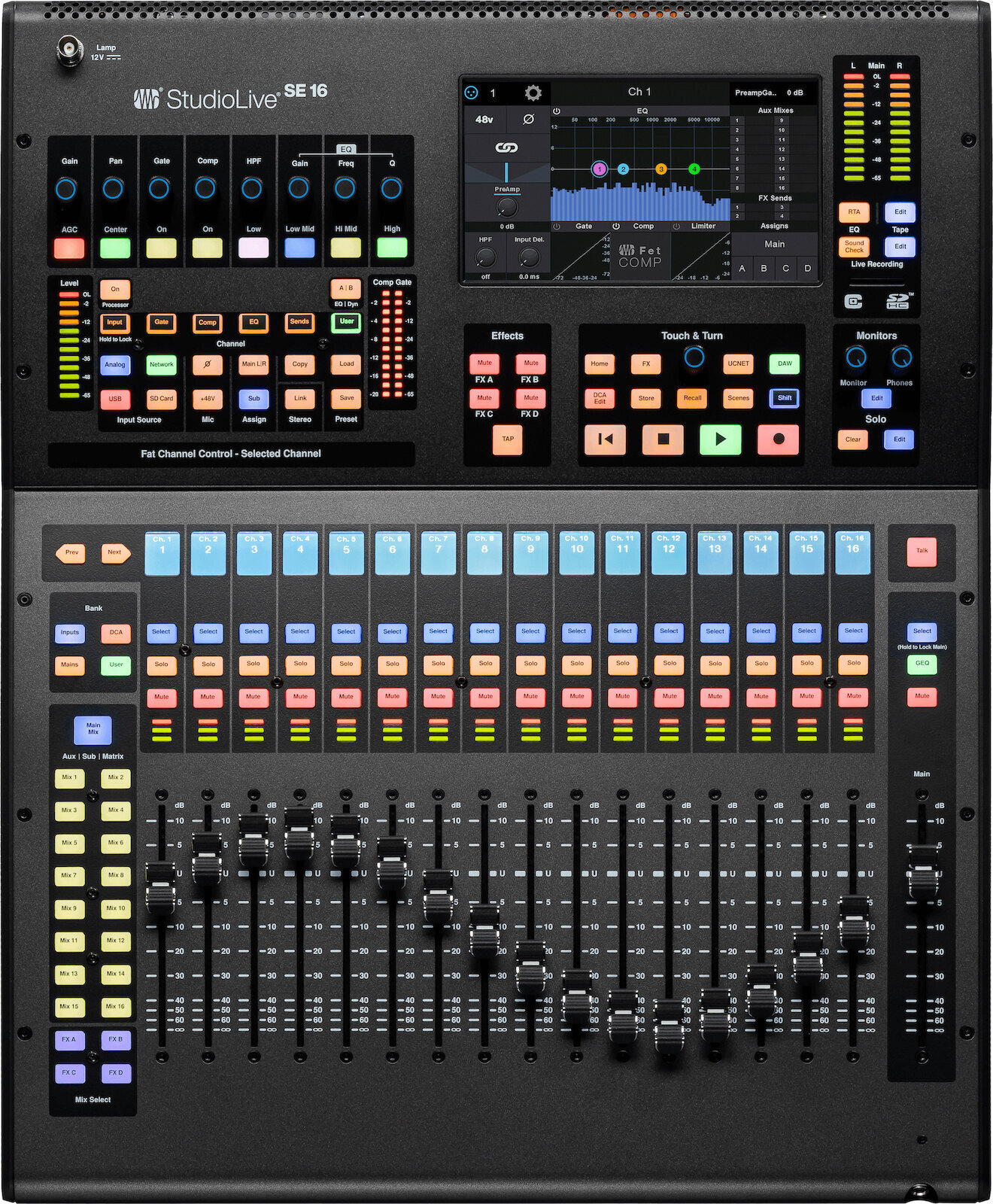

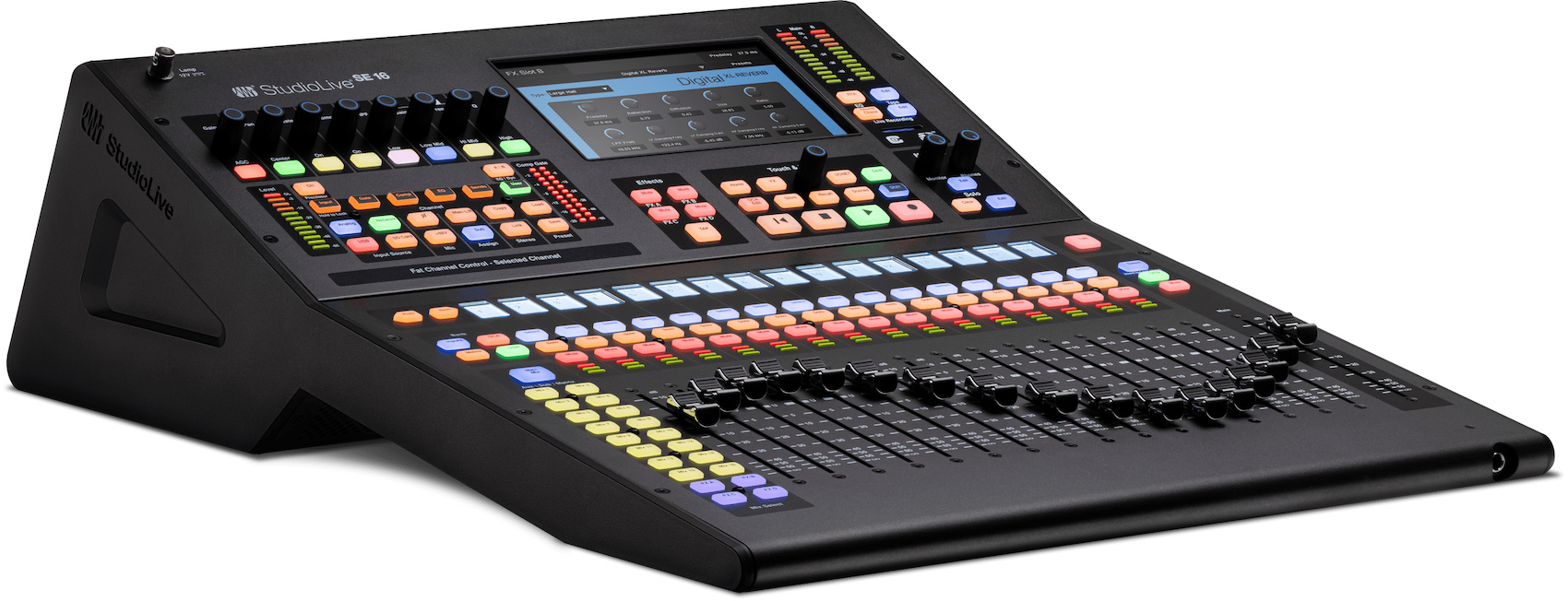

Digital mixing desk
StudioLive Serie III SE 16 revolutionizes your approach to mixing with an all-in-one solution solution that combines live performance, multitrack recording and streaming in a single one console. This 40-channel digital mixer with 17 motorized faders transforms your your setup into a mobile studio, offering the professional sound quality and creative flexibility you're looking for. No more compromises between ease of use and advanced features: this console accompanies you from stage to studio.
Key features
Revolutionary integrated recording
Capture your multitrack performances directly via the built-in SD recorder or USB 64x64 interface. No need for expensive external equipment - record every channel simultaneously during your live mix. One-click virtual balance with Capture saves hours of post-production work.
Impeccable studio sound on stage
The 17 XMAX-Remote preamps deliver crystal-clear analog sound with perfect digital digital recall. 32-bit floating-point DSP processing and 115 dB converters converters guarantee impeccable audio quality, even in the most demanding environments. Your sound remains pure and professional, from the first track to the last.
Universal Milan-AVB connectivity
Easily connect your StudioLive stageboxes and all your Milan compatible equipment thanks to the integrated AVB network. This technology lets you expand your system without limitation creating a modular setup that grows with your needs.
17 high-precision motorized faders
Control your mix with perfect fluidity thanks to motorized touch-sensitive faders. Automation becomes intuitive, and you retain total physical control of even the most complex complex passages. The ergonomic screen and redesigned caps maximize your comfort during long sessions.
Professional Fat Channel processing
Sculpt your sound with 8 compressor models and 7 equalizers from the Fat Channel Collection equalizers. Legendary equipment models (Brit Comp, FC-670, Tube EQ) bring vintage analog character to your digital mix. Four dedicated effects busses and extensive reverb complete your creative palette.
Total remote control with Metro
Control your console from anywhere in the world via the Internet. Locally, use Universal Control on your tablet or smartphone, and let your musicians create their own mixes with QMix-UC. Modern technology at the service of your creativity.
Highlights
- 64x64 USB interface and simultaneous SD recording for complete capture
- 16 configurable Flex mixes (aux, subgroup, matrix) for total flexibility flexibility
- Integrated Bluetooth streaming for musical breaks

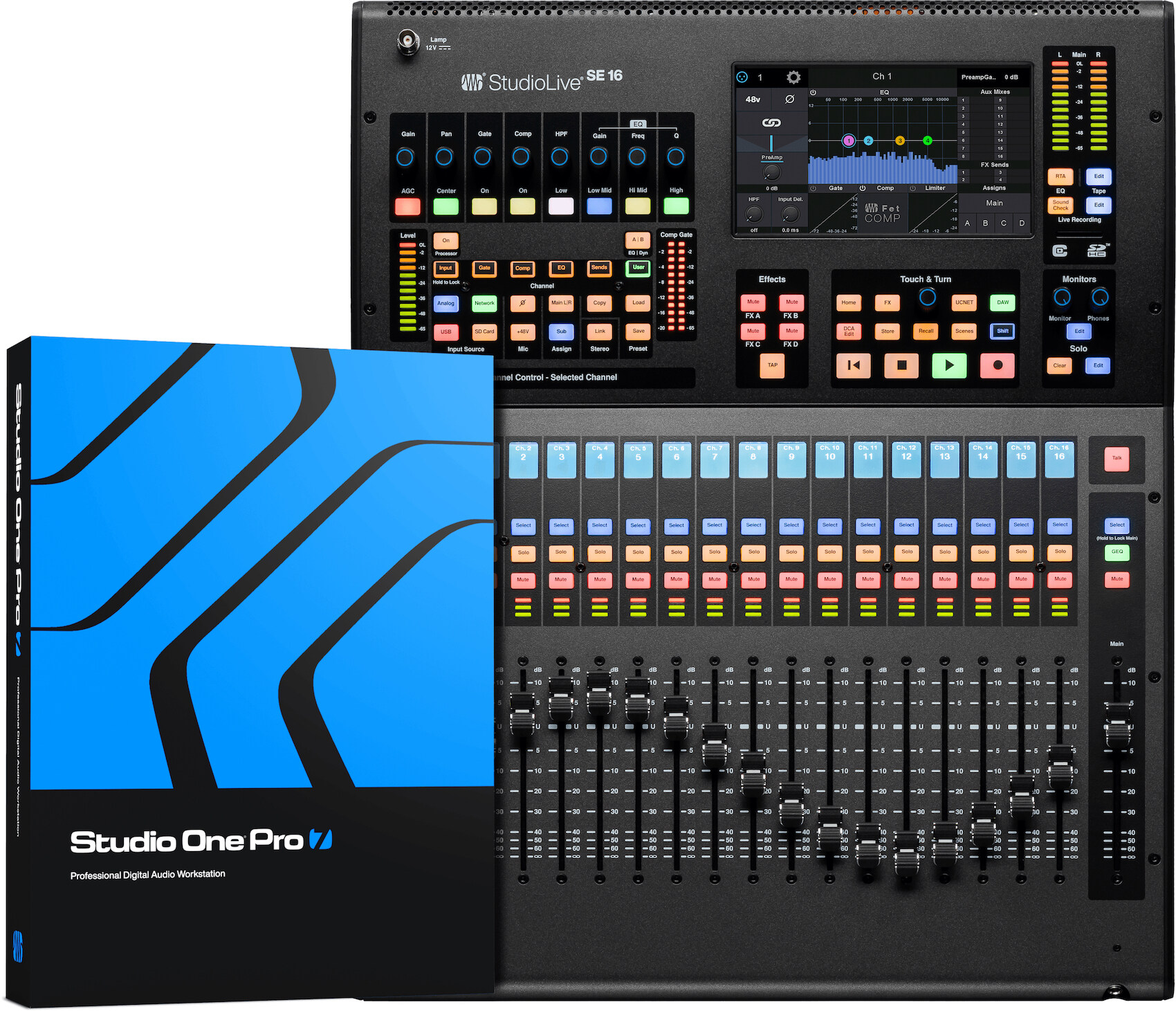

- Studio One Pro compatibility included (400€ value)
- Ergonomic design with high-contrast display for low-light conditions
- Dual-core FLEX DSP engine for latency-free real-time processing
Who this product is for
This console is ideal for DJ producers, mobile sound and multi-instrumentalist musicians looking for a complete looking for a complete solution. Ideal for live performances, home studio recording sessions, fixed installations in places of worship or professional tours. professional tours. If you want to go from basic mixing to a creative workflow the StudioLive SE is your solution.
FAQ
Can I use this console as an audio interface with my computer?
Yes, the integrated 64x64 USB interface turns your console into a professional audio interface. You can record 64 channels simultaneously in your DAW while retaining full full control from the console.
Does remote control work without an Internet connection?
Universal Control works over a local network (WiFi/Ethernet) without an Internet connection. Metro enables control via the Internet for remote technical support, but is not compulsory for day-to-day for daily use.
Does this console replace my existing analog setup?
Absolutely. StudioLive SE integrates preamps, effects, recording and audio interface in a single device. It drastically simplifies your setup while offering more creative creative possibilities than your current analog setup.
Technical sheet
- Number of channel mixing desk 10 to 22 channels
- Number of channels 16 channels
Product name - StudioLive® Series III SE 16 Digital Console Mixer, UK
Series - StudioLive®
Color - Black
Power supply - 100-230 VAC, 50-60 Hz
- Phantom +48 VDC (±2 VDC)
Power consumption - 85 W (continuous)
Recommended operating temperature - 0? to 40?C / 32? to 104?F
Headphone connections - 1/4" TRS Active Stereo
Headphone outputs - Frequency response: 20 Hz - 20 kHz, ±0.5 dB
- Max. output power: 100 mW/ch. @ 60Ω
- S/N ratio: 96 dB
- THD: 0.01%, 1 kHz

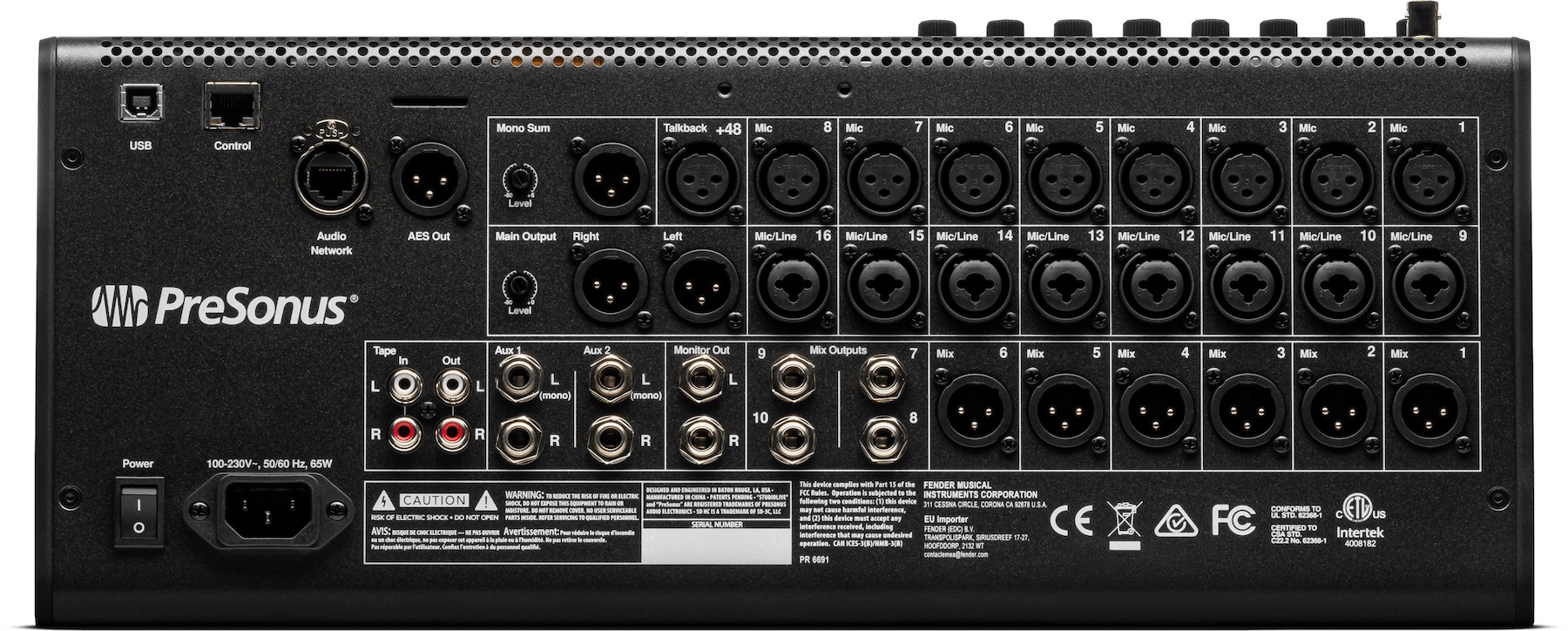

Analog audio connections - Line inputs: 1/4" TRS female, balanced
- Microphone inputs: XLR female, balanced
- Line outputs: 1/4" TRS female, balanced
- XLR outputs: XLR male
- Tape input : RCA female, unbalanced (stereo pair)
- Tape output: RCA, max +18 dBu, impedance 100 Ohms
Line input specifications - Frequency response: 20 Hz - 20 kHz (±0.5 dBu)
- Impedance: 10 kΩ
- Max. level: +18 dBu
- S/N ratio: 94 dB
- THD: <0.005
Mic preamp specifications - Frequency response: 20 Hz - 20 kHz (±0.5 dBu)
- Gain range: 0 to 60 dB (±1 dB)
- Input impedance: 1 kΩ
- Max. level: +12 dBu
- S/N ratio: 94 dB
- THD: <0.005
- CMRR: 65 dB (1 kHz)
Digital connections - AES/EBU output: XLR male
- AVB audio network: Neutrik® etherCONN®
- Network control port: RJ-45
- USB recording: USB 2.0 Type-B
Media storage - SD: 2 GB
- SDHC: up to 32 GB
Supported formats - Media format: FAT16 (SD), FAT32 (SDHC)
- Recording format: WAV
Digital audio resolution - Bit depth: 24 bits
- Internal processing: 32-bit floating
- ADC/DAC dynamic range: 115 dB (A-weighted, 48 kHz)
- Reference level for 0 dBFS: +18 dBu
- Total system latency: 1.9 ms (local routing)
SD recorder - Bit depth: 24-bit recording, 16- or 24-bit playback
- Sampling rate: 44.1 or 48 kHz
Line & XLR outputs - Line outputs: +18 dBu max, impedance 100 Ohms
- XLR outputs: +24 dBu max, impedance 100 Ohms
Crosstalk - -87 dB (adjacent channels, 20 Hz - 20 kHz, unweighted)
Dimensions - Width: 17.59" / 446.66 mm
- Depth: 22.97" / 583.84 mm
- Height: 6.51" / 165.36 mm
Weight - Less than 25 lbs
Power cable - IEC
