Active full-range speaker

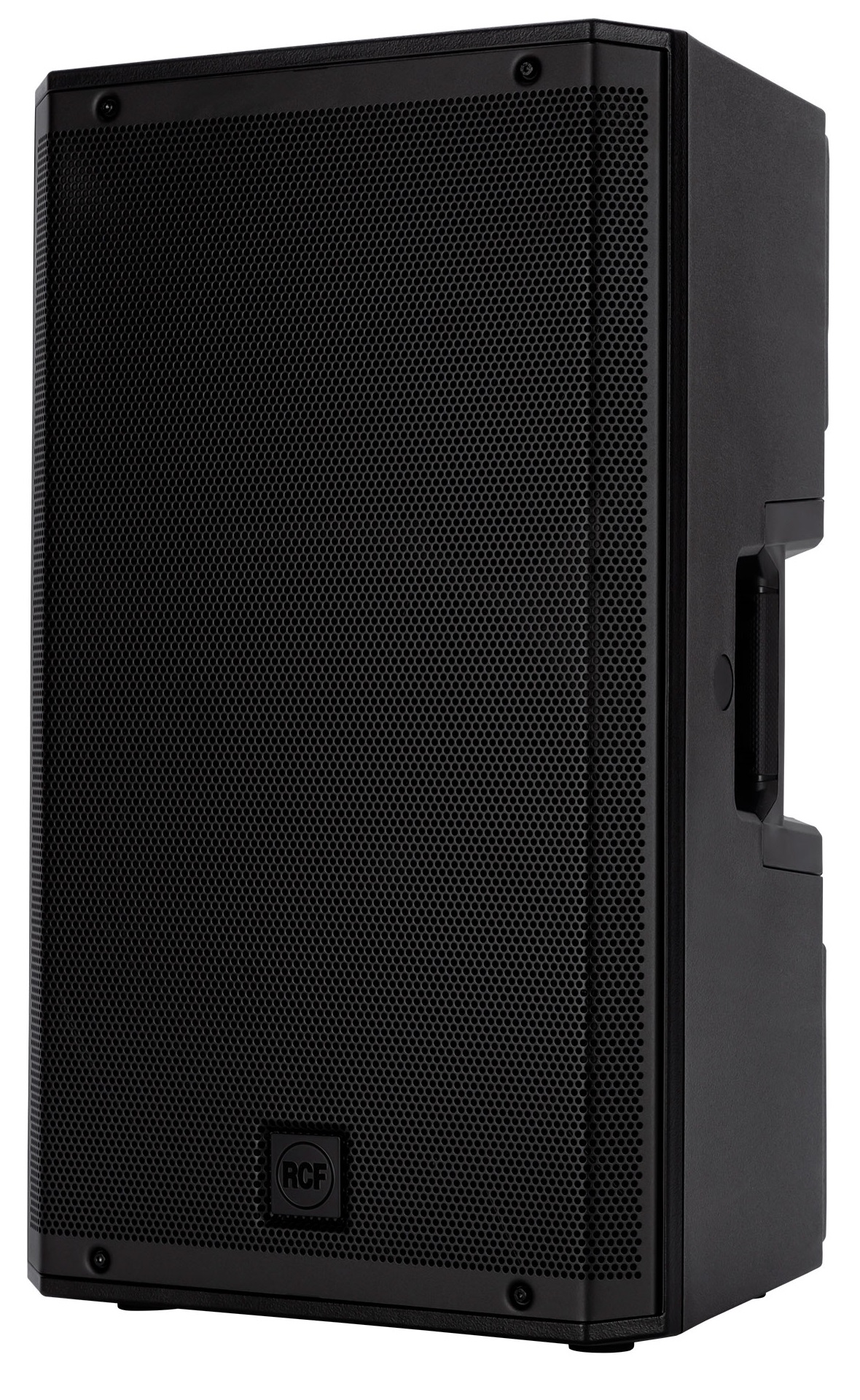

The ART 932-A is a speaker offered by the RCF brand.
The ART 932-A has been masterfully designed to deliver exceptional audio performance and great versatility for intensive audio applications. It combines a 3" titanium dome compression driver with neodymium magnet, a 12" woofer, a 2100 W two-channel amplifier, and a True Resistive Waveguide constant directivity horn ensuring consistent 100° x 60° coverage for distortion-free sound, reaching 132 dB SPL. With RCF's exclusive FiRPHASE and Bass Motion Control (BMC) DSP treatments, speaker behavior is precisely optimized on each model for absolute clarity and powerful, deep bass for the audience. The elegantly designed enclosure utilizes a specific polypropylene composite with an internal M-brace reinforcement. Easy to transport, it can be pole-mounted, wall-mounted, structurally mounted, or suspended using the numerous points provided for this purpose.
The Strengths of the ART 932-A
- RCF speakers are designed using patented advanced FiR filtering technology, developed to provide listeners with transparent sound, absolute precision, and impeccable stereo imaging. The special FiRPHASE filters achieve consistent sound distribution for all listeners without phase distortion, ensuring minimal system latency.
- To extend bass response and improve performance, RCF engineers have found a way to eliminate the high-pass filter by replacing it with an innovative approach. Introducing BMC (Bass Motion Control), a new advanced treatment for managing woofer excursion. Speakers equipped with BMC processing can handle the lowest audible frequencies without affecting woofer stability, with extended linearity and more faithful rendering.
The Key Features of the ART 932-A
Power in Motion
The most powerful amplifier in its class. RCF's improvements on its speakers make them stronger and more powerful, and the amplifier naturally accompanies this evolution. With 2100 W, the Class D 2-channel amplifier of the ART 9 is 50% more powerful than previous models, capable of handling extreme acoustic pressure levels with ultra-fast attack, realistic transient response, and very low heating. Thanks to its energy efficiency, the NX 9 Series does not require ventilation. The amplifier is mounted on a fully aluminum heat exchanger at the back of the enclosure, without any moving parts. Structurally fixed to the internal frame, the amplifier is firmly and securely held within the enclosure. The new input circuit ensures low distortion, and an advanced limiter preserves the naturalness of the input signal, regardless of its level. All amplifiers in the ART 9 Series are designed according to EN62368-1 standard for maximum safety, and their switching power supply combines high efficiency and minimal weight.
New M-Bracing Cabinet Design
The professional look of the ART 9 Series cabinet is ideal for live events or fixed installation applications. The elegantly designed enclosure utilizes a specific polypropylene composite, combined with a radically new construction concept. The robust steel grille protects the speakers and bass reflex vents. The specially designed M-brace reinforcement connects the four inner sides of the enclosure with the amplifier, preventing any deformation. This results in a completely inert volume, with increased acoustic damping even at maximum volume. It also provides greater resistance to external mechanical stresses.
New Electroacoustic Paradigms
The innovative design of the ART 9 Series lies in the speaker enclosure. The new True Resistive Waveguide is the result of several refinements to both the speaker and bass reflex vent design using finite element analysis and extensive measurements in RCF's anechoic chambers. Through FiRPHASE technology, the new shape and placement of the vents, the speaker now acts as an ideal point source for perfect sound imaging. Acoustically, the TRW waveguide emulates a pure resistive load without resonance, reducing distortion in the high frequencies compared to a traditional horn. With its asymmetrical design, the waveguide's opening angle provides constant directivity across the listening area and improved stereo imaging.
Legendary Speakers
Remarkable compression drivers The ND840 compression driver with a pure titanium dome and 3” voice coil allows for a crossover frequency of only 800 Hz. This results in better impulse response, damping, and higher efficiency. RCF's neodymium magnet compression drivers are lightweight and powerful, setting a standard for performance and reliability. The woofer is a powerful 12" model with a 2.5" voice coil. It produces tight and punchy bass. The reproduction of mid-bass is precise, transparent, and distortion-free.
Expert Reviews
- Remarkable ease of use. Even for those not experienced in sound reinforcement, this speaker is incredibly simple to set up and use. Intuitive controls and user-friendly interface make it an ideal tool for live events or permanent installations.
- Whether you're a DJ, musician, event host, or sound engineer, the RCF ART 932-A speaker adapts to all needs. With its extended frequency response and ability to faithfully reproduce all types of music, it ensures outstanding performance in any situation.
Lire la suite
Technical sheet
- PA power speaker 1001 to 1500 watts RMS
- Type of PA speaker Stage & FOH monitor
- FREQUENCY RESPONSE
- 50 Hz ÷ 20000 Hz
- MAX. SPL @ 1M
- 132 dB
- HORIZONTAL COVERAGE ANGLE
- 100°
- VERTICAL DETECTION ANGLE
- 60°
- Speakers
- COMPRESSION DRIVER: 1 x 1.4'' neo, 3.0'' v.cWOOFER: 12'', 2.5'' v.c
- Input/Output Sections
- INPUT SIGNAL: bal/unbalINPUT CONNECTORS: XLR, JackOUTPUT CONNECTORS: XLRINPUT SENSITIVITY: -2 dBu/+4 dBu
- Size
- HEIGHT: 642 mm / 25.28 inchesTOTAL WIDTH: 370 mm / 14.57 inchesPACK DEPTH: 363 mm / 14.29 inchesPACK WEIGHT: 18.8 kg / 41.45 lbs
