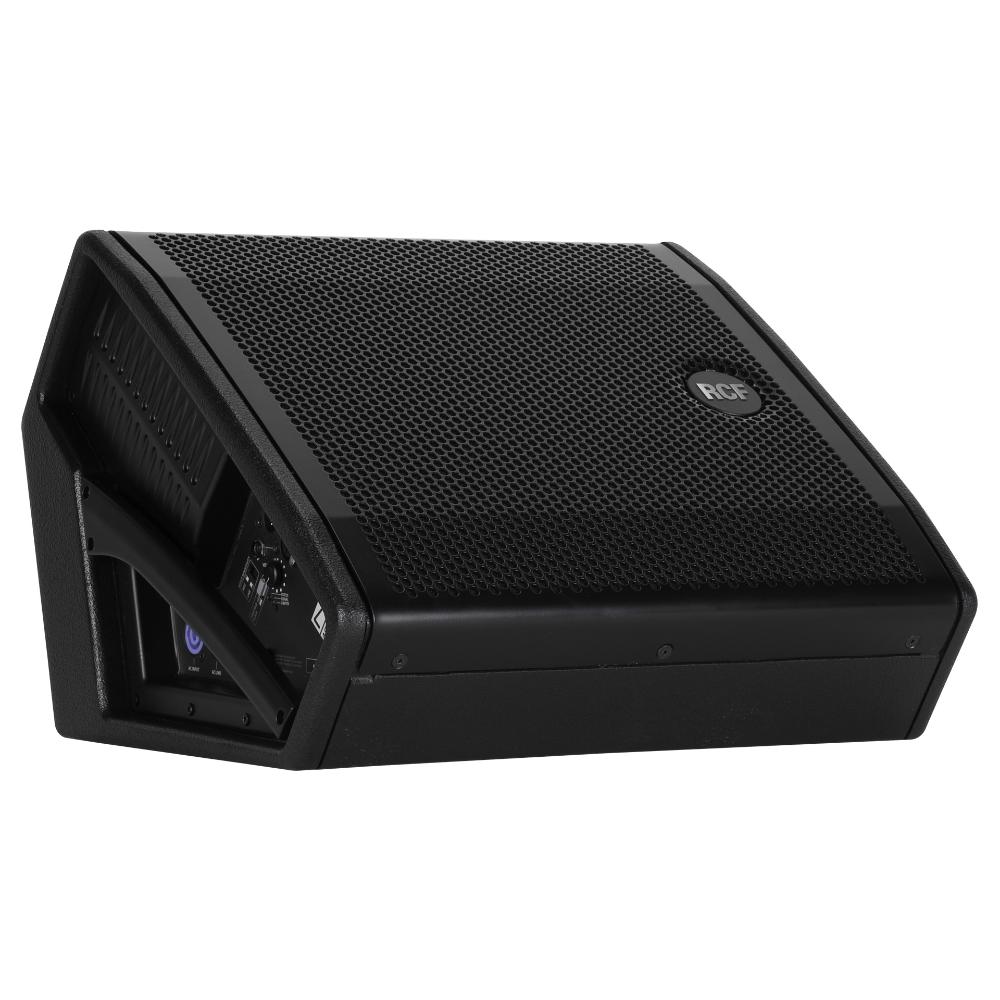

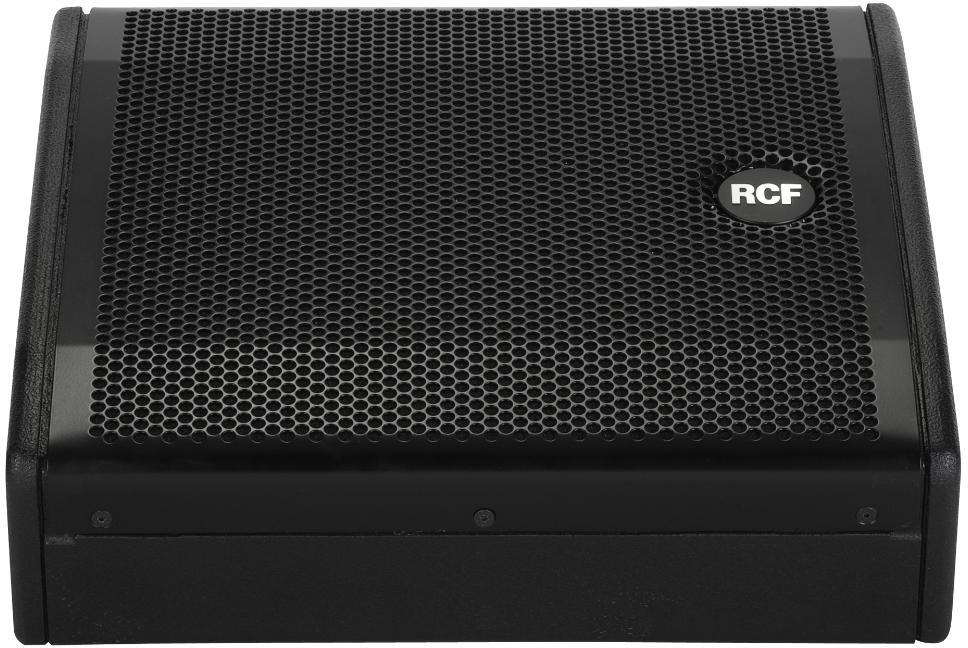

Active full-range speaker

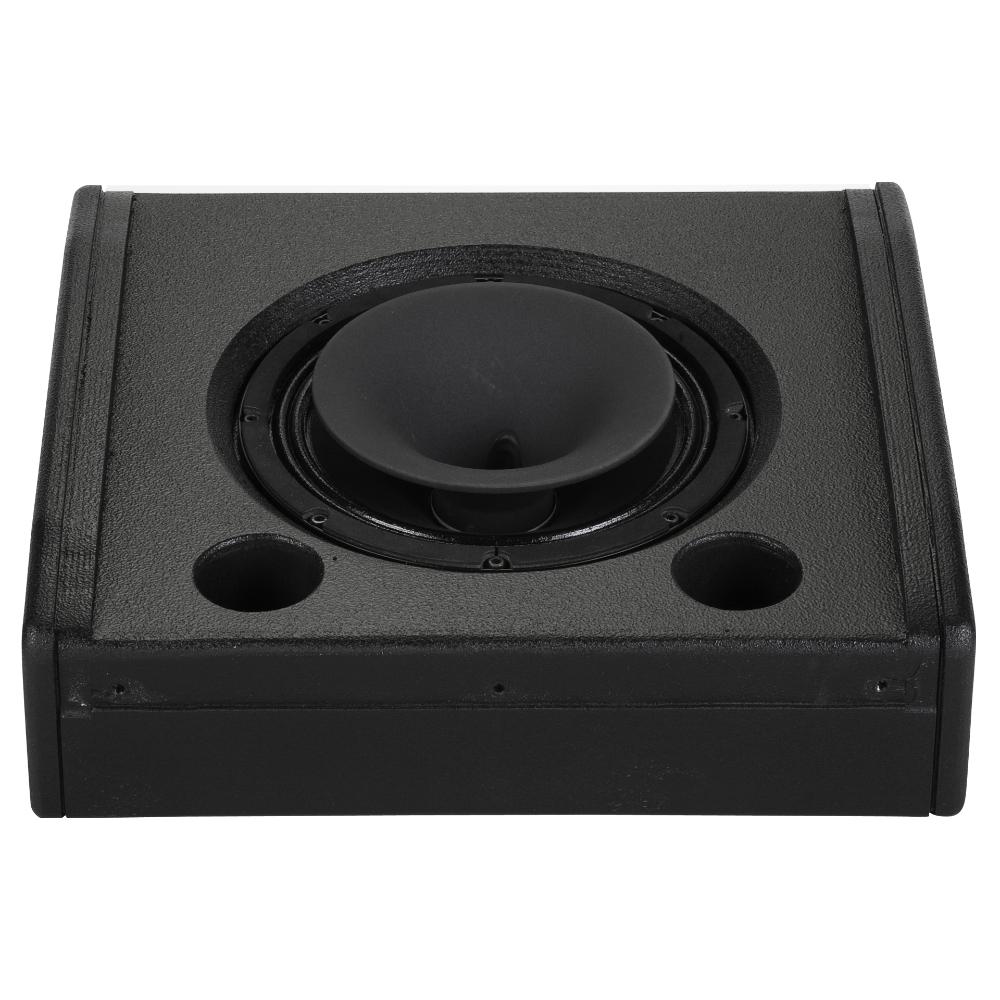

RCF's NX 10-SMA is a coaxial active loudspeaker designed primarily for use as a stage monitor, yet offering enough versatility to double as a main loudspeaker. It combines a high-power 10? driver and a neodymium HF motor, powered by high-performance digital amplification.
Constructed from Baltic birch plywood with a sturdy paint finish, ergonomic side handle and stand base, it is solid, lightweight and easy to handle.
Designed for musicians, technicians and sound engineers, the NX 10-SMA meets the need for mobility, reliability and power. It delivers high sound pressure while remaining compact and easy to integrate.
Two built-in equalization modes - Floor (stage monitor) and Free Field (front of house) - enable instant adaptation to the desired application.
Highlights
-
Amplification
- 800 W Peak / 400 W RMS bi-amplified digital amplification
-
Transducers

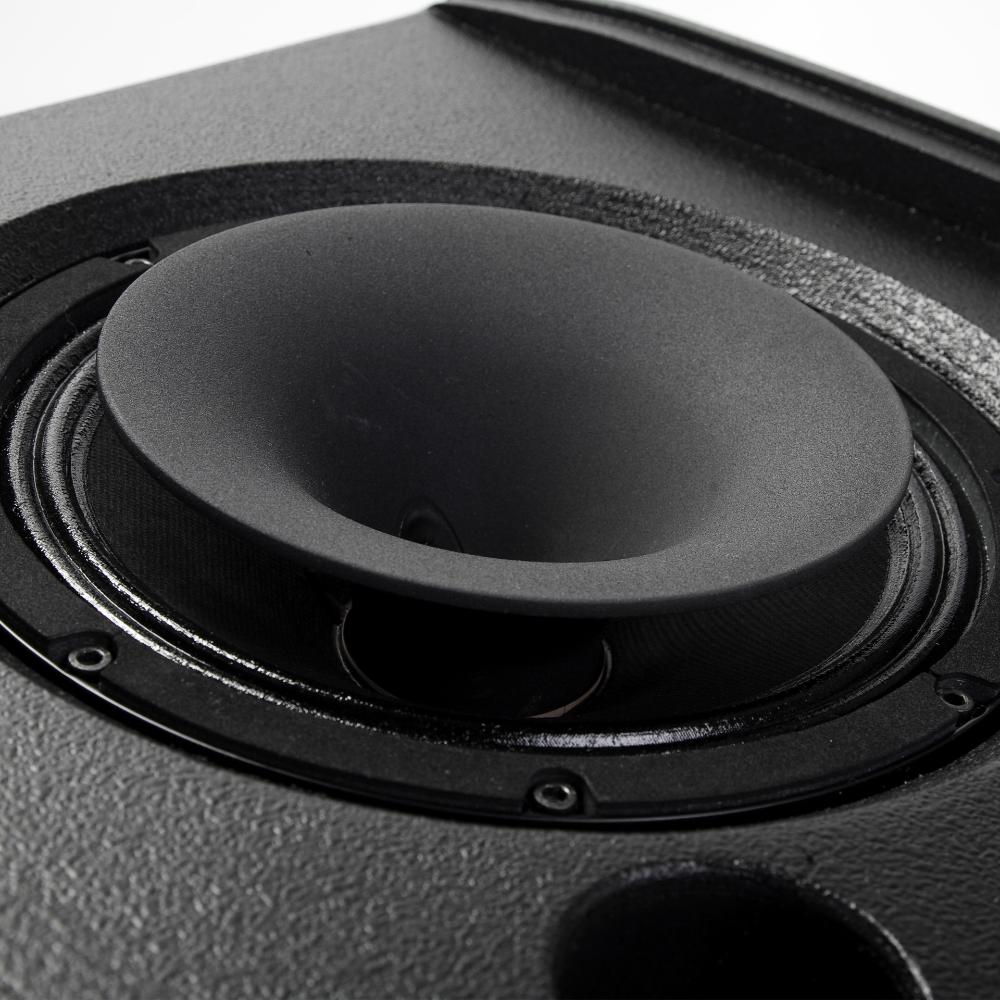

- 10" high-power neodymium woofer
- Neodymium HF motor
- Lightweight construction thanks to neodymium magnets
-
Sound pressure level
- Maximum SPL: 127 dB @1 m
-
Directivity
- Constant directionality: 60° × 60° for even coverage
-

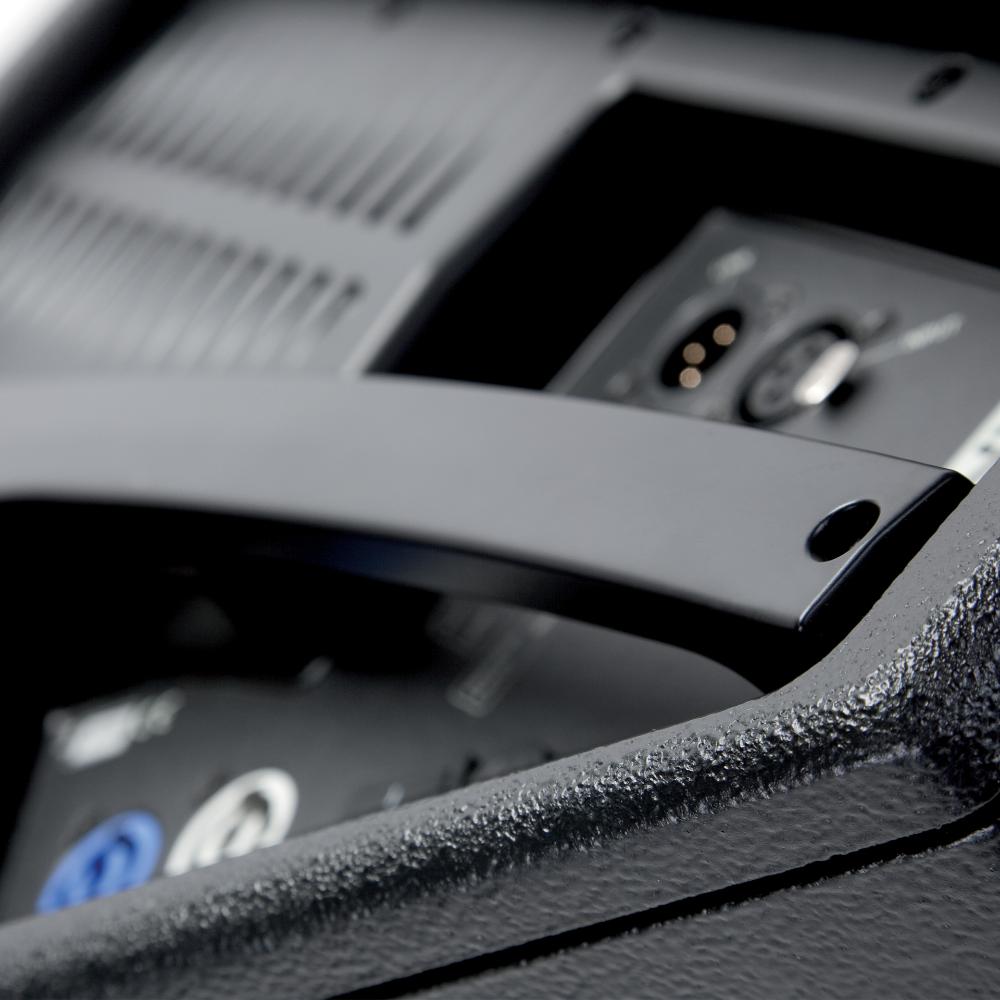

Connections
- XLR / Jack input (bal/unbal)
- XLR output (link) for simplified chaining
-
Construction
- Baltic Birch plywood cabinet
- Durable paint and steel grille
- Ergonomic side handle
- Integrated stand base
Lire la suite
Technical sheet
- PA power speaker 301 to 600 watts RMS
- Type of PA speaker Stage monitor
- Acoustic characteristics
- Frequency response: 60 Hz - 20 kHz
- Max SPL (@1 m): 127 dB
- Directivity: 60° × 60° (H × V)
- Low-frequency driver: 1 × 10? neodymium, 2.5? coil
- High-frequency driver: 1? neodymium, 1.75? coil
- Configuration: Coaxial
- Amplification / Electronics
- Total amplification: 800 W Peak / 400 W RMS
- HF distribution: 200 W Peak / 100 W RMS
- LF distribution: 600 W Peak / 300 W RMS
- Amplification type: Digital bi-amplified
- Equalization modes: Floor (stage return), Free Field (front)
- Cooling: Convection
- Input sensitivity: +4 dBu

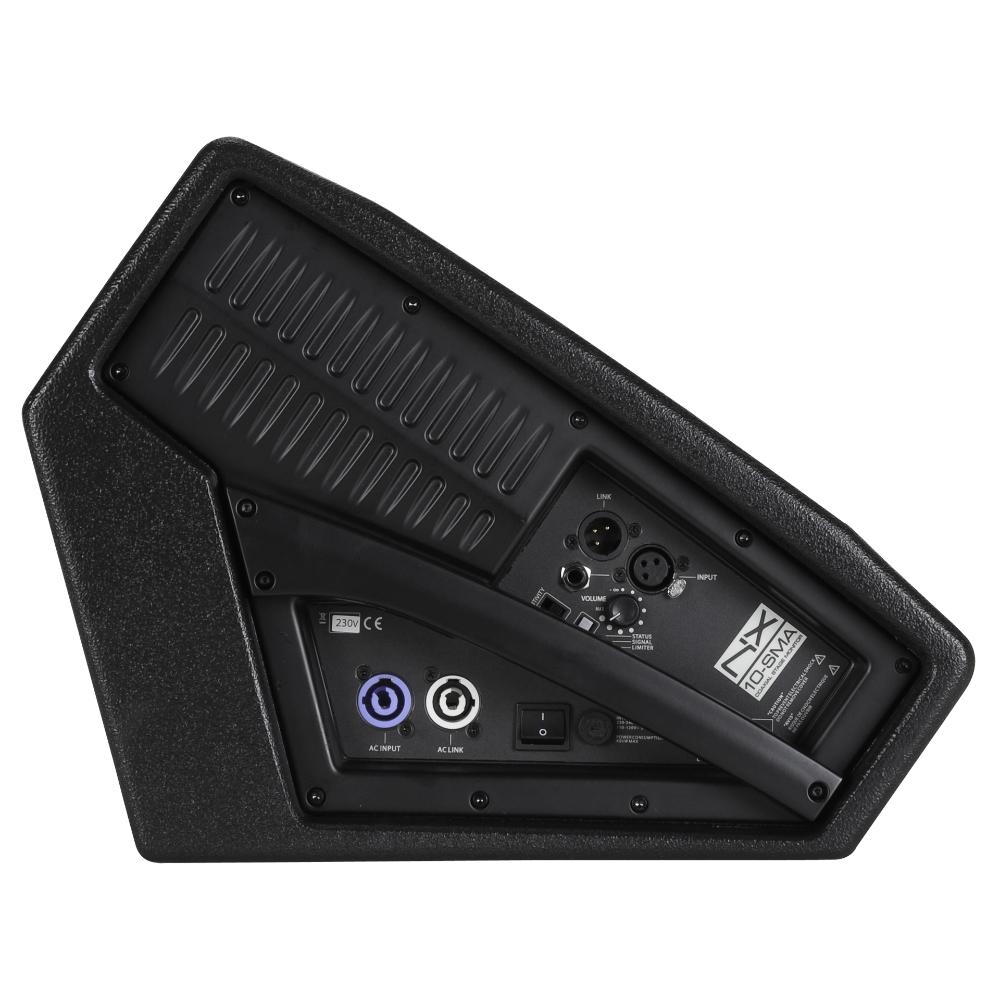

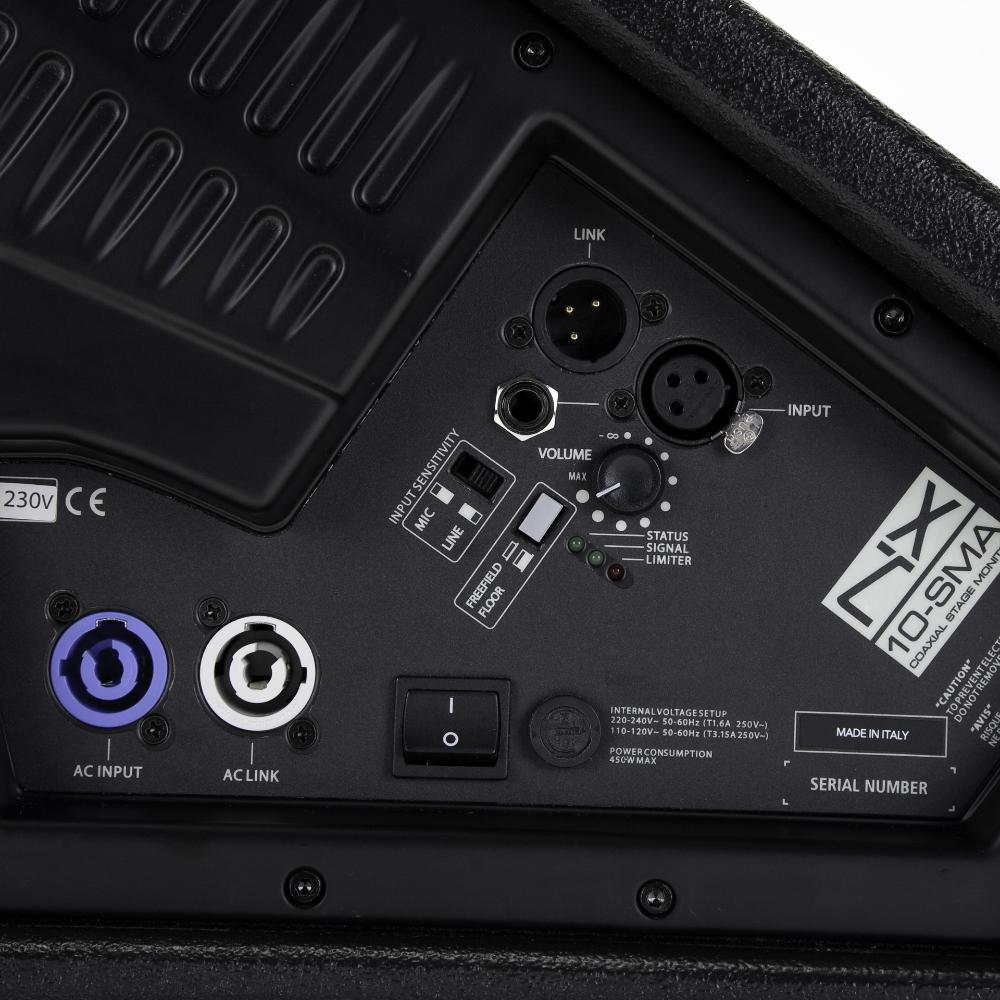

- Connection
- Input: XLR / Jack (bal/unbal)
- Output: XLR (link)
- Power supply: 115 V or 220-240 V depending on version
- Construction / Mechanics
- Cabinet material: Birch plywood (Baltic Birch)
- Finish: Resistant black paint
- Grille: Steel
- Handle: 1 × lateral

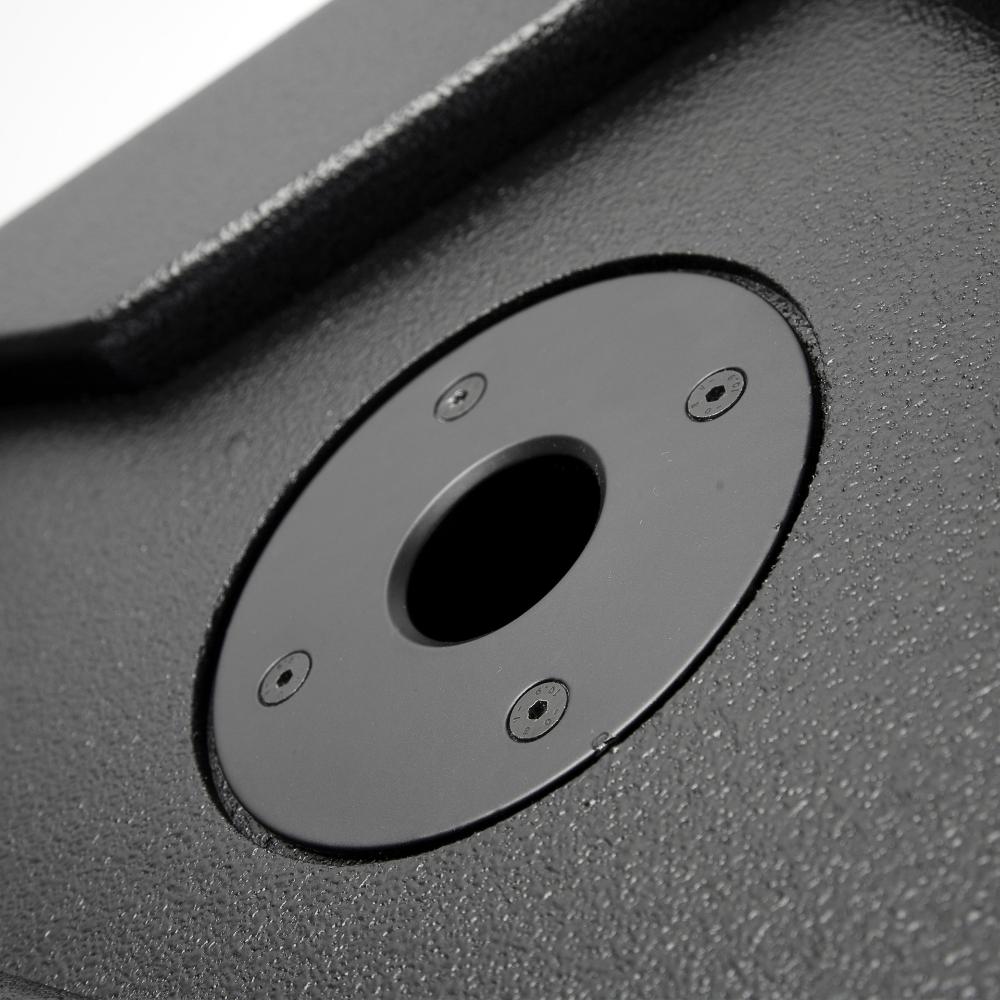

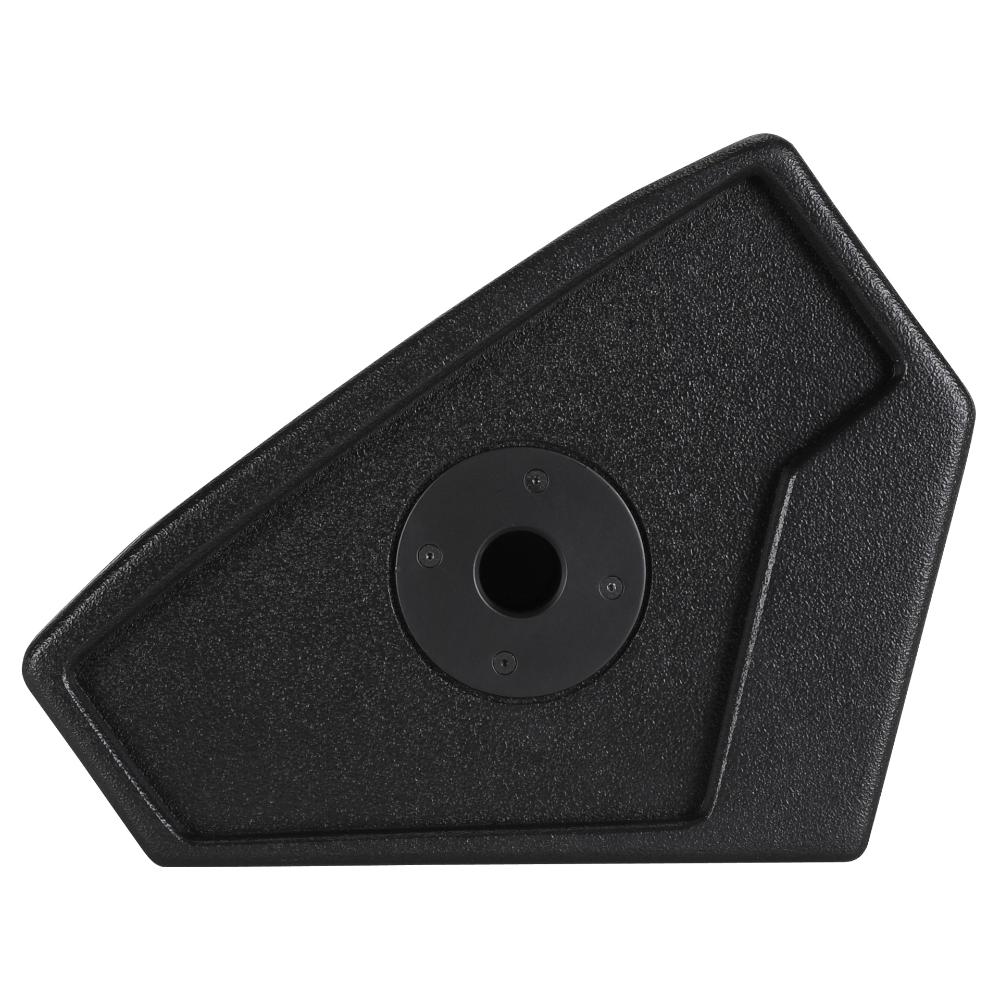

- Base plate: Ø 35 mm
- Dimensions (H × W × D): 324 × 450 × 417 mm
- Weight: 14.3 kg
- Packaging
- Package dimensions: 504 × 504 × 404 mm
- Total weight: 17.4 kg
