Active full-range speaker
RCF's NX 12-SMA is a high-performance active monitor designed for musicians, singers, DJs and sound technicians looking for powerful, precise and reliable monitoring. Thanks to its coaxial design (integrated 12? woofer + HF motor), the loudspeaker offers exceptional sonic coherence, with a controlled 60° × 60° dispersion, ideal for a versatile, easy-to-place stage monitor.
Featuring bi-amplified digital amplification delivering 700 W RMS / 1,400 W Peak, the NX 12-SMA combines high acoustic pressure, dynamics and clarity. The neodymium HF motor and 12? woofer ensure solid bass, present midrange and precise vocal reproduction, essential for live applications.
The chassis is constructed from Baltic birch plywood, a robust material renowned for its lightness and durability on tour. The reinforced black paint finish protects the speaker from impact and wear. Its side-mounted handle and 35 mm base allow it to be used both on the floor (as a stage monitor) and on a stand as a main loudspeaker in smaller configurations.
Two equalization modes are available: Floor - optimized for use on the floor as a stage monitor, and Free Field - designed for front-of-house applications or mobile sound reinforcement.
This makes the NX 12-SMA an extremely versatile professional solution, equally suited to live stages, mobile installations and DJ performances requiring high power, excellent clarity and robustness.
Highlights
-
Acoustic design

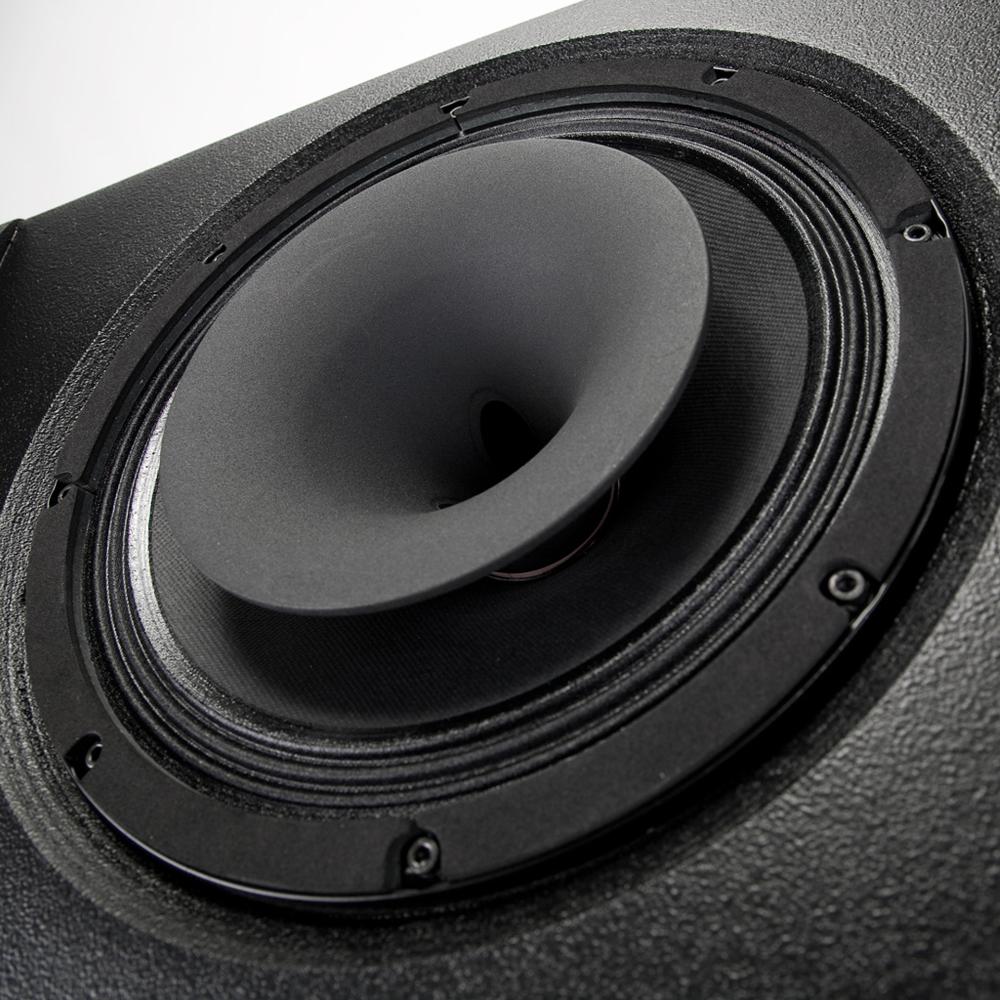

- Coaxial configuration: integrated 12? woofer + HF driver
- Controlled dispersion: 60° × 60
- Precise vocal reproduction, solid bass and present midrange
-
Amplification
- Bi-amplified digital amplification: 700 W RMS / 1,400 W Peak
- High dynamics and acoustic pressure
-
Construction
- Baltic birch plywood cabinet
- Impact-resistant, reinforced black paint
- Ergonomic side handle
- 35 mm base for stand mounting
-
Equalization modes
- Floor mode: optimized for stage monitors
- Free Field mode: optimized for front-of-house use / mobile reinforcement
-
Versatility
- Suitable for musicians, singers, DJs and technicians
- Ideal for live stage, mobile installation or small PA systems
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker Stage monitor
- Acoustic characteristics
- Frequency response: 50 Hz - 20,000 Hz
- Max SPL (@ 1 m): 129 dB
- Coverage angle (H × V): 60° × 60
- Low-frequency driver: 1 × 12? neodymium, 2.5? voice coil
- High-frequency driver: 1.7? Kapton dome, 1? output, neodymium
- Configuration: coaxial
- Amplification / Electronics
- Total amplification: 700 W RMS / 1,400 W Peak
- Low-frequency distribution: 500 W RMS / 1,000 W Peak
- High-frequency distribution: 200 W RMS / 400 W Peak
- Type: bi-amplified digital amplification with DSP, software limiter and integrated protections
- Equalization modes: two positions - Floor and Free Field
- Cooling: convection
- Input sensitivity: +4 dBu

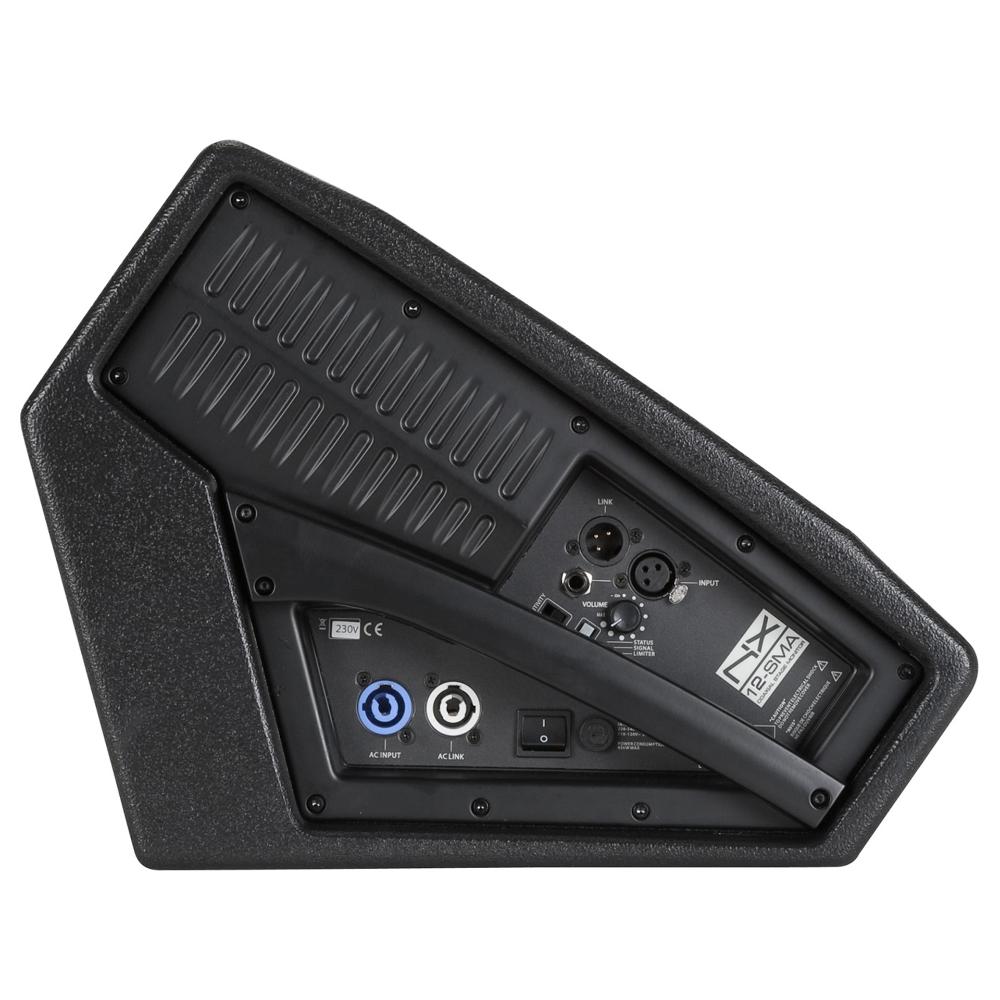

- Connections
- Inputs: XLR / Jack (balanced/unbalanced)
- Output: XLR link
- Power supply: 115 V or 220-240 V versions, depending on model
- Construction / Mechanics
- Cabinet: Baltic birch plywood
- Finish: resistant black paint (for road use or installation)
- Grille: protective steel
- Handle: ergonomic side handle
- Base for tube/foot: diameter 35 mm
- Dimensions (H × W × D): 324 × 550 × 417 mm
- Weight: approx. 16.5 kg
- Operation and modes
- Floor mode: optimized for backstage use
- Free Field mode: optimized for front-of-house/light PA use
- Coaxial design: improves acoustic coherence
