Rme ADI-6432-R

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Rme Adi-6432-r - Converter - Main picture
  • Rme Adi-6432-r - Converter - Variation 1
  • Ref : 74055
3609,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Rme

Learn more about the Rme brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Converter

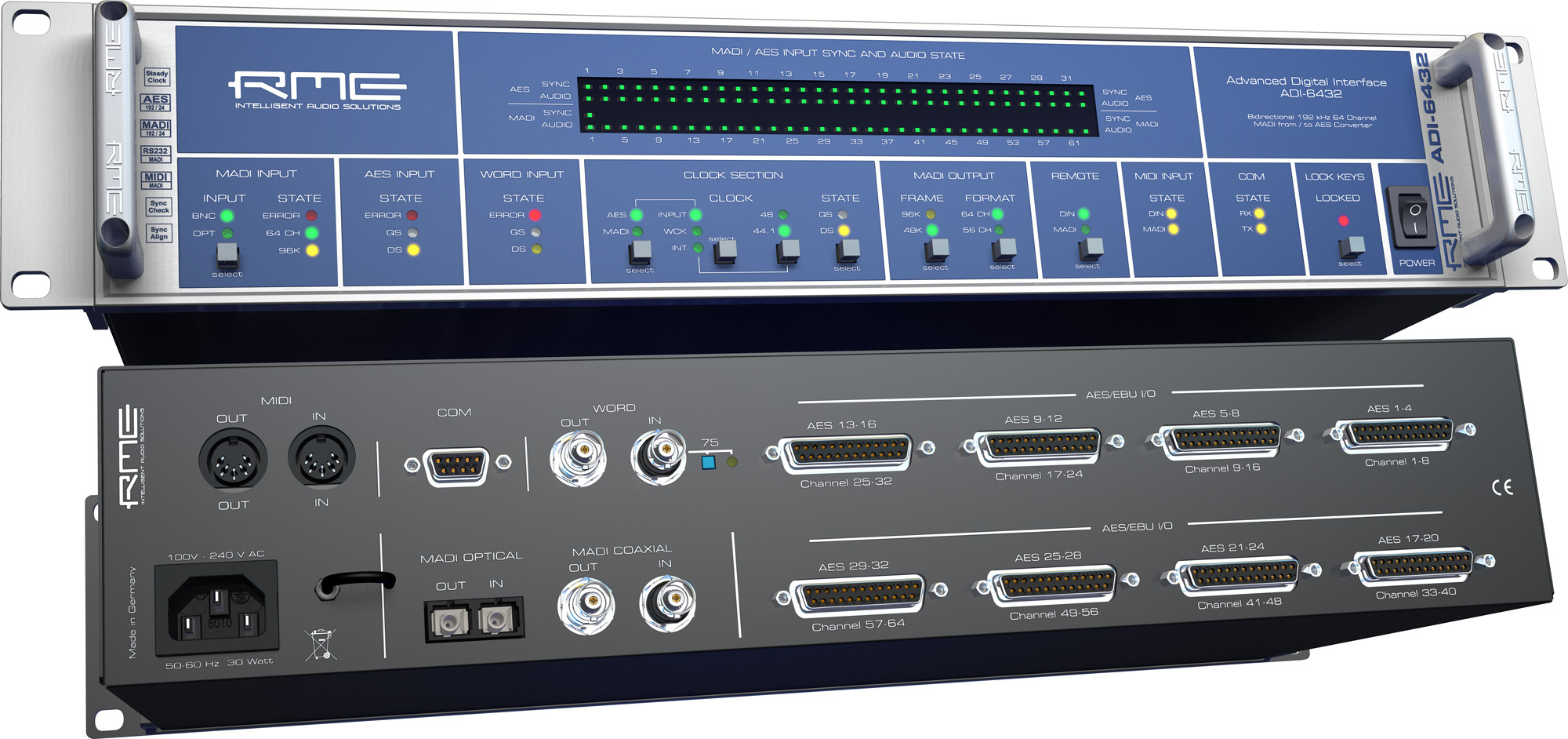

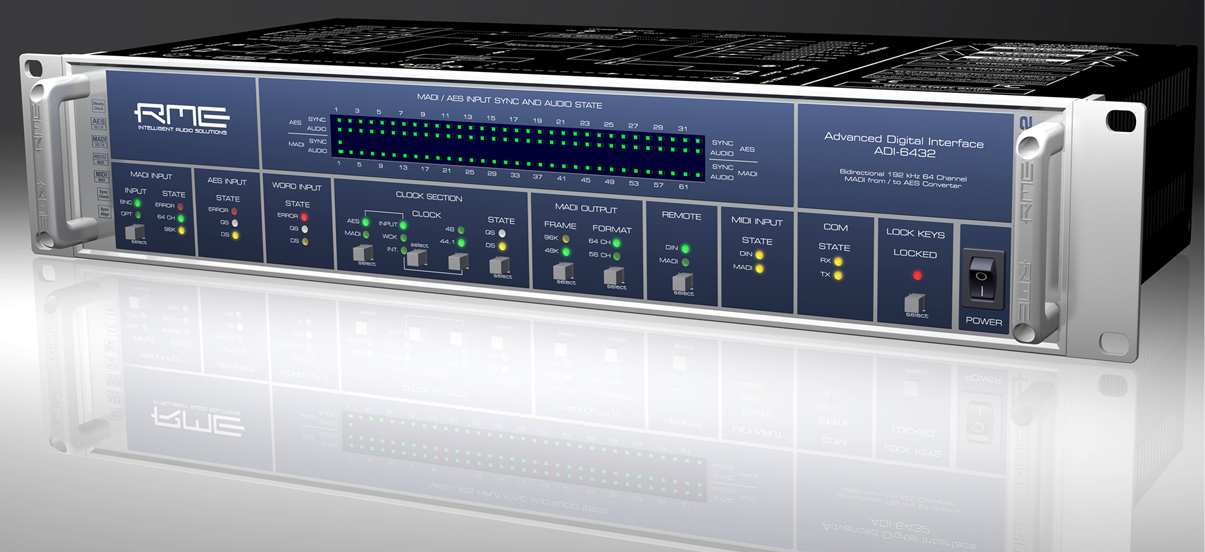

Converter RME Adi-6432-r.
Lire la suite

Technical sheet

  • Input MADI: 1 x BNC, 1 x optical
  • Input AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible
  • Output AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, 4 Vpp
  • Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
  • Output word clock: BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
  • MIDI input and output: via two 5-pin DIN jacks
  • COM port: RS232 via 9-pin D-sub, 9600/19200/115200 Baud
  • Sync sources: MADI, AES, word clock, internal
  • Varipitch: by input signal or word clock
  • Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
  • Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
  • Jitter: Internal Clock < 1 ns, Word Clock In < 2 ns, AES/EBU In < 2 ns
  • Jitter suppression: >30 dB (2.4 kHz)
  • Jitter sensitivity: all PLLs operate error-free even at 100 ns
  • Power supply: Internal switching mode PS, 100V - 240V AC, 20 Watt
  • Dimensions: (WxHxD) 483 x 88 x 200 mm
More specifications
Fewer specifications
