Rme M-32-AD

  • Read reviews (0)
  • Related accessories
  • Similar products

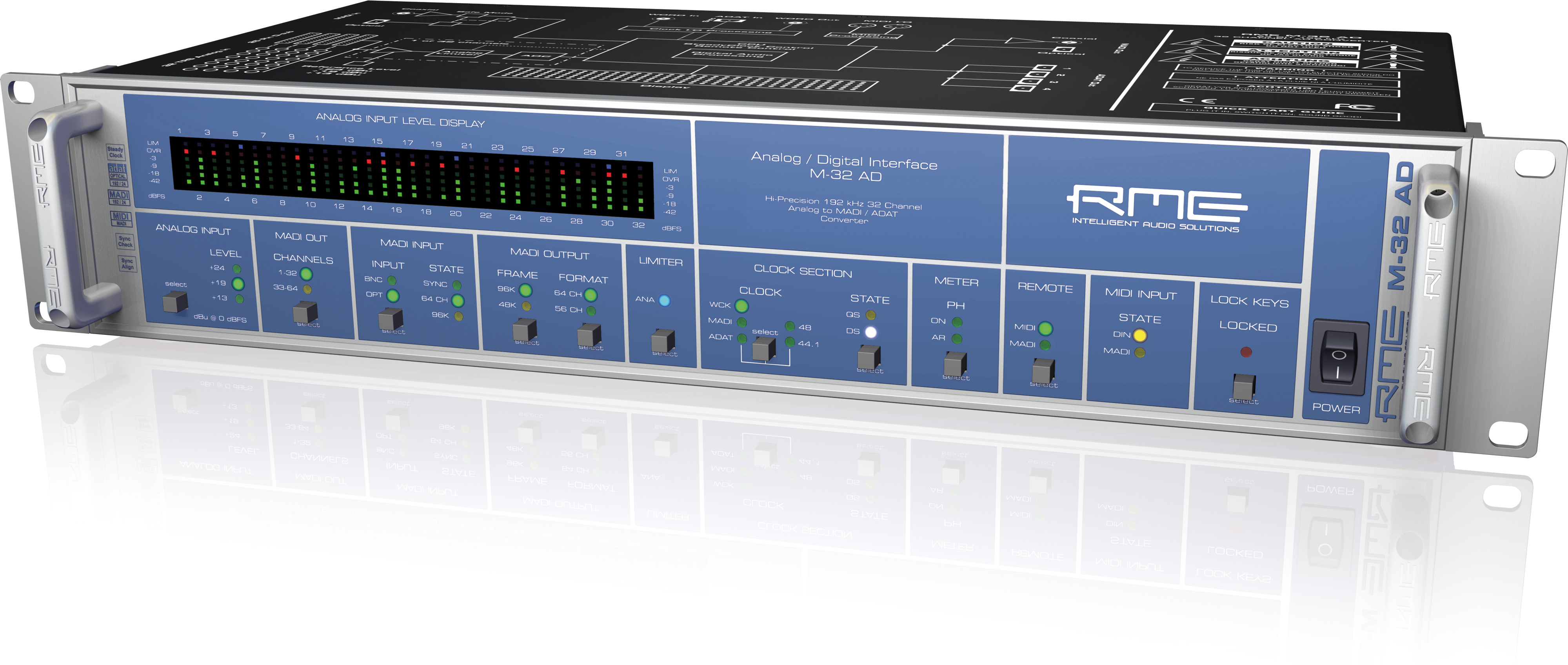

  • Rme M-32-ad - Converter - Main picture

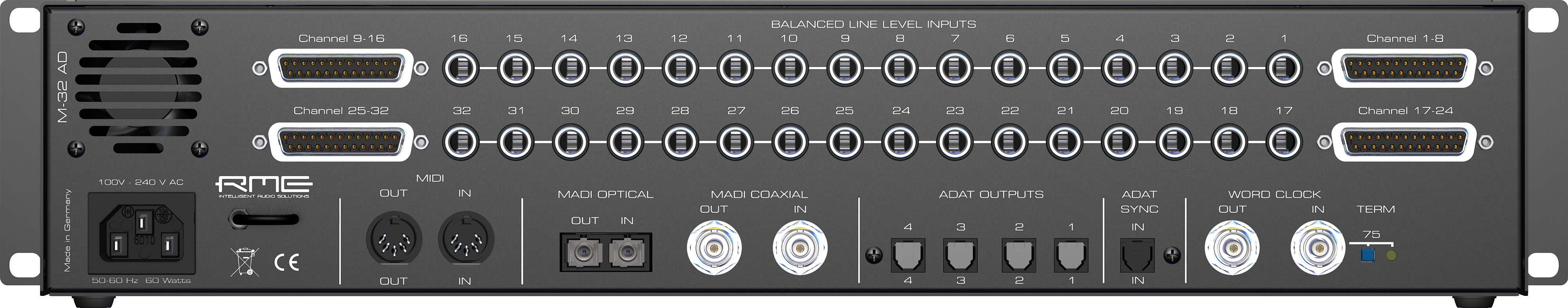

  • Rme M-32-ad - Converter - Variation 1

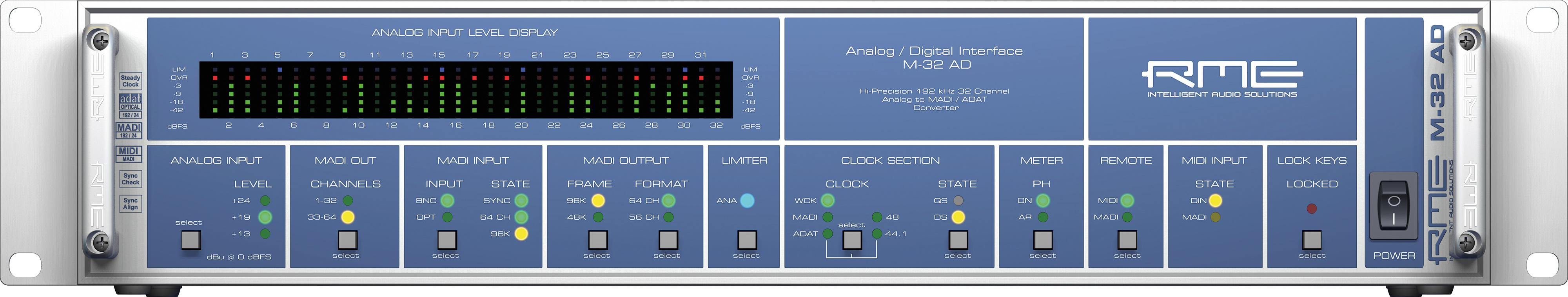

  • Rme M-32-ad - Converter - Variation 2
3149,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 74051
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Rme

Learn more about the Rme brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Converter

The M-32 AD from RME is a 32-channel high-end Analog-Digital converter, which combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock.

This 2U rack includes analog limiters, three hardware reference levels up to +24 dBu, MADI and ADAT I/O up to 192 kHz, 6.35 mm TRS and D-sub inputs, remote control via MIDI.

Optimised for professional studio, stage, and broadcast applications.
Lire la suite

SPECIFICATIONS

  • Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
  • Output AD: 4 x ADAT optical, 1 x MADI optical/coaxial
  • Dynamic Range AD: 113 dB RMS unweighted, 116 dBA
  • THD AD: < -110 dB (< 0.00032 %)
  • THD+N AD: < -104 dB (< 0.00063 %)
  • Crosstalk AD: > 130 dB
  • Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
  • Frequency response AD, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
  • Frequency response AD, -0.5 dB: < 5 Hz - 45 kHz (sf 96 kHz)
  • Frequency response AD, -1 dB: < 5 Hz - 80 kHz (sf 192 kHz)
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
  • Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
  • Jitter sensitivity: all PLLs operate error-free even at 100 ns
  • Jitter suppression: > 30 dB (2.4 kHz)
  • Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
  • Dimensions: (WxHxD) 483 x 88 x 200 mm
Lire la suite
