Converter

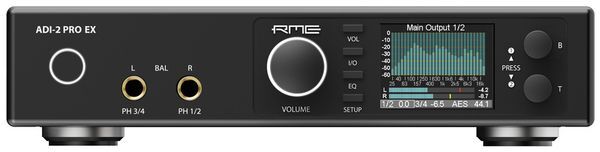

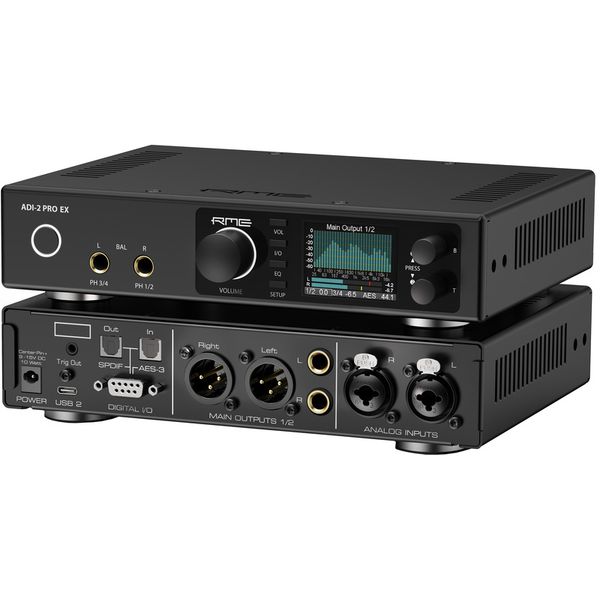

The RME ADI-2 Pro EX is the must-have tool for audio professionals seeking unmatched conversion and monitoring quality. Perfectly suited for studios, mastering, and audiophiles, this high-performance device combines innovation with a compact design.

Overview

The RME ADI-2 Pro EX stands out for its versatility, featuring a professional-grade AD/DA converter, a dual headphone amplifier, a multi-format digital converter (AES, SPDIF, and ADAT), and advanced features for DSD recording and playback—all in a compact and convenient format.

Precise audio reproduction with impressive dynamic range

Operating at up to 768 kHz, the ADI-2 Pro EX is equipped with an AKM AK5574 analog-to-digital converter and an AKM AK4493 digital-to-analog converter, ensuring exceptional sound quality, precise reproduction, and minimal distortion.

Optimal performance for high-end headphones

RME has optimized its Extreme Power headphone output stage to fully leverage the DAC’s conversion capabilities, even with low-impedance headphones. Thanks to Advanced Balanced mode, enjoy a direct balanced signal, ensuring remarkably transparent listening.

Advanced Audio Processing Tools at Your Fingertips

The ADI-2 Pro EX features a high-resolution IPS display that provides easy access to numerous audio processing tools, including:

5-band parametric equalizer
Binaural crossfeed
Adjustable loudness
Mid/Side processing
Phase inversion
RME 30-band spectral analyzer

A complete solution for professional audio applications

Whether for mastering, reference listening, or audiophile setups, the RME ADI-2 Pro EX is a comprehensive solution that combines the features of a studio converter, a high-end headphone amplifier, and a measurement interface—ideal for the most demanding users.

Technical sheet

Audio
- Sampling rate: up to 768 kHz (PCM)
- DAC chip: AK4493
- Playback and recording: DSD
- Analog headroom: 2.5 dB and 4 dB digital headroom
- Sampling rate converter: built-in
- Adjustable filters: for A/D and D/A conversion
- DSP: High-performance for error-free processing of all audio data
- Equalizer: 5-band parametric and separately adjustable low-cut filter for left and right channels
Features
- Balanced Mode: for headphones
- Binaural crossfeed: for a realistic speaker simulation through headphones
- Functions: Bass / Treble / Loudness
- Reference Level Switching: Complex and discrete via relays
- All settings: storable
- Firmware: FPGA-based—updatable via USB
- Intrinsic jitter: reduced with SteadyClock FS based on a femtosecond crystal
- AutoDark mode: turns off the backlighting for the display, buttons, and rotary encoders (the standby button remains visible)
Display
- Level indicator
- Power display
- Status display
- Volume/Gain Display
- Analyzer: 30-band DIGICheck technology
- Information screen: channel status
- Professional features: phase, base width, mono, M/S processing
Connections
- Line inputs: 2 via combined XLR/6.3 mm jack connectors
- Line outputs: 2 via XLR
- Line outputs: 2 via 6.3 mm jacks
- S/PDIF input/output: coaxial
- AES/EBU input/output: via XLR
- ADAT input/output
- USB port: 2.0
- Trigger output: via mono jack
Dimensions & Power
- Format: 9.5" rack - 1U

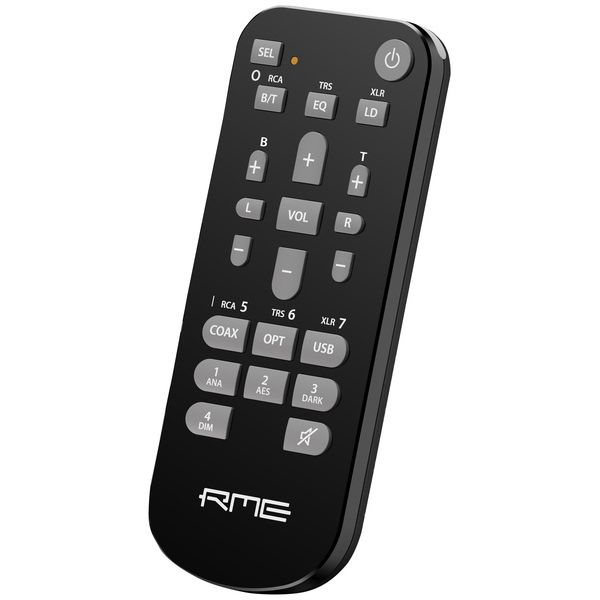

- Remote Control: Infrared included
- Power Supply: External, lockable
- Split Cable: for AES/EBU and coaxial SPDIF included
