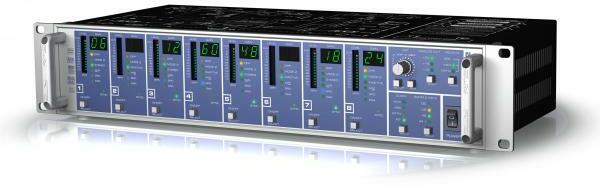

Rme DMC 842

  • Read reviews (0)
  • Related accessories
  • Rme Dmc 842 - Others formats (madi, dante, pci...) - Main picture
  • Rme Dmc 842 - Others formats (madi, dante, pci...) - Variation 1
4290.00 €
3899,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 69503
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Rme

Learn more about the Rme brand and discover the entire catalog.

Sound card buying guide audio interface

Through this buying guide, you will find all the information you need to make your first audio interface purchase.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Others formats (madi, dante, pci...)

Lire la suite

SPECIFICATIONS

  • Dsp : yes

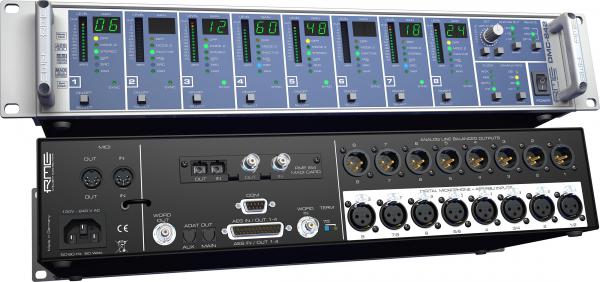

  • Inputs: 8 x XLR (AES42, AES3 compatible), 1 x D-sub (AES sync)
  • Outputs digital: 4 x AES/EBU via 25-pin D-sub, 2 x ADAT optical, optional MADI
  • Outputs analog: 8 x XLR, balanced, up to +24 dBu
  • Signal to Noise ratio DA (SNR): 116 dB RMS unweighted, 119 dB(A)
  • THD DA: < -104 dB (< 0.00063%)
  • THD+N DA: < -100 dB (< 0.001%)
  • Crosstalk DA: < 110 dB
  • Output level @ 0 dBFS: +24 dBu, +19 dBu, +13 dBu
  • Frequency response DA, -0.5 dB: 5 Hz - 22 kHz (sf 48 kHz)
  • Frequency response DA, -0.5 dB: < 5 Hz - 34 kHz (sf 96 kHz)
  • Frequency response DA, -1 dB: < 5 Hz - 50 kHz (sf 192 kHz)
  • Sync sources: Internal, AES, word, Option (MADI)
  • Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (external clocks)
  • Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
  • Jitter: Typical < 1 ns for internal, word clock, AES and MADI input
  • Jitter suppression: >30 dB (2.4 kHz)
  • Jitter sensitivity: all PLLs operate error-free even at 100 ns
  • Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
  • Dimensions: (WxHxD) 483 x 88 x 200 mm
Lire la suite
