Pedal power supply

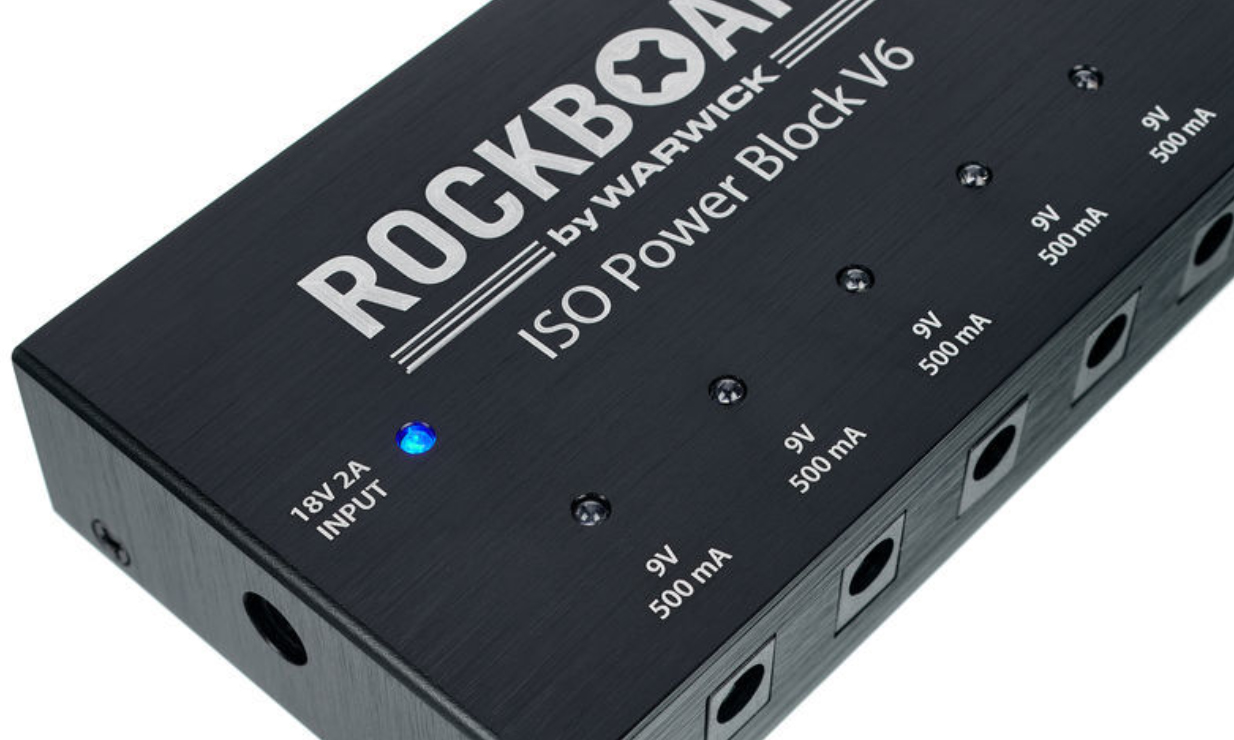

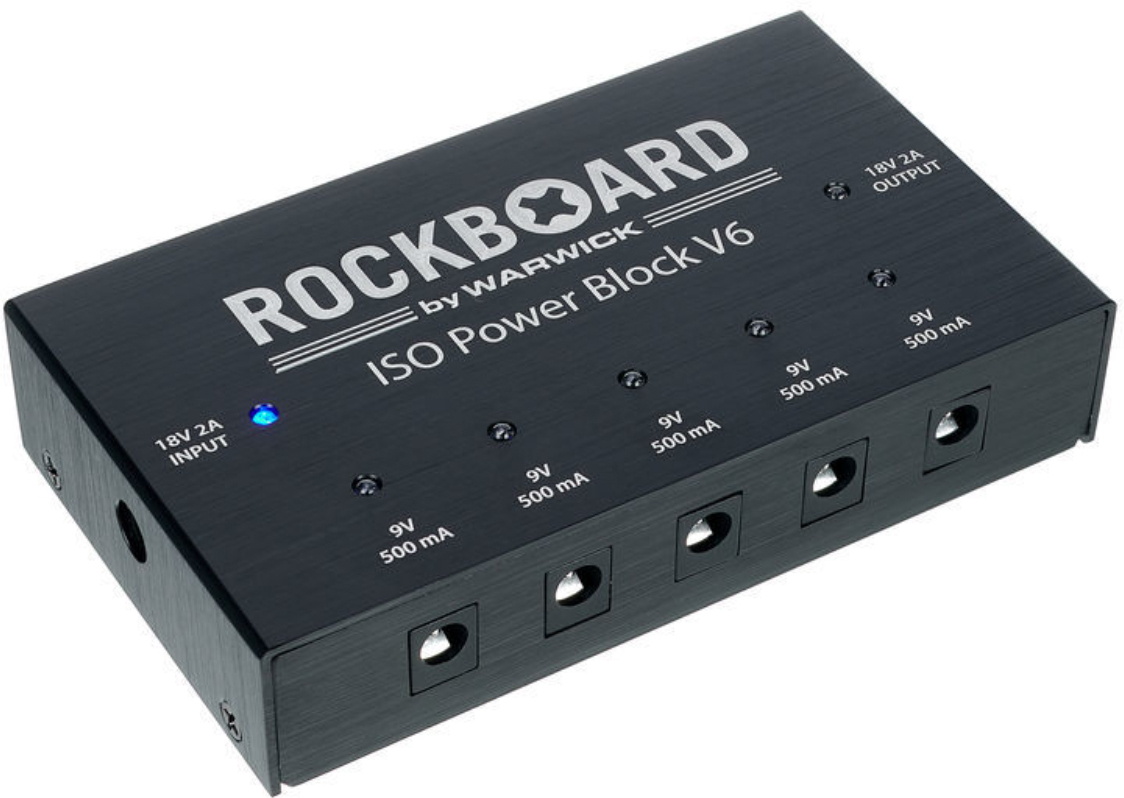

Designed for noise-free powering of up to five effects pedals (total power 2500mA), the ROCKBOARD ISO Power Block V6 Isolated Multi Power Supply boasts a remarkable performance/price ratio, featuring advanced filtering technology (each output is galvanically isolated) to prevent high-frequency background noise, and an external transformer to prevent low-frequency interference.
An 18V DC Link connection enables several ISO Power Blocks V6 to be connected in series.
An 18V DC Link connection enables several ISO Power Blocks V6 to be connected in series.
Lire la suite
Technical sheet
- ROCKBOARD ISO Power Block V6 Isolated Multi Power Supply
- SKU RBO-POWER-BLOCK-ISO6
- Noise-free power supply for 5x effects pedals
- Advanced filtering technology effectively prevents high-frequency background noise
- External transformer prevents low-frequency interference
- 5x galvanically isolated filtered outputs
- 18V DC Link connection for daisy-chaining multiple ISO Power Blocks V6
- Max. total output power 22.5 Watt (2,500 mA)
- 5x 9VDC outputs (load capacity 500 mA each, 2.1 x 5.5 mm cylindrical plugs, negative polarity inside)
- 18VDC power supply connection (2000 mA load capacity, 2.1 x 5.5 mm cylindrical plugs, negative polarity inside)
- Individual status LEDs and short-circuit protection for each connection
- Input voltage 18VDC
- 120 x 70 x 25 mm
- 175 g / 0.38 lbs
