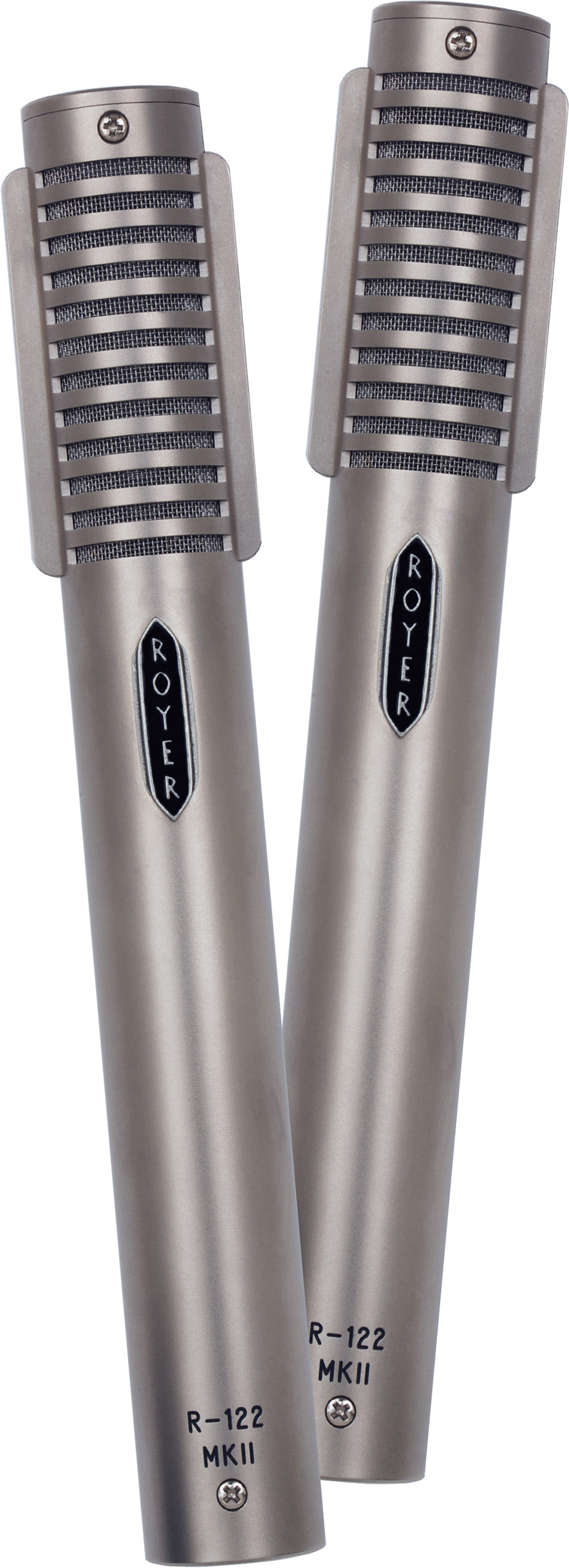

Royer labs R122 MKII MP

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Royer Labs R122 Mkii Mp -  - Main picture
4749,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 96655
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Royer labs

Learn more about the Royer labs brand and discover the entire catalog.

Microphone buying guide

What microphone should you buy to record voice, guitar or drums? Everything is explained through this buying guide!

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Description

R-122MKII-MP - Active Ribbon-Velocity Studio Microphone - Matched Pair

The R-122 MKII is a compact, monaural, phantom powered ribbon microphone with a switchable -15 dB pad and a low cut filter. Sonically similar to our groundbreaking R-121, the R-122 MKII exhibits a flat frequency response and a well-balanced, panoramic soundfield, but it’s 13 dB more sensitive and has a faster transient response, giving a sense of more open highs. Like the R-121, it is capable of handling high SPL applications.

The R-122 MKII’s -15 dB pad is positioned before any other electronics, giving the microphone 15 dB more headroom for high SPL work. The low cut filter is configured to reduce proximity effect for close miking and vocal applications and effectively filters rumble. The R-122 MKII’s active electronics produce an output comparable to studio condenser microphones and provide an optimum impedance to the ribbon element, preventing overdamping of the ribbon and assuring consistent microphone performance. The high gain and low output impedance of the R-122 allow it to operate with any microphone preamplifier with phantom power, and also allows for use with long cable runs.

The R-122 MKII utilizes a low mass, 2.5-micron, pure (99.99%) aluminum ribbon element in a patented offset-ribbon transducer assembly. The smooth frequency response and phase linearity of the R-122 MKII, coupled with its sophisticated active electronics system, enable it to deliver a consistent natural acoustic performance with extraordinary realism. Frequency response is excellent regardless of the angle of sound striking the ribbon, and off-axis coloration is negligible. The R-122’s patented offset-ribbon design positions the ribbon element toward the front of the microphone body, which allows for high SPL handling on the front (logo) side and the option of a slightly brighter response when recording lower SPL sound sources on the back side (3 feet and closer; phase reversed in this position).
Lire la suite

Technical sheet

  • Acoustic Operating Principle: Electrodynamic pressure gradient with active electronics.
  • Polar Pattern: Figure-8
  • Generating Element: 2.5-micron aluminum ribbon
  • Magnets: Rare Earth Neodymium
  • Frequency Response: 30 - 15,000 Hz ±3 dB
  • Sensitivity: -36 dB (re. 1v/pa ±1 dB)
  • Switchable Pad: -15 dB
  • Switchable Bass Cut: 100 Hz (6 dB per octave)
  • Self-Noise: < 18 dB
  • Output Impedance: 200 Ohms, balanced
  • Output Connector: Male XLR 3-pin (Pin 2 Hot)
  • Rated Load Impedance: 1K-Ohm minimum
  • Maximum SPL: 135 dB @ 30 Hz
  • Power Requirements: 48-Volt Phantom Only
  • Supply Current: 4 mA
  • Dimensions: 206 mm (L) X 25 mm (W) (8 1/8” L X 1” W)
  • Weight: 309 grams (10.9 oz)
  • Finish: Burnished Satin Nickel / Matte Black, Chrome (optional)
  • Accessories: Protective wood case, mic sock
  • Optional Accessories: Wind screen, shock mount
  • Microphone Warranty: Lifetime to original owner (repair or replace at Royer’s option)
  • Ribbon Element Warranty: One Year
