Rupert neve design 5254 Dual Diode Bridge Compressor

  • Read reviews (0)
  • Related accessories
  • Similar products

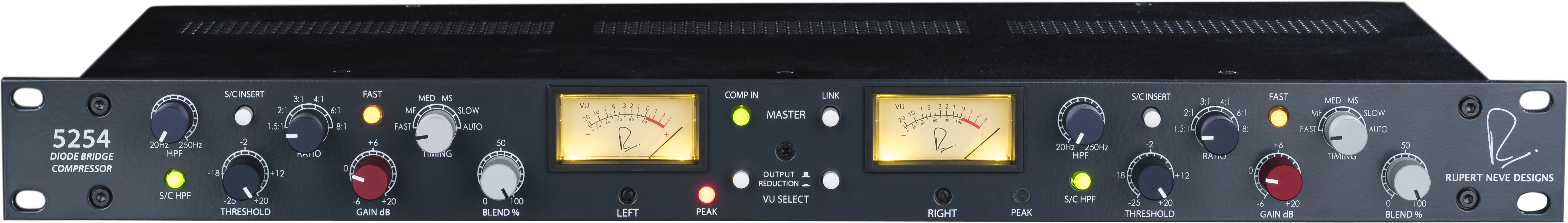

  • Rupert Neve Design 5254 Dual Diode Bridge Compressor - Kompressor Limiter Gate - Main picture
3599,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 95714
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Rupert neve design

Learn more about the Rupert neve design brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Kompressor limiter gate

Since the early 1970s, Rupert Neve’s early diode bridge compressors have been revered for the punch & glue they bring to drums, instruments, and the mix buss – but these desirable characteristics wereunfortunately accompanied by inflexible controls and fairly limited versatility. Rupert Neve Designs created the 5254 Dual Diode Bridge Compressor to capture the soul of these coveted compressors while providing modern updates including advanced timing control, significantly lower noise, fully stepped controls throughout, higher voltage power rails, and internal parallel processing capabilities.
Unlike our VCA compressors, which are built for exacting clarity, the harmonically rich tonality of the Dual Diode Bridge Compressor is built to produce a wide range of colors – and built to help you make a statement with your music. Based on the dynamics circuit originally developed for the acclaimed Shelford Channel, the 5254 is outfitted for dual mono or stereo use with Rupert Neve Designs’ custom transformers and class-A electronics, tailor made for a compact 1U 19” enclosure.
Fifty years after Mr. Rupert Neve created his first compressor designs, the Dual Diode Bridge
Compressor reimagines the larger-than-life personality of these classic circuits with new levels of precision and control, enhanced creative power, and increased punch to your tracks, mixes, and masters.
Lire la suite

Technical sheet

  • XLR Line Input to XLR Line Output (Compressor Bypassed) ZSOURCE= 40 Ω Balanced
  • Input Impedance: 10 kΩ
  • Output Impedance: 40 Ω
  • Maximum Input Level (+4dBu Selected): +26.7 dBu typical
  • Maximum Output Level: +26.7 dBu typical
  • Noise (22 Hz - 22 kHz BW): -104 dBu typical
  • Frequency Response (10 Hz to 120 kHz): +/- 0.25 dB typical
  • THD+N @1 kHz @ Maximum Level (22 Hz - 22 kHz BW): 0.0008% typical
  • Compressor Noise Specifications
  • Noise @ 0dB Make-Up Gain (22 Hz - 22 kHz BW): -84.5 dBu typical
  • Noise @ +20dB Make-Up Gain (22 Hz - 22 kHz BW): -64.5 dBu typical
  • Compressor Timing Specifications
  • Note: TIMING measurements represent the full range achievable between 1.5:1 and 8:1 ratio and FAST
  • mode
  • FAST Attack 250?S - 2 mS // Release 100mS - 200mS typical
  • MF (MEDIUM FAST) Attack 1mS - 5mS // Release 100mS - 200mS typical
  • MED (MEDIUM) Attack 3mS - 18mS // Release 350mS - 700mS typical
  • MS (MEDIUM SLOW) Attack 5mS - 40mS // Release 600mS - 1S typical
  • SLOW Attack 10mS - 80 mS // Release 800mS - 1.5S typical
  • AUTO Attack 5mS - 40mS // Release T1 400-900mS, T2 1-2S typical
