Sadowsky Bass Onboard Preamp 4-Knob

  • Read reviews (0)
  • Sadowsky Bass Onboard Preamp 4-knob Actif - Control plate - Main picture
  • Sadowsky Bass Onboard Preamp 4-knob Actif - Control plate - Variation 1
  • Sadowsky Bass Onboard Preamp 4-knob Actif - Control plate - Variation 2
  • Ref : 106514
201,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
deliverable in 24 hours
Stock in store
See availability. Store
Bass Maniac by Star's Music
Star's Music Paris

The brand Sadowsky

Learn more about the Sadowsky brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Control plate

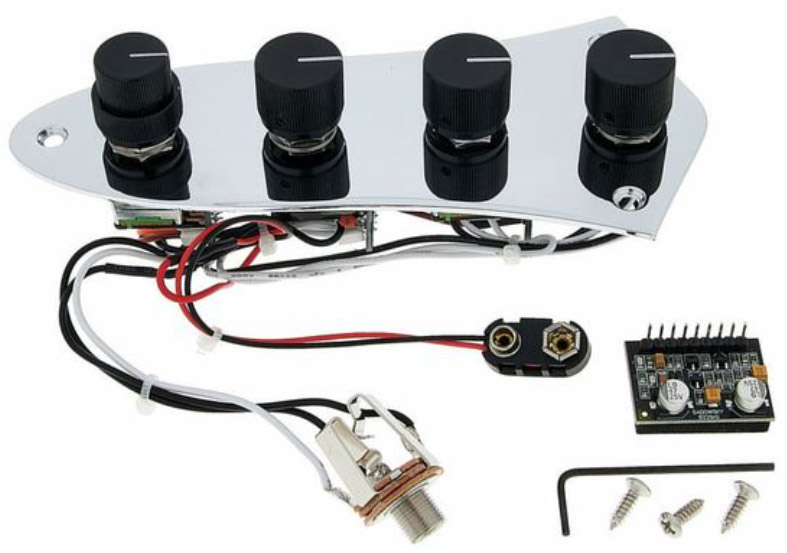

The SADOWSKI Onboard Bass Preamp 4-Knob is an active preamplifier for passive microphones. Pre-wired and pre-installed on a plate, it has been designed specifically for Fender© Jazz Bass© electric basses. Controls include volume, pickup balance, bass/treble (concentric potentiometers, +18db potential on each frequency) and a VTC tone filter (push/pull potentiometer to switch to passive mode). The VTC (Vintage Tone Control) attenuates the treble to give the instrument a warmer, more old-school sound. Slightly lowered, this control moderates string noise. At its lowest setting, it generates sounds reminiscent of the Motowm Flatwound spirit.
Lire la suite

Technical sheet

  • Type of Instruments For bass
  • SADOWSKI Onboard Bass Preamp 4-Knob
  • SKU Sadowski SAD-ELE-ONBOARD-BP 4K
  • Active preamp for passive pickups on pre-wired plate
  • For Fender© Jazz Bass© electric basses
  • 4x control knobs: Volume, Balance, Bass/Treble (concentric knobs), Vintage Tone Control
  • Push/Pull function on VTC control for preamplifier bypass
  • Bass +18 dB at 40 Hz
  • Treble +18 dB at 4 kHz
  • Frequency response 5 - 50000 Hz
  • Total harmonic distortion (THD) 0.18% at 1 kHz
  • Input impedance 1 MOhm
  • Output impedance 1 kOhm
  • Solderless microphone connectors
  • Operates on one 9 V battery (not supplied)
  • Power consumption 9 mA
  • Maximum operating time 870 hours
