Wireless lavalier microphone

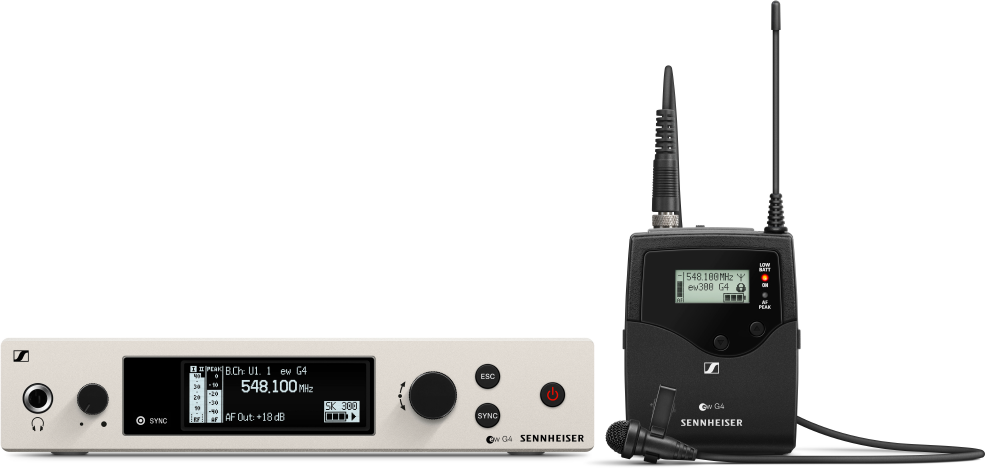

The EW 100G4-ME2 is a Wireless Microphone Tie Transmitter Pack from Sennheiser.
Robust all-in-one wireless system incorporating a pocket transmitter and discreet ME2 (omnidirectional) clip microphone with high speech intelligibility for everyday use on stage.
A true diversity half-rack receiver in a fully metal housing with intuitive LCD display for full control, including an easy and flexible wireless synchronization between transmitter and receiver via infrared.
Fast frequency allocation, up to 12 receivers via a new link function, Up to 20 compatible channels, Up to 42 MHz bandwidth with 1680 selectable frequencies UHF stable range
Transmission range: up to 100 meters.
High RF output power (up to 30 mW) according to country regulations.
Robust all-in-one wireless system incorporating a pocket transmitter and discreet ME2 (omnidirectional) clip microphone with high speech intelligibility for everyday use on stage.
A true diversity half-rack receiver in a fully metal housing with intuitive LCD display for full control, including an easy and flexible wireless synchronization between transmitter and receiver via infrared.
Fast frequency allocation, up to 12 receivers via a new link function, Up to 20 compatible channels, Up to 42 MHz bandwidth with 1680 selectable frequencies UHF stable range
Transmission range: up to 100 meters.
High RF output power (up to 30 mW) according to country regulations.
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- SPK 100 G4
- Modulation: wide band Fm
- Frequency ranges: A1: 470 - 516 MHz
- A: 516 - 558 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- JB: 806 - 810 MHz
- K +: 925 - 937.5 MHz
- 1G8: 1785 - 1800 MHz
- Switching bandwidth up to 42 MHz
- Nominal / peak deviation: ± 24 kHz / ± 48 kHz
- Frequency stability? ± 15 ppm
- RF output power at 50 Ω Max. 30 mW
- Dimensions: Approx. 82 x 64 x 24 mm
- Weight (incl batteries): approx. 160 g
- ME 2
- Principle of the transducer Microphone with pre-polarized capacitor
- Omnidirectional pickup pattern
- Sensitivity (free field, no load) (1 kHz) 20 mV / Pa Max. SPL at 1 kHz 130 dB
- Frequency response "50 to 18,000 Hz (ME 2-II) 30 to 20,000 Hz (ME 2-US)"
- A-weighted equivalent noise level (DIN IEC 651)
- 36 dB connector 3.5 mm jack connector
- length approx. 1.60 m
- Supply voltage 7,5 V
- Max Spl: 120db
- Frequency response: 50 to 18,000 HZ
