Wireless handheld microphone

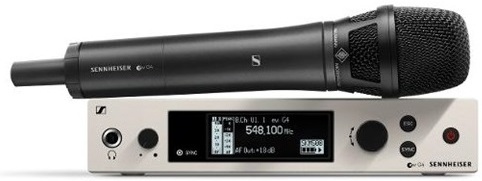

The Sennheiser EW500 G4-KK205-BW is a handheld wireless microphone.
True diversity receiver in an all-metal half-rack housing with intuitive OLED display for total control
Simple and flexible wireless synchronisation via infrared between transmitter and receiver
Up to 32 compatible channels
Switching bandwidth of up to 88 MHz with a choice of
3520 fully adjustable frequencies in a stable UHF range
Ethernet connection to Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel configurations
High RF transmit power (up to 50 mW, adjustable in three levels 10/30/50) depending on country regulations
True diversity receiver in an all-metal half-rack housing with intuitive OLED display for total control
Simple and flexible wireless synchronisation via infrared between transmitter and receiver
Up to 32 compatible channels
Switching bandwidth of up to 88 MHz with a choice of
3520 fully adjustable frequencies in a stable UHF range
Ethernet connection to Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel configurations
High RF transmit power (up to 50 mW, adjustable in three levels 10/30/50) depending on country regulations
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- Dimensions Approx. 202 x 212 x 43 mm
- Approx. Ø 50 x 265 mm
- Compander Sennheiser HDX
- Max. sound pressure level 150 dB
- THD, total harmonic distortion ? 0.9 %
- Weight Approx. 980 g
- (incl. batteries) approx. 450 g
- Audio output 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Pick-up pattern supercardioid
- Signal-to-noise ratio ? 115 dBA
- 70 dB
- RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth up to 88 MHz
- Peak deviation ±48 kHz
- Nominal deviation ±24 kHz
- Operating time Typically 8 h
- Modulation Wideband FM
- Power supply 12 V DC
- 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption 350 mA
- at nominal voltage: typ. 180 mA
- with transmitter switched off: ? 25 µA
- Adjacent channel rejection Typically ? 75 dB
- Intermodulation attenuation Typically ? 70 dB
- Powering 3 V battery / 2.4 V rechargeable battery
- Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity < 2.5 ?V for 52 dBA eff S/N
