Wireless handheld microphone

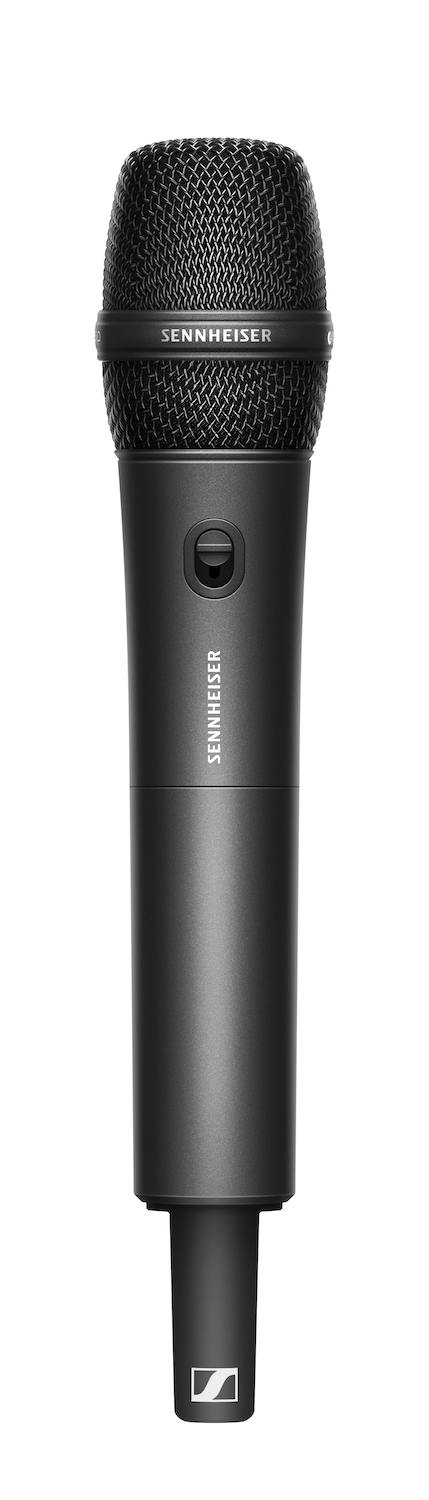

The Sennheiser EW-DP 835 Set (R1-6) is a handheld wireless microphone.
Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronisation and control
- Intelligent notifications for system support and diagnosis
- Intelligent battery management indicates operating time (hours:minutes)
- Extended battery life: up to 12 hours for transmitter, 7 hours for receiver
- Stackable magnetic components for multiple mounting options
- Industry-leading 134 dB dynamic range for distortion-free transmission
- Switching band up to 56 MHz for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitoring and control
- Optional plug-on transmitter features XLR and 3.5 mm mini jack inputs, +48 V phantom power and microSD card recording (ENG Set or component only)
Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronisation and control
- Intelligent notifications for system support and diagnosis
- Intelligent battery management indicates operating time (hours:minutes)
- Extended battery life: up to 12 hours for transmitter, 7 hours for receiver
- Stackable magnetic components for multiple mounting options
- Industry-leading 134 dB dynamic range for distortion-free transmission
- Switching band up to 56 MHz for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitoring and control
- Optional plug-on transmitter features XLR and 3.5 mm mini jack inputs, +48 V phantom power and microSD card recording (ENG Set or component only)
Lire la suite
Technical sheet
- Digital transmission Yes
- Frequency HF Auto search
- Audio link frequency ranges: R1-6 520 - 576 MHz
- EW-DP EK Single Channel Portable Digital Receiver
- EW-D SKM digital handheld transmitter MMD835 dynamic cardioid microphone module
- Mounting kit (perforated plate, passive accessory shoe, belt clip and screws)
- BA70 li-ion battery and 2 AA batteries
- 3.5mm TRS mini plug lockable cable to 3.5mm TRS mini plug 3.5mm TRS mini plug lockable cable to XLR plug.
- USB-C charging cable.
- Bluetooth® Low Energy Frequency Range (BLE):2402 - 2480 MHz
- Audio frequency response :20 Hz - 20 kHz (-3 dB) @ 3 dBfs.
- Distortion rate :? -60 dB at 1 kHz
- @ input level of -3 dBfs
- EW-D SKM-S (handheld transmitter):
- Dimensions (ø x W):50 x 268 mm (including MMD 835 microphone module)
- 40 x 200 mm (without microphone module)
- EW-DP EK :
- Power supply
- 2 x 1.5V AA batteries or BA 70 rechargeable battery pack or USB-C PD power supply (max.):
- 5V / 1500mA - 9V / 900mA - 12V / 700mA
- EW-D SKM-S (handheld transmitter) :
- Dimensions (ø x W):50 x 268 mm (including MMD 835 microphone module)
- 40 x 200 mm (without microphone module)
- MMD 835 (microphone module)
- Sound pressure level: 154 dB SPL
- Directionality: Cardioid
