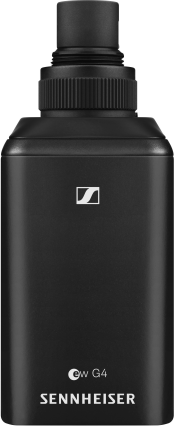

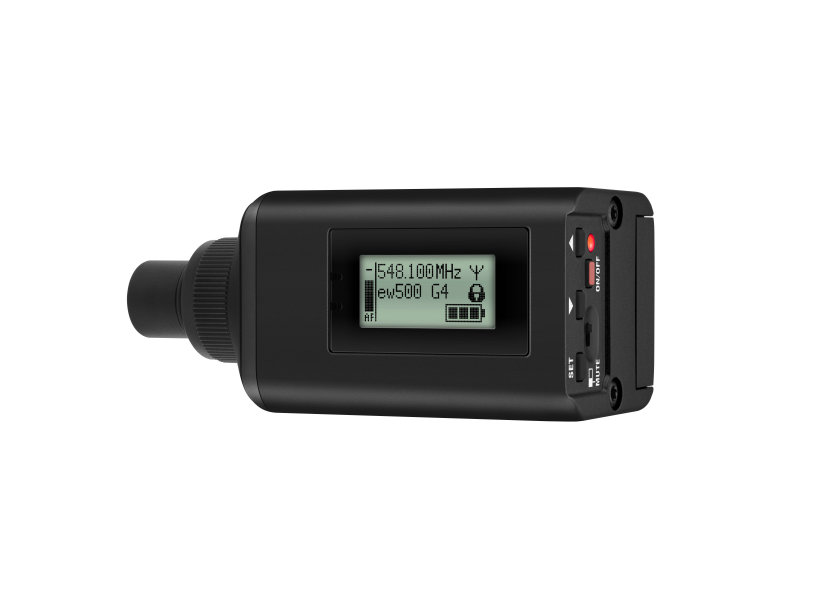

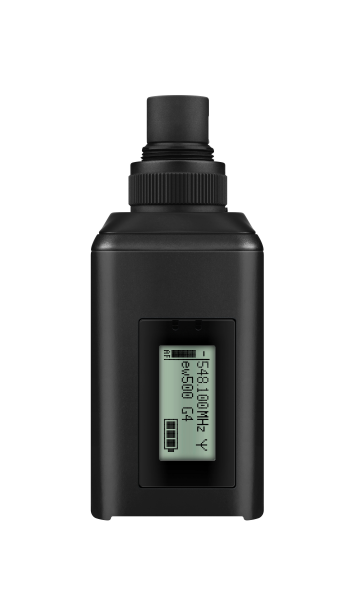

Transmitter
Spk 500g4 is a transmitter for professional film productions.
It incorporates phantom power, increased bandwidth, and transmission power for Evolution G4 500P wireless systems.
Its professional and excellent build quality
Easy to use and fast setup time
Easy and flexible wireless synchronization between transmitter and receiver via infrared.
Up to 88 MHz bandwidth, up to 32 channels
Beach: up to 100 meters / 330 feet
RF increased output power (10/30/50 mW)
Up to 8 hours of operation.
It incorporates phantom power, increased bandwidth, and transmission power for Evolution G4 500P wireless systems.
Its professional and excellent build quality
Easy to use and fast setup time
Easy and flexible wireless synchronization between transmitter and receiver via infrared.
Up to 88 MHz bandwidth, up to 32 channels
Beach: up to 100 meters / 330 feet
RF increased output power (10/30/50 mW)
Up to 8 hours of operation.
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- Modulation: Broadband FM
- Bandwidth: 526 - 698 MHz
- Frequencies of transmission:
- Max. frequencies of 2880, adjustable in steps of 25 kHz
- 20 frequency banks, each with 32 channels
- factory preset, no intermodulation
- 6 frequency banks with up to 32 channels
- programmable
- Switching Bandwidth: Up to 72MHz
- Nominal deviation: +/- 24kHz
- Peak excursion: +/- 48kHz
- Frequency stability:? +/- 15ppm
- RF output power at 50Ω: switchable
- Low: 10mW Typ.
- Standard: 30mW Typ.
- High: 50mW Typ.
- Pilot Tone Squelch: Disable
- Compressor-expander system: Sennheiser HDX
- AF frequency response: 80 Hz - 18 kHz
- Signal-to-noise ratio (1mV, peak excursion):?
- 120dBA
- Total harmonic Distortion:? 0.9%
- Max. Input voltage: 6V
- Input impedance: 68kΩ, asymmetrical
- Input capacity: switchable
- Parameter input sensitivity range: 48dB, -
- adjustable in increments of 6dB
- Temperature range: -10 ° C to + 55 ° C
- Power supply:
- 2 AA batteries
- Or BA 2015 Accu Pack
- Nominal voltage :
- Battery: 3V
- Rechargeable battery: 2.4V
- Current consumption:
- Rated voltage: 210mA Typ.
- With transmitter off:? 25
- Operating time: Typ of 8 hours.
- Dimensions: 105 x 43 x 43 mm
- Weight (with batteries): 195g
