Transmitter

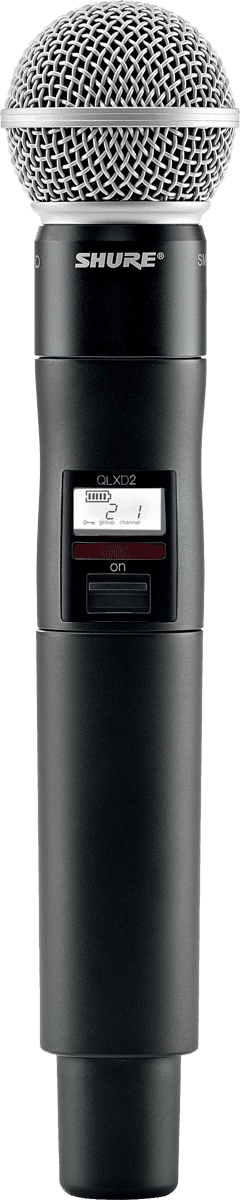

The Shure QLXD2 58 G51 is a wireless handheld transmitter.
QLX-D system highlights
Digital audio
Source fidelity and dynamics thanks to 24-bit / 48 kHz digital audio processing
HF performance
The robust HF signal and excellent spectral efficiency of the QLX-D system make it possible to use up to 23 frequencies in an 8 MHz TV channel.
Signal encryption
256-bit signal encryption guarantees complete transmission confidentiality.
Network control
Compatible with Shure Wireless Workbench 6 software
Remote monitoring from an iOS or Android device with the ShurePlus™ Channel app
Power
QLX-D transmitters can be powered either by two LR6 batteries or by an optional SB900 Ion-Lithium battery, allowing battery life to be displayed in hours and minutes.
The QLX-D series is available in VHF and UHF in the V51 (174-216 MHz), G51 (470-534 MHz), H51 (534-598MHz), K51 (606-670 MHz) and L52 (632-694 MHz) frequency bands.
Hand-held transmitter with SM58 interchangeable dynamic cardioid capsule. Powered by two LR6 batteries or an optional SB900A Lithium-Ion battery.
Supplied with WA371 microphone clip.
QLX-D system highlights
Digital audio
Source fidelity and dynamics thanks to 24-bit / 48 kHz digital audio processing
HF performance
The robust HF signal and excellent spectral efficiency of the QLX-D system make it possible to use up to 23 frequencies in an 8 MHz TV channel.
Signal encryption
256-bit signal encryption guarantees complete transmission confidentiality.
Network control
Compatible with Shure Wireless Workbench 6 software
Remote monitoring from an iOS or Android device with the ShurePlus™ Channel app
Power
QLX-D transmitters can be powered either by two LR6 batteries or by an optional SB900 Ion-Lithium battery, allowing battery life to be displayed in hours and minutes.
The QLX-D series is available in VHF and UHF in the V51 (174-216 MHz), G51 (470-534 MHz), H51 (534-598MHz), K51 (606-670 MHz) and L52 (632-694 MHz) frequency bands.
Hand-held transmitter with SM58 interchangeable dynamic cardioid capsule. Powered by two LR6 batteries or an optional SB900A Lithium-Ion battery.
Supplied with WA371 microphone clip.
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- Accessories included: microphone clip, carrying pouch
- Power supply: 2 AA alkaline batteries, rechargeable lithium-ion battery
- Capsule: dynamic
- Interchangeable capsule: Yes
- Category: HF microphone transmitter
- Category: handheld transmitter
- Dimensions (mm): Ø 51 x 256
- Directionality: cardioid
- Display: Yes
- Max. number of simultaneous systems: 67
- Weight (kg) : 347 g
- Indicative range : 100 m
- Transmission: digital
- Complementary specs :
- Hand-held transmitter with SM58 capsule for QLX-D systems
- Switchable transmitter power: 1 and 10 mW
- System frequency response from 20 Hz to 20 kHz (microphone-dependent)
- Dynamic range in excess of 120 dB, eliminating transmitter gain settings
- AES-256 encryption for secure transmission
- External charging contacts for use with charging dock
- Frequency and power lock
- 9-hour operating time with two LR6 batteries (included)
- Up to 10 hours autonomy with rechargeable lithium-ion battery (optional)
- Robust die-cast aluminum housing
- G51 frequency band (470 to 534 MHz)
