Sennheiser XSW IEM EK (B)

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Sennheiser Xsw Iem Ek (b) - Wireless receiver - Main picture
  • Sennheiser Xsw Iem Ek (b) - Wireless receiver - Variation 1
  • Sennheiser Xsw Iem Ek (b) - Wireless receiver - Variation 2
  • Sennheiser Xsw Iem Ek (b) - Wireless receiver - Variation 3
348,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 101741
In stock
deliverable in 24 hours
Stock in store
See availability. Store
Star's Music Paris

The brand Sennheiser

Learn more about the Sennheiser brand and discover the entire catalog.

The largest network of independent stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Wireless receiver

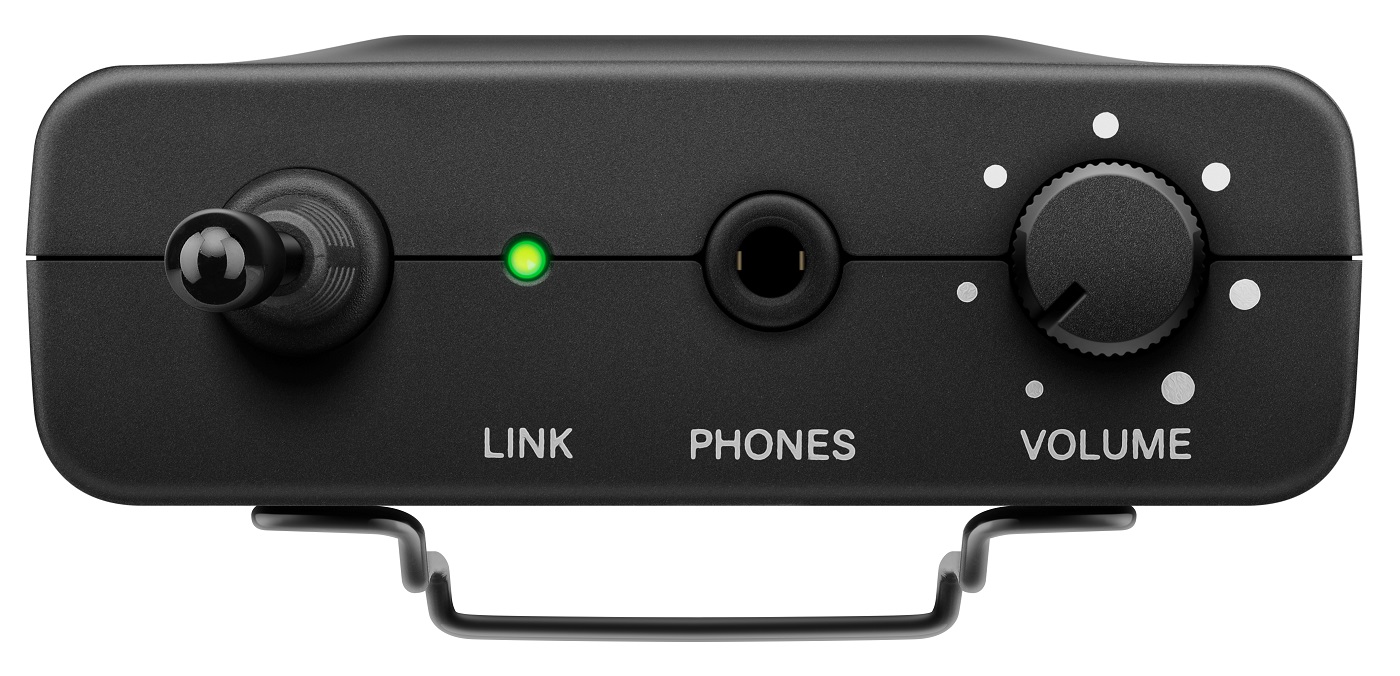

The XSW IEM EK is an ultra-lightweight, pocket-sized in-ear monitor for expanding existing XS Wireless IEM kit configurations.

With the XS Wireless IEM kit, you can easily combine additional receivers with a transmitter, providing a new level of detail to more band members.
level of detail to more members of the group.
When attached to clothing or your belt, the ultra-lightweight pocket receiver remains discreet. You can connect it to the supplied IE 4 headphones or the IE PRO series with the 3.5 mm output. The LED keeps an eye on battery and link status, while the front panel offers options for fine-tuning individual settings, from balance and focus modes to EQ and limiter.
Pocket-sized UHF receiver to expand existing XS Wireless IEM setups
- Ultra-lightweight pocket receiver with rear clip and
control panel ideal for the stage
- Standard 3.5 mm jack for the supplied IE 4
earphones or optional in-ear kits
- Backlit front panel and LEDs to display battery and link status
- Menu-driven access to receiver audio settings
receiver audio settings such as focus modes, volume control, limiter and EQ
- Pan control for individual balancing of input
input channels
- Operation with two AA primary batteries or rechargeable
rechargeable batteries
Lire la suite

SPECIFICATIONS

  • Digital transmission : no
  • Frequency hf : auto search
  • XSW IEM EK Stereo Receiver
  • High frequency features
  • Wide band FM modulation
  • Frequency range :
  • 572 - 596 MHz
  • Frequency band switching up to 24 MHz
  • Normal/peak deviation ±15 kHz / ±24 kHz
  • Squelch 10 µV, fixed
  • Audio-frequency characteristics
  • "Signal-to-noise ratio
  • (1 mV, peak deviation)"
  • ? 88 dB
  • Total harmonic distortion
  • (THD)
  • ? 1 %
  • AF output level at 3.5 mm 2 x 1.25 Veff at 16 Ω
  • Treble boost (equalization)
  • +10 dB at 13 kHz
  • Limiter -10 dB
  • AF frequency response 45 Hz to 15 kHz
  • Crosstalk (50 Hz - 10 kHz) approx. 45 dB
  • Global device
  • Temperature range 0°C to +40°C
  • Power supply 2 x AA, 1.5 V batteries
  • Nominal voltage 3 V battery / 2.4 V rechargeable battery
  • Operating time approx. 6 hours
  • Dimensions approx. 95 x 70 x 26 mm
  • Weight (including batteries) approx. 110 g

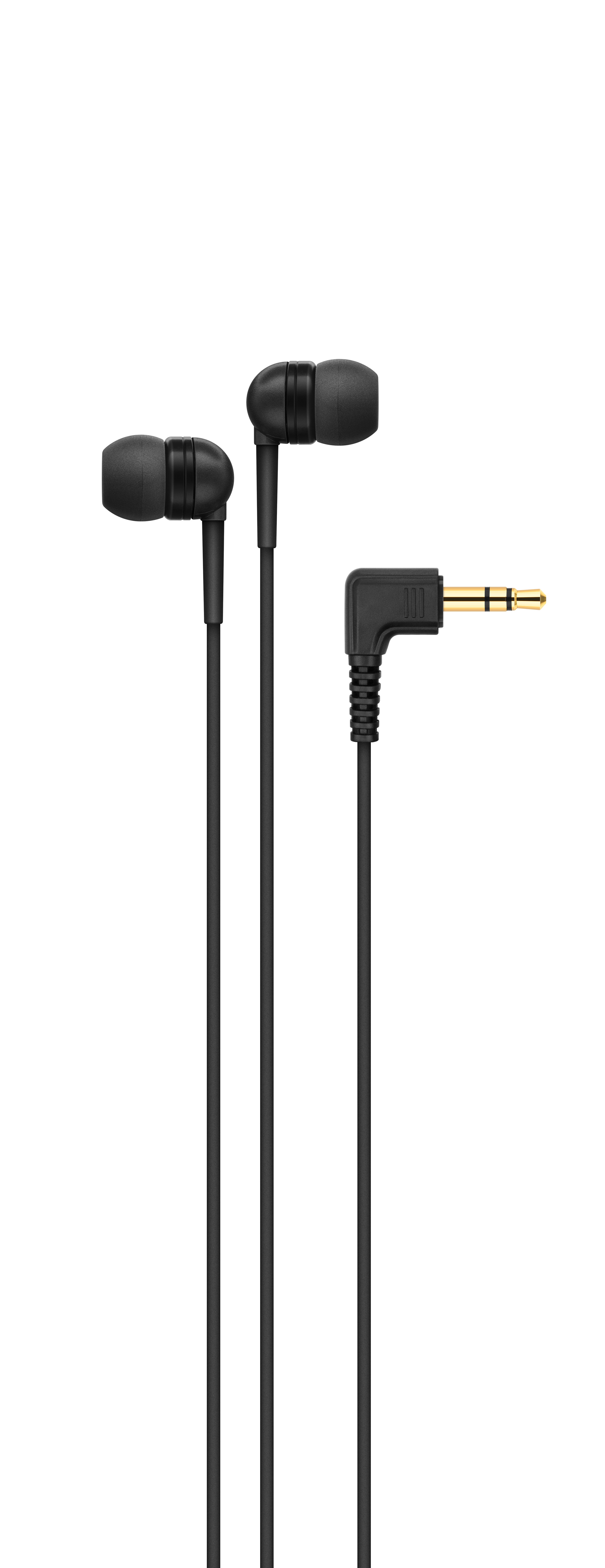

  • IE 4 in-ear headphones
  • Dynamic transducer
  • Frequency response 40-20,000 Hz
  • SPL (1 kHz, 1 mW) 106 dB
  • Nominal impedance 6 Ω
  • Cable length 1.4 m
  • Plug 3.5 mm stereo plug
  • (1/8"), gold-plated
  • Temperature range -5°C to +50°C
Lire la suite
