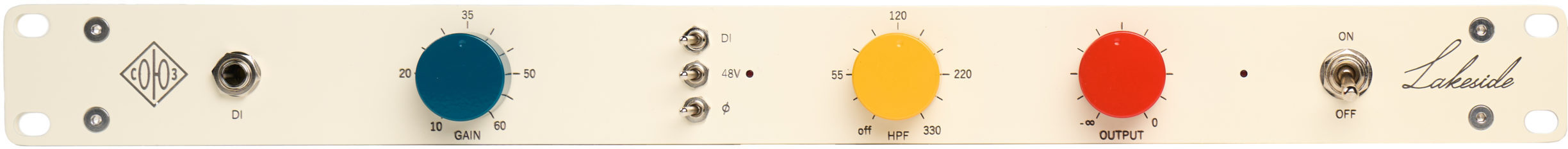

Preamp

The Soyuz Lakeside is a single-channel microphone and instrument preamp that stands out for its ability to add character and depth to recordings. This Class A preamp is designed for discerning professionals seeking rich and harmonious sonic nuances.

Overview

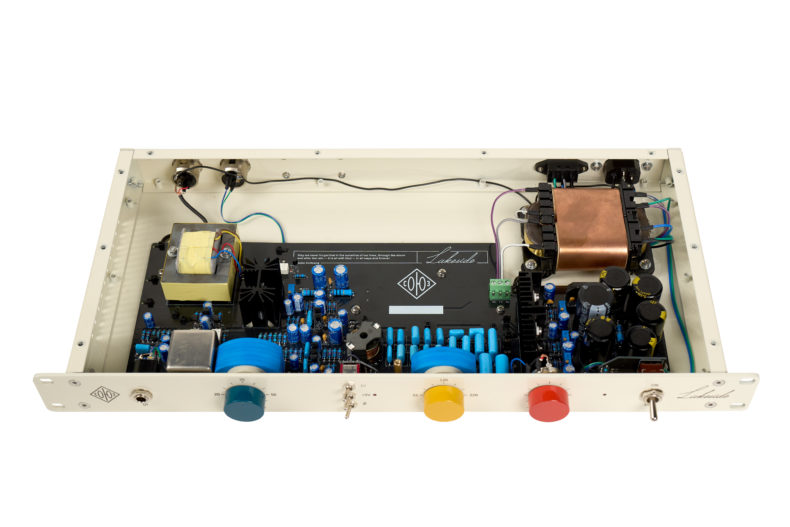

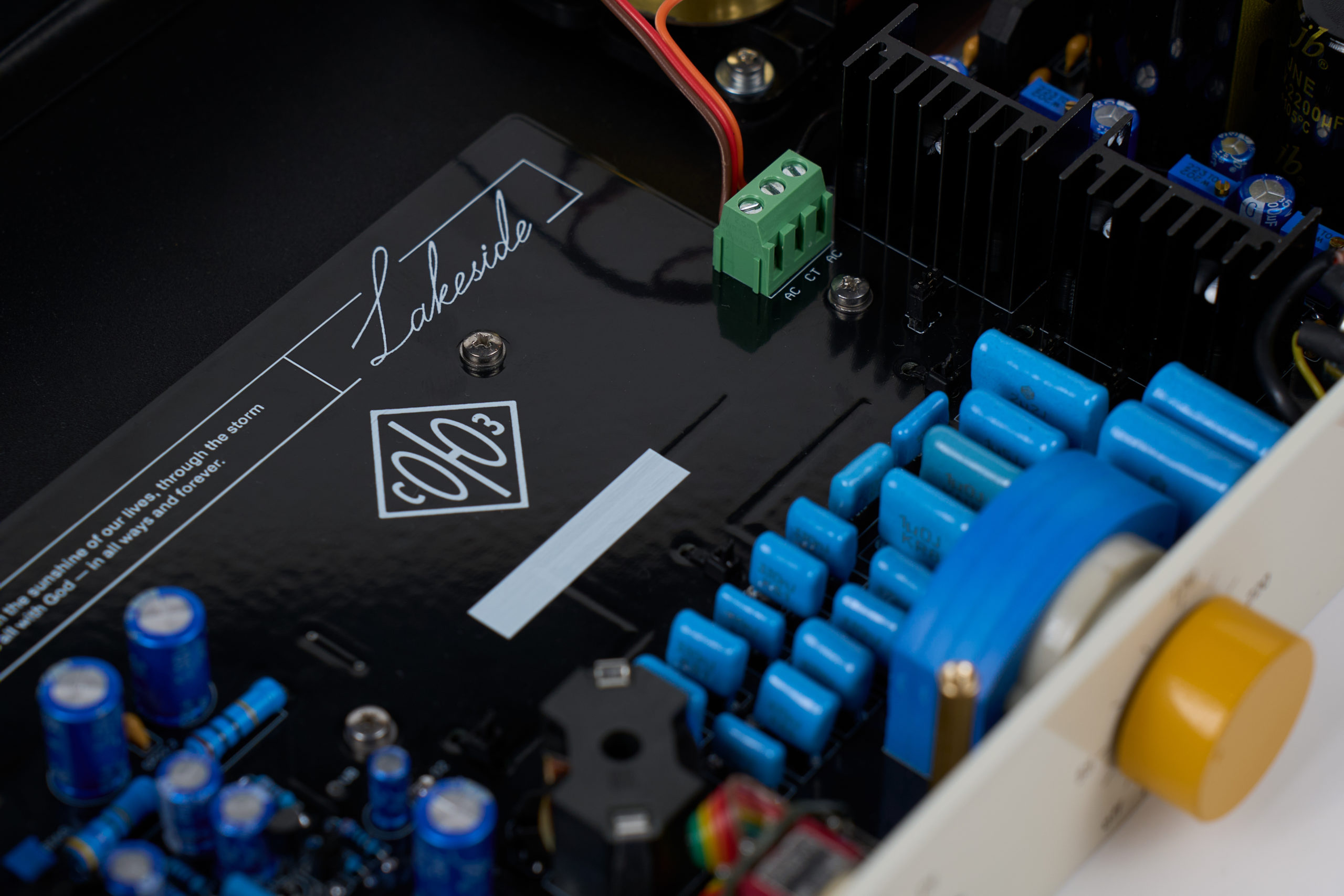

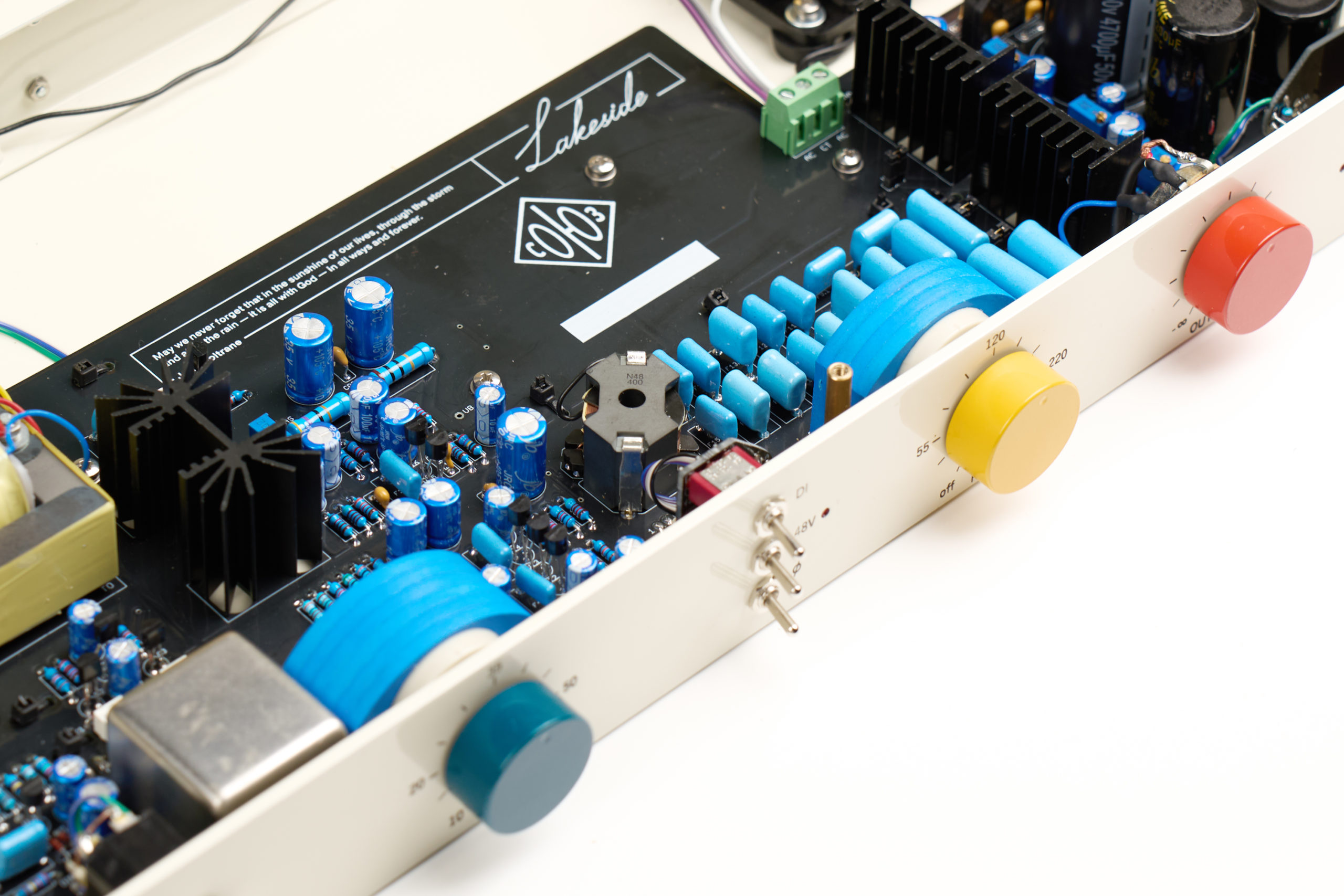

The Soyuz Lakeside preamp is an essential tool for musicians and sound engineers, offering a unique combination of performance and flexibility. Thanks to its discrete circuitry and transformers, it captures sounds that are both detailed and warm, adapting to a variety of audio sources.

Cutting-edge audio engineering for a rich signal

The Lakeside stands out with its high-end technical specifications:

Up to 60 dB of gain, adjustable in 5 dB steps for precise tuning.
Inductive high-pass filter with ten cutoff frequencies ranging from 40 to 330 Hz, offering a slope of 18 dB/octave.
Built-in high-impedance DI input on the front panel, ideal for guitars, basses, synthesizers, and more.

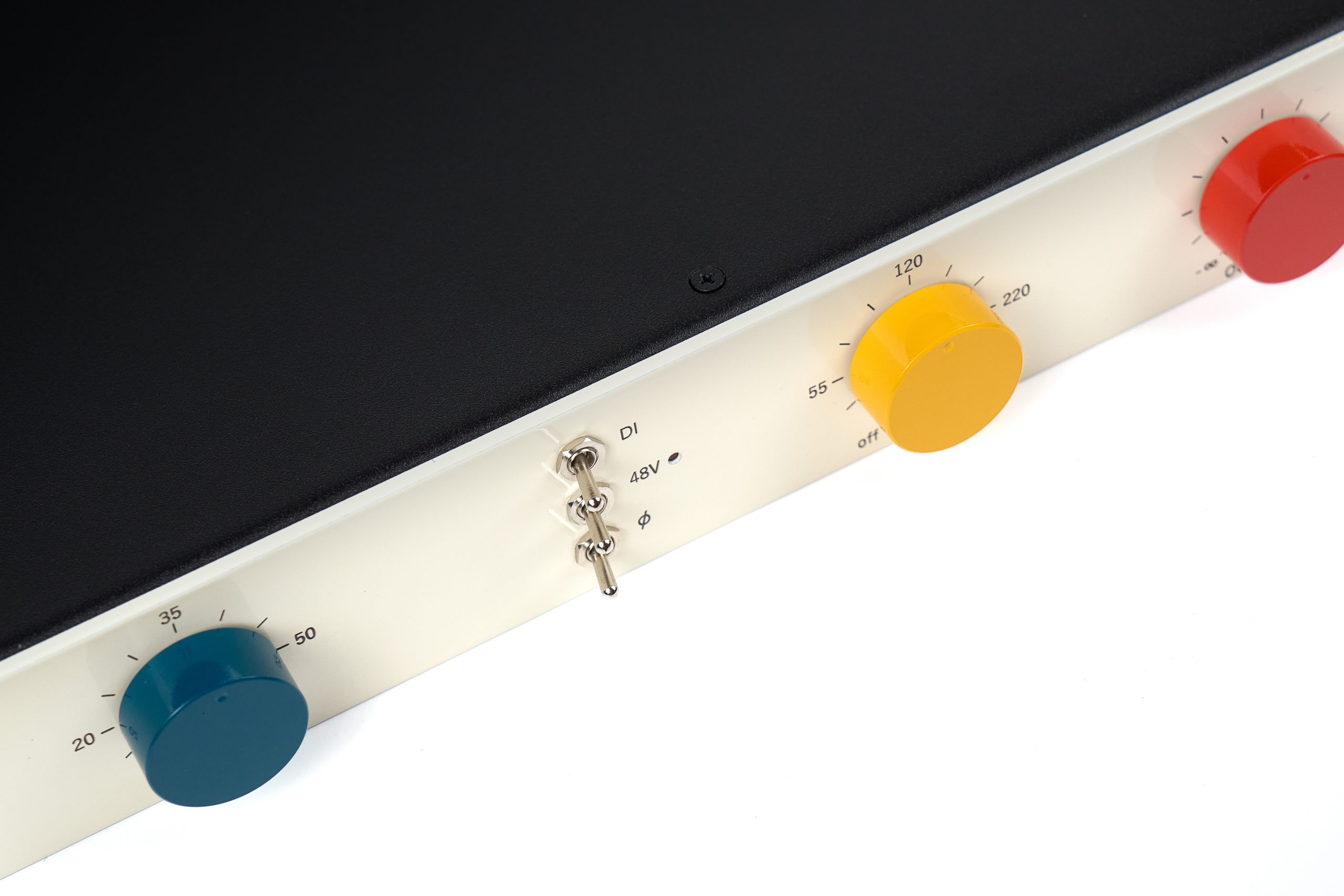

Optimal Control and Advanced Features

With switchable +48 V phantom power and polarity reversal, the Lakeside integrates easily into any studio setup. Its output level control lets you manage the amount of coloration produced, making it ideal for a variety of recording applications.

Versatility for All Your Music Projects

The Soyuz Lakeside is particularly well-suited for:

Recording vocals, guitars, drums, and acoustic instruments.
Re-amping tracks, stems, and full mixes to add warmth and cohesion.

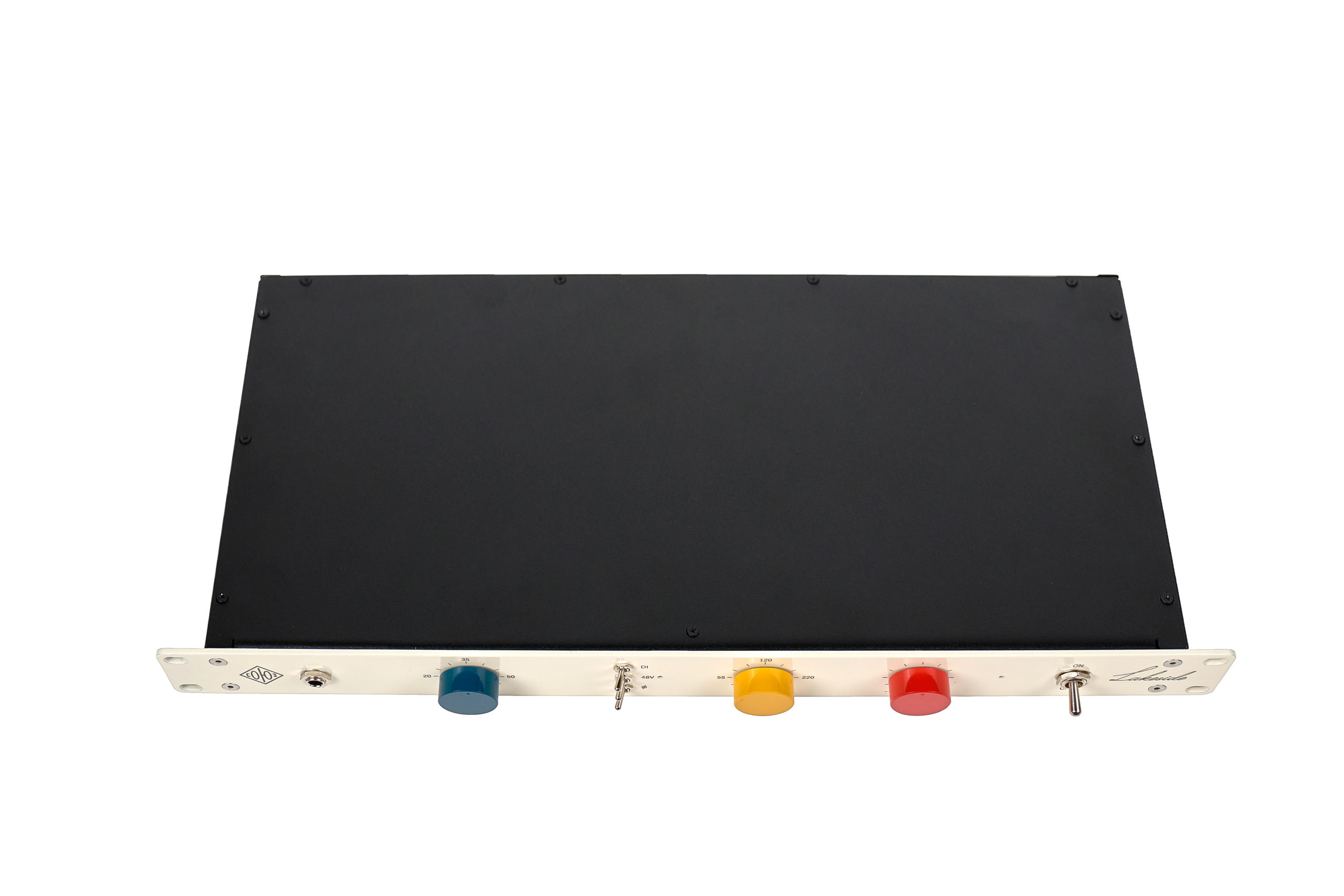

Use in professional studio environments, 19-inch / 1U rack format.

Technical sheet

Type of preamp Transistor

Type
- Type: Microphone and Instrument Preamplifier
Channels
- Number of channels: 1

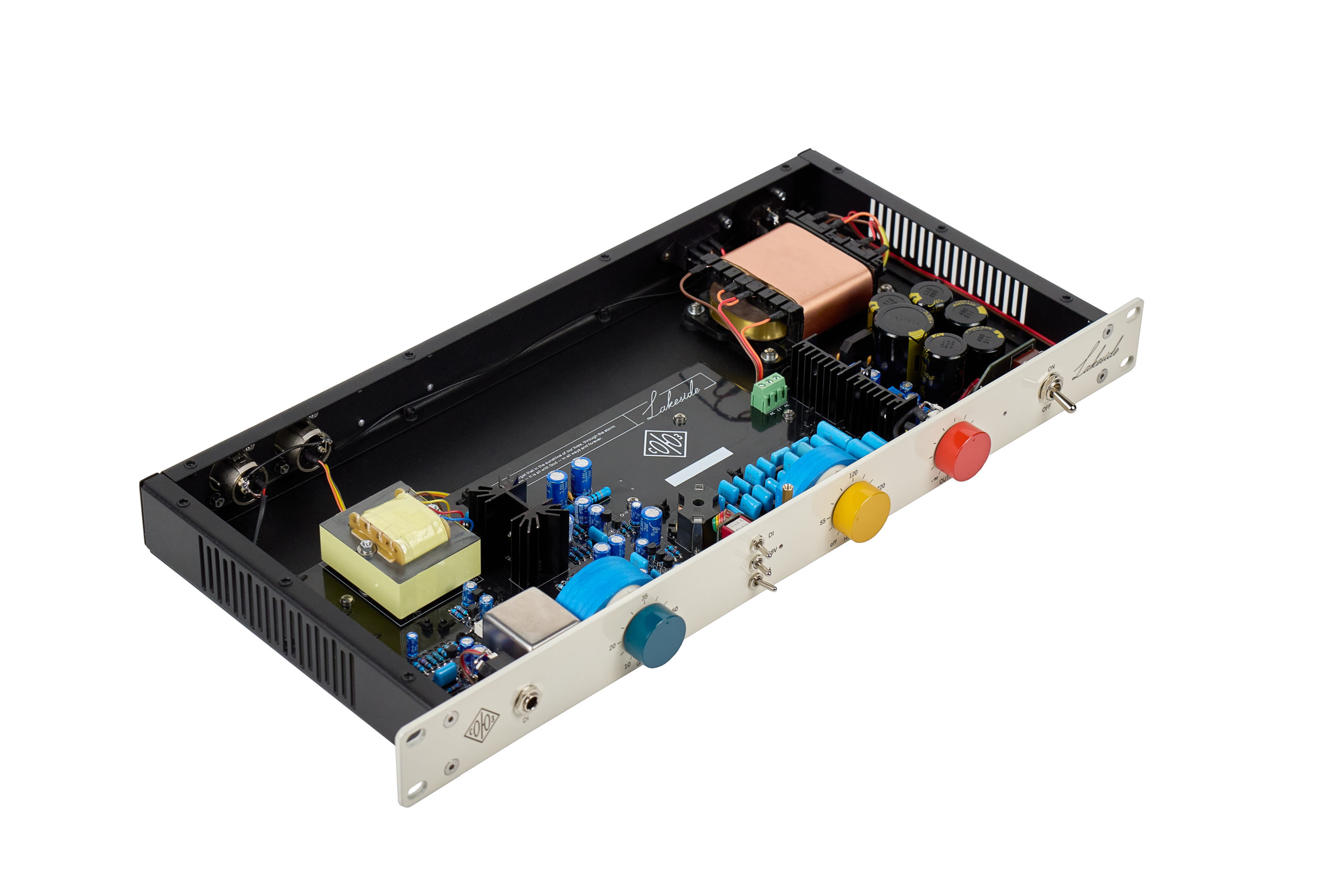

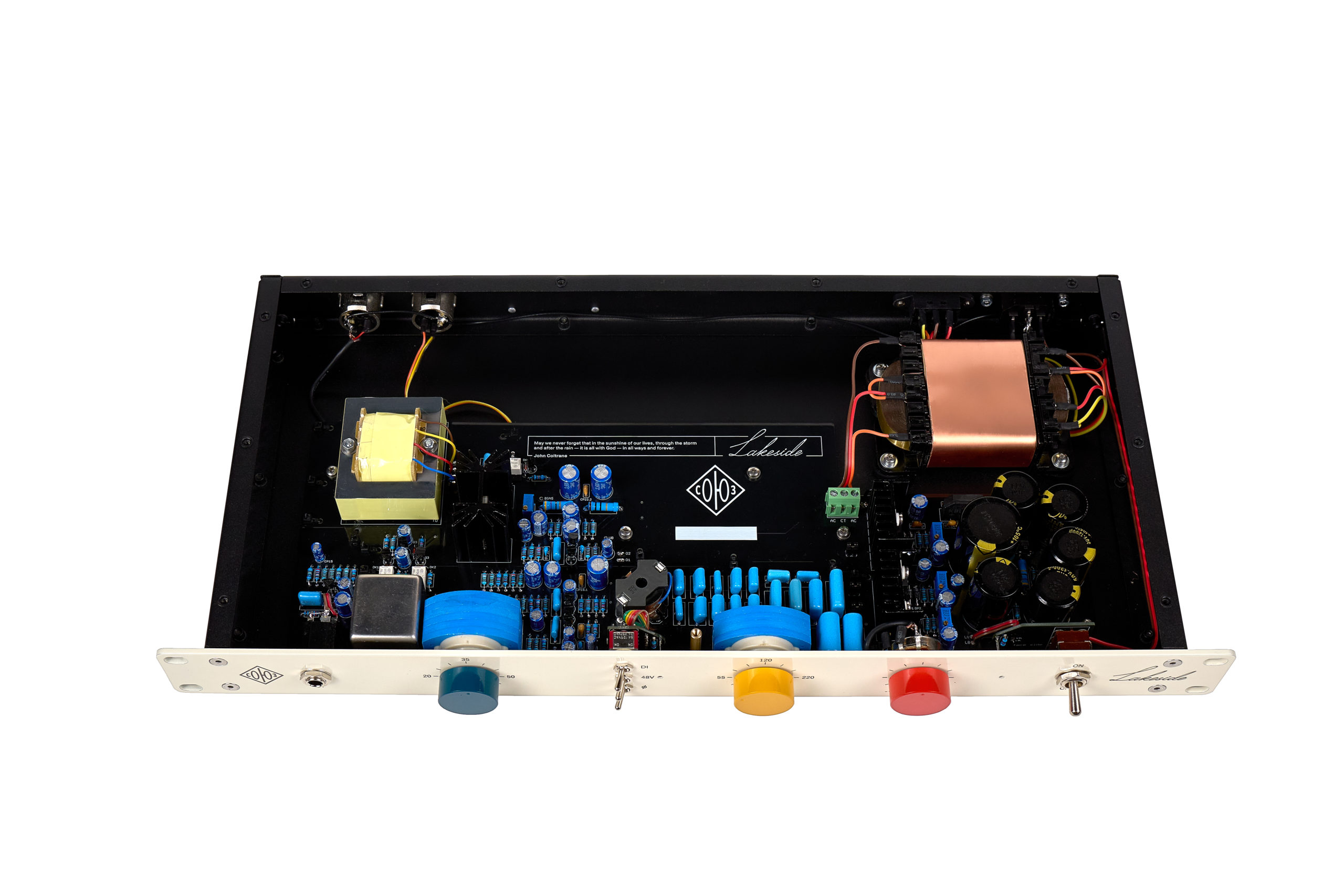

Construction
- Circuit: Fully discrete Class A
- Electronic Construction: Through-hole components
Transformers
- Transformers: Specially wound input and output transformers
Gain
- Gain: 10 to 60 dB
- Gain adjustment: In 5 dB steps

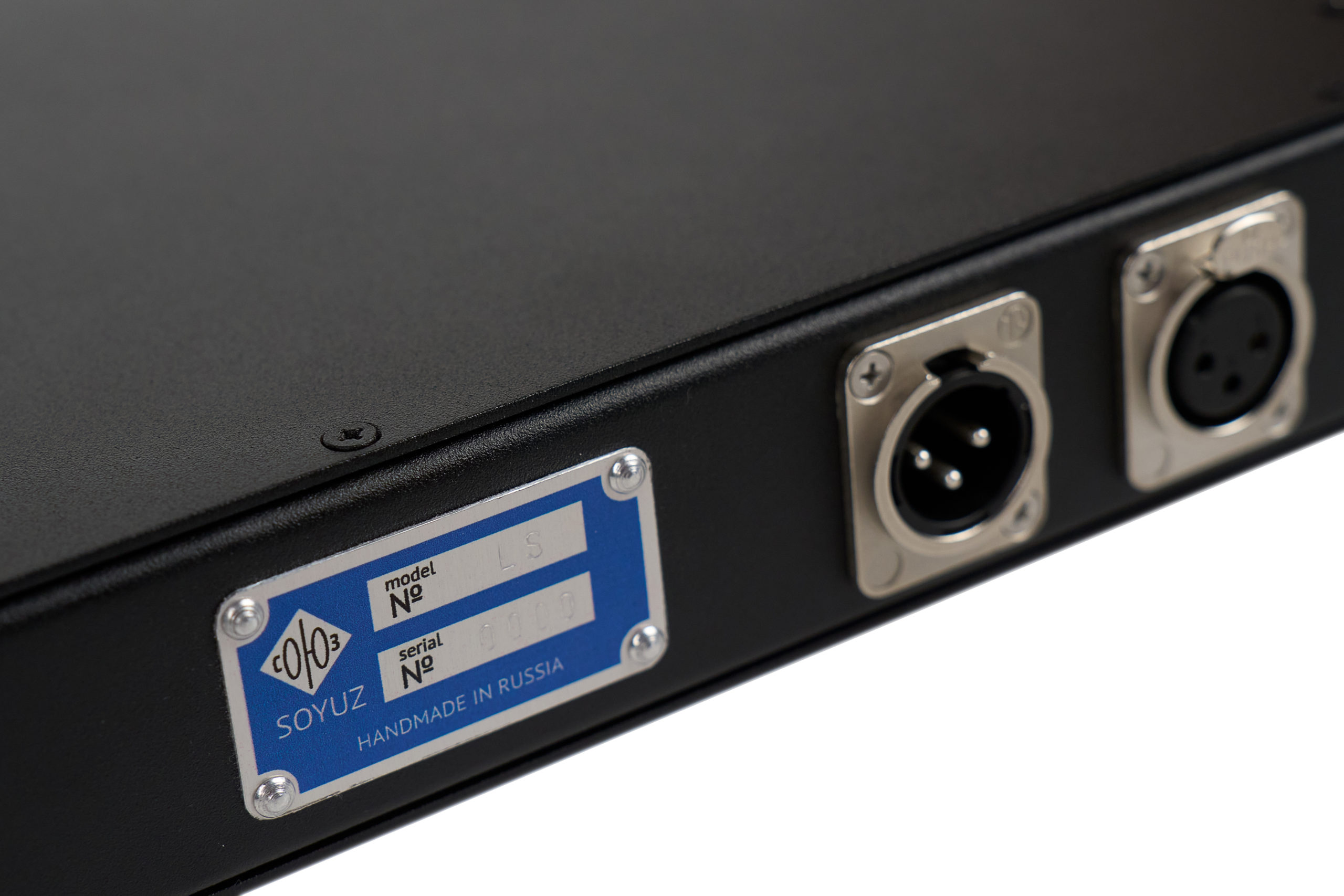

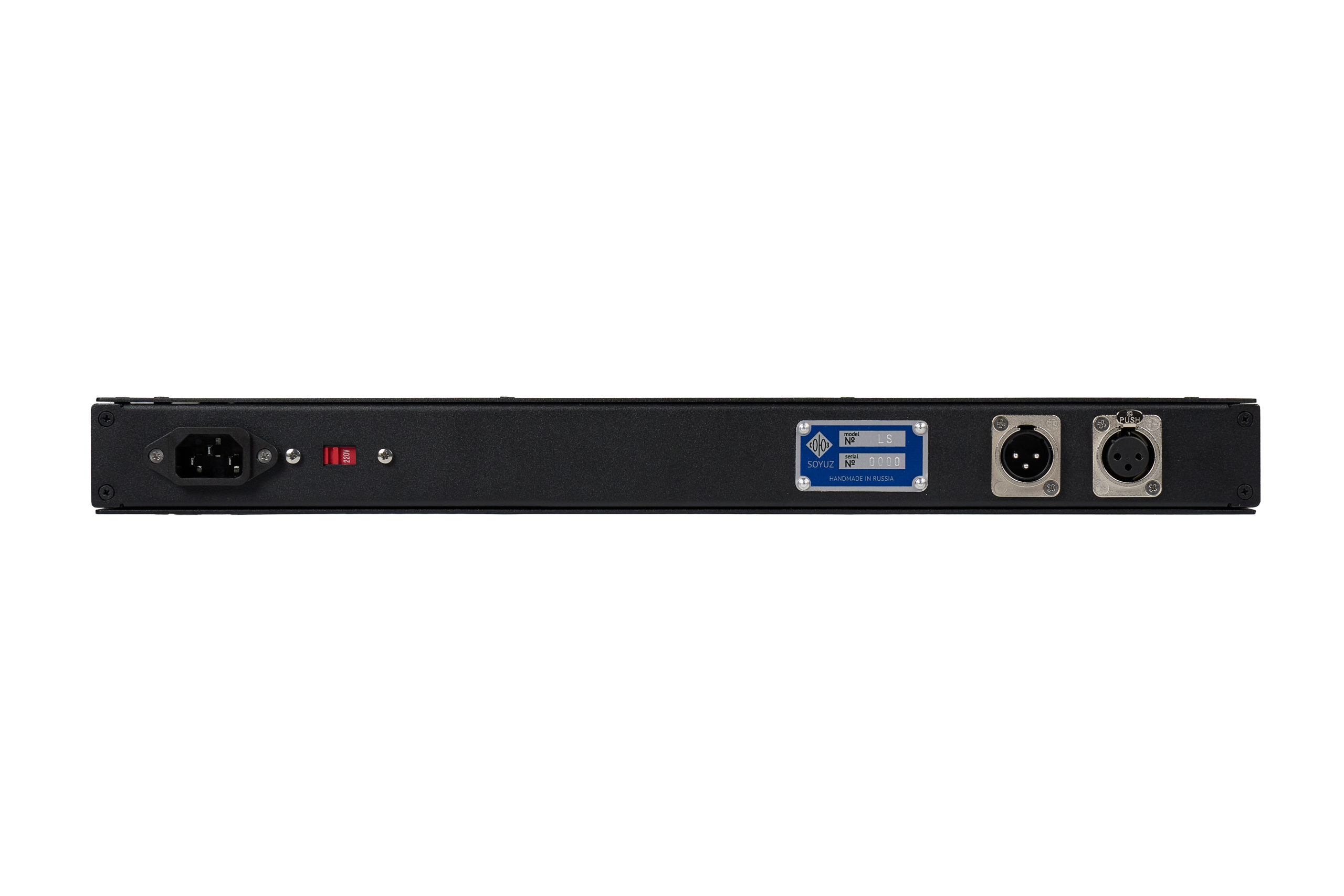

Inputs and Outputs
- Microphone input: XLR
- Instrument/DI input: 6.35 mm jack on the front panel
- Output: Balanced XLR
Impedances
- Microphone input impedance: 1.2 kOhm
- DI input impedance: Greater than 1 MOhm
- Output impedance: Less than 80 ohms
Additional Features
- Phantom power: Switchable +48 V
- Polarity reversal: Yes
Performance
- Frequency response: 20 Hz – 20 kHz (±0.5 dB, 40 dB gain, 600-ohm load)
- Extended frequency response: 8 Hz – 40 kHz (±5 dB, 40 dB gain, 600-ohm load)
- Equivalent input noise: -120 dB (40 dB gain, 600-ohm load)
- THD+N: Less than 0.02% (40 dB gain, 600-ohm load, output at +18 dBu)
- Maximum output level: +27 dBu at 0.2% THD
- Maximum output level: +31 dBu at 1.5% THD
Filter
- High-pass filter: 18 dB/octave
- High-pass filter frequencies: 40 / 55 / 70 / 90 / 120 / 150 / 180 / 220 / 270 / 330 Hz

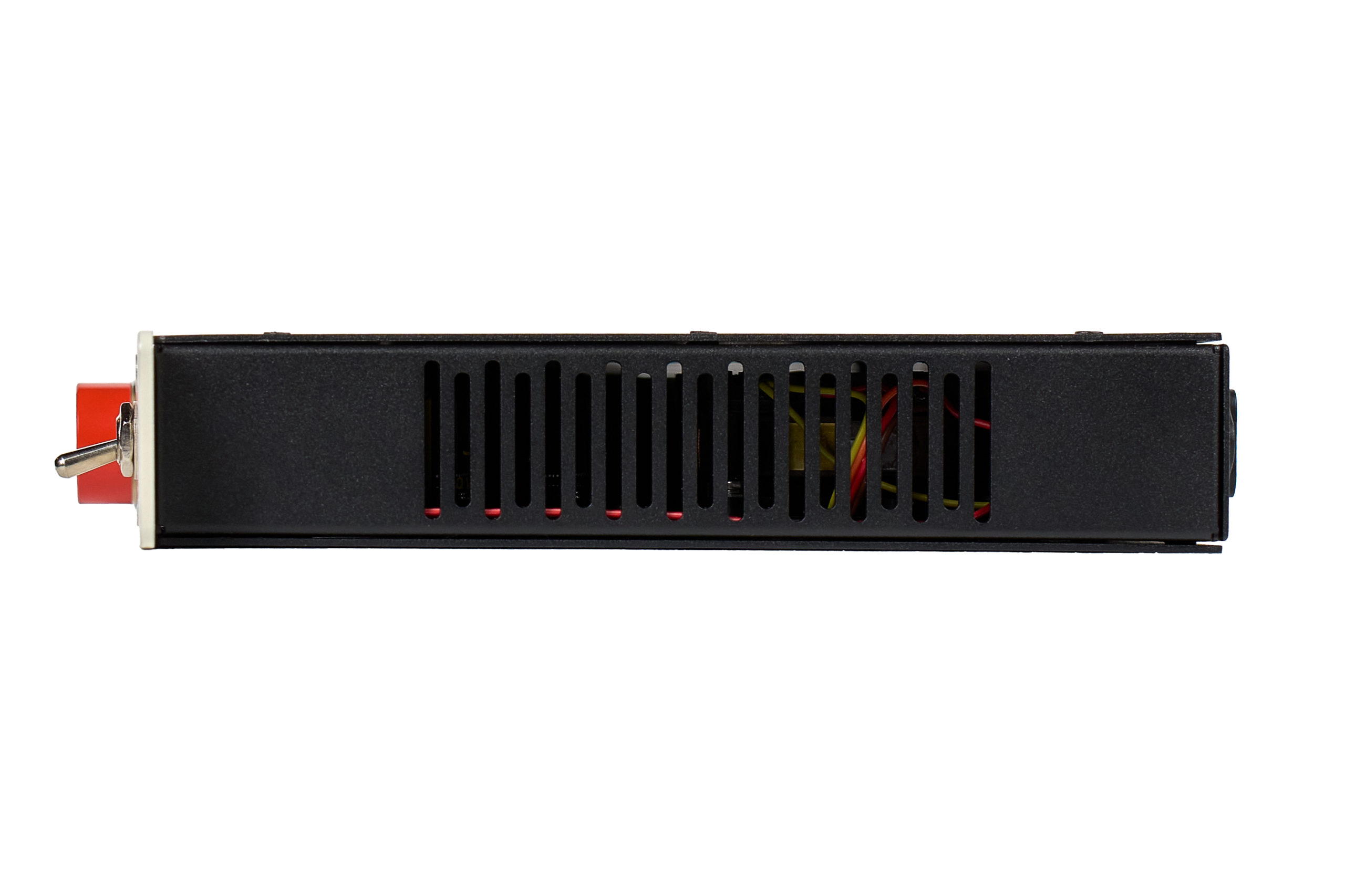

Dimensions & Weight
- Format: 19-inch rack / 1U
- Dimensions: 483 × 216 × 44 mm
- Weight: 5.9 kg
