Usb audio interface

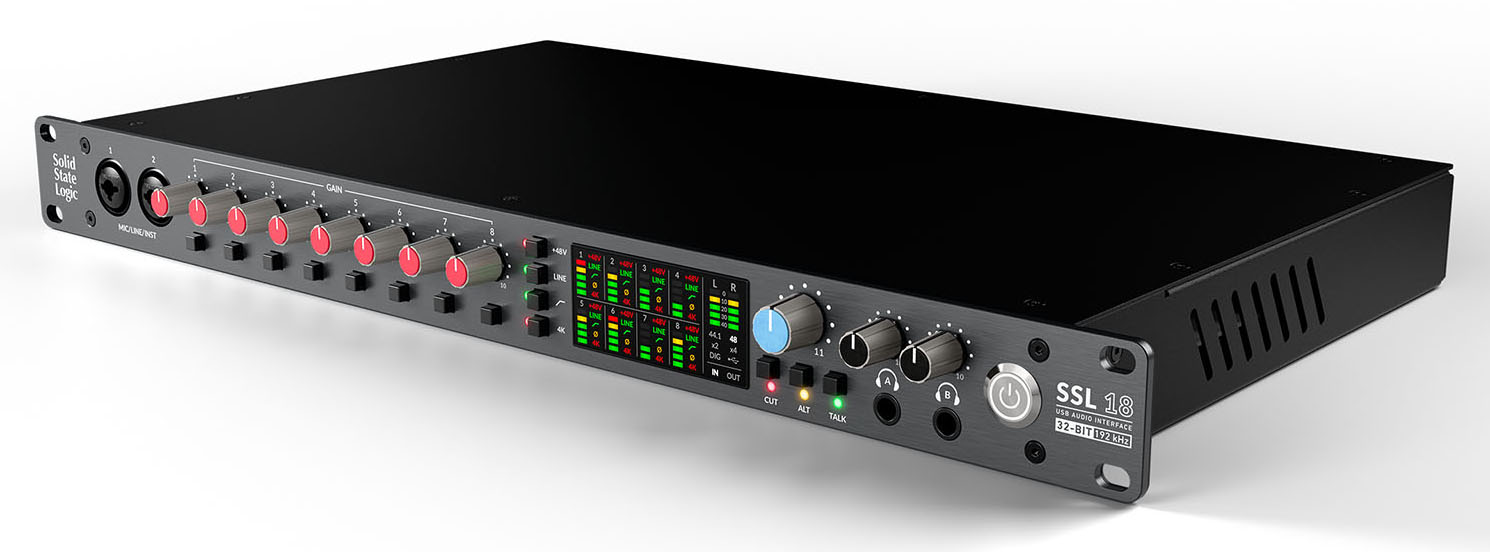

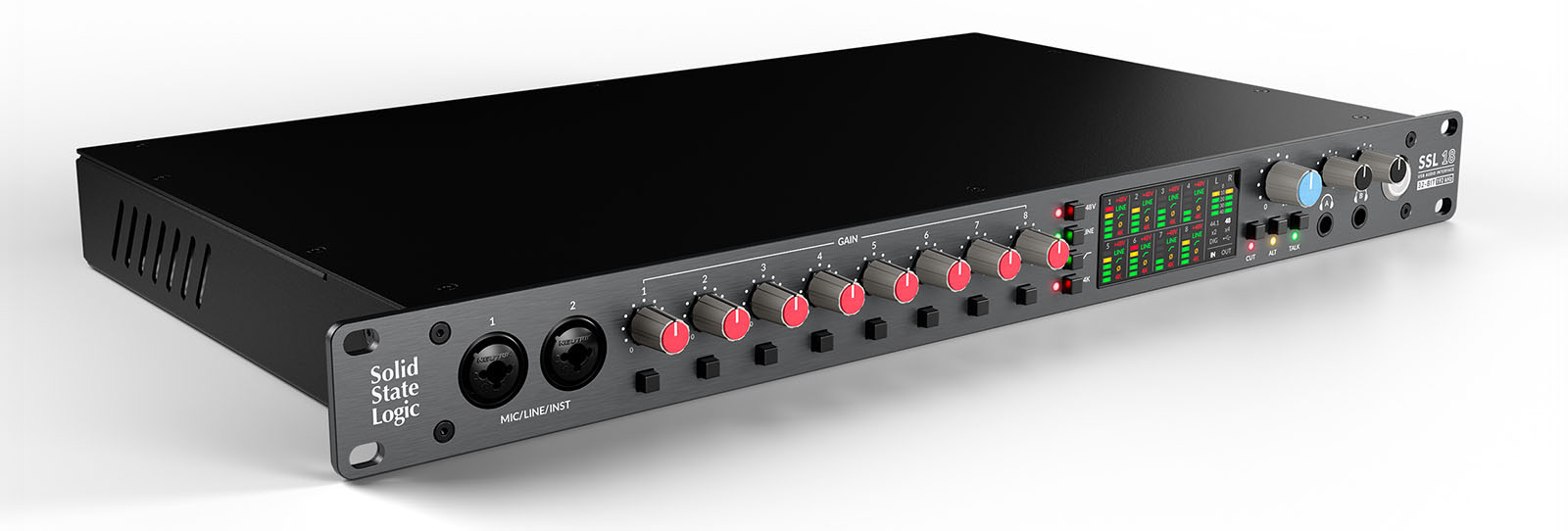

The SSL 18 is a 26-input, 28-output USB-C audio interface from Solid State Logic.
SSL 18 highlights
- Next-generation 32-bit/192 kHz converters for exceptional sound quality.
- Eight high-performance SSL mic preamps with Legacy 4K mode.
- Ten balanced line outputs with flexible level configuration.
- Two independent, configurable headphone outputs.
- Advanced monitoring control with talkback and analog compressor.
- Advanced digital mixer via the SSL 360 application.
SSL 18 Key Features
Unrivalled audio performance
With 32-bit/192 kHz converters and an impressive dynamic range of 120 dB on all inputs and 125 dB on all outputs, the SSL 18 guarantees crystal-clear sound for your recordings and mixes.
High-fidelity SSL mic preamps
Equipped with eight high-performance mic preamps, the SSL 18 captures every nuance of sound with low noise and minimal distortion. Activate Legacy 4K mode for the warmth of classic SSL consoles.
Optimized line outputs
With ten configurable balanced outputs, the SSL 18 adapts to all studio environments and enables seamless integration with professional external equipment.
Advanced mixing and monitoring
Enjoy maximum flexibility with the integrated digital mixer via SSL 360, independent headphone outputs and a complete monitoring section with talkback and analog compressor.
Digital connection and expansion
The SSL 18 offers 16 ADAT I/O channels, 2 S/PDIF channels and a Word Clock output for perfect synchronization with your digital equipment.
SSL Production Pack
Benefit from a software and plug-in package worth over €1,500, including a 6-month trial of Complete Access with SSL, Slate Digital and Harrison Audio tools.
Expert opinions
- A professional interface with outstanding audio performance.
- A complete set of inputs and outputs for maximum studio flexibility.
- Legacy 4K mode adds a unique analog touch.
Technical sheet
- DSP Yes
- Max. resolution
- 32-bit
- Sampling frequency
- 192 kHz max
- Dynamic range
- 120 dB on all inputs and headphone outputs
- 125 dB on monitor and line outputs
- Microphone preamps
- Low noise, exceptional EIN of -130.5 dBu
- 67 dB gain range
- Analog inputs
- 8 + 1 talkback on XLR / jack combo
- Instrument inputs
- Front-panel inputs 1 and 2 on combo XLR / jack

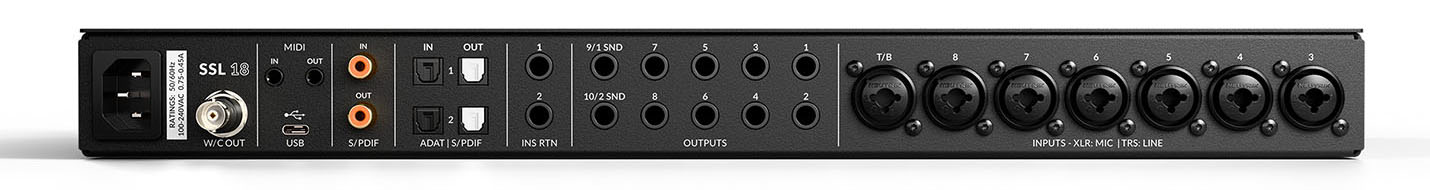

- Analog outputs
- 10 on balanced 6.35 mm jack
- Analog inserts
- 2 inputs and 2 outputs on balanced 6.35 mm jacks
- Switches (configurable) on front panel
- 4K: SSL4000 preamp emulation
- Low-cut filter
- Line: line level bypassing the preamp
- 48V: to activate Phantom power supply
- Headphone outputs
- 2 outputs on 6.35 mm stereo jacks
- Impedance selection to suit all types of headphones

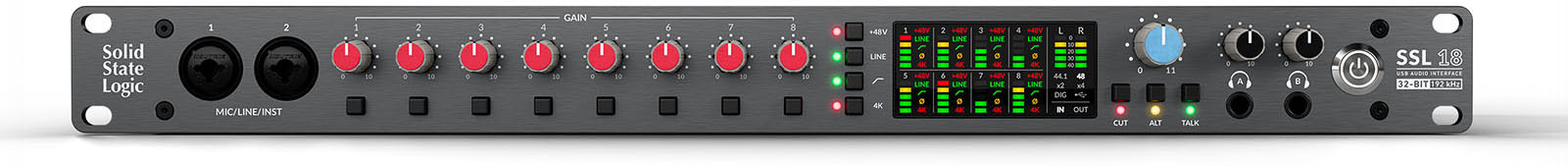

- Front-panel switches
- Cut to mute monitor outputs
- Alt to select monitor outputs 3&4
- Talk to activate talkback
- Digital inputs/outputs
- 16 ADAT I/O channels at 44.1/48 kHz, 8 channels at 96/192 kHz
- 2 S/PDIF channels (coaxial or optical)
- MIDI I/O
- 3.5 mm TRS Type A mini-jacks
- Clock signal
- Word clock BNC output
- Software configurations and templates
- Numerous possible configurations to suit your workflow
- Stereo loopback
- Selectable loopback source
- Dimensions
- 630 x 370 x 110 mm
- Weight
- 6 kg
