Strymon AA.1 Amplifier Attenuator
- Read reviews (1)
- Similar products
This article is no longer available for sale.
Not available at this moment
contact us
Stock in store
Not available in store
The brand Strymon
Learn more about the Strymon brand and discover the entire catalog.
Guitar and bass effects shopping guide
How to find the processor(s) that correspond to your needs and expectations amongst the hundreds of references currently available?
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Cabinet simulator

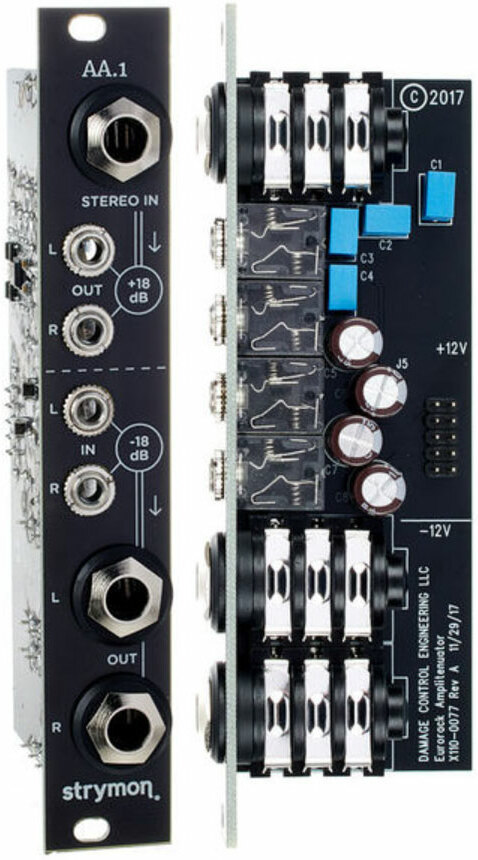

STRYMON AA.1 Amplifier Attenuator is a rackmount interface designed to be your bridge between the world of guitar pedals and the world of Strymon Eurorack modular.
This compact 4HP amplifier attenuator module has everything you need to interface your modular with your guitar effects pedals as well as with your guitar or bass. For exemple :
- Connect a pedal to the effects send and return of Strymon Magneto
- Use your guitar or bass as a signal source for mangling and warping with your modular gear
- Send an instrument level stereo master output from your modular rack to your computer audio interface
Eurorack modules very hot audio signal levels that can easily overload the inputs of effects pedals or computer audio interfaces. And it’s not just the output of the modules : Audio inputs in a Eurorack system also need to receive hot signals. AA.1 amplifies the input (up to +18dB) and attenuates the output signals (up to -18dB) to the appropriate levels.
This compact 4HP amplifier attenuator module has everything you need to interface your modular with your guitar effects pedals as well as with your guitar or bass. For exemple :
- Connect a pedal to the effects send and return of Strymon Magneto
- Use your guitar or bass as a signal source for mangling and warping with your modular gear
- Send an instrument level stereo master output from your modular rack to your computer audio interface
Eurorack modules very hot audio signal levels that can easily overload the inputs of effects pedals or computer audio interfaces. And it’s not just the output of the modules : Audio inputs in a Eurorack system also need to receive hot signals. AA.1 amplifies the input (up to +18dB) and attenuates the output signals (up to -18dB) to the appropriate levels.
Lire la suite
Technical sheet
- STRYMON AA.1 Amplifier Attenuator
- SKU AA.1
- Rackmount designed to bridge worlds of guitar pedals and Strymon Eurorack modular
- For guitar & bass
- Made in USA
- 2018
- Amplifier Gain +18dB
- Amplifier Max Input Level (before soft clipping) 2.25Vpp
- Amplifier Max Output 18Vpp
- Amplifier Input Impedance 1 MΩ
- Amplifier Output Impedance 1 kΩ
- Amplifier 20Hz – 20kHz, +/- 1dB
- Atténuateur Gain -18dB
- Atténuateur Max Input Level (Nominal) 20Vpp
- Atténuateur Max Output Level (Nominal) 2.5Vpp
- Atténuateur Input Impedance 8 kΩ
- Atténuateur Output Impedance 880 Ω
- Atténuateur 20Hz – 20kHz, +/- 1dB
- 4 HP Eurorack format module
- Profondeur 1.5? (38mm)
