Studiomaster CLUB XS 12+
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
The brand Studiomaster
Learn more about the Studiomaster brand and discover the entire catalog.
The largest network of stores in France
Find all the information on our superstores and our specialized boutiques.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Analog mixing desk

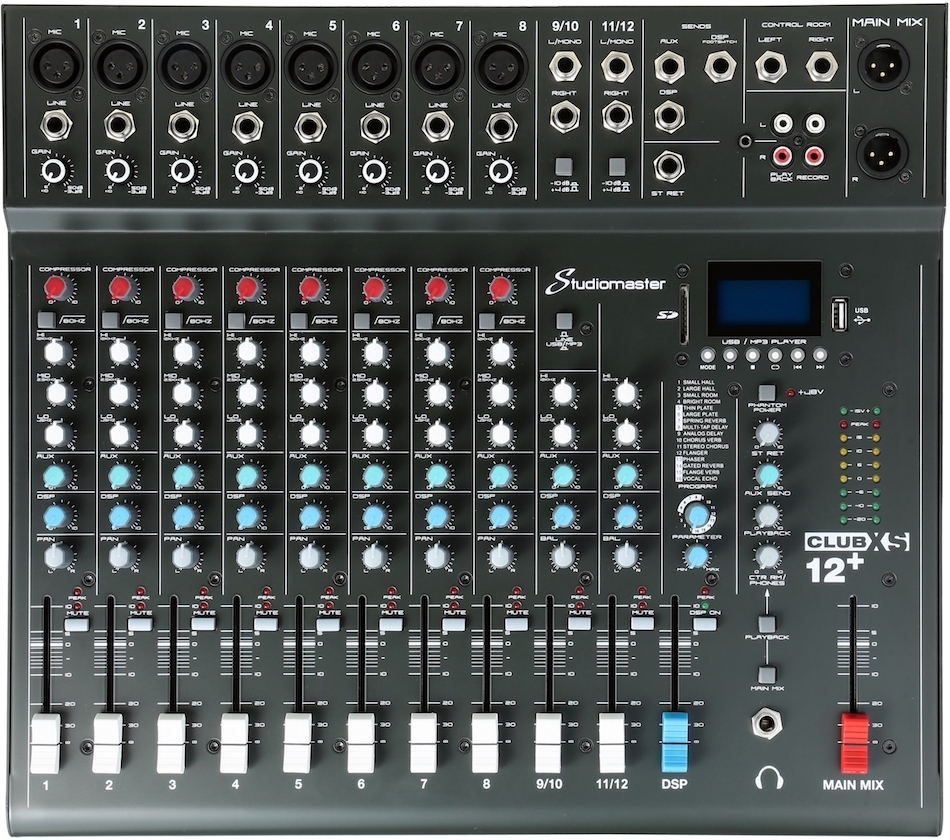

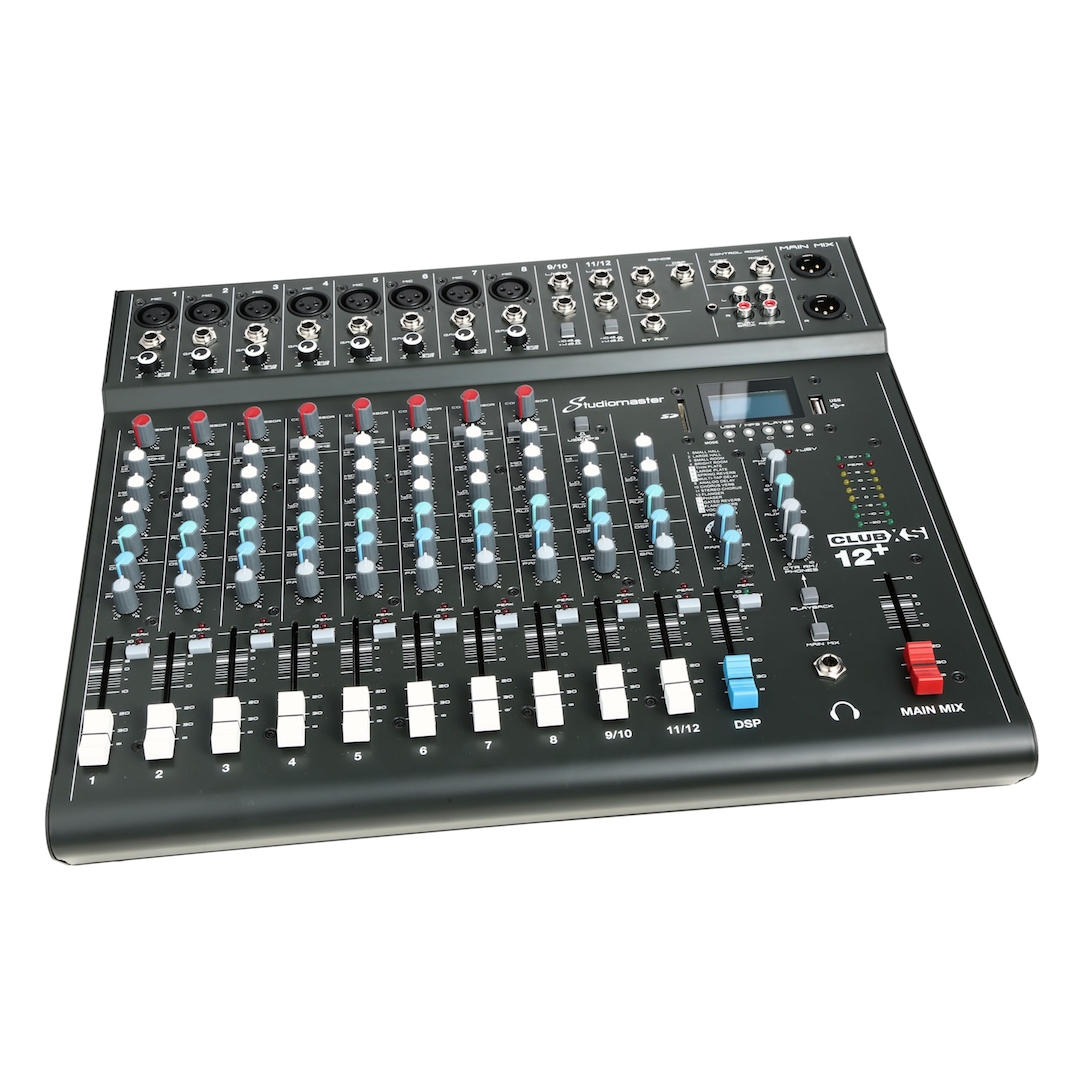

The Studiomaster CLUB XS 12+ is an analogue mixer.
12 inputs
8 microphone channels
2 stereo channels
16 DSP effects
Bluetooth
USB/SD media player
Foot switch socket.
12 inputs
8 microphone channels
2 stereo channels
16 DSP effects
Bluetooth
USB/SD media player
Foot switch socket.
Technical sheet
- Mixer connectivity Without computer connection
- Number of channel mixing desk 10 to 22 channels
- Number of channels 12 channels
- Inputs: 12
- Mic Inputs: 8
- Stereo Inputs: 2
- Mic Gain Range: 6dB to 50dB
- Line Gain Range: 10dB to 34dB
- EIN: -100dB
- Frequency Responce: 10Hz – 20kHz (+1/-3dB)
- THD Mic Channel: <0.1%
- Signal to Noise Ratio: 80dB
- Output Levels: Max +26dB (Bal), +20dB (unBal)
- EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
- USB/SD: MP3 Audio playback
- Record: To USB drive or SD card (128kbps mono)
- DSP Effects: 16 DSP effects
- Power Requirements: 100V – 240V ~
- Dimension W*H*D: 415 x 80 x 365 (mm)
- Weight: 5.5kg
More specifications
Fewer specifications
