Analog mixing desk

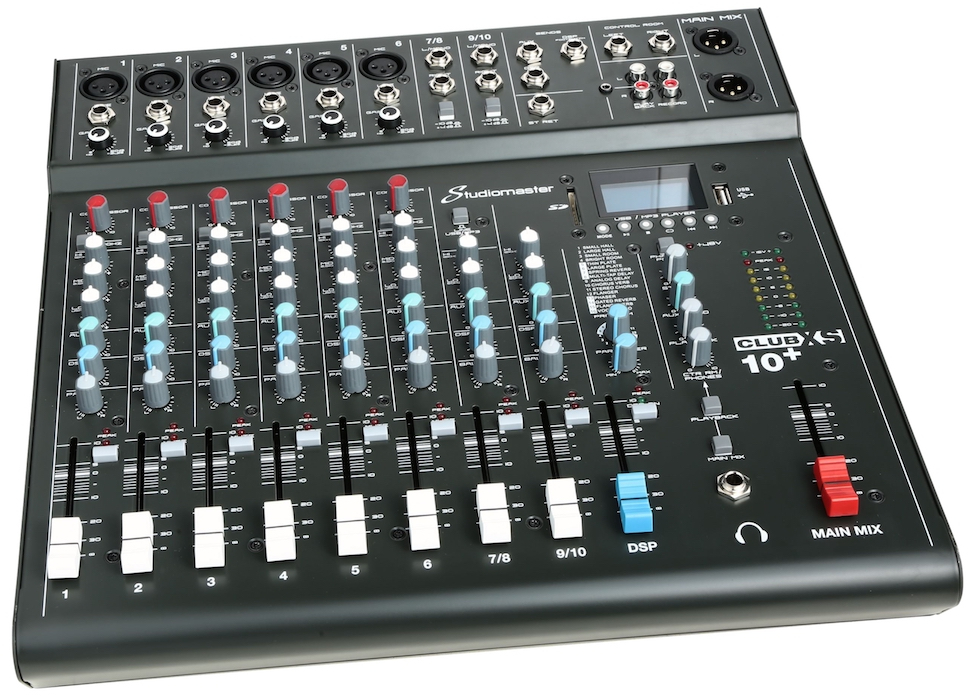

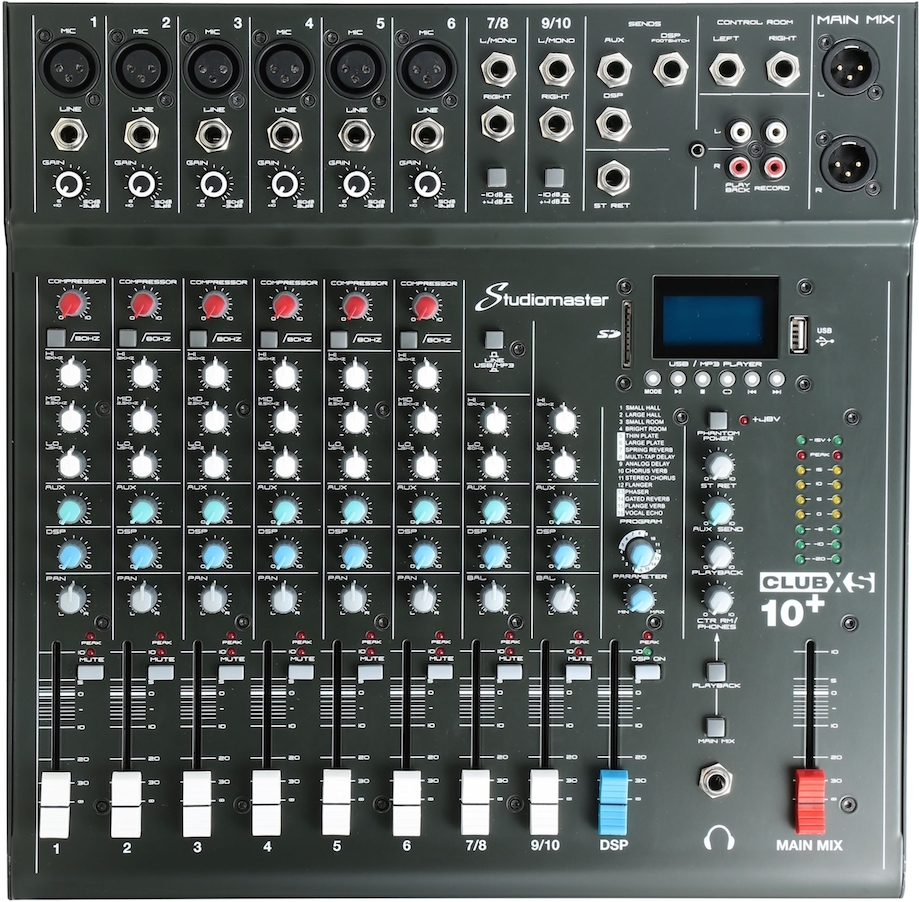

The Studiomaster Club xs10+ is a mixer with 10 inputs.
Lire la suite
Technical sheet
- Mixer connectivity Without computer connection
- Number of channel mixing desk 10 to 22 channels
- Number of channels 10 channels
- Inputs: 10
- Mic Inputs: 6
- Stereo Inputs: 2
- Mic Gain Range: 6dB to 50dB
- Line Gain Range: 10dB to 34dB
- EIN: -100dB
- Frequency Responce: 10Hz – 20kHz (+1/-3dB)
- THD Mic Channel: <0.1%
- Signal to Noise Ratio: 80dB
- Output Levels: Max +26dB (Bal), +20dB (unBal)
- EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
- USB/SD: MP3 Audio playback
- Record: To USB drive or SD card (128kbps mono)
- DSP Effects: 16 DSP effects
- Power Requirements: 100V – 240V ~
- Dimension W*H*D: 360 x 80 x 365 (mm)
- Weight: 5kg
