Volume, boost & expression effect pedal
Built with ultra low distortion and low noise components selected for superior signal transparency, the SUHR Dual Boost pedal is a top notch, versatile 2-channel booster, housed within a compact enclosure. The internal charge pump circuit makes for a boost pedal with increased headroom and dynamic range.
The Dual Boost features two independent channels with independent Boost and Hi-Cut control. The channels are switchable via m(fx) technology : simply press and hold the footswitch for approximately one second to switch from Boost 1 (green) to Boost 2 (red).
The selectable global boost range switch sets the rage of the boost to either +10dB or +20dB.
No matter what your needs may be, the Dual Boost offers a comprehensive solution to preserving and boosting your signal without changing or coloring your original tone.
Dual Boost is relay true bypass, producing less popping when switching the pedal on and off.
The Dual Boost features two independent channels with independent Boost and Hi-Cut control. The channels are switchable via m(fx) technology : simply press and hold the footswitch for approximately one second to switch from Boost 1 (green) to Boost 2 (red).
The selectable global boost range switch sets the rage of the boost to either +10dB or +20dB.
No matter what your needs may be, the Dual Boost offers a comprehensive solution to preserving and boosting your signal without changing or coloring your original tone.
Dual Boost is relay true bypass, producing less popping when switching the pedal on and off.
Lire la suite
Technical sheet
- SUHR Dual Boost
- SKU 03-BST-0001
- 2 channels boost effect pedal
- Made in USA

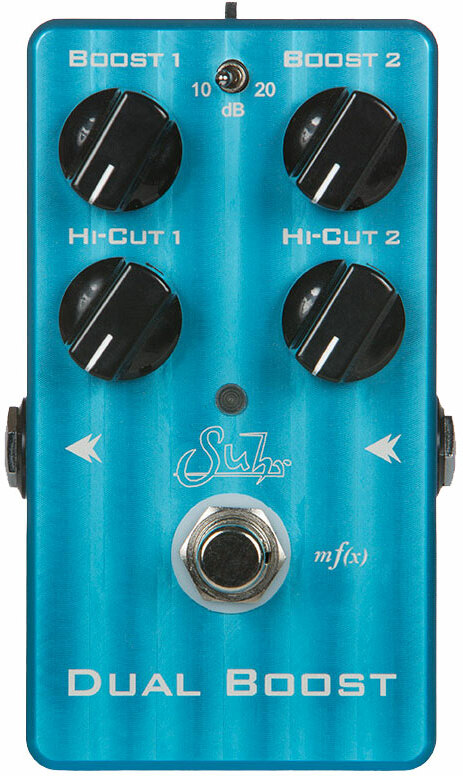

- Controls : see pictures
- True or Buffered Bypass
- FX Link connector allows the pedal’s switching function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state.
- Low Battery Monitor : alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.
- 9Vdc, center negative, 2.1mm x 5.5mm
- Width 2.5" - 63.5 mm
- Depth 4.5" - 114.3 mm
- Height 1.25" - 31.75 mm
- 0.75lb - 0.340 kg
- Manual : https://www.suhr.com/wp-content/uploads/2016/10/DualBoost_UserGuide_042816_FINAL.pdf
