Tascam MZ-223

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Ref : 116468
426,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 8/10 days
Stock in store
Not available in store

The brand Tascam

Learn more about the Tascam brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

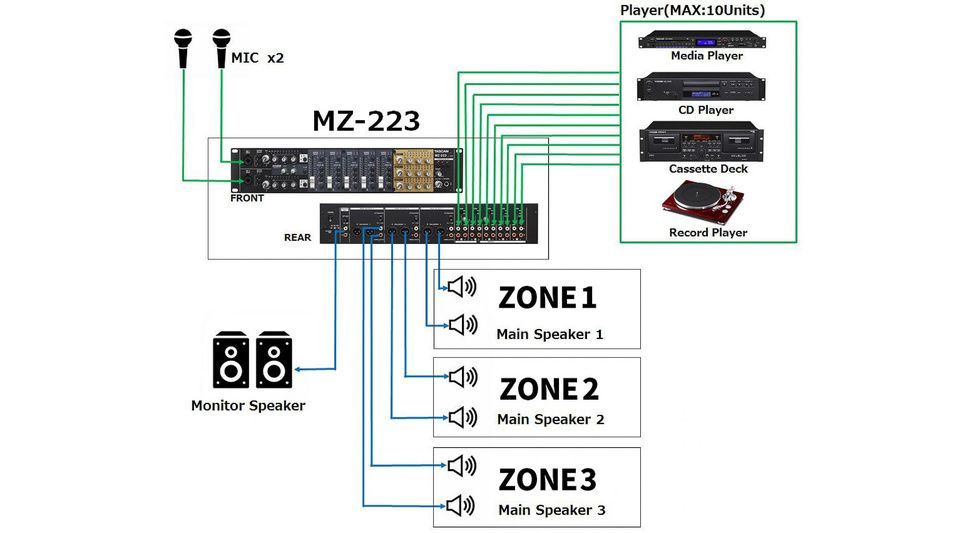

The MZ-223 is a rack-mount mixer designed for permanent installation in stores, public facilities, restaurants, bars, theme parks, and hotels. It allows you to distribute voice announcements and background music from different sources to three zones. Each of the seven inputs (five stereo, two mono) can be assigned to one or all of the three zones.

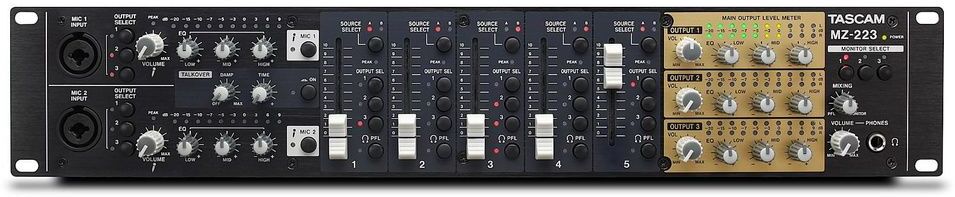

The mixer offers five stereo inputs for line-level signals from analog sources: media players, tuner, cassette decks, and more. Two of these inputs can be switched to phono mode for connecting a turntable. Each stereo input has its own gain control, peak indicator, and fader. Two additional microphone inputs, also equipped with level controls, LED level indicators, and 3-band EQs, are available for voice announcements, PA, karaoke, or any other application (dynamic microphones only). When used for announcements, for example, the built-in Talkover function automatically lowers the music volume based on the voice level.

Each of the three main output zones is equipped with a level control, an LED level indicator, and a 3-band equalizer. There is also an independent monitoring output for the control room and a headphone output with level control for pre-fader monitoring of the selected input or one of the main outputs.

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 6 and 8 channels
  • Number of channels 5 channels
  • Offers 2 mono and 5 stereo channels that can be distributed and mixed to 3 stereo outputs
  • 2 microphone inputs with 3-band EQ: XLR/jack combo
  • Level meter and talkover function

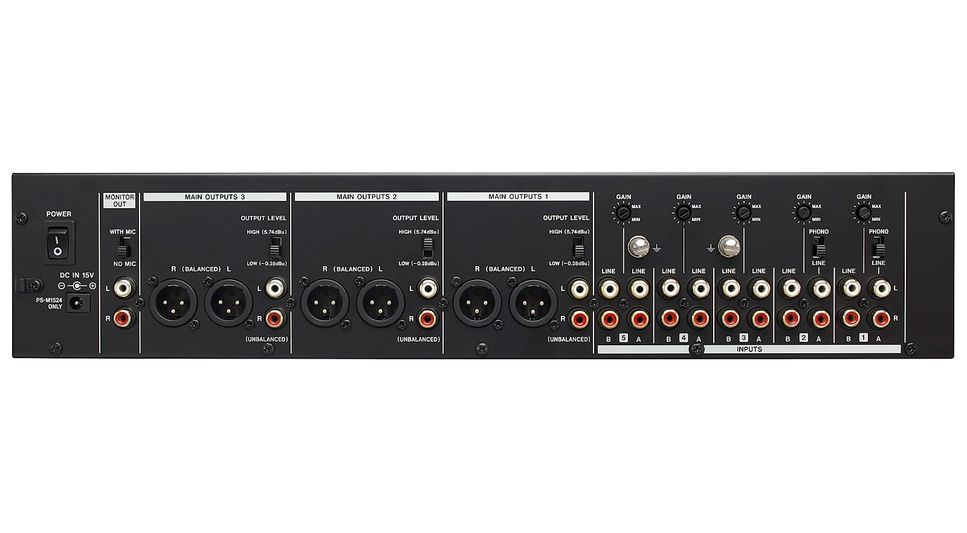

  • 5 stereo line inputs with two selectable input sources: RCA
  • Volume faders and PFL function
  • 2 switchable phono inputs
  • 3 separate master outputs with 3-band EQ and level meters: XLR/RCA
  • Stereo monitor output: RCA
  • Headphone output: 6.3 mm jack
  • Dimensions: 482 x 88 x 93 mm
  • Weight: 2.5 kg
