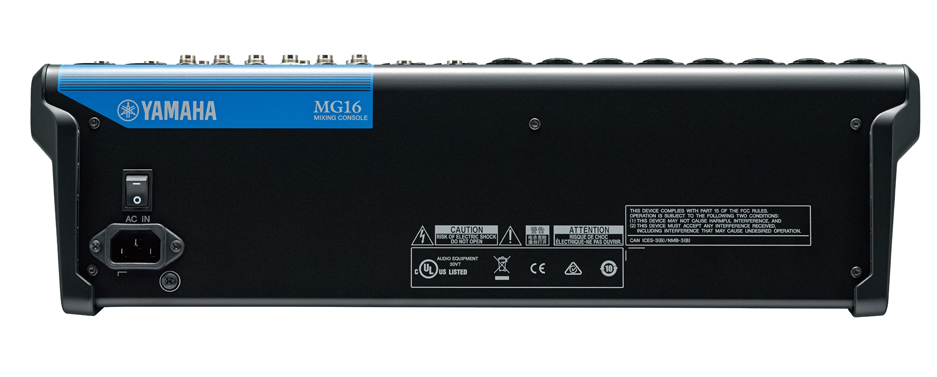

Yamaha MG16

Name: MG16
Brand: Yamaha
SKU: 38681
Availability: InStock
Rating: 4.3 (4 reviews)

Read reviews (4)
Related accessories
Similar products

734.40 €
Ref : 38681

474,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

In stock

deliverable in 24 hours

Stock in store

See availability. Store

•

Star's Music Bordeaux

•

Star's Music Lille

•

Star's Music Lyon

•

Star's Music Paris

•

Star's Music Toulouse

Variation(s) of this product.

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Analog mixing desk

Lifting the veil over the third generation of Yamaha MG series with this brand new 20-channels MG16 mixing console, including studio-quality preamps, compressors, and a rugged, reliable construction.

Its fantastic sound, 16 canals and compressor allow for a warmth of sound, deep bass and natural highs, unparalleled on the market.

Technical sheet

Mixer connectivity Without computer connection
Number of channel mixing desk 10 to 22 channels
Number of channels 16 channels

/O
Phantom power: +48 V
Input Channels
Mono[MIC/LINE]: 8
Mono/Stereo[MIC/LINE]: 2
Stereo[LINE]: 2
Output Channels
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 4
GROUP OUT: 4
Bus
Stereo: 1, GROUP: 4, AUX: 4
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
General specifications
Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level:
Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk: -78 dB
Power requirements: AC 100 – 240 V, 50 / 60 Hz
Power consumption: 30 W
Dimensions:
W: 444 mm (17.5")
H : 130 mm (5.1")
D : 500 mm (19.7")
Net weight: 6.6 kg (14.6 lbs.)
Accessories : Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
Others
Operating Temperature: 0 to +40?C
