Digital mixing desk

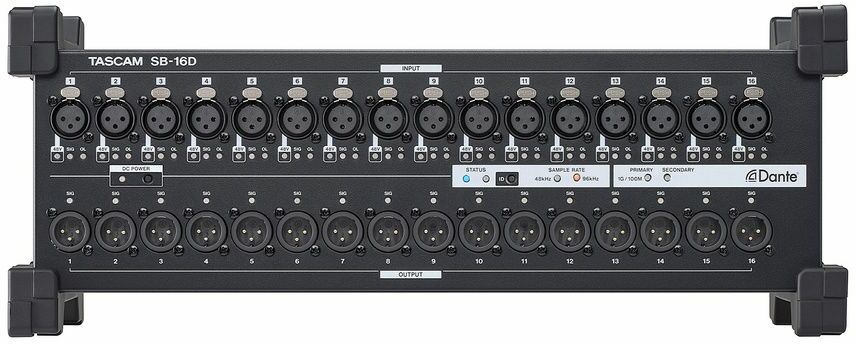

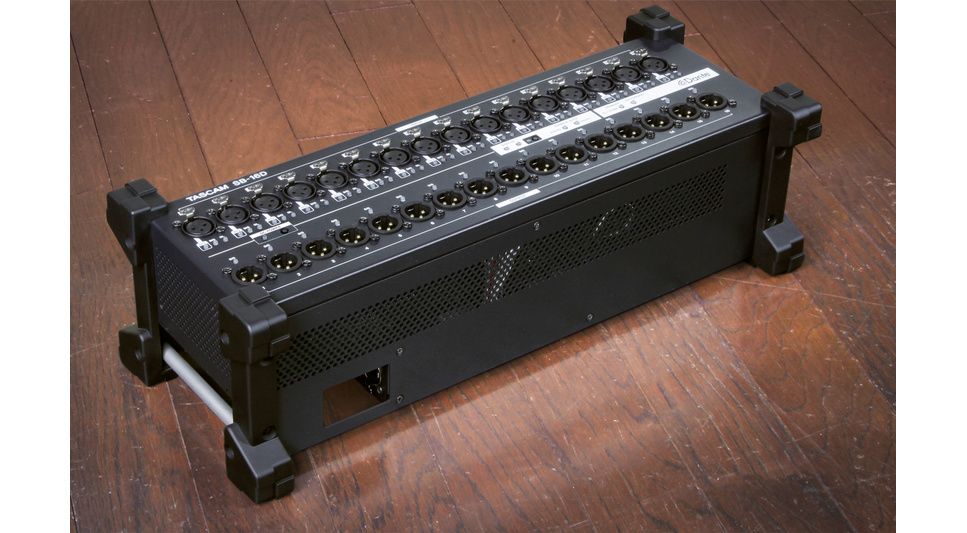

The Tascam SB-16d is a Dante stagebox with 16 inputs/16 outputs.
The SB-16D is an active Dante stagebox with 16 analog inputs and 16 analog outputs. Thanks to its 32-bit A/D converters and Class 1 HDIA mic preamps, the SB-16D captures audio signals with the best possible audio quality, right at the origin of the signal path. You can use several simultaneously in a single Dante network - floor-standing or rack-mounted.
Offering the same performance and build quality as Tascam Sonicview live sound consoles, the SB-16D lets you enjoy all the benefits of Dante audio networking, plus easy integration with Sonicview consoles and other Dante products from Tascam - and other manufacturers.
The SB-16D is an active Dante stagebox with 16 analog inputs and 16 analog outputs. Thanks to its 32-bit A/D converters and Class 1 HDIA mic preamps, the SB-16D captures audio signals with the best possible audio quality, right at the origin of the signal path. You can use several simultaneously in a single Dante network - floor-standing or rack-mounted.
Offering the same performance and build quality as Tascam Sonicview live sound consoles, the SB-16D lets you enjoy all the benefits of Dante audio networking, plus easy integration with Sonicview consoles and other Dante products from Tascam - and other manufacturers.
Lire la suite
Technical sheet
- Number of channel mixing desk 10 to 22 channels
- Number of channels 16 channels
- Analog audio inputs and outputs
- Mic/line inputs (balanced, INPUT 1-16) XLR-3-31 (1: ground, 2: hot spot, 3: cold spot)
- Maximum input level +12 dBu (TRIM on minimum, PAD off)
- +32 dBu (TRIM on minimum, PAD on)
- Minimum input level -62 dBu (TRIM on maximum, PAD off)
- -42 dBu (TRIM to maximum, PAD on)
- Input impedance ?5 kΩ
- Line outputs (balanced, OUPUT 1-16) XLR-3-32 (1: ground, 2: hot spot, 3: cold spot)
- Maximum output level (switchable) +15 dBu (Ref(D) : -9 dBFS, Ref(A) : +6 dBu)
- +18 dBu (Ref(D) : -14 dBFS, Ref(A) : +4 dBu)
- +20 dBu (Ref(D) : -16 dBFS, Ref(A) : +4 dBu)
- +18 dBu (Ref(D) : -18 dBFS, Ref(A) : 0 dBu)
- +20 dBu (Ref(D) : -20 dBFS, Ref(A) : 0 dBu)
- +22 dBu (Ref(D) : -18 dBFS, Ref(A) : +4 dBu)
- +24 dBu (Ref(D) : -20 dBFS, Ref(A) : +4 dBu)
- Maximum output level (switchable) +6 dBu (Ref(D) : -9 dBFS)
- +4 dBu (Ref(D) : -14 dBFS, -16 dBFS
- +4 dBu or 0 dBu (Ref(D) : -18 dBFS, -20 dBFS)
- Output impedance ? 100 Ω.
- digital audio inputs and outputs
- Dante PRIMARY/SECONDARY etherCON, CAT5e compatible
- Number of audio channels 64 channels (48 kHz)
- 32 channels (96 kHz)
- Supported modes Redundant mode, switched mode
- Gigabit Ethernet-compatible standard (1000BASE-T (IEEE 802.3ab))
- Recommended cable Cat5e (shielded twisted pair) or higher
- Other inputs and outputs
- 25-pin D-sub GPIO (8 inputs / 8 outputs, female, inch format)
- Input circuit Pull-up (5 V)
- Output circuit Open collector
- Output impedance: 10 Ω
- Voltage resistance: 20 V
- Maximum output current: 35 mA
- Maximum supply current (5 V) 50 mA
- Audio characteristics
- Equivalent input noise ? -128 dBu
- Frequency response (mic/line input or Dante to line output) 20 Hz - 20 kHz +0/-0.5 dB (in 48 kHz, according to JEITA)
- 20 Hz - 40 kHz +0/-1 dB (96 kHz, according to JEITA)
- Dynamic range ? 110 dB (mic/line input to Dante output, PAD off, TRIM min., Ref(D) -20 dBFS, JEITA)
- ? 111 dB (Dante input to line output, 48 kHz, JEITA)
- ?112 dB (Dante input to line output, 96 kHz, JEITA)
- Distortion rate ? 0.002% (mic/line input to Dante output, +4 dBu input signal, PAD off, TRIM min., JEITA)
- ? 0.002% (Dante input to line output, 0 dBFS output signal, JEITA)
- Channel separation ? -100 dB (mic/line input to line output, 1 kHz sinusoidal, JEITA)
- Note: 0 dBu = 0.775 Vrms Ref(D): digital reference level
- Power supply and miscellaneous
- Mains supply 100-240 V, 50/60 Hz
- DC voltage supply DC voltage between 11 V / 4 A and 27 V / 2 A
- Power consumption 44 W
- Overall dimensions (W × H × D) With feet: 454 mm × 140 mm × 180 mm
- With rack ears: 483 mm × 132 mm × 120 mm
- Weight 4.5 kg
- Operating temperature range 0-40 °C
