Digital mixing desk

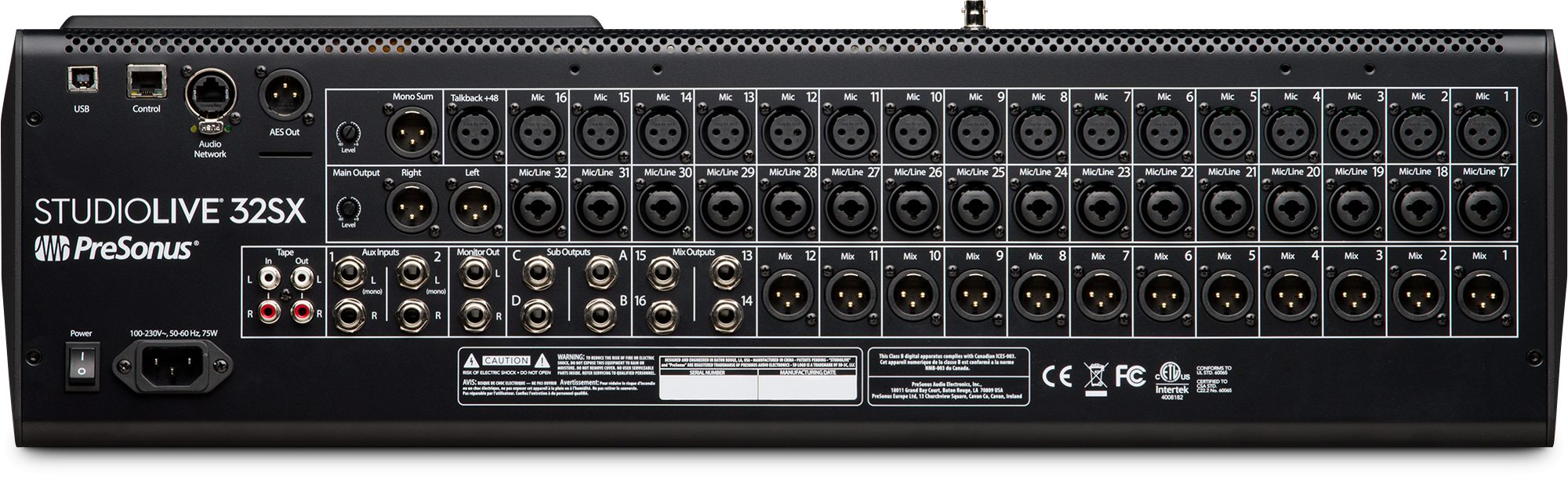

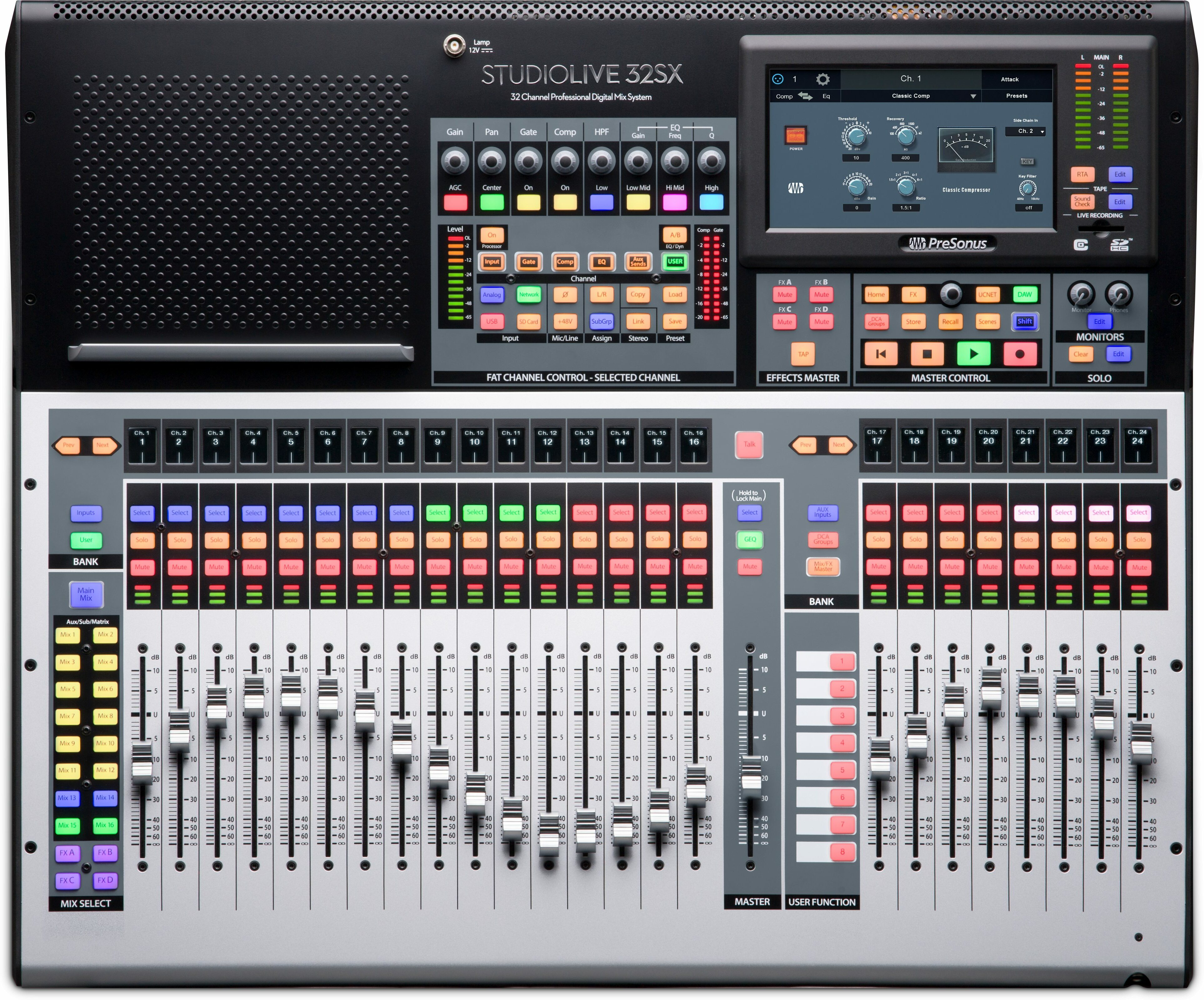

StudioLive 32 Sx is a digital mixer with 32 channels.
StudioLive 32SX is the ideal compact 32-channel digital mixing solution. Powered by the dual-core FLEX PreSonus DSP FLEX engine, the StudioLive 32SX digital mixer has 40 mixing channels, 26 mixing buses and 286 simultaneous processors, including 4 stereo reverb systems and plug-in models for Fat Channel on each input and mixing channel. The StudioLive 32SX's slim profile makes it a perfect solution for all mixing environments where the space occupied on the desktop is very large.
PreSonus patented digital control of analog circuits with its first studio product.
Building on this legacy, we have created a separate digital volume control circuit upstream of our popular XMAX analog preamp to provide the convenience of digital recall without sacrificing fidelity.
StudioLive 32SX is the ideal compact 32-channel digital mixing solution. Powered by the dual-core FLEX PreSonus DSP FLEX engine, the StudioLive 32SX digital mixer has 40 mixing channels, 26 mixing buses and 286 simultaneous processors, including 4 stereo reverb systems and plug-in models for Fat Channel on each input and mixing channel. The StudioLive 32SX's slim profile makes it a perfect solution for all mixing environments where the space occupied on the desktop is very large.
PreSonus patented digital control of analog circuits with its first studio product.
Building on this legacy, we have created a separate digital volume control circuit upstream of our popular XMAX analog preamp to provide the convenience of digital recall without sacrificing fidelity.
Lire la suite
Technical sheet
- Number of channel mixing desk 24 channels and more
- Number of channels 32 channels
- Microphone preamplifier
- Input type: XLR female, balanced
- Frequency response to general output (at unit gain): 20 Hz-20 kHz, ±0.5 dBu
- Input impedance 1 kΩ
- DHT to general output < 0.005%, +4 dBu, 20 Hz-20 kHz, unit gain, unweighted
- S/N ratio to general output (Ref = +4 dB, 20 kHz bandwidth, unit gain, A-weighting) 94 dB
- Common mode rejection rate (1 kHz at unit gain) 65 dB
- Gain control range (±1 dB) 0 dB to +60 dB
- Maximum input level (unit gain) +12 dBu
- Phantom power supply (DC ±2 V) DC 48 V, switchable per channel.
- Line inputs
- Type
- 6.35 mm 3-point female jack (TRS) symmetrical
- Frequency response to general output (at unit gain) 20 Hz-20 kHz, ±0.5 dBu
- Input impedance 10 kΩ
- DHT to general output < 0.005%, +4 dBu, 20 Hz-20 kHz, unit gain, unweighted
- S/N ratio to general output (Ref = +4 dB, 20 kHz bandwidth, unit gain, A-weighting) 94 dB
- Maximum input level +18 dBu
- Physical characteristics
- Height
- 165.36 mm
- Width
- 659.81 mm
- Depth
- 583.84 mm
- Weight
- 13.6 kg
