Thorens MM-008

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Thorens Mm-008 - Preamp - Main picture
  • Thorens Mm-008 - Preamp - Variation 1
  • Ref : 107056
299,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 5/7 days
Stock in store
Not available in store

The brand Thorens

Learn more about the Thorens brand and discover the entire catalog.
Logo Thorens

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Preamp

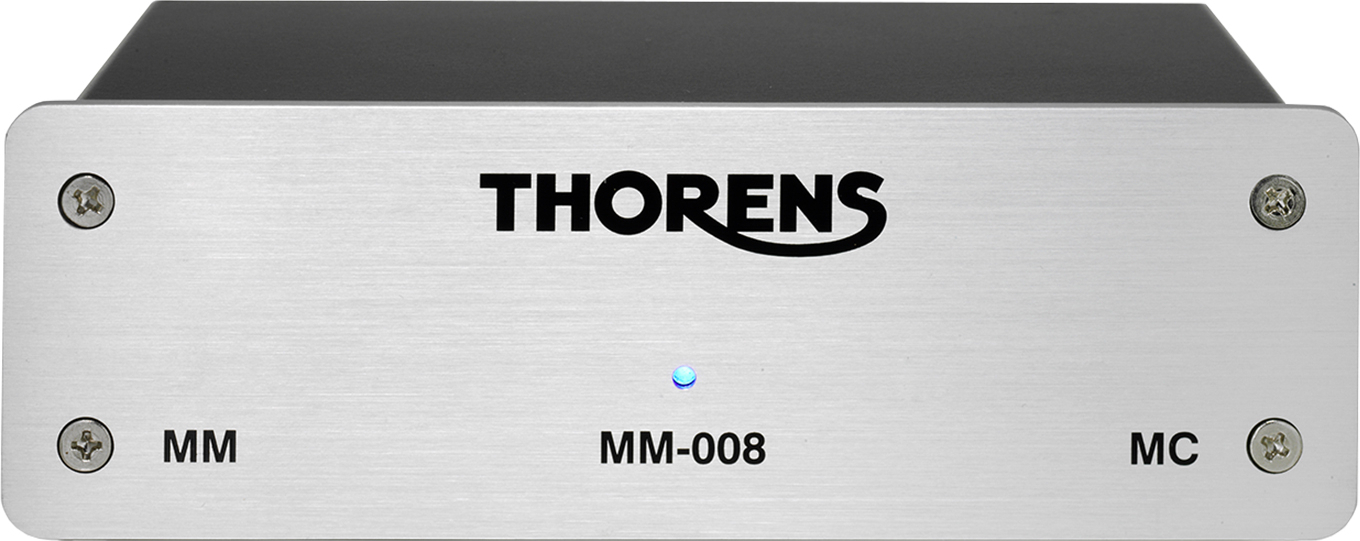

The Thorens MM-008 is a RIAA Pre-Amplifier.

The MM-008 phono pre-amplifier is the successor of the famous MM-005, and therefore remains simple to use and connect, and also very efficient. In a metal case with a brushed aluminium front panel, the MM-008 remains sober and discreet, but above all very functional: designed for MM and MC cells, it offers both an external power supply and gold-plated RCA connectors.
Lire la suite

Technical sheet

  • Type of preamp Transistor
  • General
  • Anti-resonance and anti-interference enclosure
  • Aluminium faceplate
  • Mode: MM/MC (switchable)
  • Measurements
  • Amplification at 1 kHz: 40 dB (MM) / 60 dB (MC)
  • Input impedance (MM): 47 kΩ + 220 pF fixed
  • Input impedance (MC): 47 kΩ + 1 nF (changeable with external load plugs)
  • Frequency response (flat): 20 Hz - 20 kHz ±0.3 dB
  • Frequency response (-3 dB): 10 hZ - 50 kHz
  • RIAA compliance: +/-0.3 dB
  • Signal-to-noise ratio : >86 dB (MM) / >72 dB (MC)
  • Crosstalk: ?40 dB
  • Input sensitivity (MM): 3.29 mVrms for -10 dBV output (316 mVrms)
  • Input sensitivity (MC): 0.325 mVrms at -10 dBV output (316 mVrms)
  • Max. output voltage 482 mVrms at 5 mVrms input (1 kHz)
  • Output impedance: 47 Ω

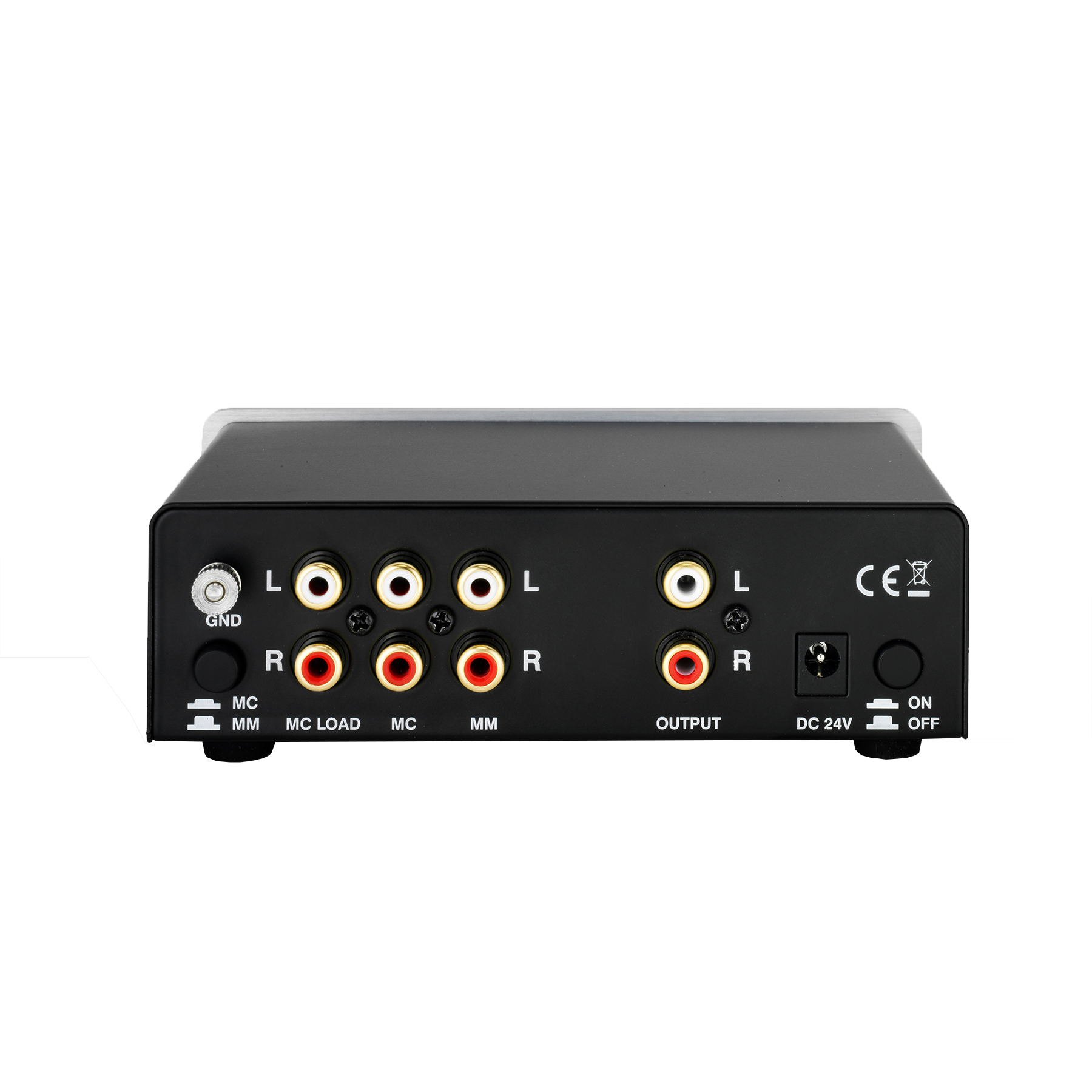

  • Connections
  • 1 MM input (RCA left/right)
  • 1 MC input (RCA left/right)
  • 1 grounding terminal
  • 1 MC Load input (RCA left/right)
  • 1 stereo line output (RCA left/right)
  • Power supply
  • Power supply: 24 V DC
  • Power consumption: 3.4 W/15 Ma
  • Supplied accessories
  • External power supply
  • 3 pairs of external load plugs for MC cell (10 Ω, 100 Ω, 1 kΩ)
  • Logistic data
  • Dimensions (W x H x D): 150 x 50 x 117 mm
  • Weight: 504 g (excluding power supply)
