Expander

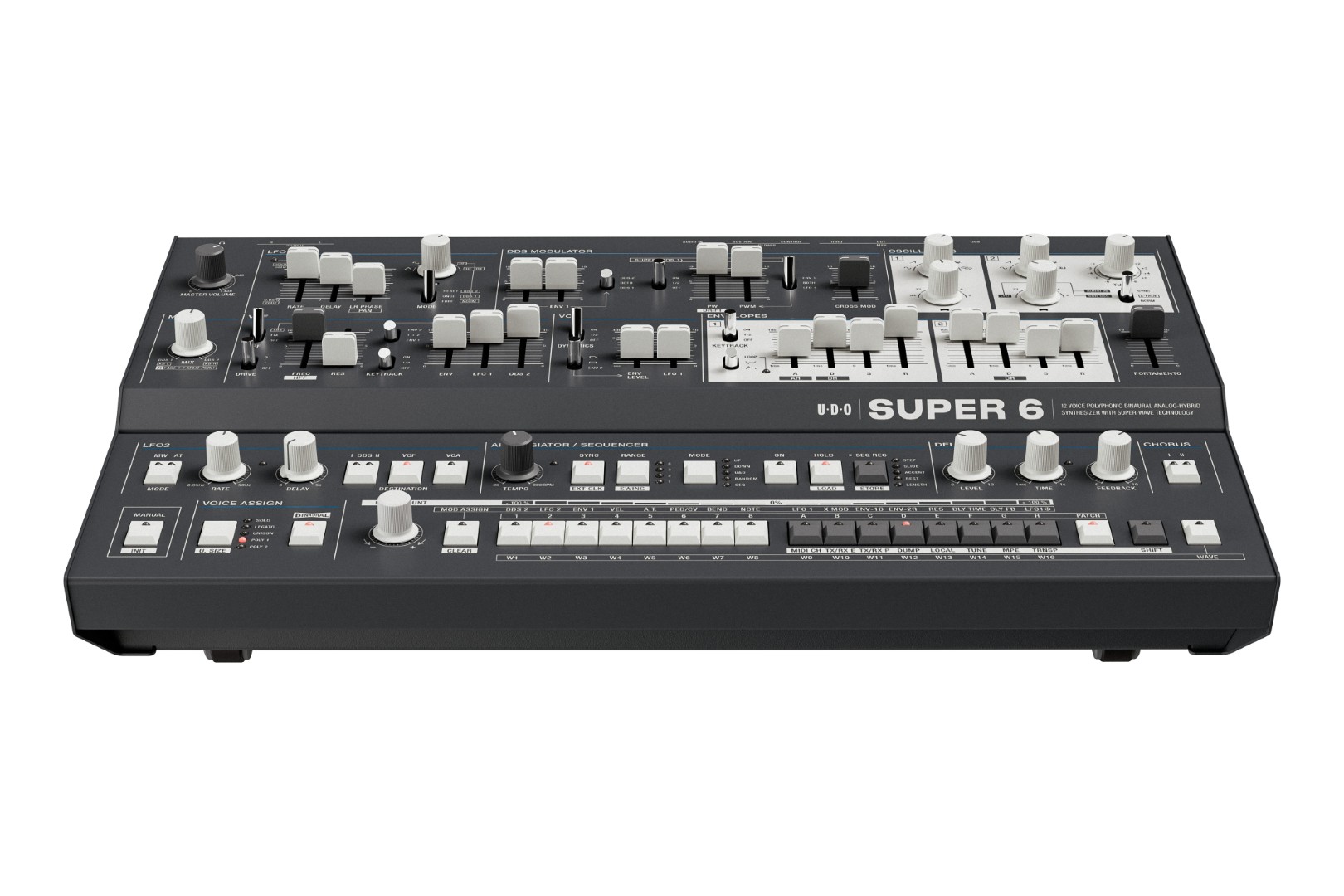

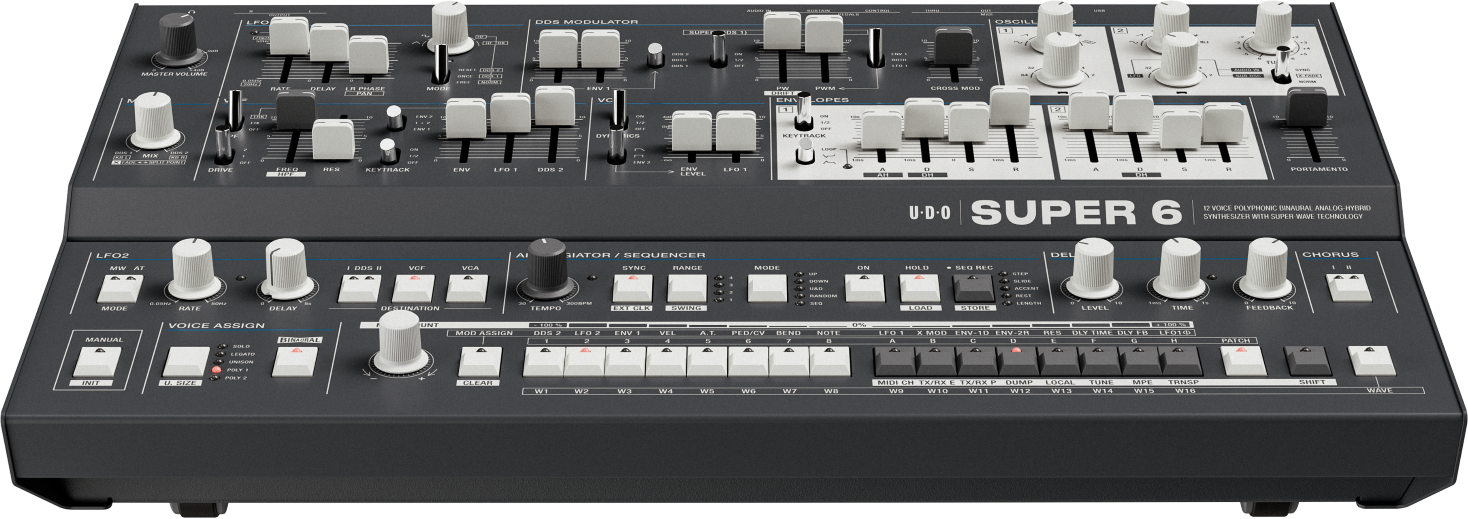

The UDO Audio Super 6 Desktop LTD Black is a high-end polyphonic hybrid synthesizer combining digital technology and analog circuitry for a rich, expressive and modern sound palette.

It takes the sonic heart of the famous Super 6 but in a compact desktop format, built entirely in a robust metal chassis with black limited edition finishes !

Designed for demanding musicians and producers, this module offers high expressivity, unique binaural vocal architecture and intuitive control without complex menus.

It can be used on a desk, integrated into a 19" rack (brackets optional) or mounted on a VESA bracket.

Technical sheet

Type of expander Analog

Architecture and synthesis
- Hybrid digital/analog synthesizer
- Polyphony: 12 voices
- Binaural architecture per voice
- FPGA digital oscillators (DDS)
- Oscillator 1 with Super-DDS and wavetable support
- Oscillator 2 with PWM, synchronization and cross-modulation
- Integrated noise generator
- 24 dB analog low-pass filter with resonance
- Switchable analog drive
- Static high-pass filter
Modulation and control
- 2 ADSR envelopes
- 2 LFOS
- Assignable modulation matrix
- Unison mode
- MPE compatibility and polyphonic aftertouch via external controller
Performance and effects
- Integrated arpeggiator
- Step sequencer
- 24-bit digital stereo effects (chorus, delay)
- 128 user preset memories

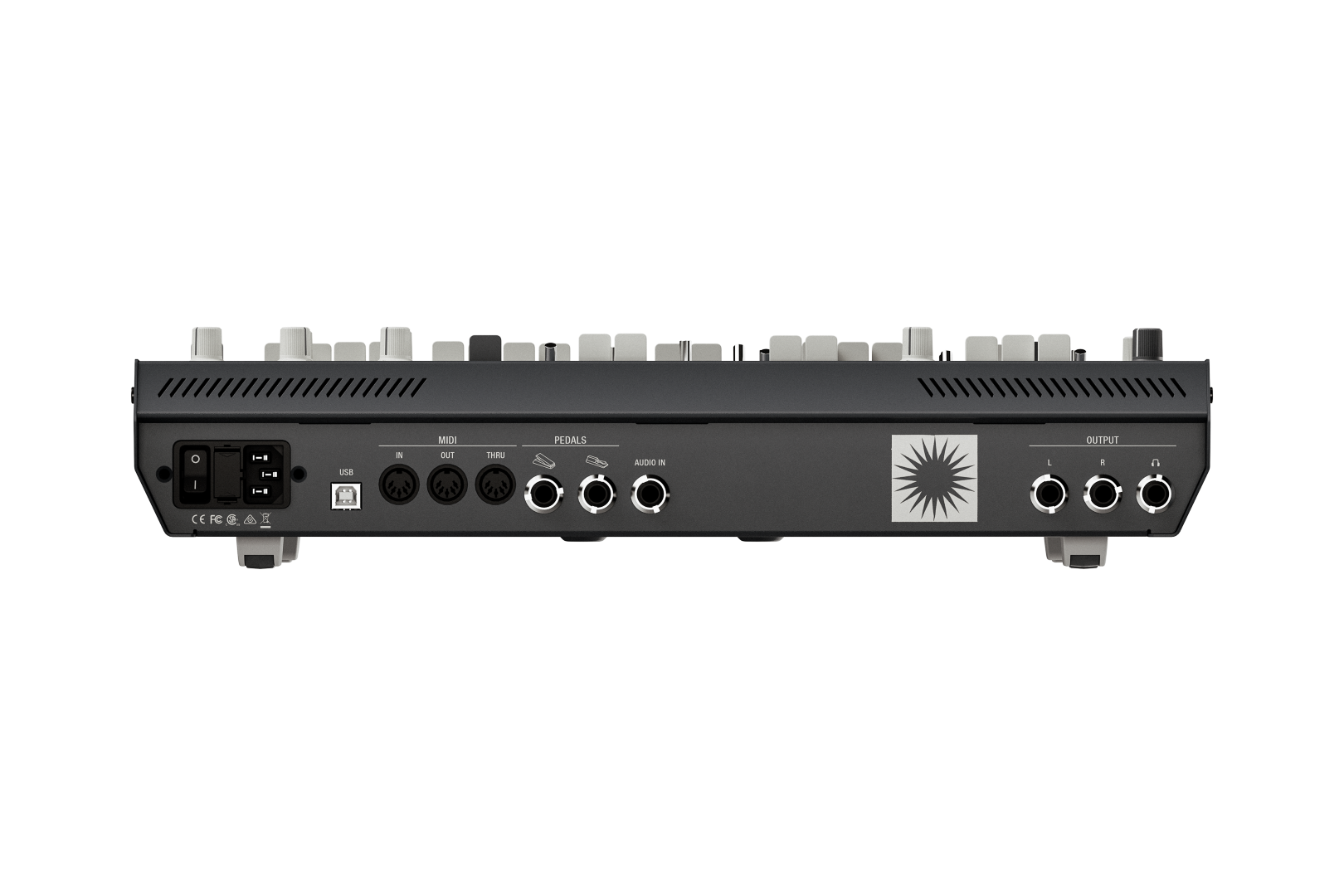

Connection
- Stereo left/right audio outputs
- 6.35 mm headphone output
- Audio input with envelope trigger
- MIDI In / Out / Thru
- USB-B port (MIDI, updates, preset management)
- Inputs for sustain and expression pedals
Construction and ergonomics
- Robust metal chassis
- Compact desktop format

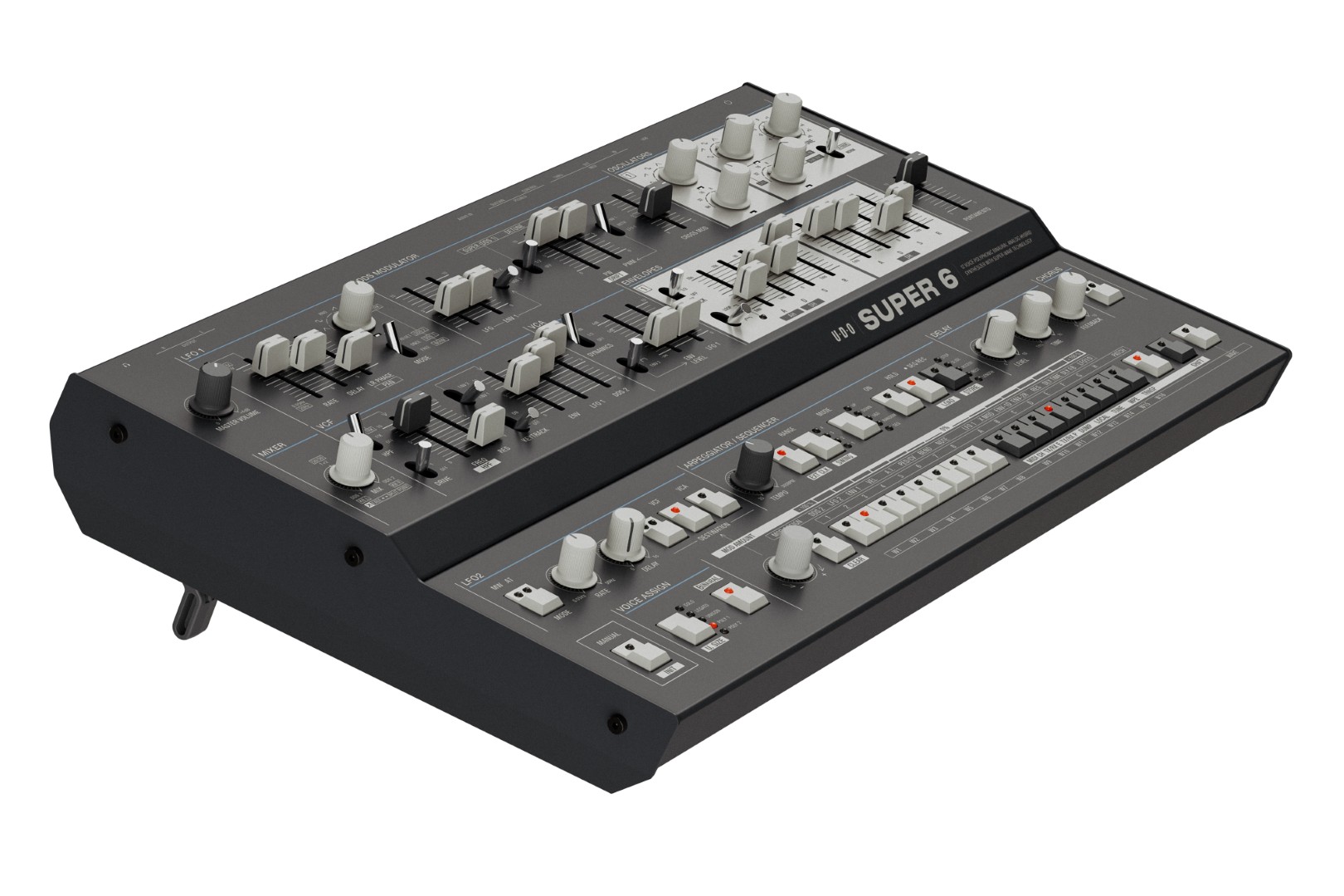

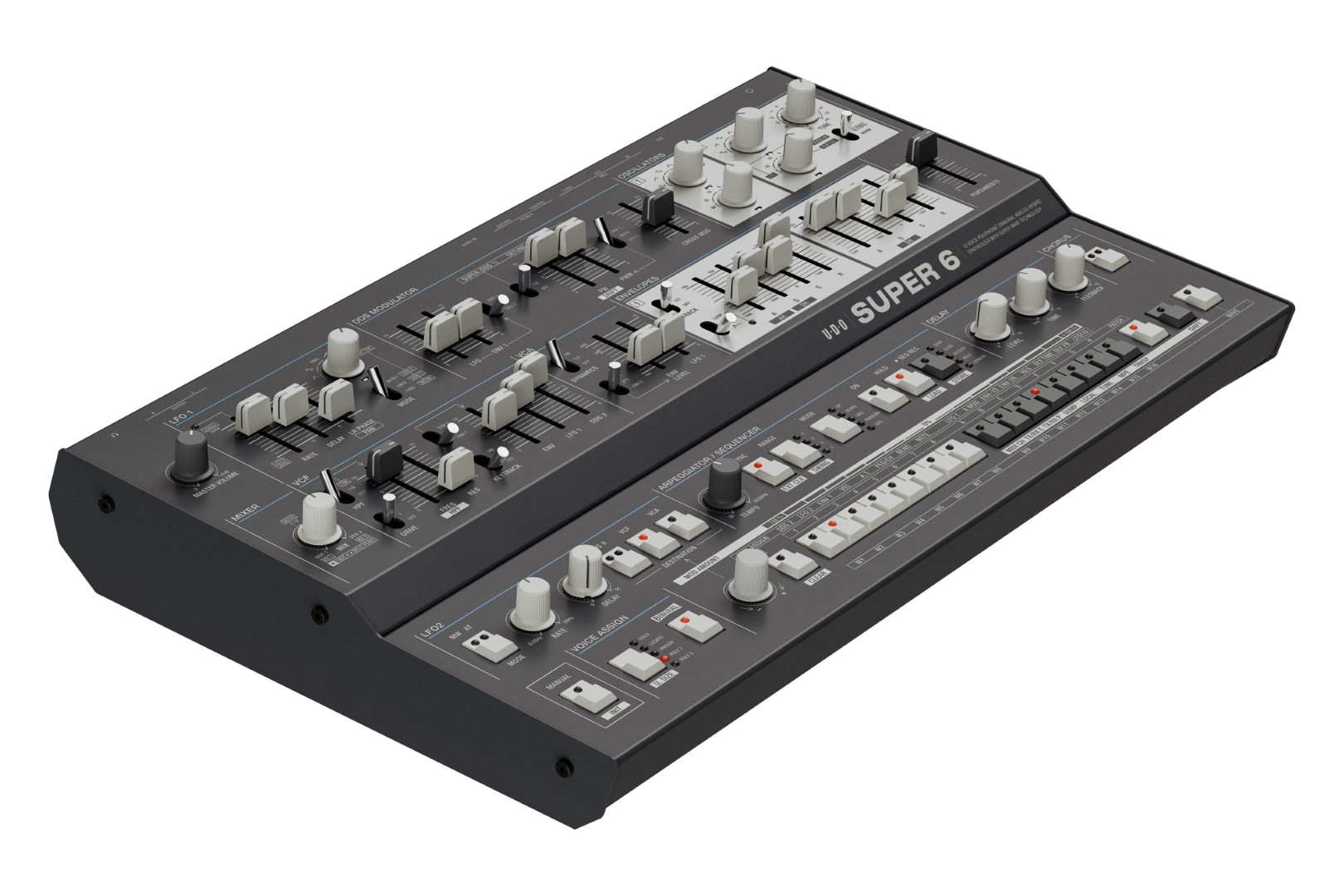

- Integrated tilting feet
- VESA-compatible mounting
- 19'' rack mounting (brackets optional)

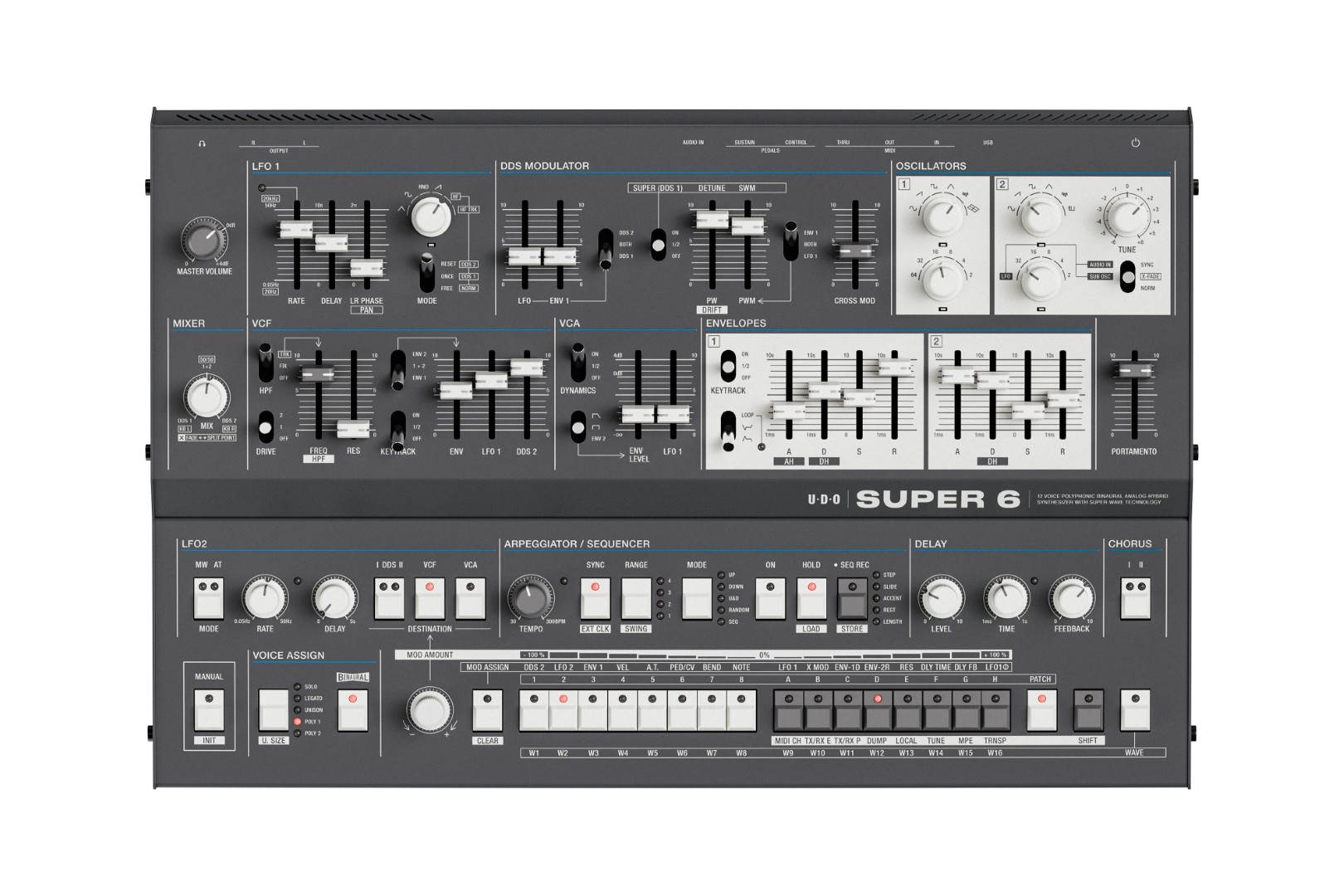

- Interface entirely dedicated to physical controls, without display
Dimensions and weight
- Approximate dimensions: 452 × 293.5 × 103 mm
- Approximate weight: 5.5 kg
