Expander

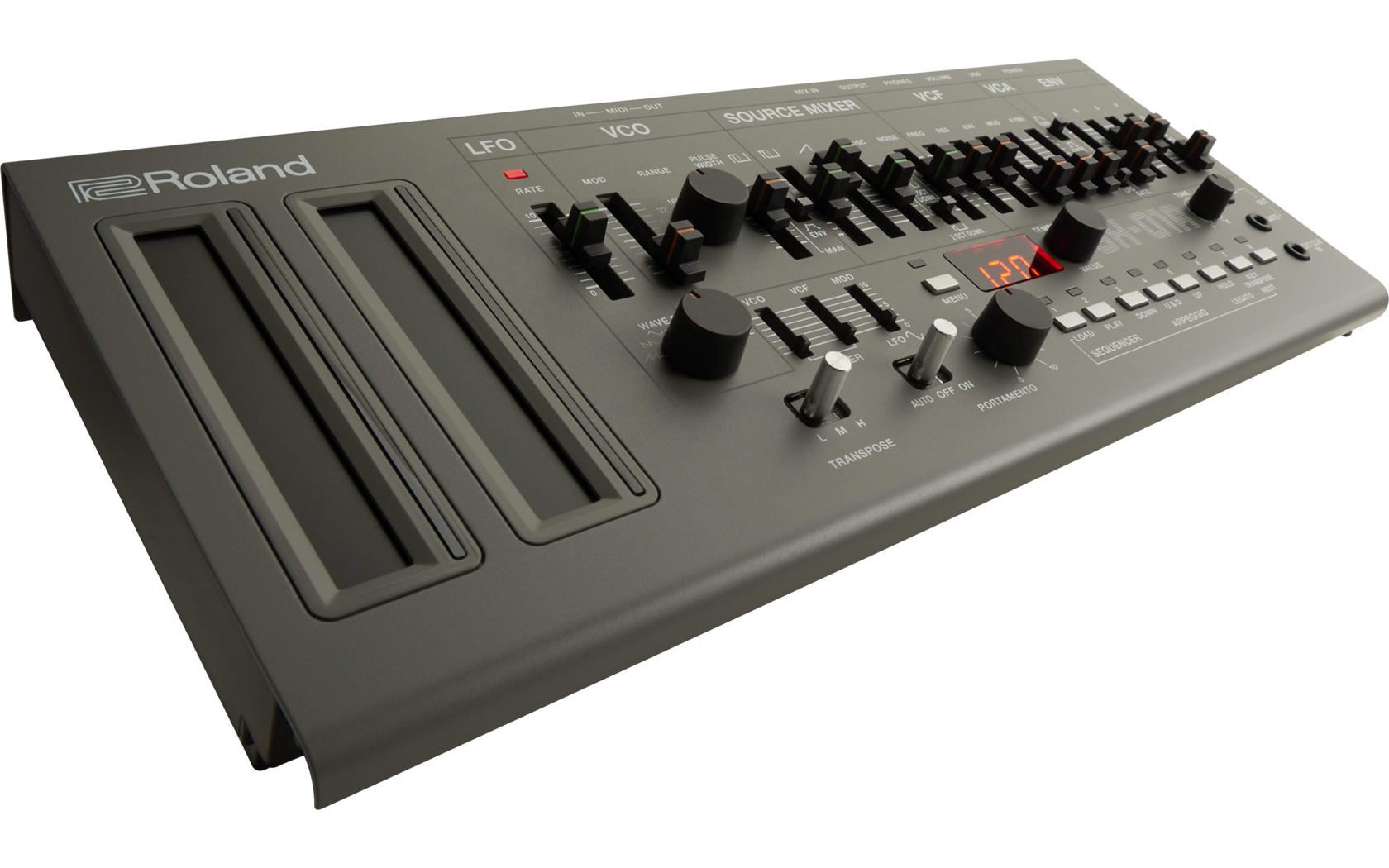

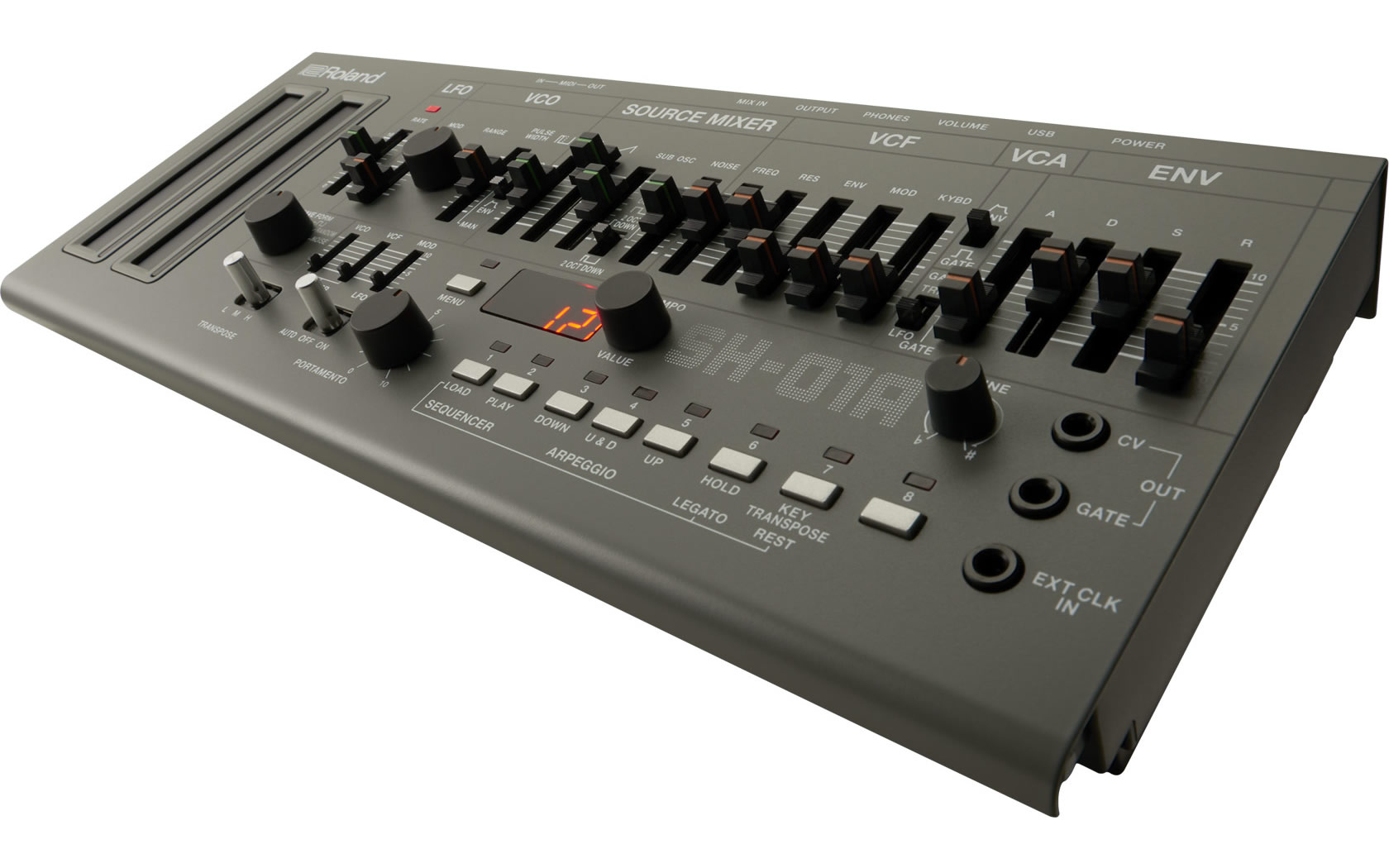

The SH-01A is a meticulous reproduction of the iconic Roland SH-101, one of the most popular classic synthesizers of all time.
It includes the Analog Circuit Behavior (ACB) technology, reproducing the SH-101’s legendary sounds by faithfully recreating the actual behavior of the original analog circuits.
This version offers new polyphonic capabilities, inspiring new performance features, keeping the sounds from the orignal SH-101 alive!
It includes the Analog Circuit Behavior (ACB) technology, reproducing the SH-101’s legendary sounds by faithfully recreating the actual behavior of the original analog circuits.
This version offers new polyphonic capabilities, inspiring new performance features, keeping the sounds from the orignal SH-101 alive!
Lire la suite
Technical sheet
- Type of expander Analog
- Sound Generator Section
- Maximum Polyphony: 4 voices
- Assign Mode: MONO/UNISON/POLY/CHORD
- User Memory
- Sound Patch: 64
- Sequencer Pattern: 64

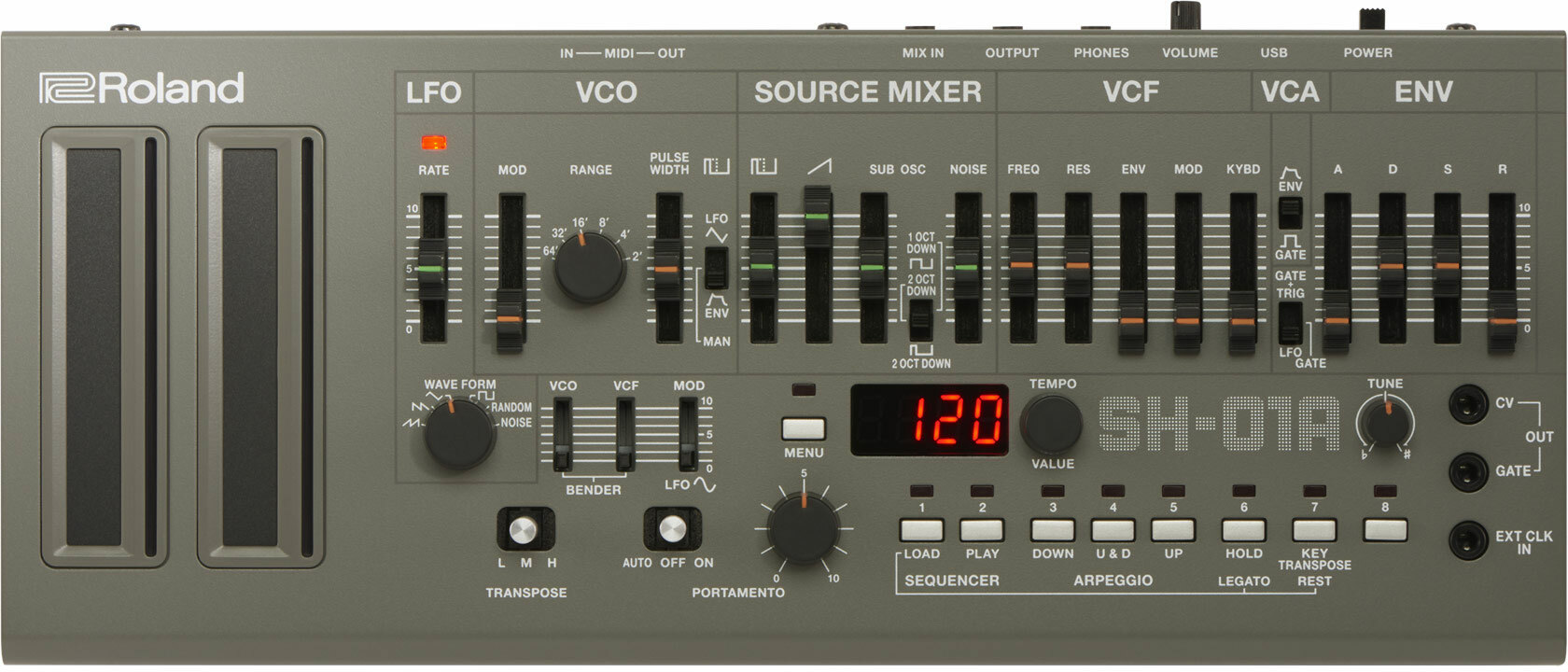

- Controllers
- VOLUME knob
- Ribbon controllers C1, C2
- LFO section:
- RATE indicator and slider
- WAVE FORM select knob
- VCO section:
- MOD depth slider
- RANGE select knob
- PULSE WIDTH slider
- LFO/MAN/ENV select switch
- SOURCE MIXER section:
- PULSE level slider
- SAW level slider
- SUB OSC level slider
- SUB OSC select slider
- NOISE level slider
- VCF section:
- FREQ: cutoff frequency slider
- RES: resonance slider
- ENV: envelope depth slider
- MOD: modulation depth slider
- KYBD: key follow slider
- VCA section:
- ENV/GATE select switch
- ENV section:
- GATE+TRIG/GATE/LFO select switch
- A: attack time slider
- D: decay time slider
- S: sustain level slider
- R: release time slider
- Controller section:
- TRANSPOSE switch (L/M/H)
- VCO BENDER sens slider
- VCF BENDER sens slider
- LFO MOD slider
- PORTAMENTO select switch (AUTO/OFF/ON)
- PORTAMENTO time knob
- Power switch
- Step Sequencer 100 steps, 4 notes (Polyphonic)
- Arpeggio DOWN/U&D/UP, 1 OCT/2 OCT
- Display 7 segments, 4 characters (LED)

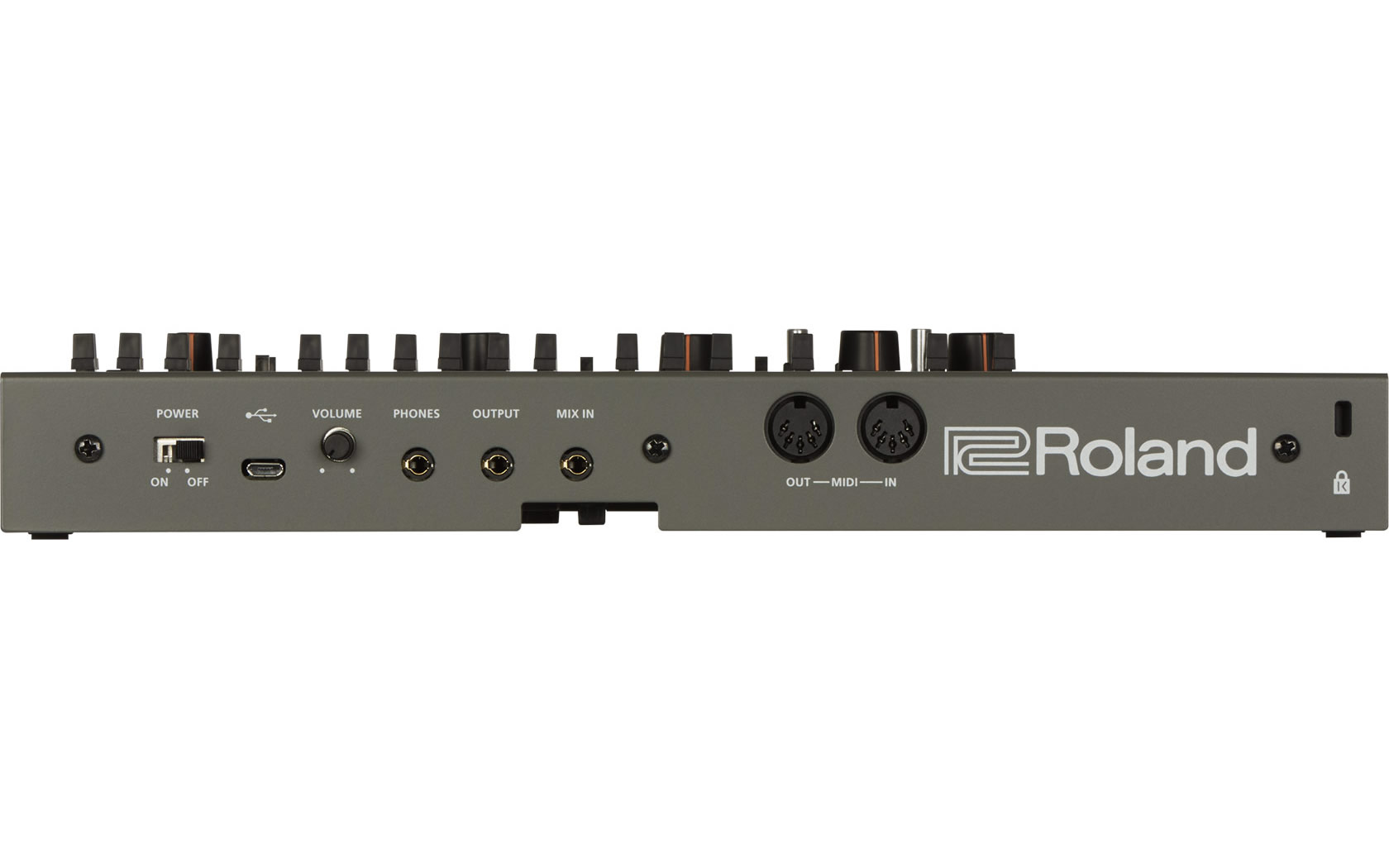

- Connectors:
- CV OUT jack: mono miniature phone type
- GATE OUT jack: mono miniature phone type
- EXT CLK IN jack: mono miniature phone type
- PHONES jack: stereo miniature phone type
- OUTPUT jack: stereo miniature phone type
- MIX IN jack: stereo miniature phone type
- MIDI (IN, OUT) connectors
- USB port: Micro-B type (Audio, MIDI)

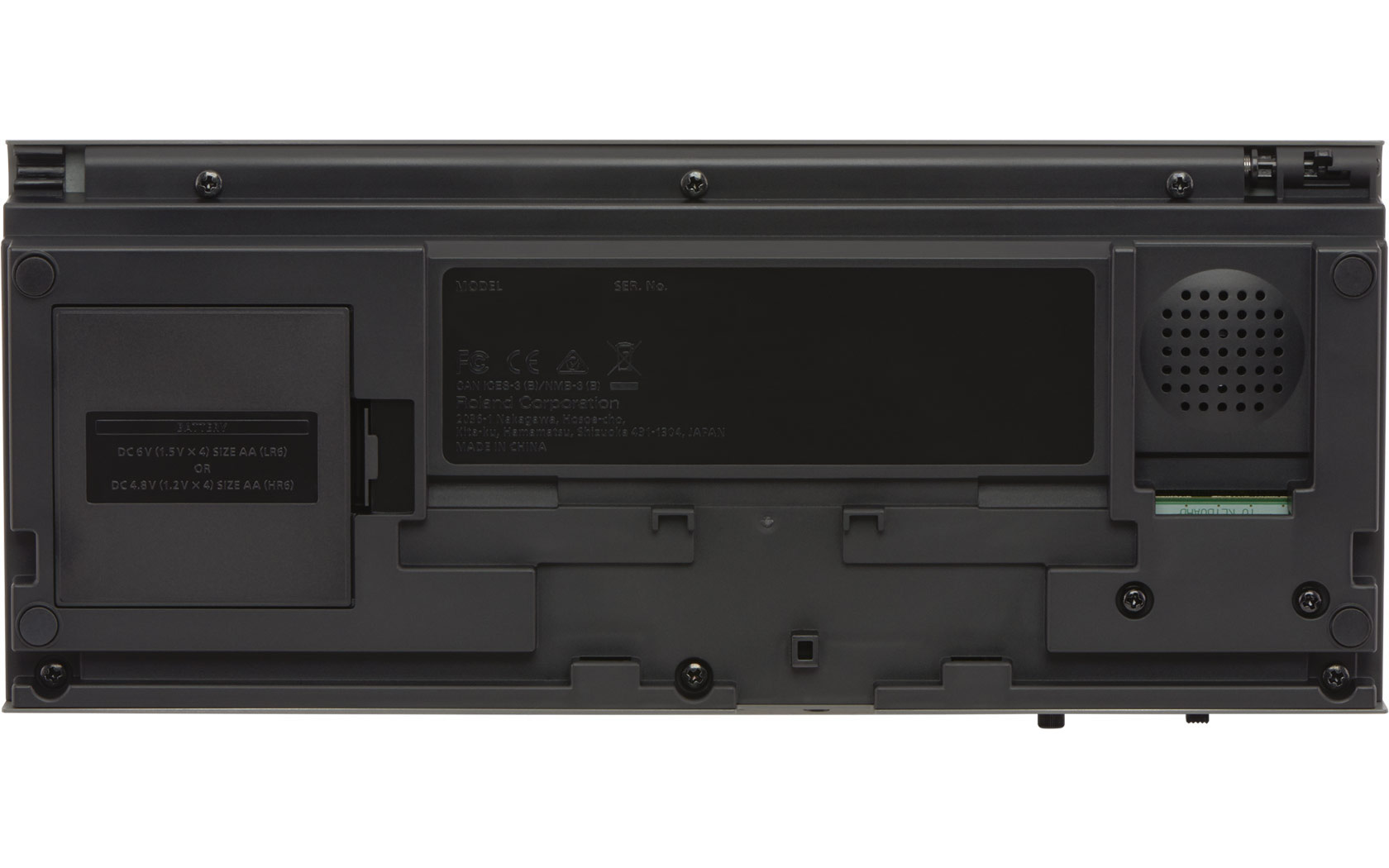

- Power Supply
- Rechargeable Ni-MH battery (AA, HR6) x 4
- Alkaline battery (AA, LR6) x 4
- USB bus power Current Draw500 mA (USB bus power)
- Accessories
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- Alkaline battery (AA, LR6) x 4Options (sold separately)
- Boutique Dock: DK-01
- SIZE AND WEIGHT
- Width 300 mm / 11-13/16 inches
- Depth 128 mm / 5-1/16 inches
- Height 46 mm / 1-13/16 inches
- Weight (including batteries) 965 g / 2 lbs 3 oz
