Wah & filter effect pedal

The legendary V846 is back, and it’s better than ever. Introducing the V846-HW: The ultimate Wah Wah pedal for the tone enthusiast, featuring hand-wired turret board construction and premium components.

Technical sheet

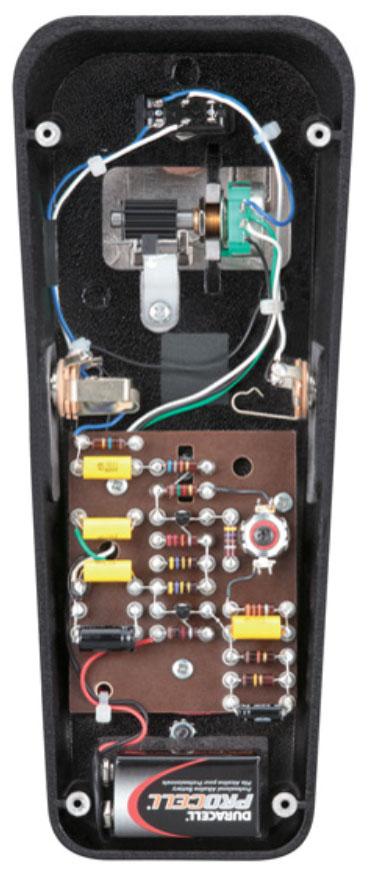

Hand-wired turret board construction uses absolutely no printed circuit boards
True bypass circuit eliminates loss in audio quality when bypassed
Vintage spec Halo type inductors reproduce the distinctive sound of the classic V846
New VOX potentiometer design provides precise control and excellent reliability
Low-noise carbon composite resistors (made in Japan by KAMAYA ELECTRIC CO., LTD)
High-quality polyester film capacitors
Foot switch made by Carling Technology, chosen for its durability and unbeatable feel underfoot
Solid and trustworthy jacks made by Switchcraft®
Terminals Input (x1) Output (x1)
Power supply 9 Volt Battery (x1)

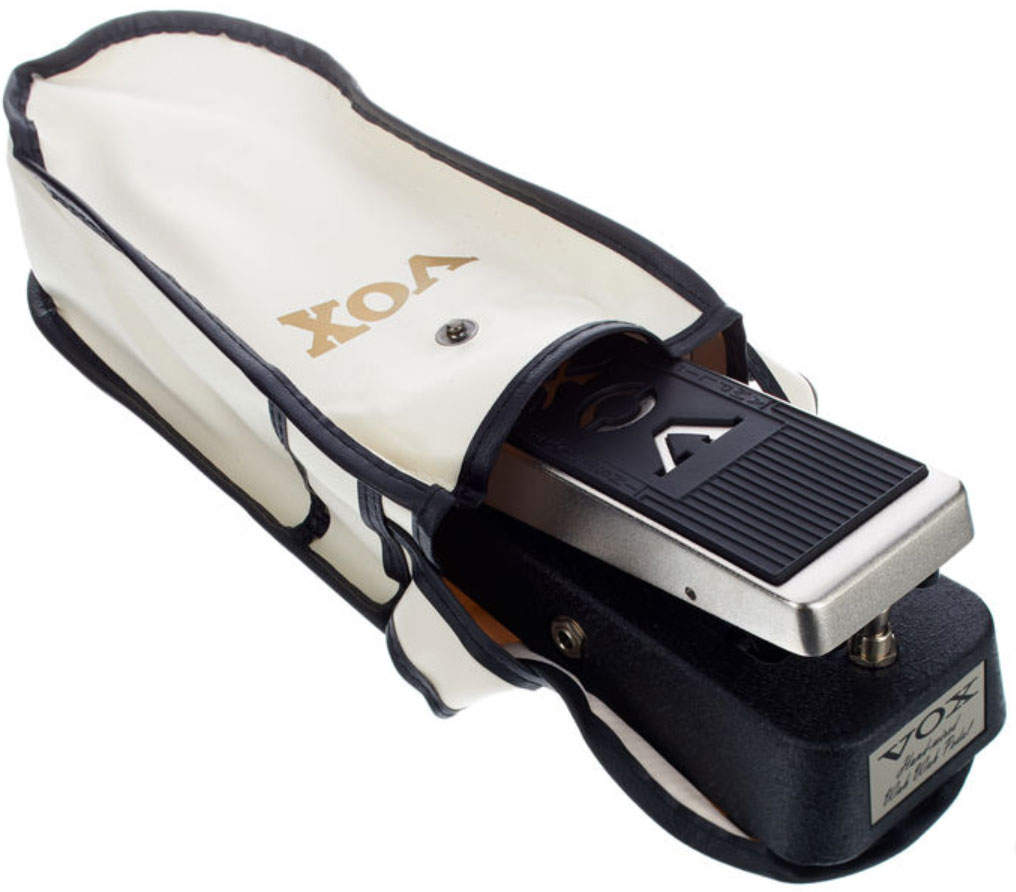

Standard Accessory Special Soft Case
Dimensions 4.02 x 9.96 x 3.15" (102 x 253 x 80 mm)
Weight 2.86 lbs. (1,300 g)(not including battery)
