Walrus audio Canvas Power 22
- Read reviews (0)
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 111409
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
The brand Walrus audio
Learn more about the Walrus audio brand and discover the entire catalog.
The largest network of stores in France
Find all the information on our superstores and our specialized boutiques.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Description
The Canvas Power 22 has 22 isolated power outputs that provide up to 500mA of "clean" current at 9v. Two of the outputs have variable voltage, allowing you to switch between 9v, 12v and 18v to power high voltage pedals . It also has a USB C port for powering devices such as your phone or tablet while you play.
Lire la suite
Technical sheet
- Canvas Power is a modular, linkable ecosystem to power your pedalboard
- Use to expand your existing Canvas Power system via included 24V link cable
- Includes external power supply unit: 4 ampere 96 Wattts.

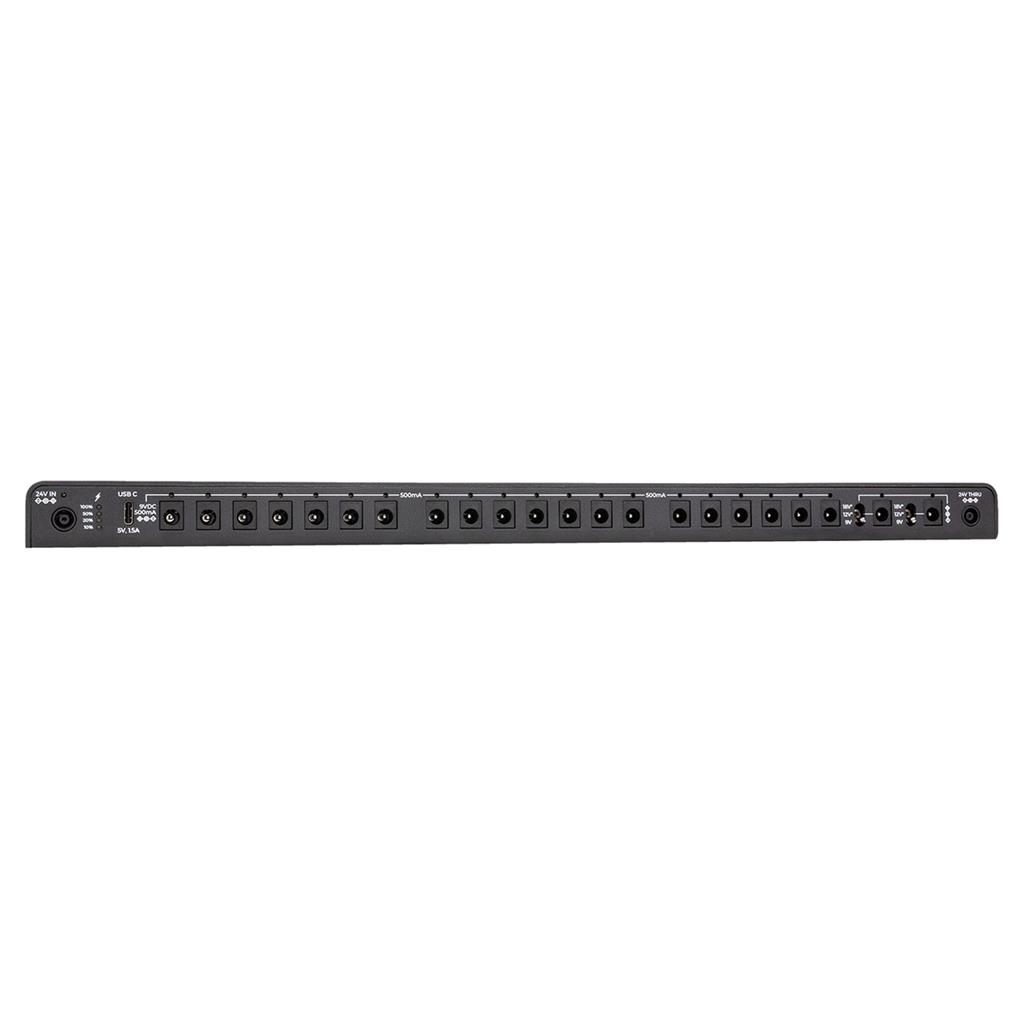

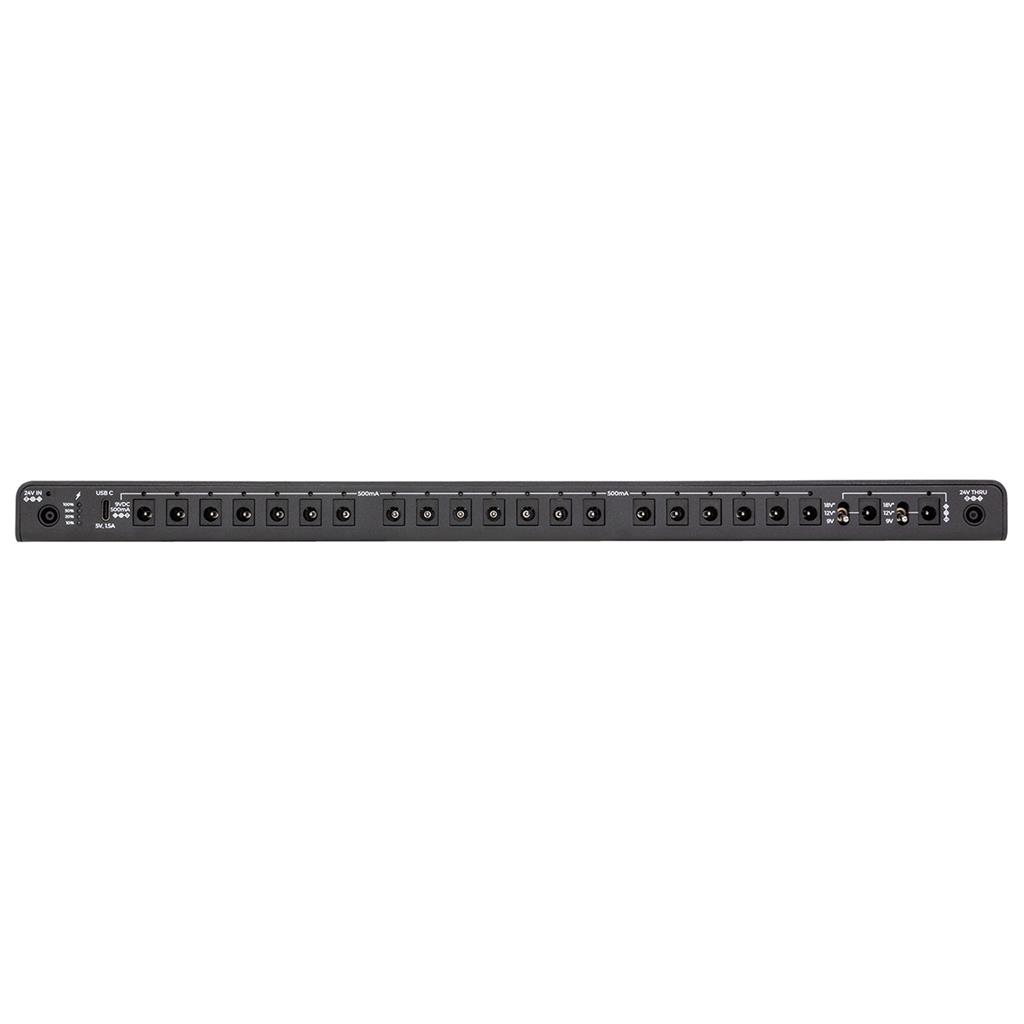

- 22 isolated outputs
- All outputs provide 500mA

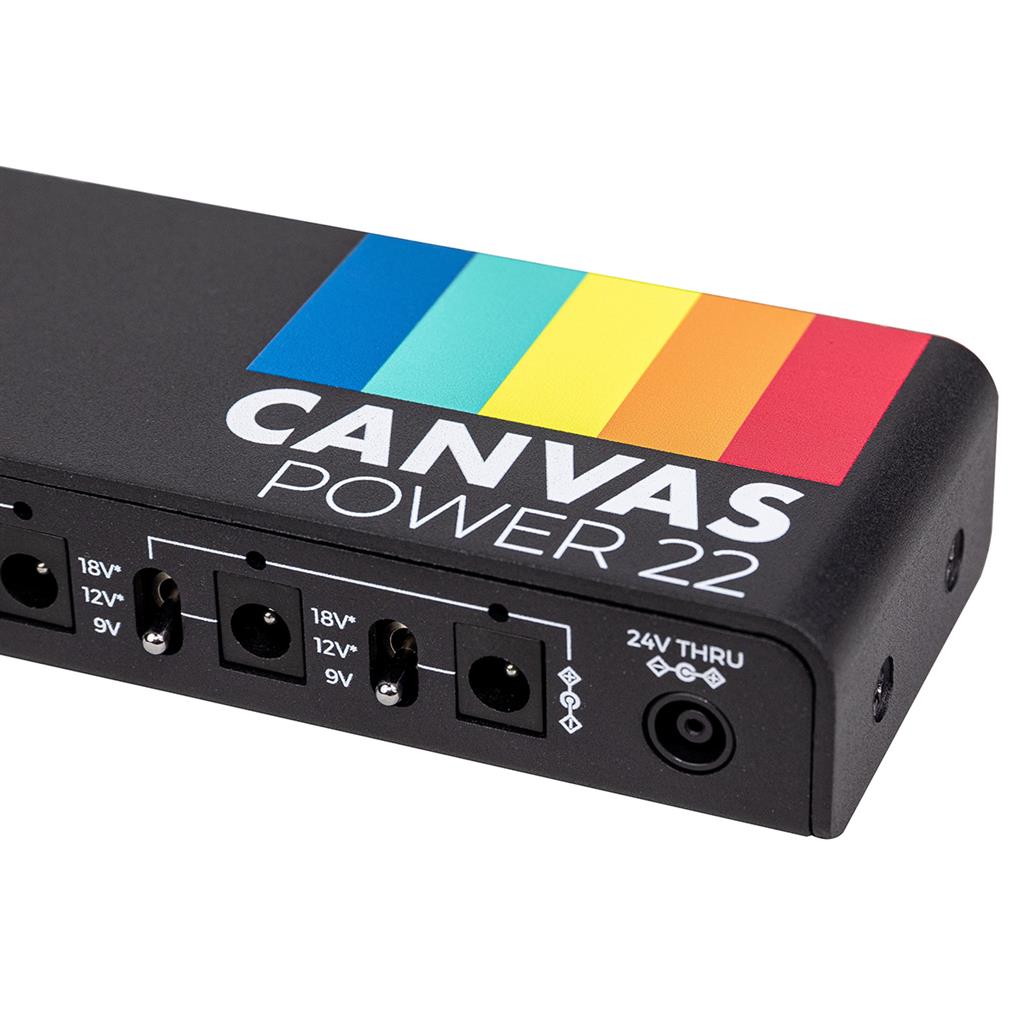

- 2 ports with variable output of 9, 12, or 18 Volts
- Ultra slim profile fits under most boards
- Clean, quiet, isolated power
- Enough right angle to straight “barrel to barrel” cables to supply power from every output to a pedal
- Included barrel cables have a very low profile tip for fitting into tight spaces

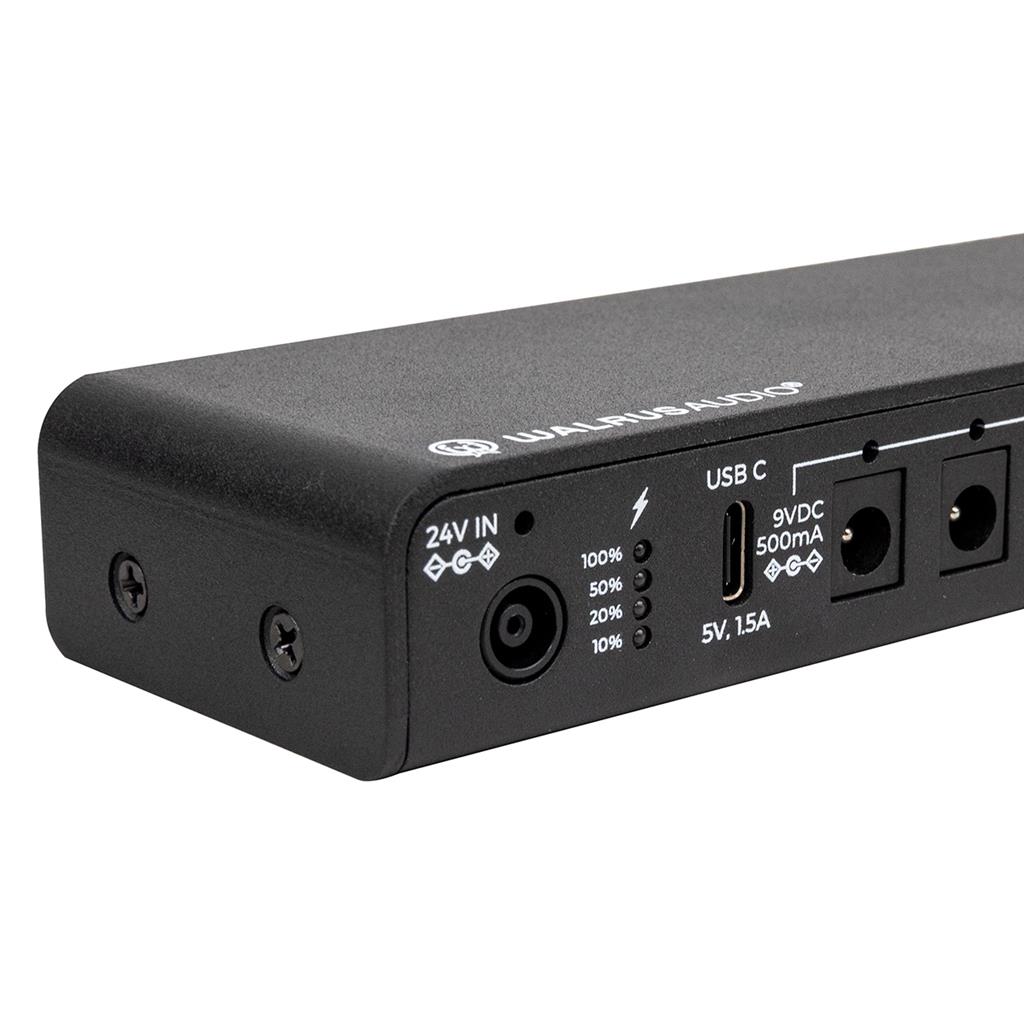

- 24V in and 24V Thru to connect to other Canvas Power units to grow with your pedal collection
- LED Power Meter: 100%, 50%, 30%, 10% status indicator
- USB C port to power accessories or charge phone/tablets
- Includes mounting brackets to mount to elevated boards like Pedal Train and similar style boards
- 24V link cable included
- No external power supply included
- Dimensions: 41.9 x 5.4 x 2.54 cm
- Weight: 0.64 kg
- Made in the USA
