Pedal power supply

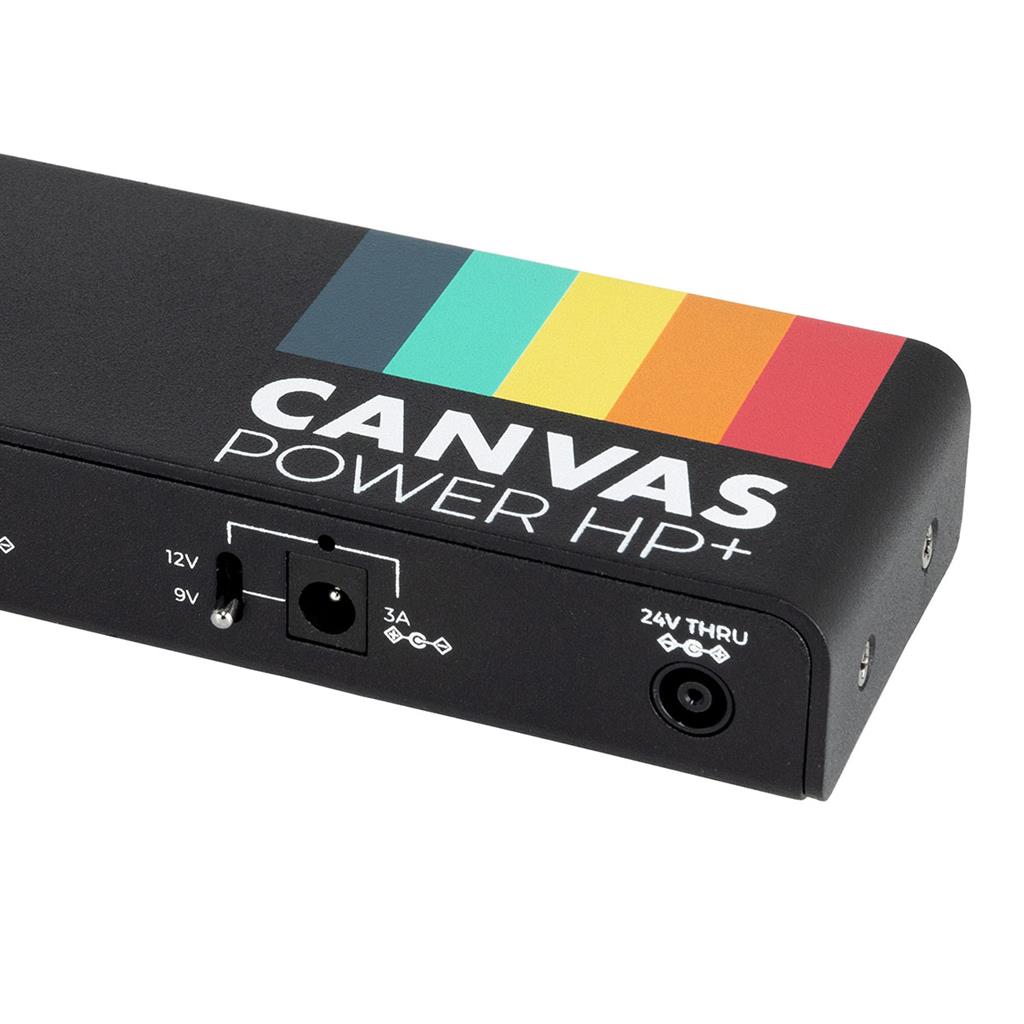

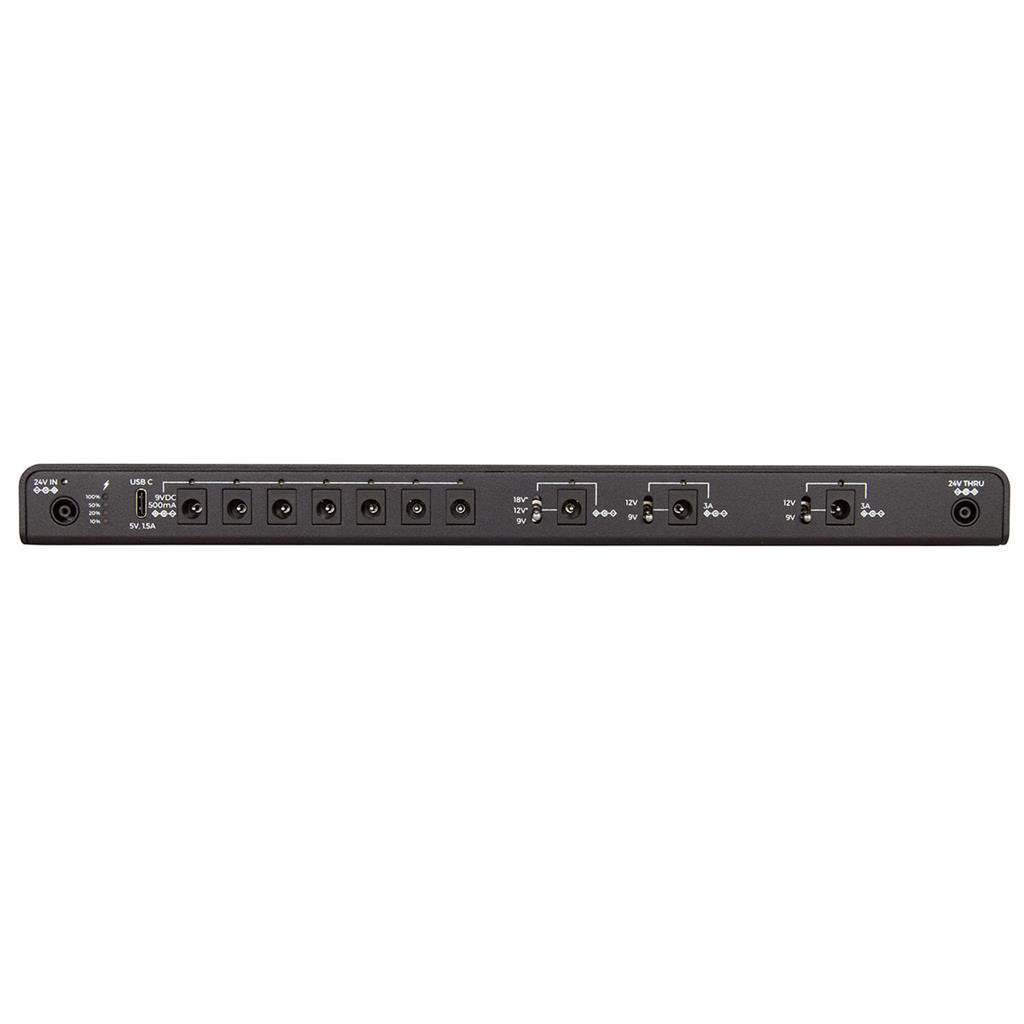

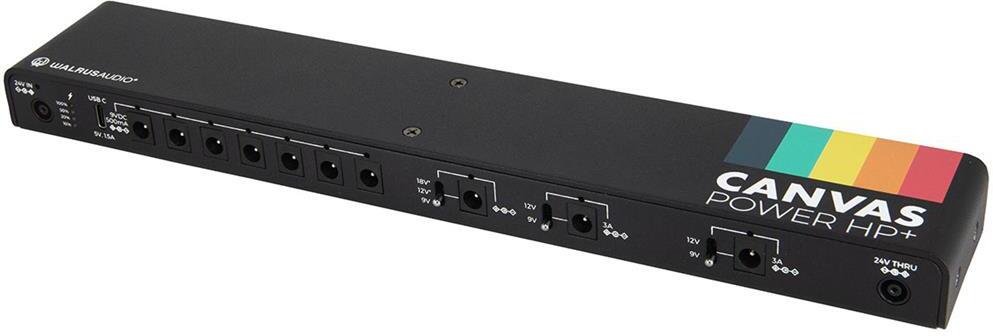

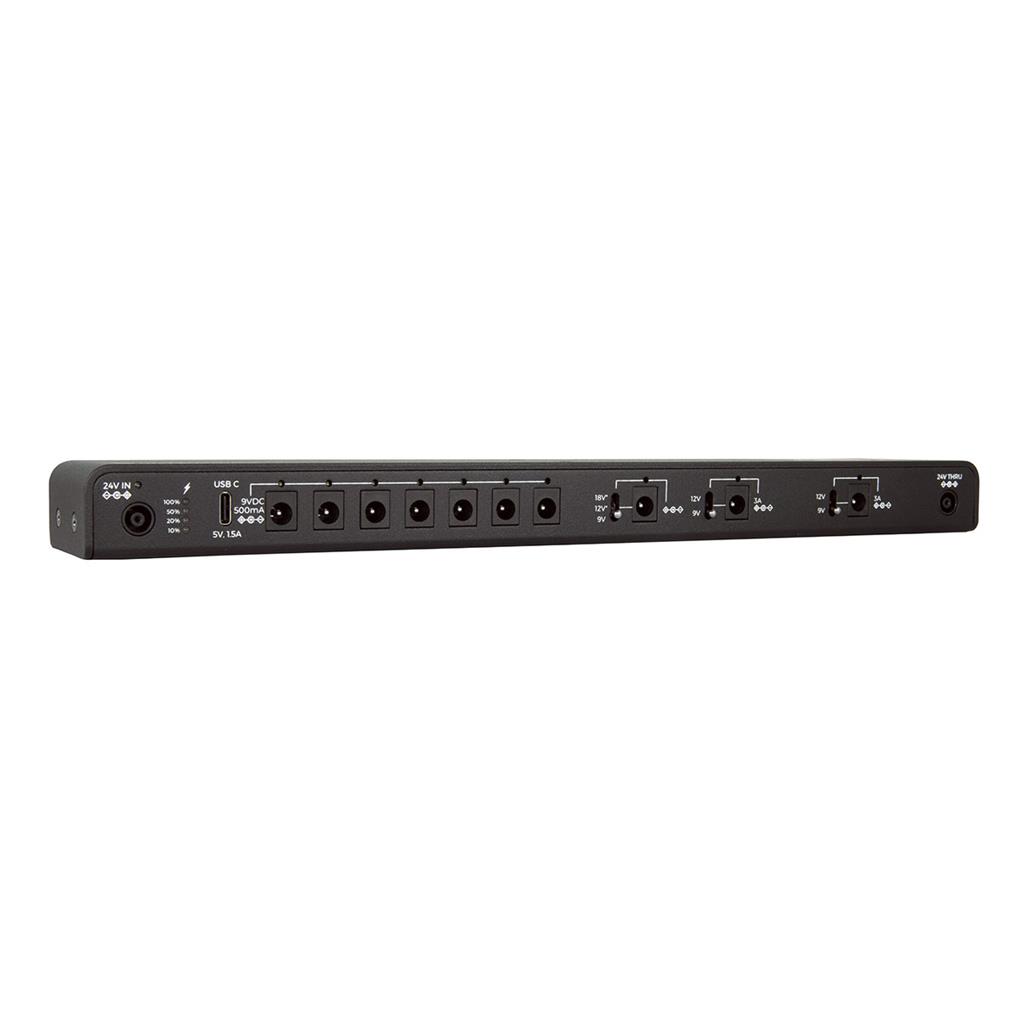

Canvas Power HP Plus is the ideal power solution for hybrid systems using pedals, modelers and/or multi-effects pedals. It lets you power even the most power-hungry devices with two 3 A outputs (three amps or 3,000 mA). HP Plus also includes seven isolated power outputs delivering up to 500 mA of clean current at 9 V, plus a variable 9/12/18 V output. The 3 A outputs can be switched between 9 V and 12 V to power high-voltage pedals.
HP Plus brings simplicity and modularity to powering your modeler, multi-effects or high-power pedals. With two ports delivering up to 3 A each and seven ports of silent, isolated and clean 9 V power (up to 500 mA each), HP Plus is perfect for hybrid systems using pedals and modelers such as the Quad Cortex, HX series and more. The Canvas Power series is designed with modern switch-mode power supply architectures. This means that each output is isolated, highly efficient and highly filtered, guaranteeing plenty of power with incredibly low noise.
The ultra-slim 1.2-inch design allows Canvas power supplies to fit almost any pedalboard, and the included universal mounting brackets mean you don't have to worry about power supply variations as you rush off to your next gig.
The built-in LED wattmeter clearly indicates power consumption, and each output has its own LED indicator showing when it's in standby mode.
HP Plus brings simplicity and modularity to powering your modeler, multi-effects or high-power pedals. With two ports delivering up to 3 A each and seven ports of silent, isolated and clean 9 V power (up to 500 mA each), HP Plus is perfect for hybrid systems using pedals and modelers such as the Quad Cortex, HX series and more. The Canvas Power series is designed with modern switch-mode power supply architectures. This means that each output is isolated, highly efficient and highly filtered, guaranteeing plenty of power with incredibly low noise.
The ultra-slim 1.2-inch design allows Canvas power supplies to fit almost any pedalboard, and the included universal mounting brackets mean you don't have to worry about power supply variations as you rush off to your next gig.
The built-in LED wattmeter clearly indicates power consumption, and each output has its own LED indicator showing when it's in standby mode.
Lire la suite
Technical sheet
- Two 3 A outputs with 9 V or 12 V selection
- Seven isolated 9 V outputs (up to 500 mA each)
- Variable 9 V/12 V/18 V output
- Modern switch-mode architecture = clean, silent power supply
- Optional configuration with 24 V supply link
- 3 cm (1.2") design compatible with most pedalboards
- Customized 2.1 mm cables with straight and short angled plugs
- LED output indicators + built-in wattmeter
- 7 9 V DC 500 mA outputs
- 1 variable output 9 V, 12 V or 18 V
- 2 variable outputs 3 A, 9 V or 12 V
- 1 USB-C 5 V 1.5 A charging output
