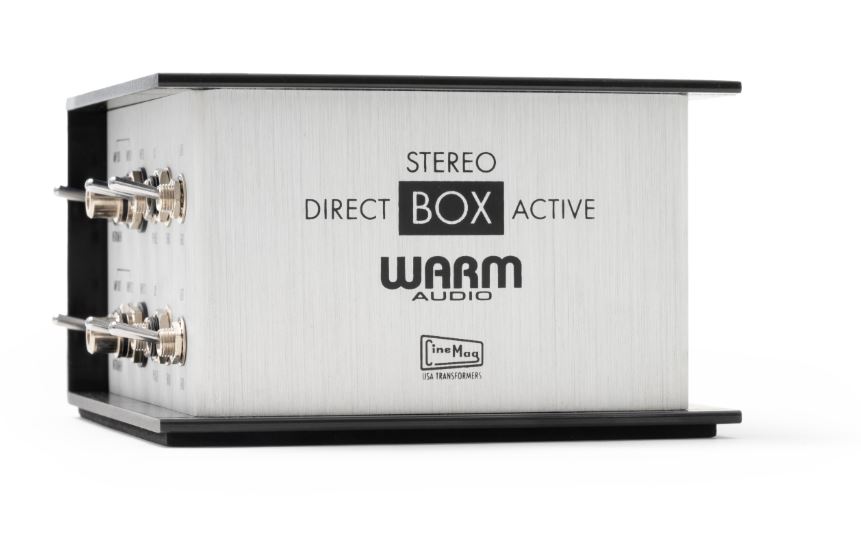

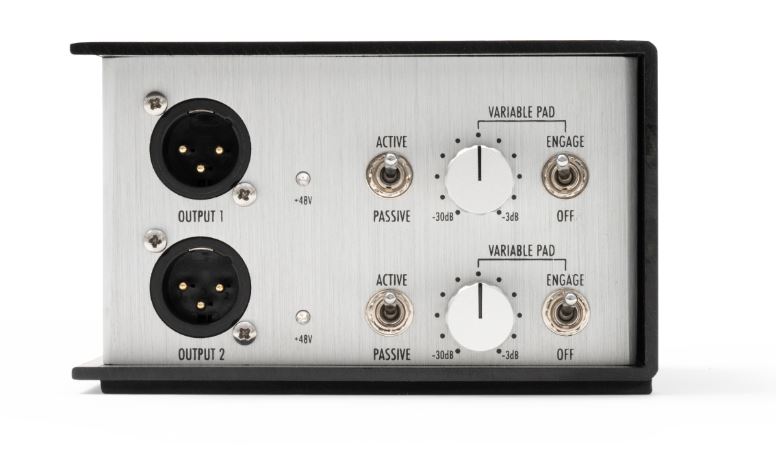

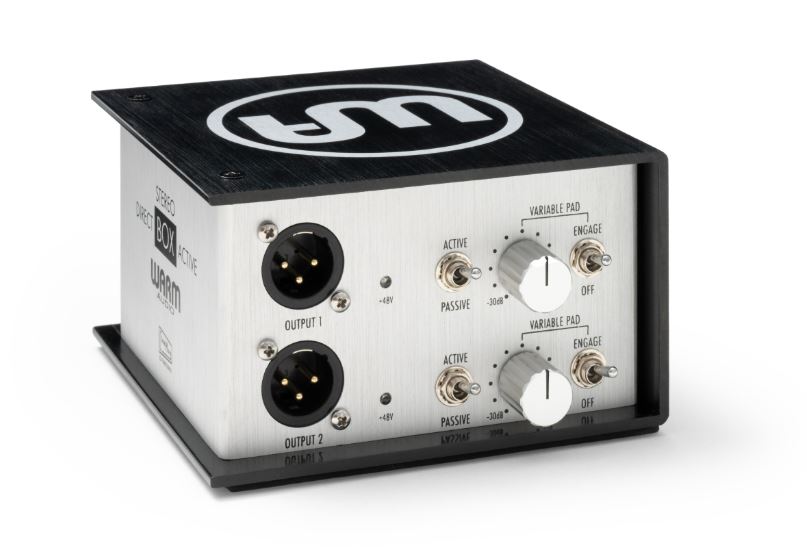

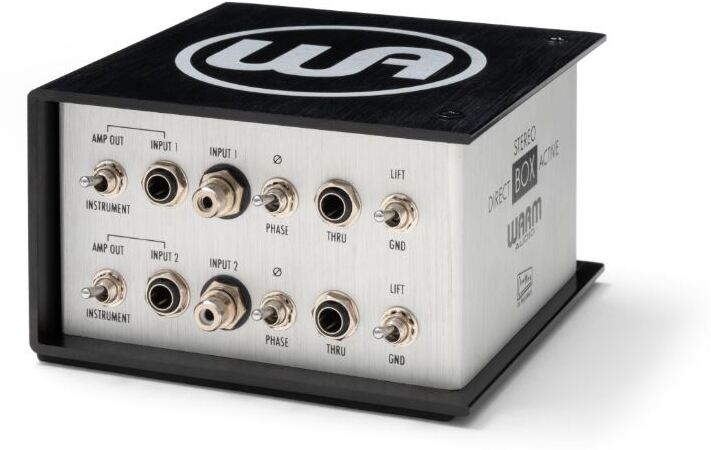

Warm audio WA-DI-A2 Active Stereo DI Box

Read reviews (0)
Related accessories
Similar products

Ref : 123112

409,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

Pre-order

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Warm audio

Learn more about the Warm audio brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Di box

Warm Audio stereo DIs are equipped with high-end CineMag USA transformers. They preserve the sonic character of your stereo keyboards, synthesizers, guitar processors and pedalboards, while delivering a clean balanced signal to mixing consoles, audio interfaces and PA systems.

An attenuator (-3 to -30 dB) lets you adjust signal level, while a ground/lift switch helps eliminate ground loops.

The active Stereo DI offers additional headroom and a selectable active circuit per channel, ideal for low-level instruments and stereo configurations.

Technical sheet

Custom-wound CineMag USA transformer-balanced stereo direct box (active or passive)
Balanced output: 600 ohms, mic level without degradation
High-quality Class A components with gold-plated PCB tracks
Ideal for connecting your instrument directly to a mic preamp
Input impedance: 1 MΩ
Frequency response (active/passive): 10 Hz to 100 kHz ± 0.5 dB
THD: 0.01% from 20 Hz to 50 Hz, < 0.004% from 50 Hz to 20 kHz (< 0.003% active)
Rugged aluminum construction
Pad: variable from -3 dB to -30 dB
Dimensions: 127 × 140 × 73 mm
Active/passive switch for reinforcing weak signals
48 V phantom power, can also be used in passive mode
