Loudspeakers

Wharfedale Titan-AX15B

Read reviews (0)
find out more

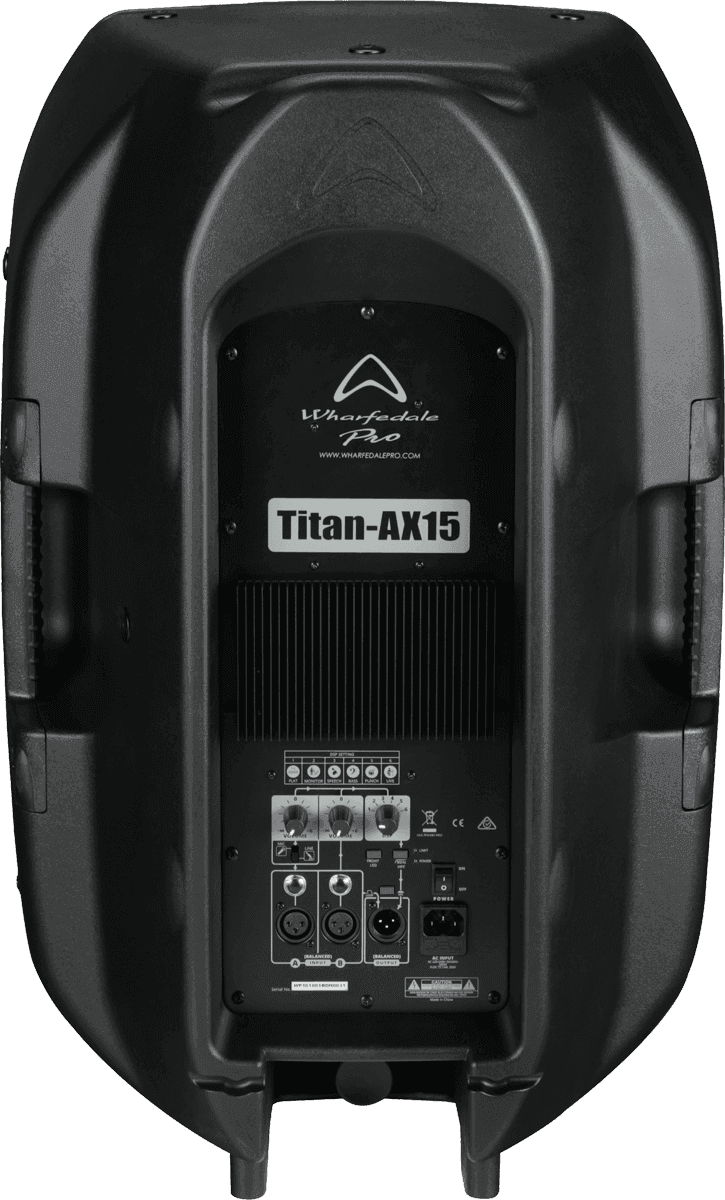

  • Wharfedale Titan-ax15b - Active full-range speaker - Main picture
  • Wharfedale Titan-ax15b - Active full-range speaker - Variation 1
  • Wharfedale Titan-ax15b - Active full-range speaker - Variation 2
622.00 €
559,00 €
Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty
In stock
shipped under 3/5 days
Stock in store
Not available in store
Other version(s)
Titan-AX12B
How to choose your PR System - Buying guide Read the full guide
Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco
Contact an expert
+33 181 930 900 email

Active full-range speaker

The Titan AX15B from Wharfedale is a portable, lightweight and versatile active speaker.
It features a cutting-edge 6- position DSP engine.
Rated at 700 watts peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues.

SPECIFICATIONS

  • Ref : 75860
  • - Pa power speaker : 301 to 600 watts rms
  • - Type of pa speaker : stage & foh monitor
  • - Model Name: TITAN AX15
  • - System Type: Active 15" 2-way Bi-amplified
  • - Frequency Response (+/-3dB): 50Hz-20kHz
  • - Frequency Range (-10dB): 40Hz-20kHz
  • - Calculated Max SPL @ 1m: 129dB
  • - Low Frequency Transducer
  • - Size (mm / inches): 381mm / 15"
  • - Coil Size (mm / inches): 75mm / 3"
  • - High Frequency Transducer
  • - Type: Compression Driver
  • - Coil size (mm / inches): 44mm / 1.75"
  • - Exit size (mm / inches): 25mm / 1"
  • - Diaphragm Material: Titanium
  • - Amplifiers
  • - Power amp LF RMS/Peak Watts: 350/700w (Class D)
  • - Power amp HF RMS/Peak Watts: 70/140w (Class D)
  • - Controls
  • - EQ: Note - EQ changed by DSP knob
  • - DSP: Advanced user selectable presets. 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE
  • - Hi Pass switch: 90Hz
  • - Amplifier Protection: Yes
  • - Thermal Protection: Yes
  • - Low line voltage shut down: 60% Nominal line voltage
  • - Driver Protection: Independant LF and HF limiters
  • - Clip Limiter: Turns on ~250w output
  • - Connectors
  • - Input type: Switchable balanced mic or line level (Chan 1)
  • - Input connector: 2 * XLR & 2 * 1/4" jack (Chan 1 Line/MIC)
  • - Line output connector: Switchable LOOP/MIX Balanced Female XLR
  • - Weight & dimensions: 22,94 kg - 728,5 x 480,6 x 395,6 mm
