Active full-range speaker

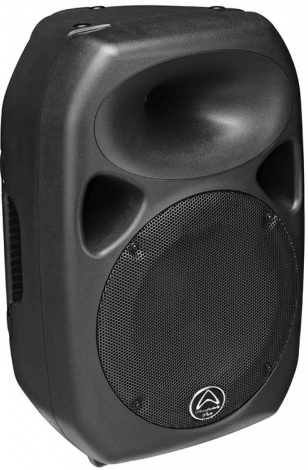

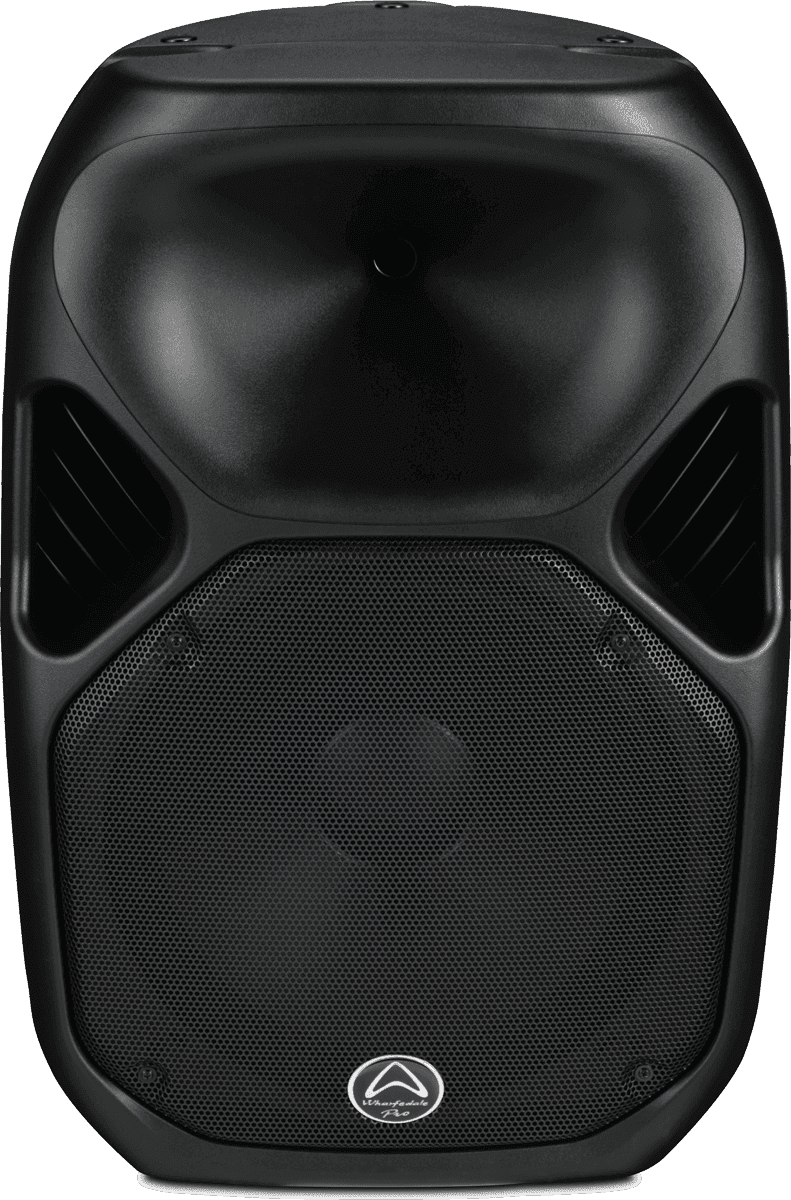

The Titan AX12B from Wharfedale is a portable, lightweight and versatile active speaker.
It features a cutting-edge 6- position DSP engine.
Rated at 600 watts peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues.
It features a cutting-edge 6- position DSP engine.
Rated at 600 watts peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues.
Lire la suite
Technical sheet
- PA power speaker 151 to 300 watts RMS
- Type of PA speaker Stage & FOH monitor
- Model Name: TITAN AX12
- System Type: Active 12" 2-way Bi-amplified
- Frequency Response (+/-3dB): 55Hz-20kHz
- Frequency Range (-10dB): 50Hz-20kHz
- Calculated Max SPL @ 1m: 128dB
- Low Frequency Transducer
- Size (mm / inches): 305mm / 12"
- Coil Size (mm / inches): 64.26mm / 2.5"
- High Frequency Transducer
- Type: Compression Driver
- Coil size (mm / inches): 44mm / 1.75"
- Exit size (mm / inches): 25mm / 1"
- Diaphragm Material: Titanium
- Amplifiers
- Power amp LF RMS/Peak Watts: 250 / 500w (Class D)
- Power amp HF RMS/Peak Watts: 50 / 100w (Class D)
- Controls
- EQ: Note - EQ changed by DSP knob
- DSP: Advanced user selectable presets. 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE
- Hi Pass switch: 90Hz
- Amplifier Protection: Yes
- Thermal Protection: Yes
- Low line voltage shut down: 60% Nominal line voltage
- Driver Protection: Independant LF and HF limiters
- Clip Limiter: Turns on ~250w output

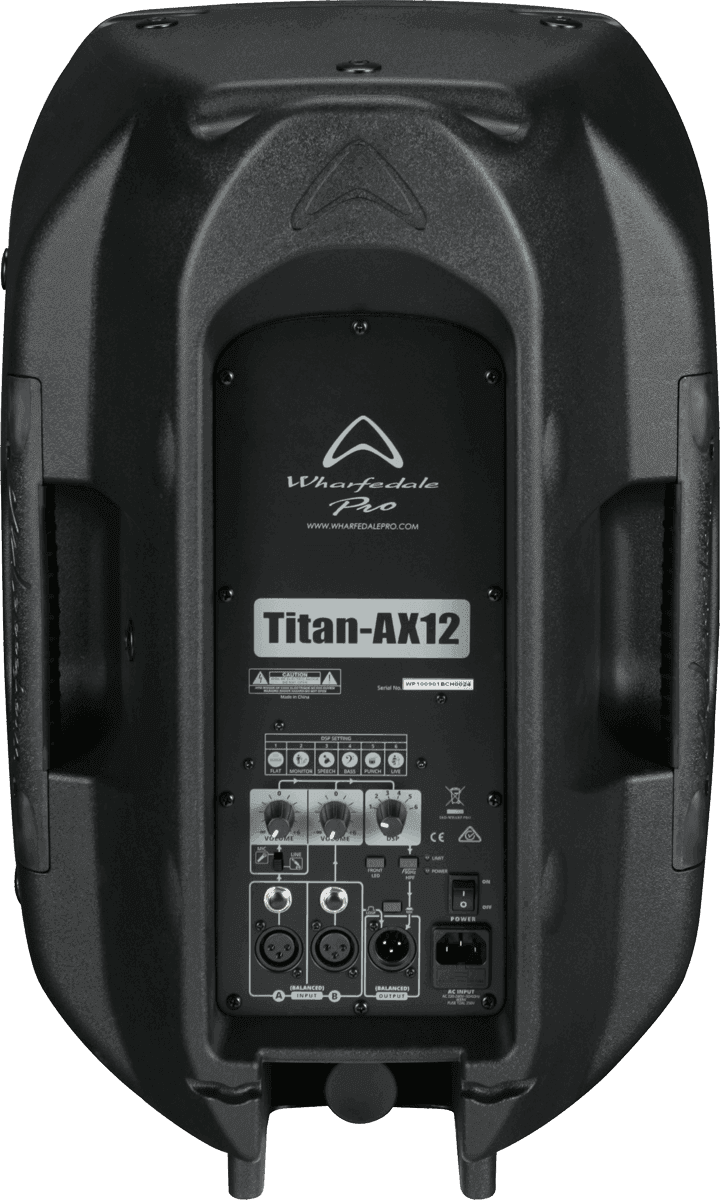

- Connectors
- Input type: Switchable balanced mic or line level (Chan 1)
- Input connector: 2 * XLR & 2 * 1/4" jack (Chan 1 Line/MIC)
- Line output connector: Switchable LOOP/MIX Balanced Female XLR
- Dimensions
- Height: 582.7mm / 22.9"
- Width Front: 384.6mm / 15.1"
- Width Rear: 384.6mm / 15.1"
- Depth: 318.6mm / 12.5"
- Weight: 12.4kg / 27.28lbs
